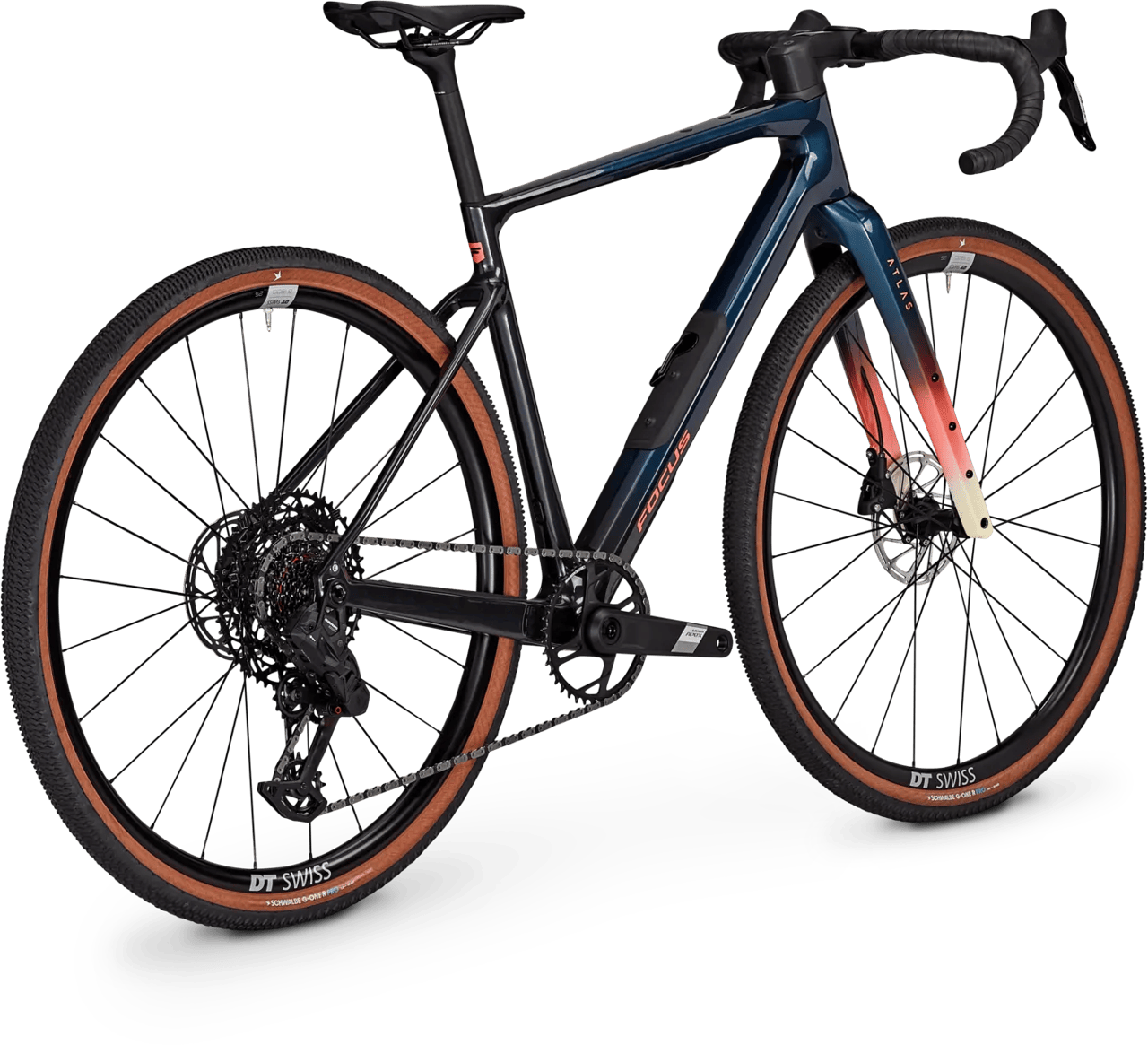

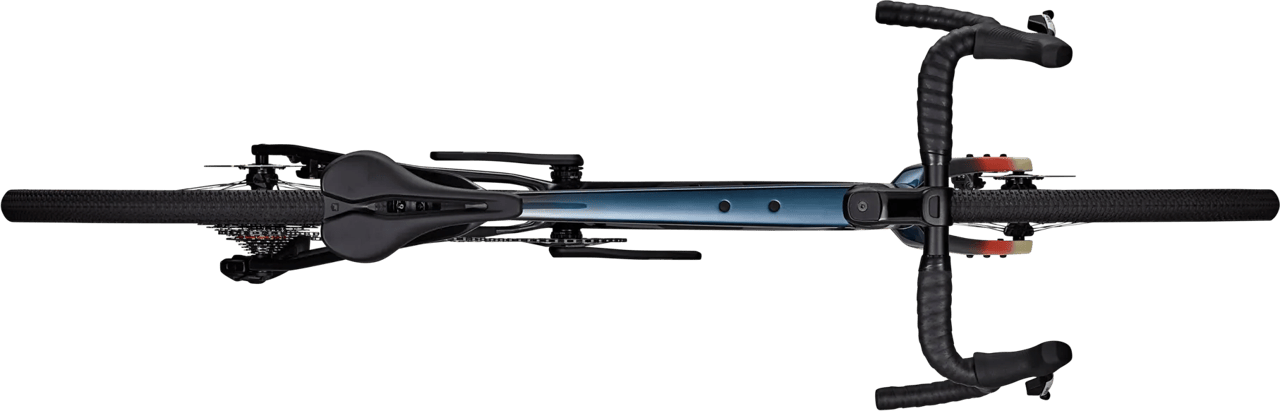

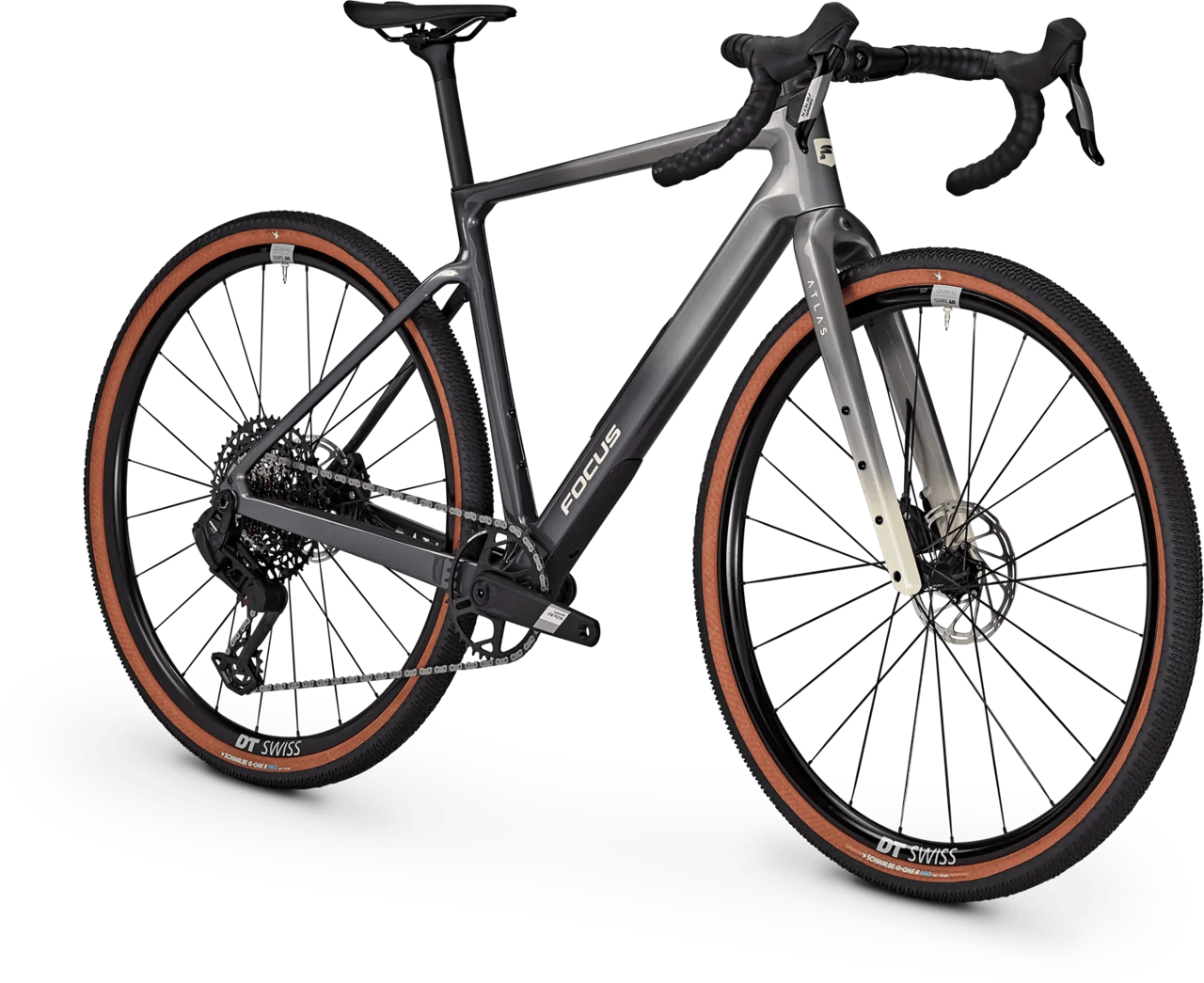

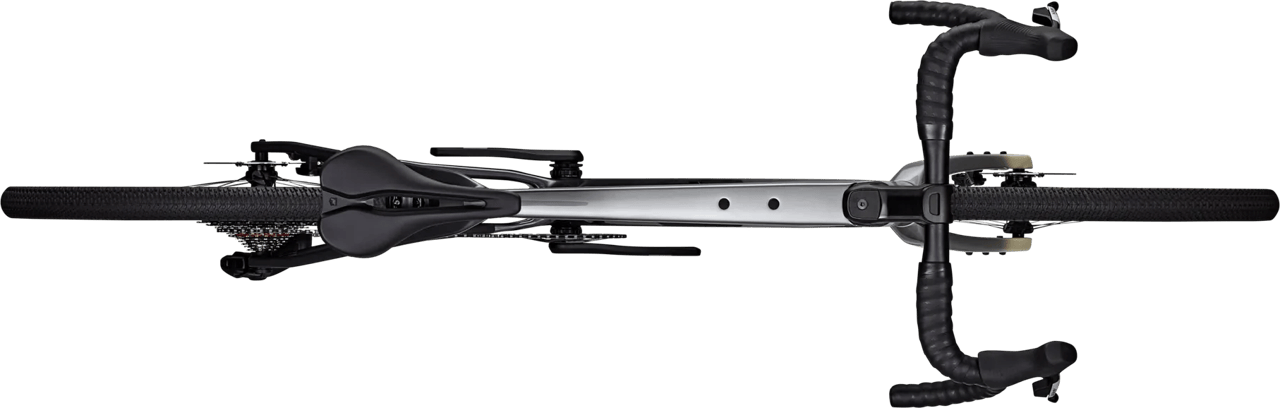

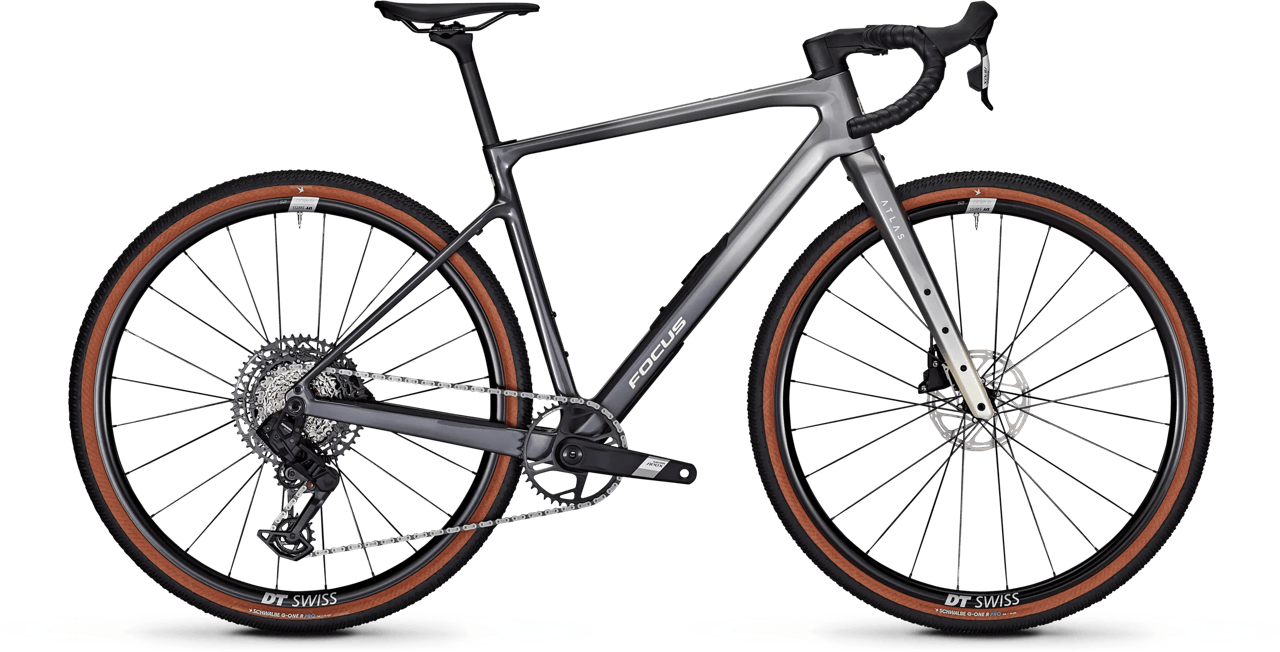

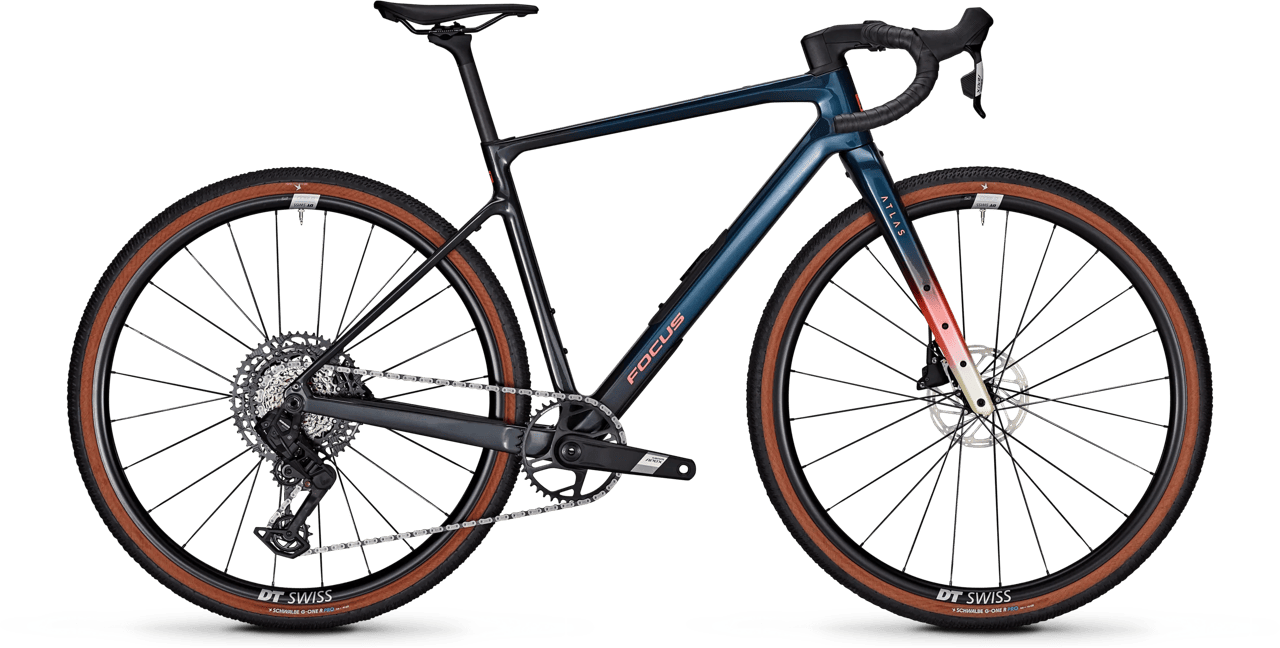

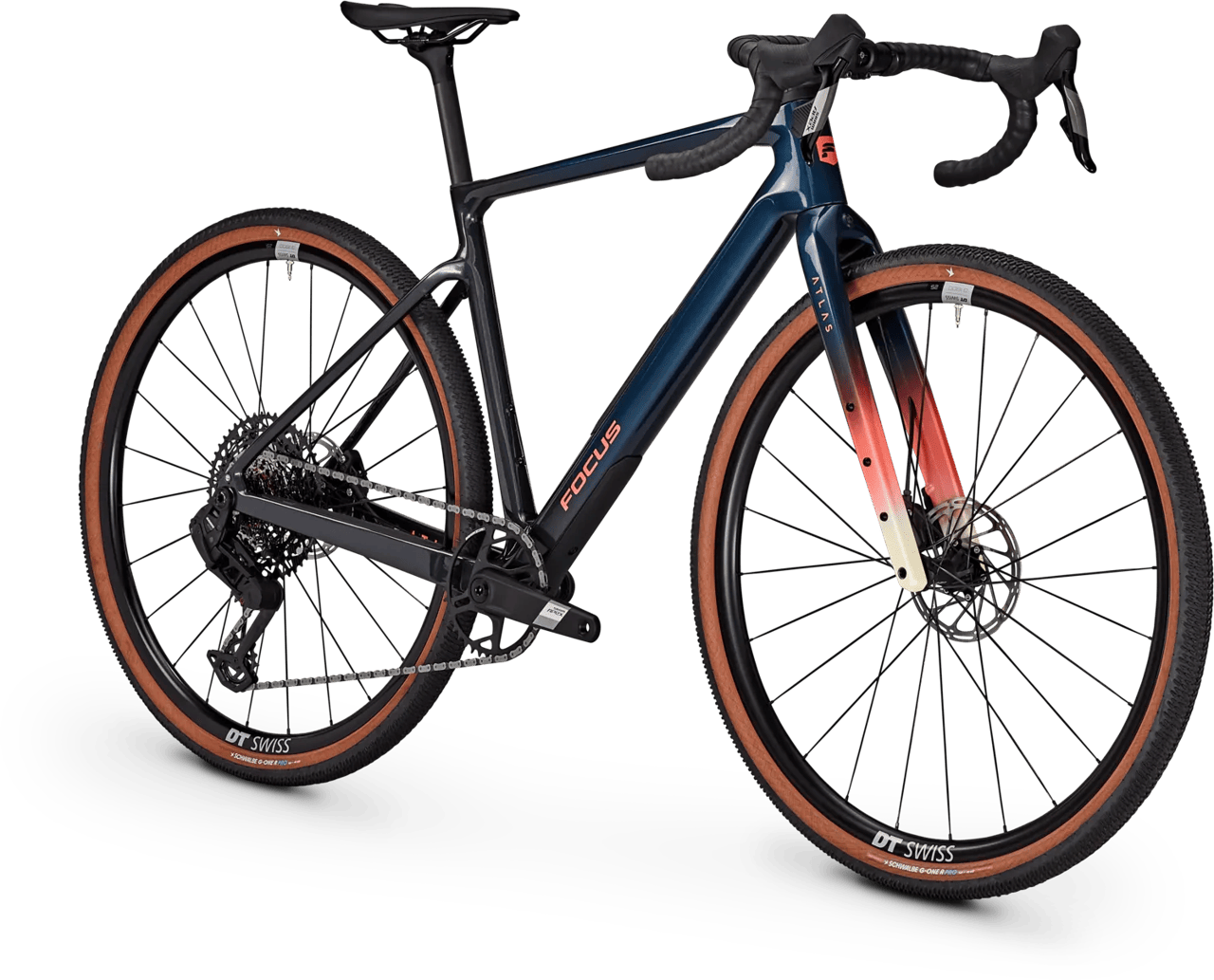

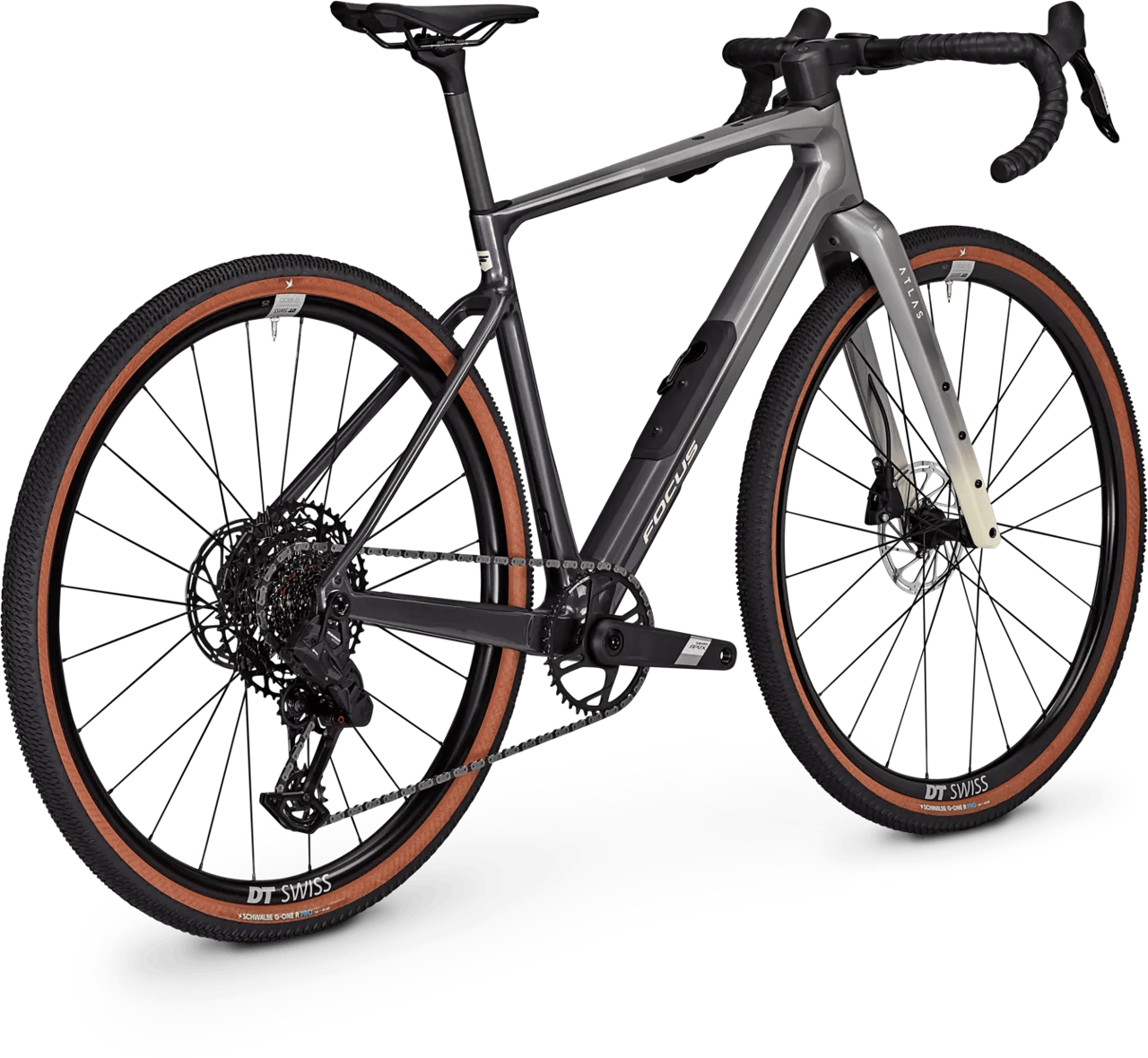

ATLAS 8.8

Geometry Specification
N/A
Sku Number
FO0170002v2022

ATLAS 8.8 Features

Carbon frame

Shimano GRX810 2x11

DT Swiss X1900 wheels

Pushes boundaries

  • Comfortable and agile on any terrain

    This light carbon bike is designed for your fast gravel escapes. Due to the combination of long reach and short stem, the ATLAS 8.8 is a rather long bike resulting in a really smooth ride. The front end provides confidence while going downhill. Super short chainstays make the gravel bike playful and agile, which will please all riders who like to tackle each other no matter the surface. To make sure that you can handle this fast bike perfectly, you can adjust the handlebar position according to your needs. The stem is available in six different lengths from 70 to 120 mm and the handlebar height can be changed with special two-piece spacers.

  • Various options to mount equipment

    The ATLAS 8.8 frame offers many options to carry bags comfortably. You can easily attach a bar, saddle, or frame bag. The bike comes with our top tube bag in which you can store essential tools or snacks to eat while pedalling. For bottle cages, the carbon frame provides three more mounting possibilities. One bottle cage can be screwed at the seat tube and two more at the down tube – one above and one below. On top, the three screws on the fork’s left and right side offer two additional mounting points. Here you can install racks for further luggage or bottle cages. With a maximum system weight (bike, rider, and equipment) of 120 kg, this light carbon gravel bike allows you to take lots of stuff with you.

  • Made for fast gravel escapes

    Thanks to fast-rolling and tubeless-ready 45 mm WTB Riddler tyres and Shimano GRX 810 2x11 groupset with gravel-optimised transmission, the ATLAS 8.8 is built to accompany your bikepacking adventures. The wide handlebar with flare and a carbon seat post provide full control and comfort. The C.I.S. (Cockpit Integration Solution) technology ensures a clean look without any cables in the way when attaching a bar bag. Whether in bad weather conditions or on demanding surfaces, when suffering during steep climbs or going the really long distances – the ATLAS 8.8 fully supports your ride, even to the end of the world.

Geometry

XS S M L XL
Size in mm 480 510 540 570 600
Handlebar width 420 420 440 460 460
Stem length 80 90 90 90 100
Crank length 170 170 172.5 172.5 175
Seatpost length 350 350 350 350 350
A Seat tube length 445 485 515 545 585
B Top tube length 532 549 567 591 606
C Head angle (°) 70.5 70.5 70.5 70.5 70.5
D Seat angle (°) 74 73.5 73.5 73.5 73.5
E Chainstay length 425 425 425 425 425
F Bottom bracket drop 75 75 75 75 75
G Head tube length 115 120 130 150 180
H Fork length 425 425 425 425 425
I Fork offset 50 50 50 50 50
J Wheelbase 1016 1028 1046 1068 1088
K Stack 569 574 583 611 630
L Reach 370 380 395 410 420
M Standover height 450 490 520 550 590

Specification

Frame
Carbon, disc, C.I.S. integration, press fit BB86, 148x12 mm thru-axle, flat mount 160/160 mm, internal cable routing, Toptube Bag
Fork
Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
Shifter
Shimano GRX ST-RX800, 11-speed
Front derailleur
Shimano GRX FD-RX810
Rear derailleur
Shimano GRX RD-RX810, 11-speed
Cassette
Shimano 105 R7000, 11-speed
Chain
Shimano CN-HG601, 11-speed
Transmission of drive
vorne: 46/30, hinten: 11-34
Handlebar
Easton EA70 AX, 31.8 mm, drop: 125 mm, reach: 80 mm, flair: 16°
Grips
FOCUS Bartape SL
Stem
FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium
Headset
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
Saddle
fi'zi:k Taiga
Seatpost
BBB FlyPost SP-135, 27.2mm, set-back: 0mm, carbon
Brakes front / rear
Shimano GRX BL-RX810, 11-speed / Shimano GRX BL-RX810, 11-speed
Front brake disc
160 mm
Rear brake disc
160 mm
Wheelset
DT Swiss X1900, 25-622, disc, center lock, 12x110 mm / 12x148 mm
Tyres front / rear
WTB Riddler, 700 x 45C, folding / WTB Riddler, 700 x 45C, folding
Weight
9.1 kg ()
Permissible system weight
120 kg
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
