Gallery

Exemplary bike presentation. Actual parts are shown in the specifications list.

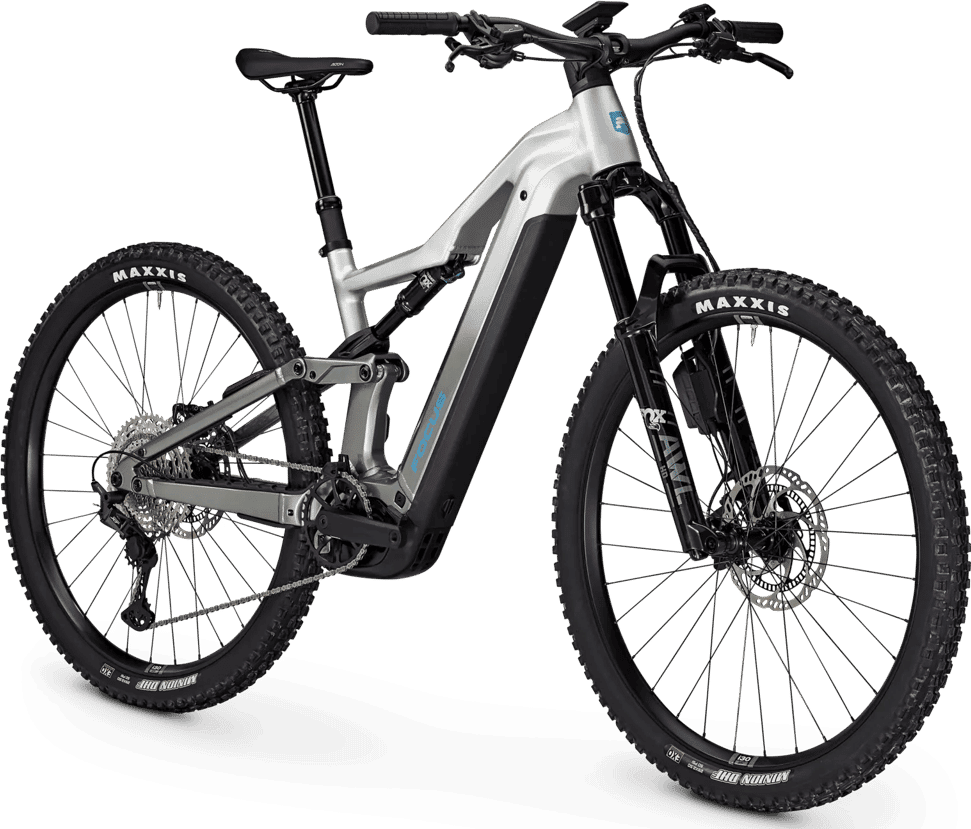

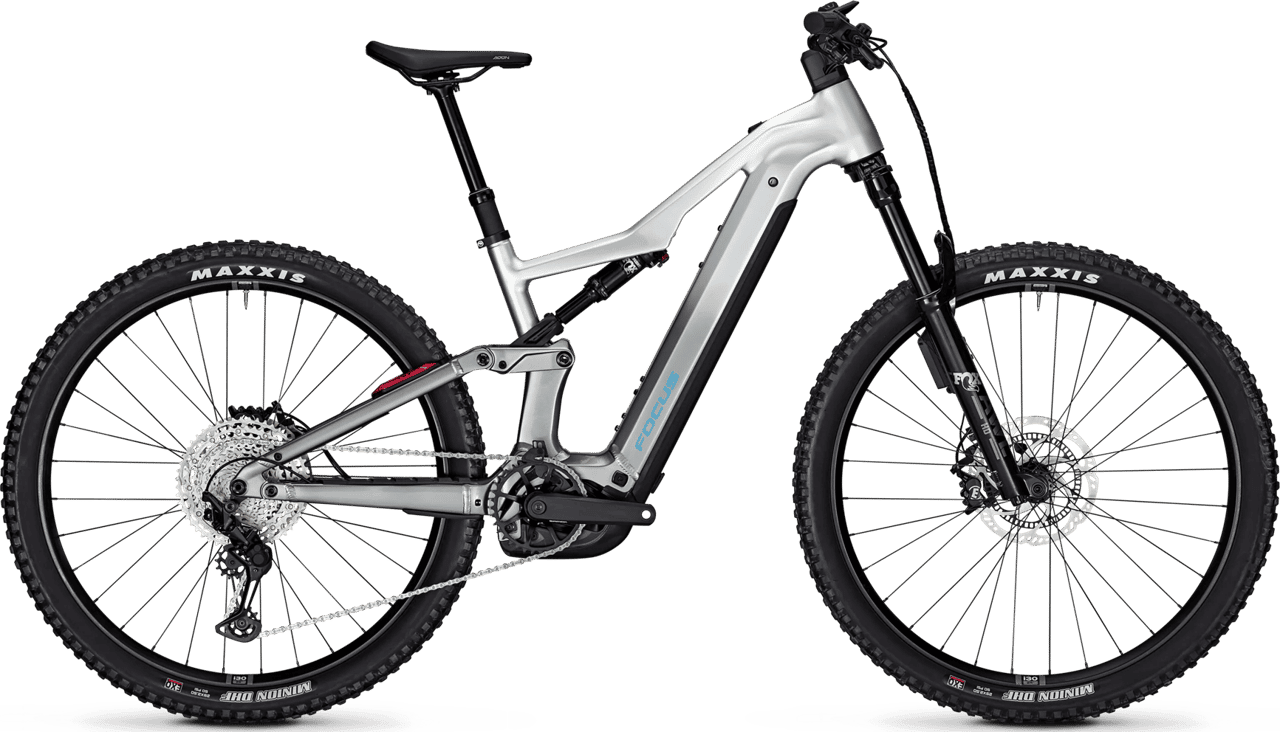

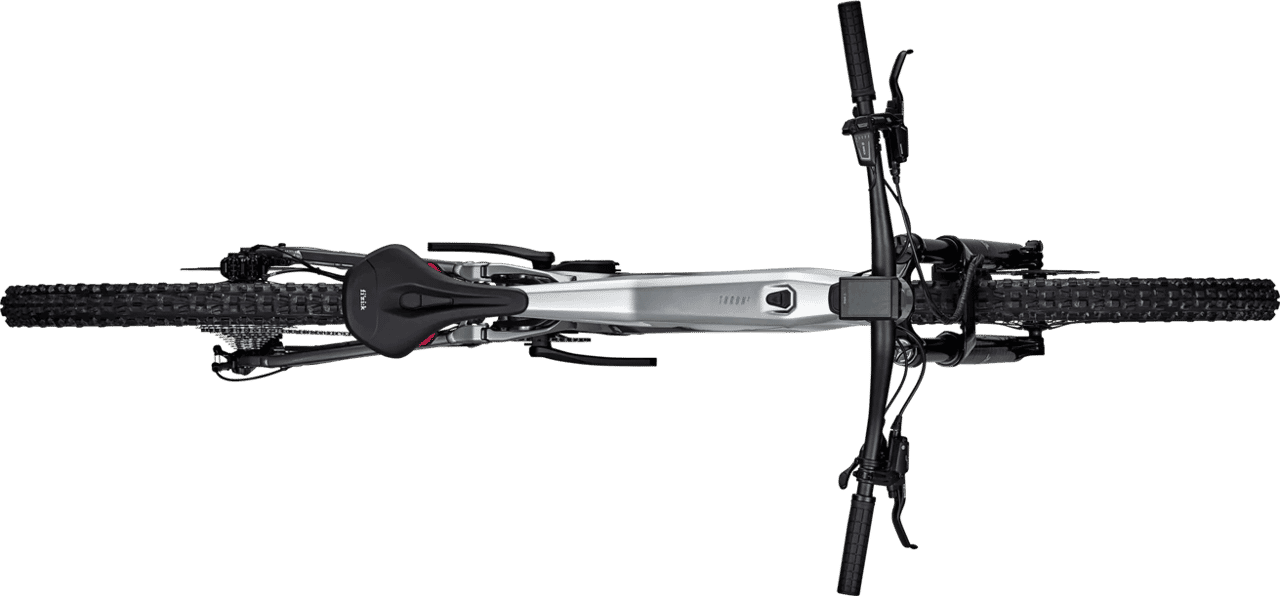

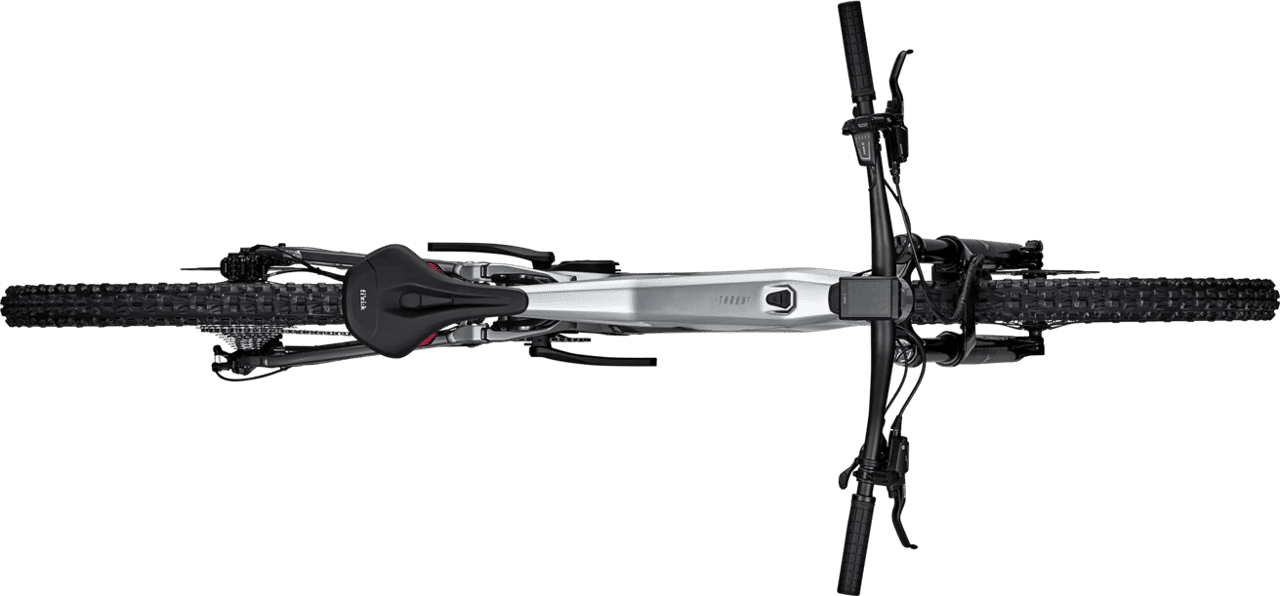

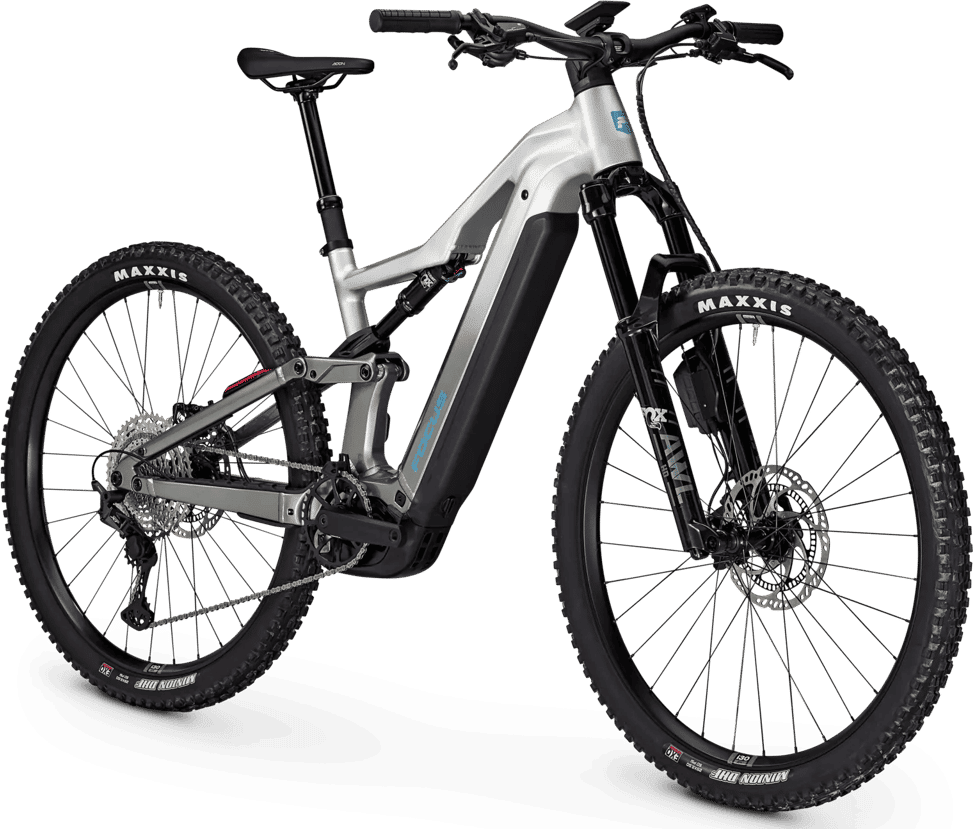

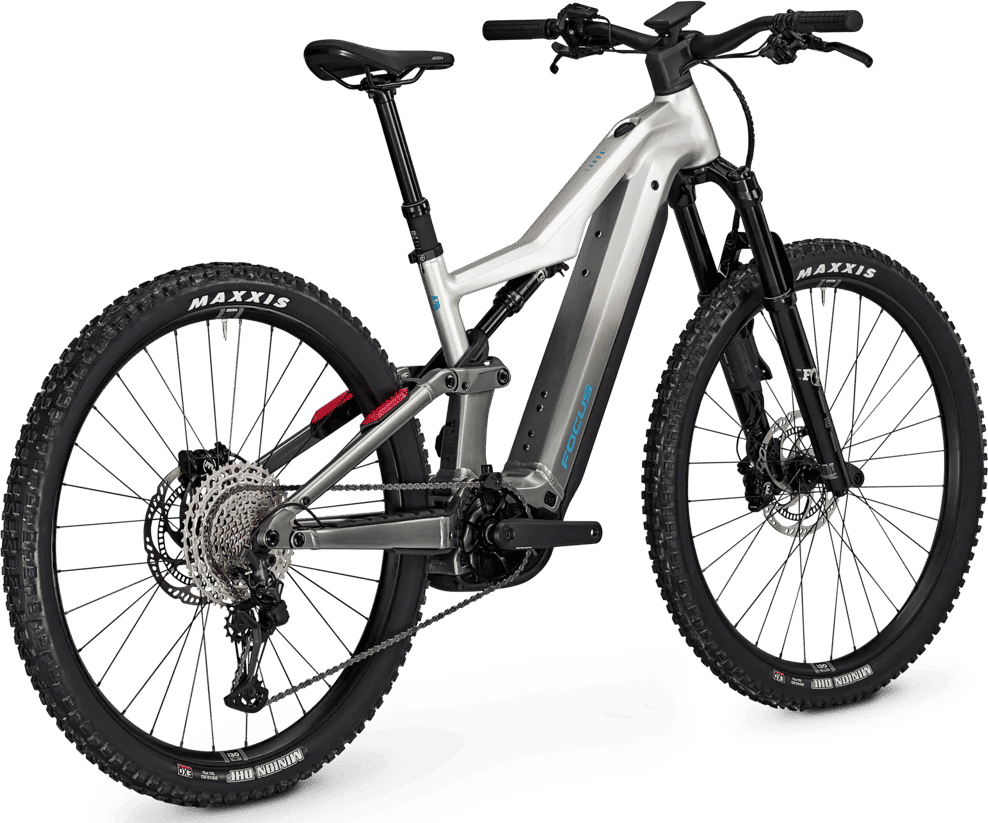

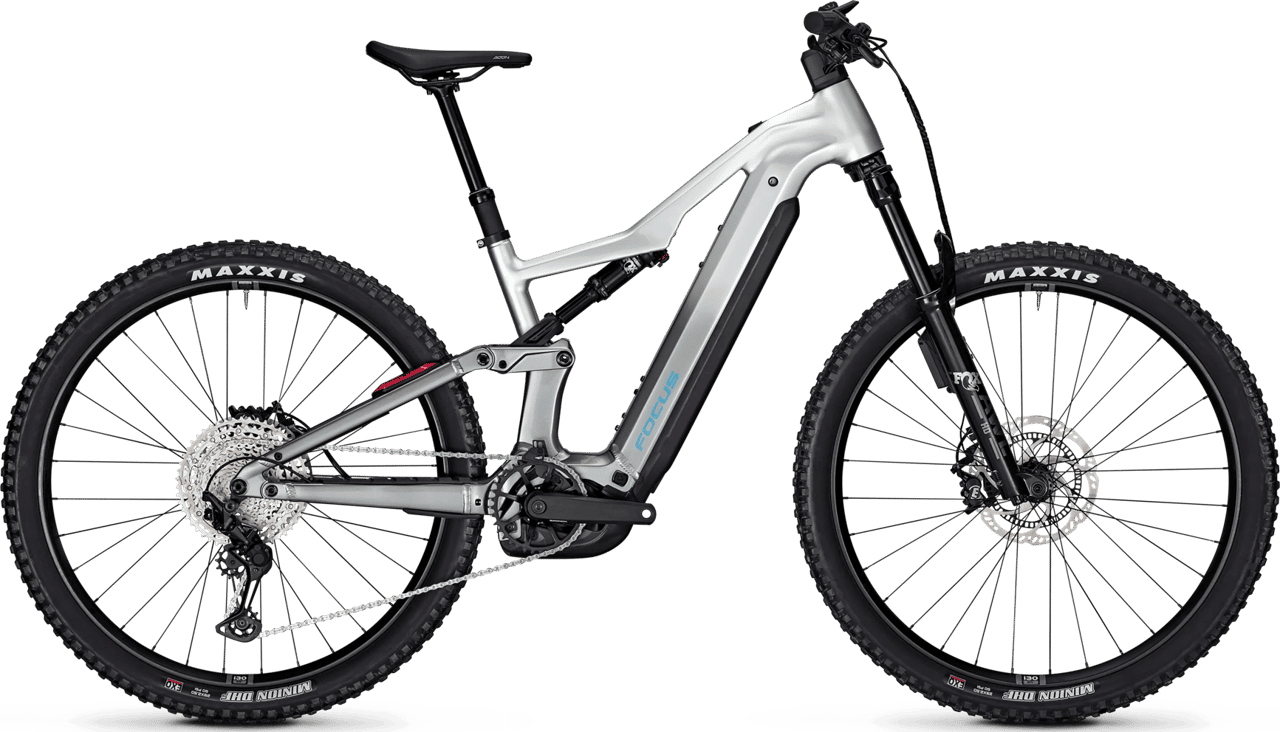

THRON² 6.9 ABS

Geometry Specification

N/A

Sku Number

FV17v2024

THRON² 6.9 ABS Features

Bosch CX e-drive & 600 or 800 Wh battery

FOX 36 AWL fork & FOX FLOAT Rhythm shock

SHIMANO XT / Deore 12-speed

Reach new heights

For long, mountain E-MTB rides

The THRON² 6.9 ABS guarantees great comfort on long trail rides. The suspension with a specific THRON² tune effortlessly irons out bumps, while long chainstays provide optimal traction uphill. You can find our recommendations for the perfect damper set-up in the FAQ on the THRON² overview page.
Safe with Bosch ABS and tracking

Say goodbye to sliding front wheels and crashes over the handlebars. The THRON² 6.9 ABS guarantees you maximum safety thanks to the Bosch anti-lock braking system, 4-piston brakes and 203 mm rotors. Enhanced anti-theft protection and comprehensive tracking services are possible thanks to the integrated mount for Apple Airtag or Chipolo and space for the Bosch ConnectModule.
Full power, lots of battery flexibility

Four possible battery capacities maximise flexibility. Choose between a 600 Wh or 800 Wh battery, regardless of the frame size. Combined with the PowerMore 250 Wh range extender, that's up to 1050 Wh. The THRON² 6.9 ABS is powered by reliably proven Bosch power: the 5th generation of the Bosch Performance Line CX motor offers 85 Nm.

Geometry

		S	M	L	XL
	Size in mm	390	420	440	460
	Handlebar width	800	800	800	800
	Stem length	50	50	50	50
	Crank length	165	165	165	165
A	Seat tube length	390	420	440	460
B	Top tube length	580	612	649	672
C	Head angle (°)	66	66	66	66
D	Seat angle (°)	75.5	75.5	75.5	75.5
E	Chainstay length	455	455	455	455
F	Bottom bracket drop	30	30	30	30
G	Head tube length	110	120	130	140
H	Fork length	570	570	570	570
I	Fork offset	44	44	44	44
J	Wheelbase	1187	1221	1250	1285
K	Stack	637	646	655	664
L	Reach	415	445	470	500
M	Standover height	785	785	785	785

Specification

Crankset

Samox, 165 mm

Frame

7005 hydroformed aluminium, 140 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm

Motor

Bosch Performance Line CX, 85 NM

Grips

VP Lock-On Grips

Stem

FOCUS C.I.S. 2.0, 50 mm

Fork

Fox 36 AWL HD, Rail, 150 mm

Special Features

Hidden AirTag or Chipolo holder, USB-C charging port, Integrated rear light, Front light cable pre-installed

Permissible system weight

150 kg

Rear derailleur

Shimano Deore XT, 12-speed

Chain

Shimano CN-M6100

Shock

Fox Float Rythm, 140 mm

Disc brake rotors

Magura MDR-C, front: 203 mm / rear: 203 mm

Shifter

Shimano Deore XT

Brakes front | rear

Magura MT-C, 4-piston, ABS | Magura MT-C, 4-piston, ABS

Tyres front | rear

Maxxis Minion DHF, TLE, EXO, 29 x 2,5" | Maxxis Minion DHF, TLE, EXO, 29 x 2,5"

Rim front

WTB STi30, alloy, 29"

Front hub

Shimano HB-TC500

Rim rear

WTB STi30, alloy, 29"

Rear hub

Shimano FH-TC500

Chainring

Samox, 36 T

Saddle

fi'zi:k Aidon X5

Seatpost

Post Moderne DP-212, S / M /L / XL: 125 / 150 / 170 / 200 mm, 34,9 mm
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 170 / 200 mm, 34,9 mm

Weight

25.9 kg (600 Wh)
25.9 kg (800 Wh)

Handlebar

JD Riser, alloy, width: 800 mm, rise: 30 mm

Cassette

Shimano CS-M6100, 10-51T

Headset

ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated

Display & Remote

Bosch Kiox 500 + LED Remote

Battery

Bosch PowerTube Li-Ion (600 Wh)
Bosch PowerTube Li-Ion (800 Wh)

* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
