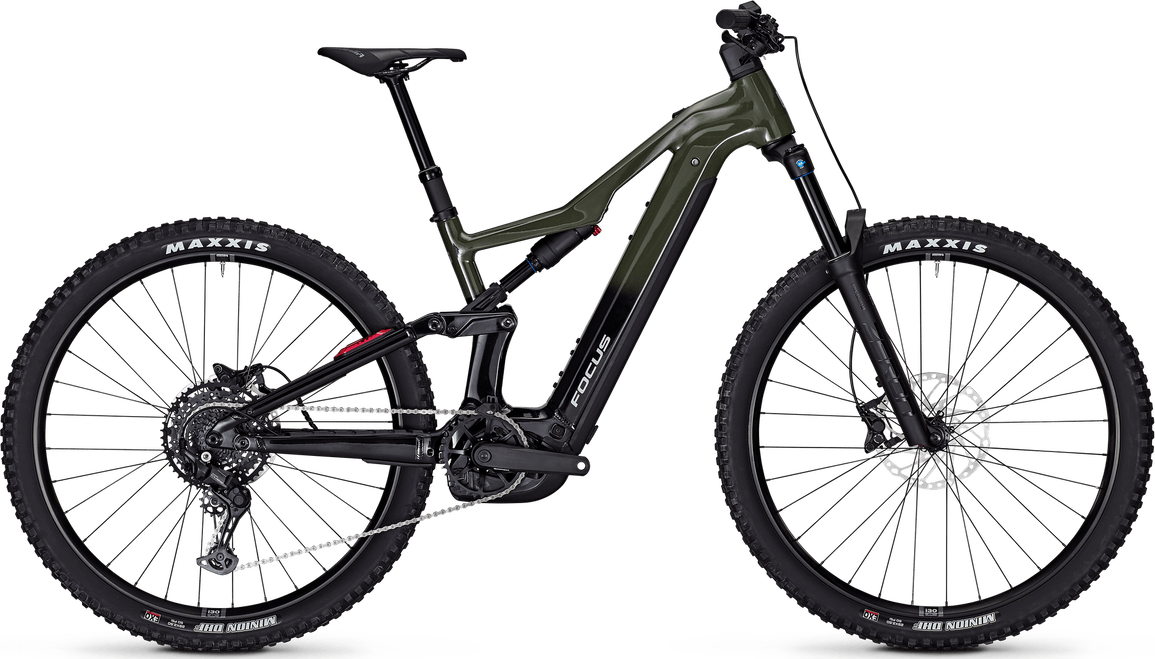

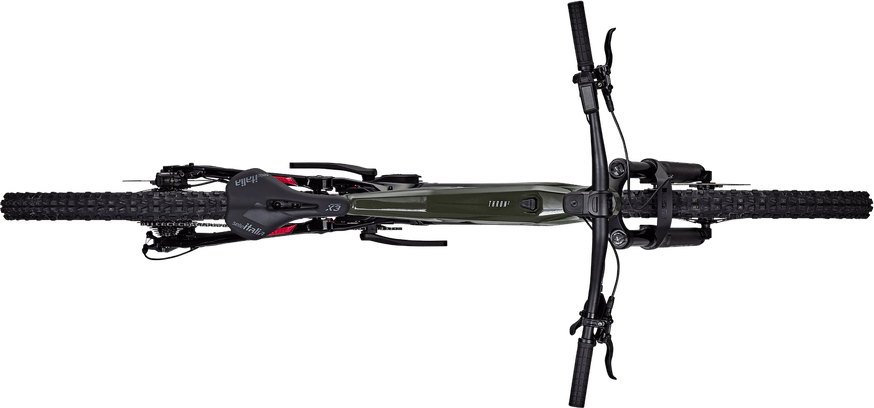

THRON² 6.7

Geometry Specification
N/A
Sku Number
FO5010012v2024

THRON² 6.7 Features

Bosch CX e-drive & 625 Wh battery

130 mm SR Suntour Zeron Air fork & RockShox Deluxe Select shock

Shimano Cues 11-speed

More than just comfy

  • Super powerful and dynamic e-motor

    The efficient Bosch Performance Line CX system supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the THRON² rides well-balanced. In eMTB mode, the motor support adjusts automatically to your riding power. The 625 Wh battery delivers endless tail fun. The battery is integrated into the down tube, yet removable for charging.

  • Fun, comfort and safety in every situation

    The F.O.L.D. kinematics with 130 mm suspension travel absorbs all the bumps on your way. Whether it is the fast flow trail or the rough gravel route – the perfect mix of sensitivity and strong bottom-out resistance lets you enjoy all your rides. The characteristics are completely progressive which results in a chassis that offers a lot of stability making you feel safe on any terrain. Especially e-mountain bikes with the additional weight of motor and battery benefit from more progression. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the THRON² 6.7 gives you more space to play on the trail.

  • Diverse usage

    From trail tours through alpine terrain to your daily commute and bikepacking: anything is possible with the THRON². With certain changes to the build, you can add various features to your THRON² – depending on where your e-MTB tour is going. Additionally, a USB-C port on the top tube gives you the opportunity to charge your devices. Furthermore, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame.

Geometry

S M L XL
Size in mm 390 420 450 480
Handlebar width 760 760 760 760
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 420 440 480
A Seat tube length 390 420 450 480
B Top tube length 579 605 640 675
C Head angle (°) 66 66 66 66
D Seat angle (°) 75 75 75 75
E Chainstay length 455 455 455 455
F Bottom bracket drop 30 30 30 30
G Head tube length 115 120 140 160
H Fork length 540 540 540 540
I Fork offset 44 44 44 44
J Wheelbase 1175 1206 1242 1281
K Stack 609 623 637 655
L Reach 415 440 470 500
M Standover height 807 807 807 807

Specification

Frame
7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematics, 148x12 mm thru-axle, USB-C port, post mount 180 mm
Fork
SR Suntour Zeron 35 Air LOR, 110x15 mm
Travel of suspension fork
130 mm
Shock
Rock Shox Deluxe Select, 210/50 mm, hardware: 25,0 x 8,0 mm, no Bushing
Motor
Bosch Performance CX Smart, 85 Nm, 250 W
Battery
Bosch 625 Intube (625Wh)
Display & Remote
Bosch Purion 200
Shifter
Shimano Cues
Rear derailleur
Shimano Cues
Cassette
Shimano Deore CS-LG400, 11-speed
Chain
Shimano CN-HG601, 11-speed
Crankset
Samox EC40 ISIS
Transmission of drive
front: 34, rear: 10-51
Chainring
Shimano CSLG 400, 11-G.
Bottom bracket
Integrated in Drive Unit
Handlebar
Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm
Grips
VP VPG-122A
Stem
Aluminium, 70mm, 35degree
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
Saddle
Selle Royal Groove SRX
Seatpost
Post Moderne dropper post PM-214, 34.9 mm
Brakes front | rear
Shimano MT420 | Shimano MT420
Front brake disc
203 mm
Rear brake disc
203 mm
Rim front
RODI TRYP30, 30-622
Rim rear
RODI TRYP30, 30-622
Front hub
Novatec D041, 15x110 mm thru axle
Rear hub
Novatec D462, 12x148 mm
Spokes
Niro, black
Tyres front | rear
Maxxis Minion DHF, EXO, 29 x 2,5" | Maxxis Minion DHF, EXO, 29 x 2,5"
Weight
25.8 kg (625 Wh)
Permissible system weight
150 kg
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
