PLANET² 6.8 ABS

Geometry Specification
N/A
Sku Number
FO5080097v2024

PLANET² 6.8 ABS Features

BOSCH CX e-drive & 625 Wh battery

BOSCH Intuvia display

BOSCH ABS & light with braking light

Practical in the city

  • Powerful e-support for your adventure

    The efficient Bosch Performance Line CX e-drive supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated into the bottom bracket area. The Bosch Powertube battery is placed within the down tube. For sure, you can charge it directly on the bike, yet the battery can also be removed at any time for charging. The battery capacity of 625 Wh gives you more than enough range for all your long tours.

  • For all your needs

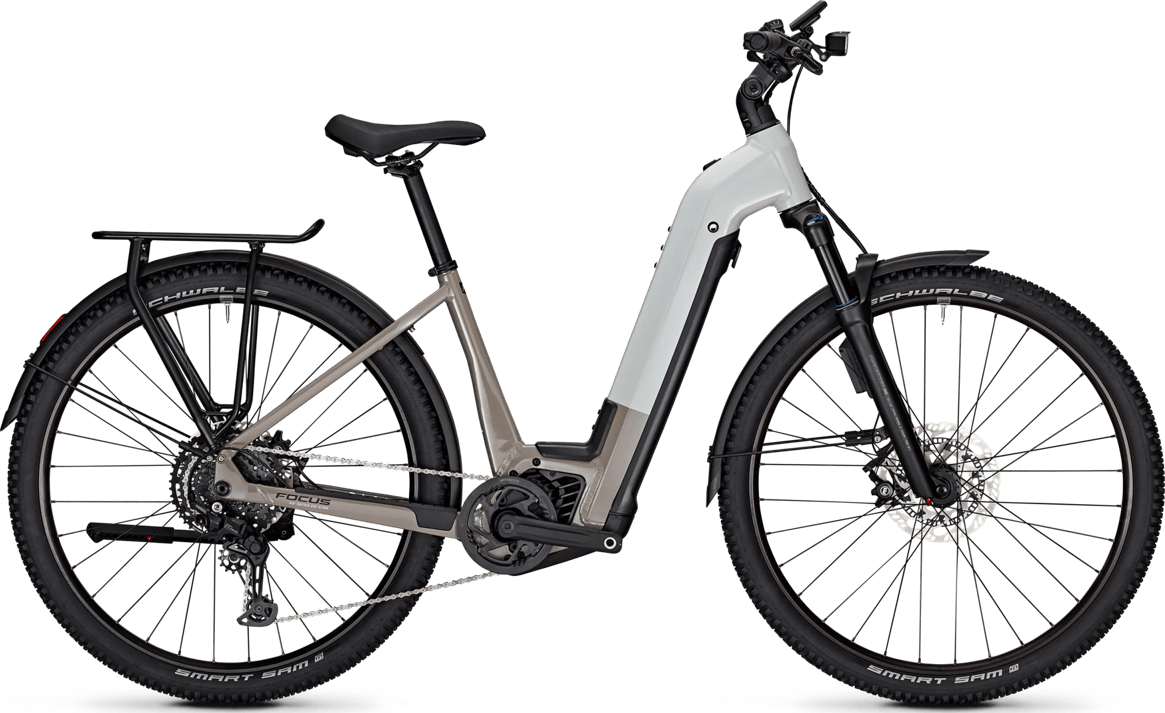

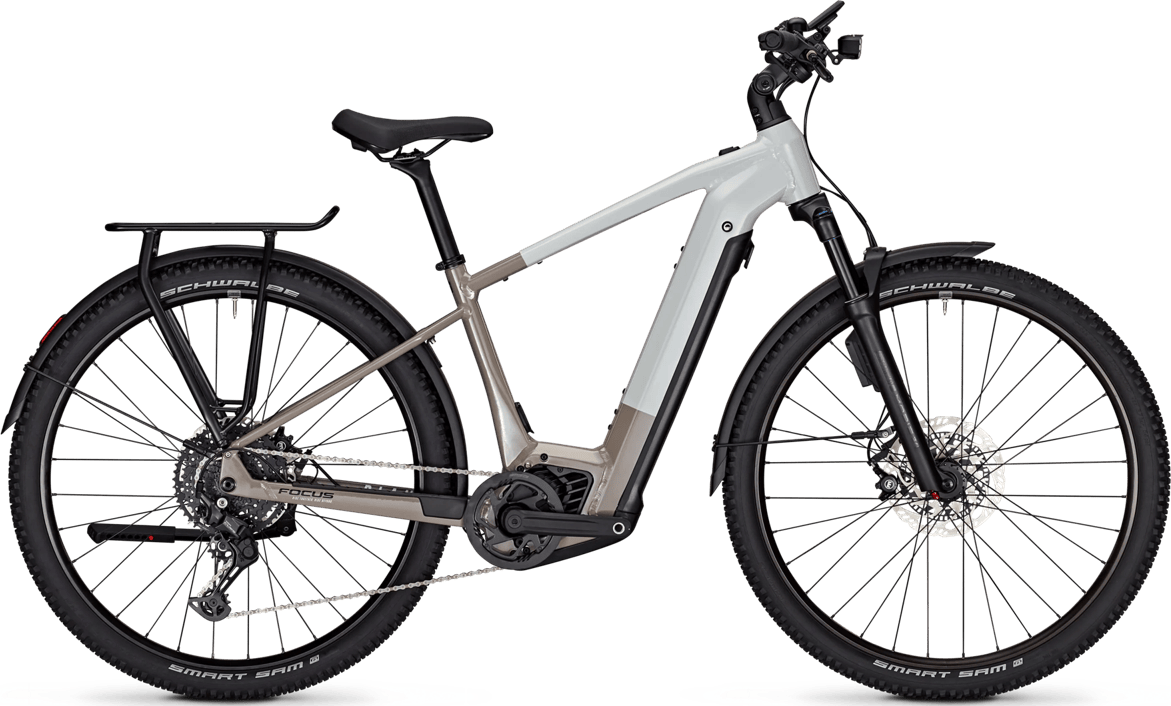

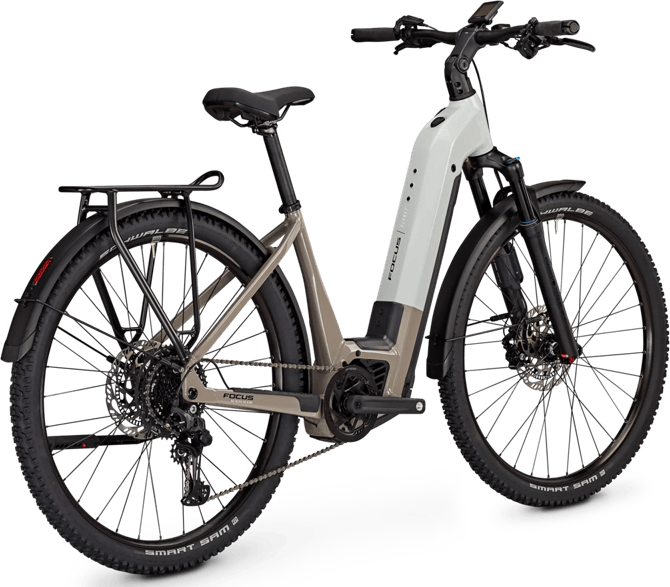

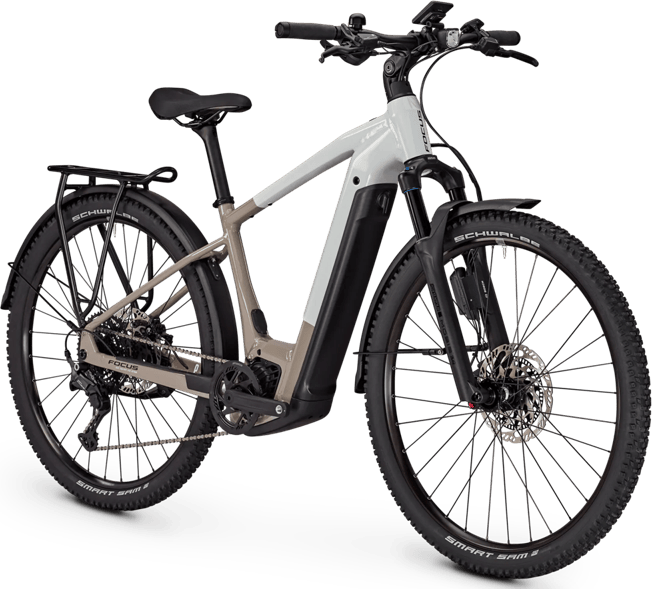

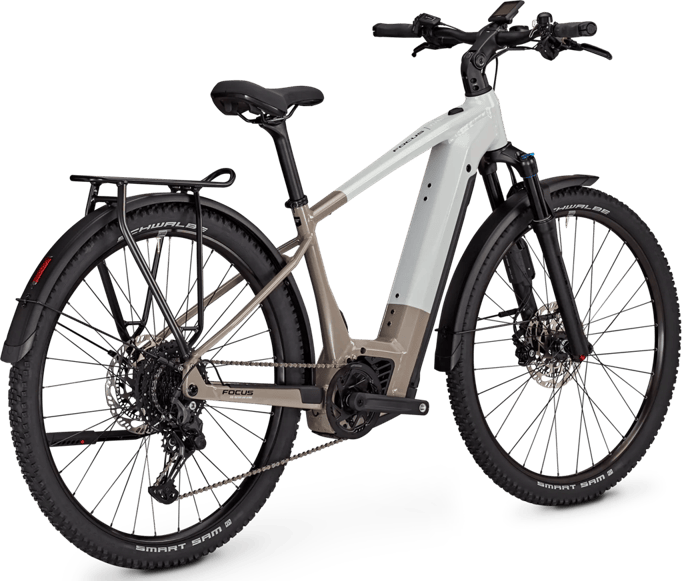

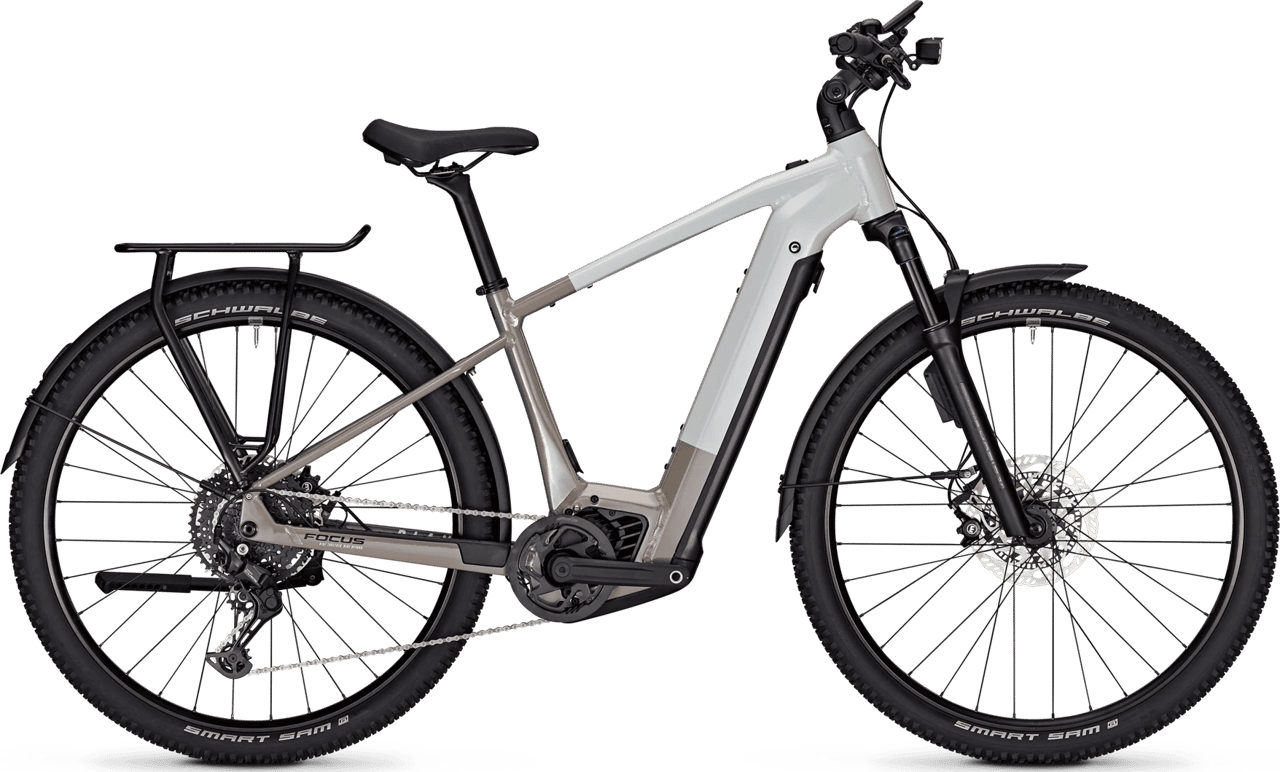

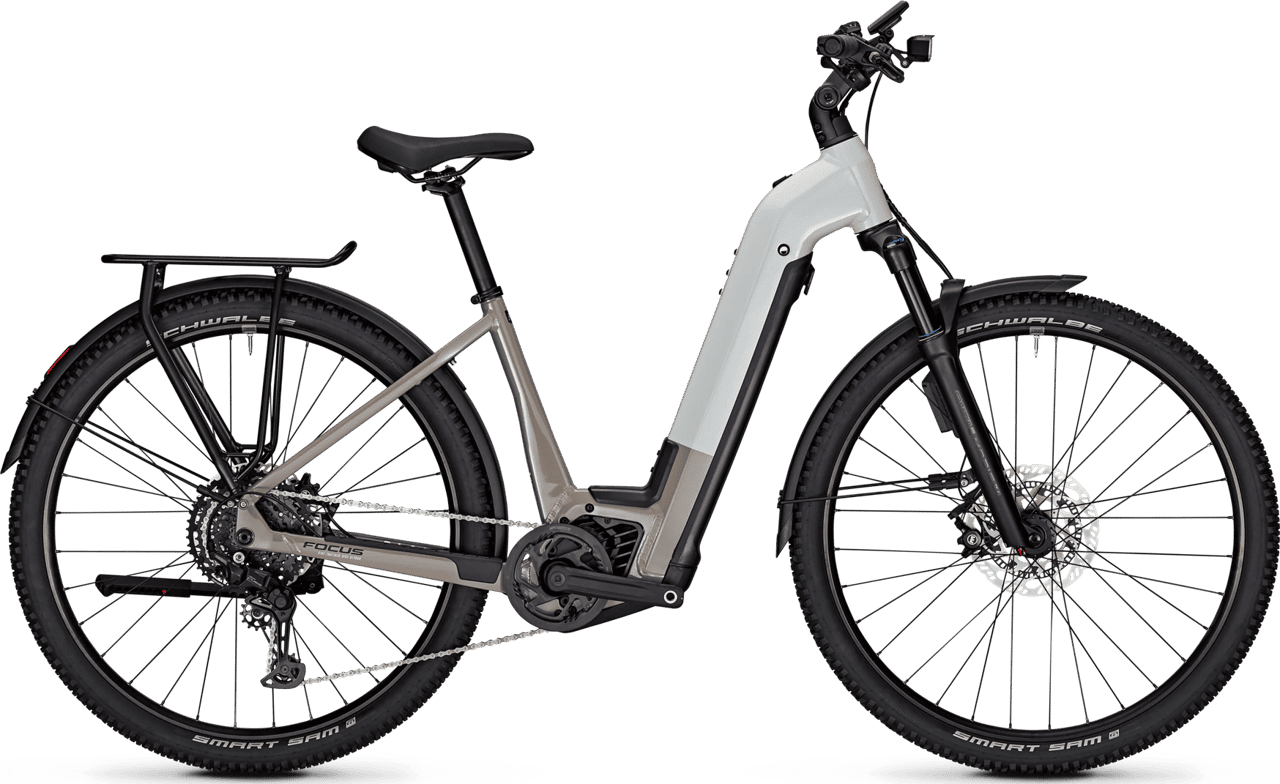

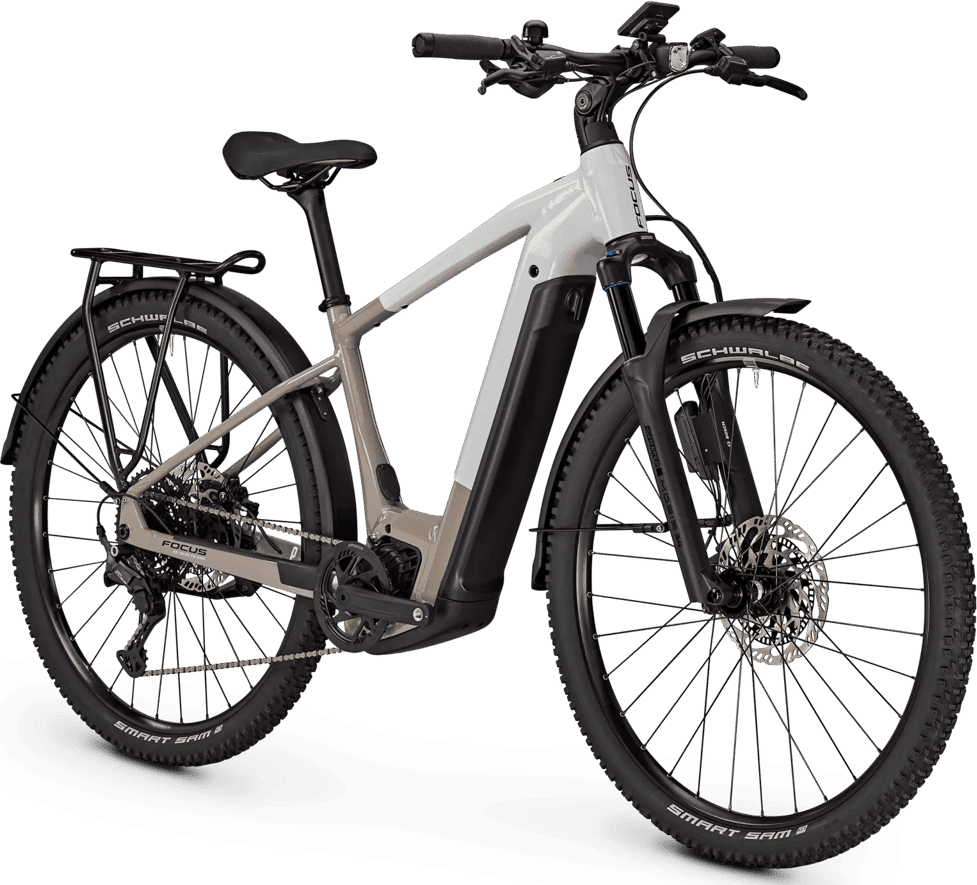

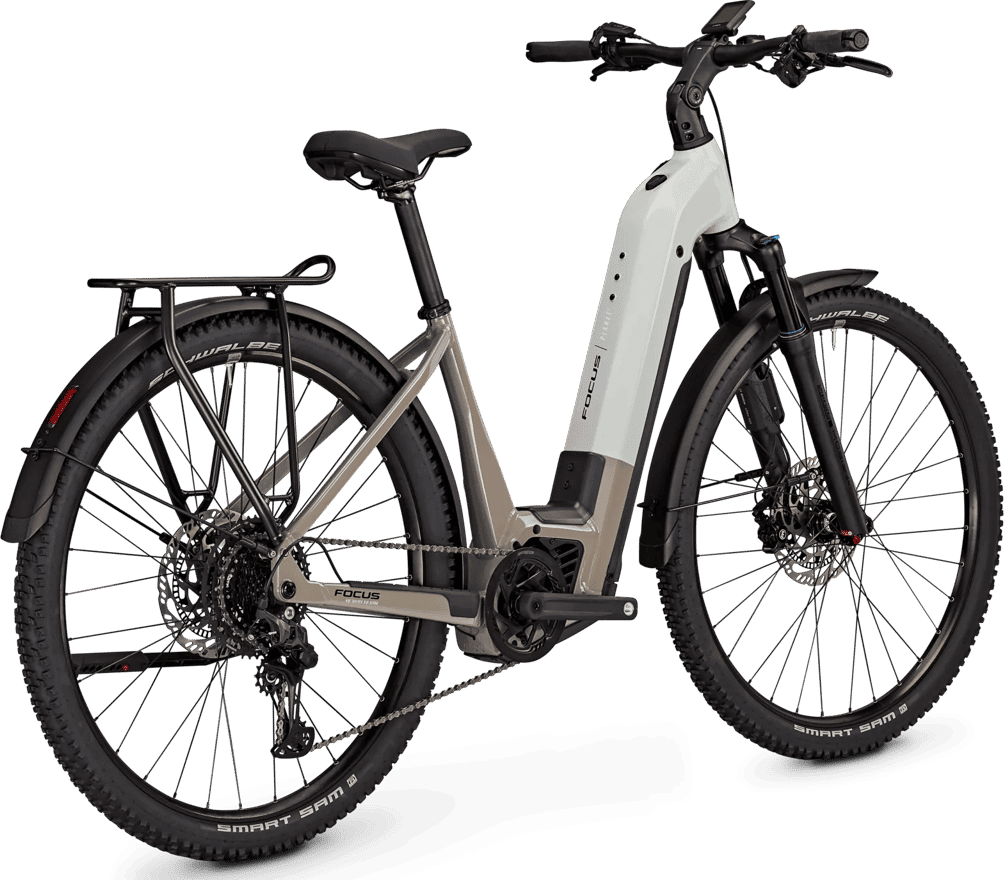

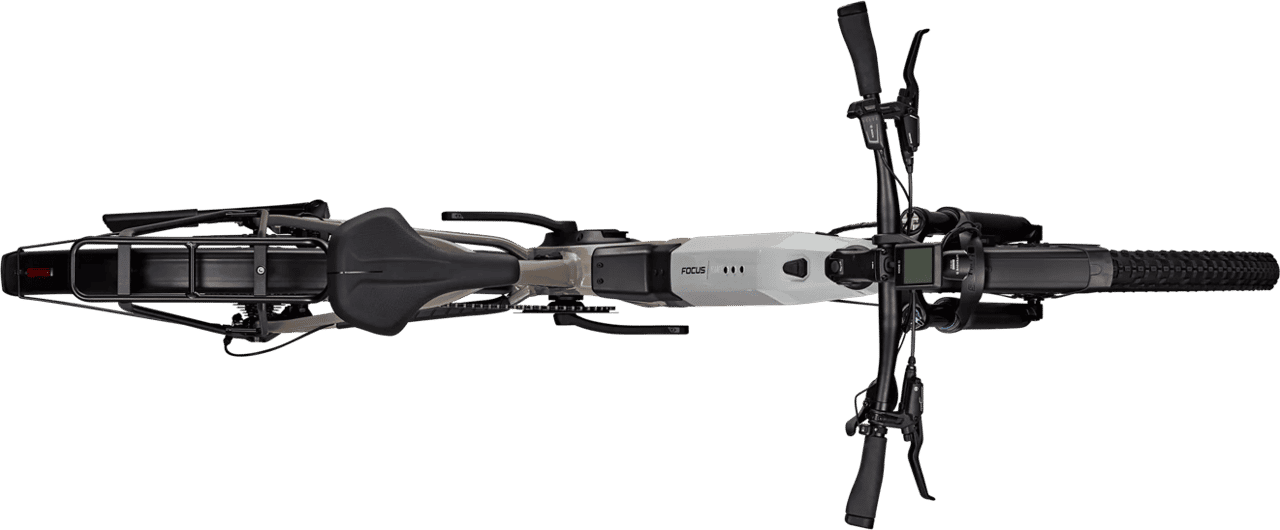

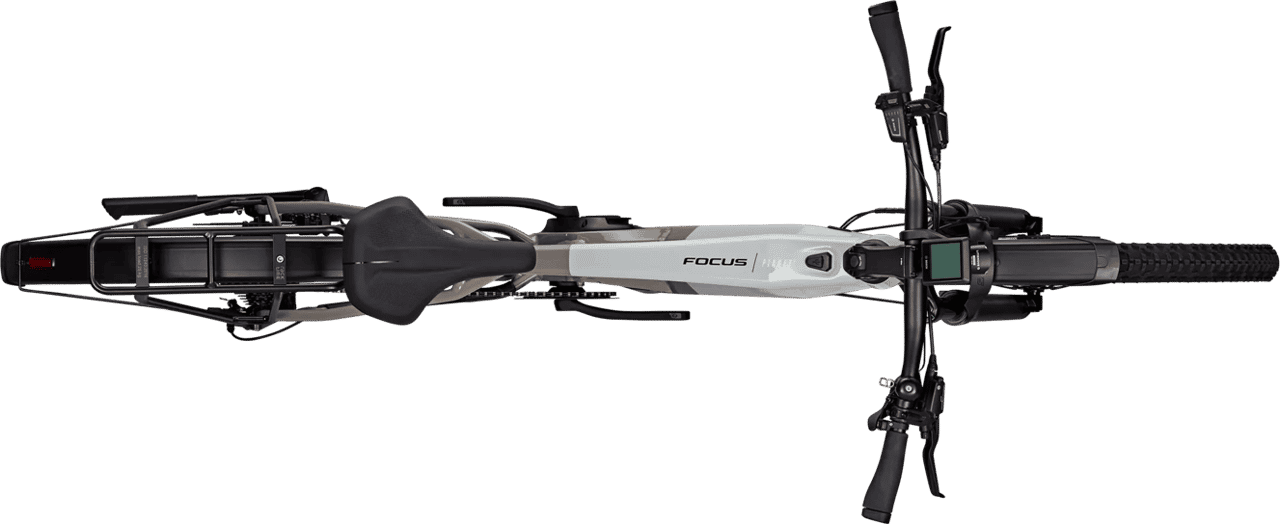

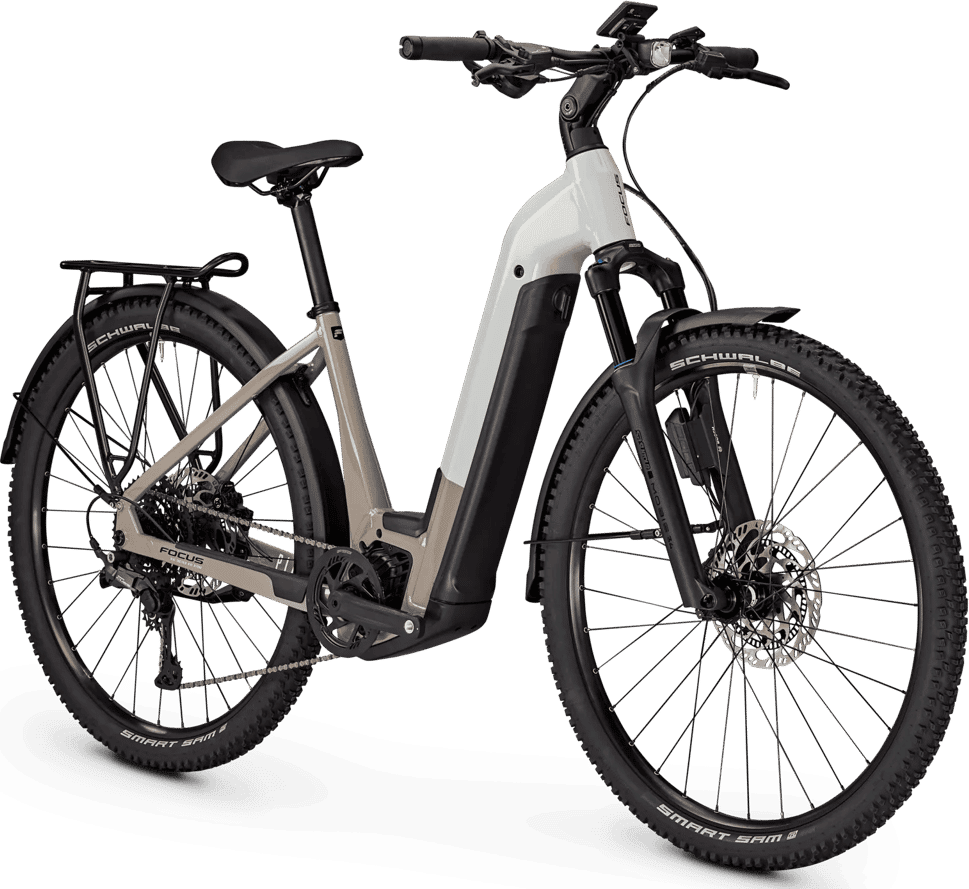

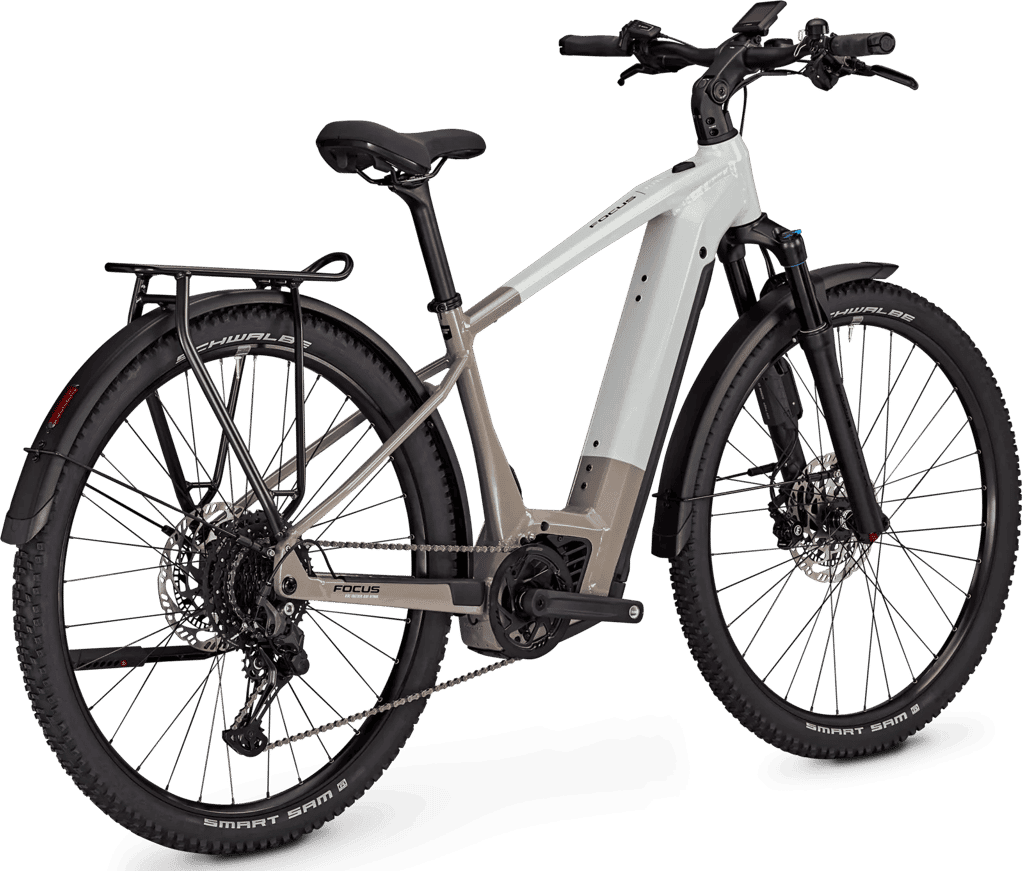

    The PLANET² 6.8 ABS suits all your demands. You can choose between a wave or a diamond frame: Easy to step in and out or more sportive – we have the frame shape you prefer. Furthermore, the PLANET² 6.8 ABS is approved for a maximum total weight (rider plus bike and gear) of 150 kg. You are also allowed to mount a trailer to the thru-axle and take your kids, dogs or whatever you want to carry with you. The PLANET² 6.8 ABS is ready for all challenges.

  • Safe and comfortable

    The Bosch ABS braking assistant helps you to stay in control in difficult situations. If you have to brake immediately, the system prevents your wheels from locking and thereby making sure, you can still steer the bike. Off-road tyres, disc brakes, fenders and a proper lighting system with braking light and high beam round up the ready-for-everything spec.

Geometry

S M L XL
Size in mm 400 440 480 520
Handlebar width 690 760 760 690
Stem length 90 60 60 90
Crank length 170 170 170 170
Seatpost length 350 350 350 350
A Seat tube length 400 440 480 520
B Top tube length 593 615 638 660
C Head angle (°) 68 68 68 68
D Seat angle (°) 73.5 74 74 73.5
E Chainstay length 470 470 470 470
F Bottom bracket drop 65 65 65 65
G Head tube length 135 130 140 160
H Fork length 515 515 515 515
I Fork offset 51 51 51 51
J Wheelbase 1152 1180 1209 1217
K Stack 650 644 653 675
L Reach 400 430 450 460
M Standover height 808 820 838 860

Specification

Frame
7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, USB-C port, internal cable routing, post mount 180 mm
Fork
Suntour Mobie34 Air, 15 mm thru axle
Travel of suspension fork
100 mm
Motor
Bosch Performance CX Smart, 85 Nm, 250 W
Battery
Bosch 625 Intube (625Wh),Bosch PowerTube Li-Ion (625 Wh)
Display & Remote
Bosch LED Remote + Intuvia 100
Shifter
Shimano Cues
Rear derailleur
Shimano Cues
Chain
KMC X10, 10-speed
Crankset
FSA CK-320, aluminium
Transmission of drive
vorne: 36, hinten: 11-48
Chainring
Shimano Deore M4100, 10-speed
Bottom bracket
Integrated in Drive Unit
Handlebar
Aluminium, 690 mm, rise: 8 mm, 31,8 mm
Grips
Herrmans Click
Stem
Aluminium, adjustable, 90 mm
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
Saddle
Selle Royal TCM
Seatpost
Aluminium, 31.6 mm
Brakes front | rear
Magura CT-ABS, 2-piston, hydraulic ABS disc brake | Magura CT-ABS, 2-piston, hydraulic ABS disc brake
Front brake disc
203 mm
Rear brake disc
203 mm
Rim front
RODI TRYP25, 25-622
Rim rear
RODI TRYP25, 25-622
Front hub
Novatec D041, 15x110 mm thru axle
Rear hub
Novatec D462, 12x148 mm
Spokes
Zink, black
Tyres front | rear
Schwalbe Smart Sam , 29 x 2,25" | Schwalbe Smart Sam , 29 x 2,25"
Fenders
plastic, with edge protector
Headlight
Litemove RXE-90, high-beam, 90 LUX
Rear light
TRELOCK LS421, Brake light
Rear rack
Racktime Snap-It carrier, 2-leg, 25 kg max. load
Kickstand
rear stand, adjustable
Weight
26.7 kg (625 Wh)
Permissible system weight
150 kg
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
