Das FOCUS Bikes IZALCO MAX Aero-Rennrad ist mehr als nur das Schnellste. Das FOCUS Bikes IZALCO MAX Aero-Rennrad ist mehr als nur das Schnellste.

You asked for it, so here it is. IZALCO MAX goes aerodynamic. The new IZALCO MAX is now even faster. But achieving this was no mean feat. The concept behind the IZALCO MAX had to be rethought from the ground up. The IZALCO MAX accurately captures the spirit of our times and will change your perception of what makes the perfect road bike.

More than just the fastest

The new IZALCO MAX is more than just the fastest. It is a statement. The IZALCO MAX brings along more than just aerodynamics, low weight and incredible speed. It merges all its features into a thrilling experience, giving a deeper purpose to your ride. To get more out of every ride. Together with your friends. With more style, elegance and passion.


Das FOCUS Bikes IZALCO MAX Aero-Rennrad ist In Summe schneller.

elegance - aerodynamics - low weight - excellent stiffness - impressive acceleration

Faster

altogether

Faster
Faster Faster

Optimised

in the wind tunnel

Optimised

With 200 watts input over 50km,
the new IZALCO MAX is 1:30 minutes faster.*

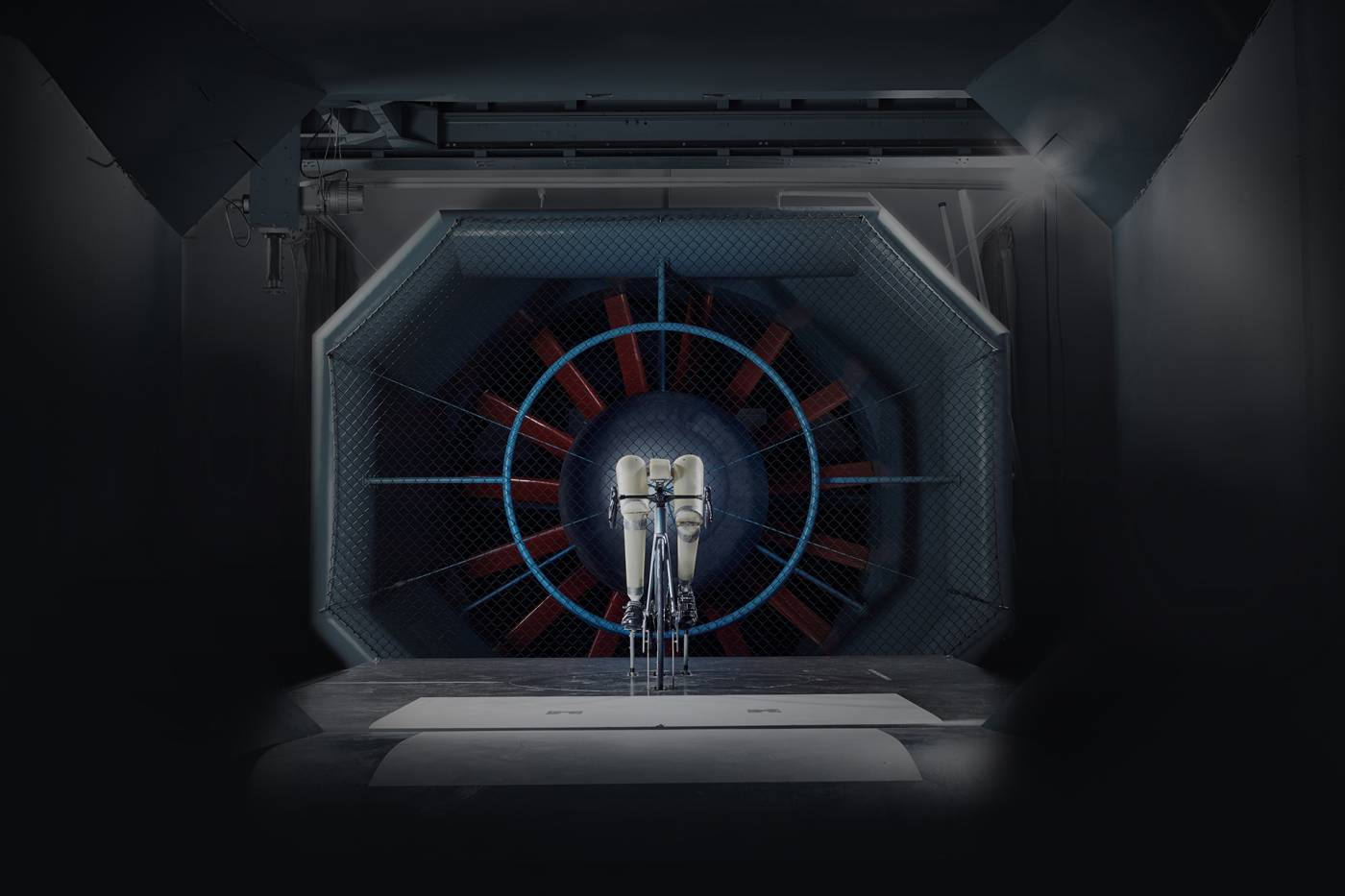

Das FOCUS Bikes IZALCO MAX Aero-Rennrad besticht durch Aerodynamik, weil es im Windkanal optimiert wurde.


Our engineers have completely redesigned every tube and improved these in several stages within the wind tunnel. Every surface was scrutinised in order to achieve the best possible mix of aerodynamics and low weight. The result is a combination of Kamm tail profiles, hidden cables and well-balanced proportions. On paper, this combination results in a 6 per cent improvement in aerodynamic resistance*. This allows you to go faster and save a lot of energy during every ride, no matter how fast you go.



*in comparison to the previous model with same wheels, components, position and dummy test rider

IZALCO MAX IZALCO MAX

FABIAN SCHOLZ, LEAD ENGINEER

"We've not only integrated the cables - we've also hidden the screws to ensure that there is as little wind resistance as possible."

IZALCO MAX Aero-Rennrad von Ingenieur Fabian Scholz













IZALCO MAX IZALCO MAX

SMART AND SEXY

All the cables run inside the specially developed aero handlebar stem. The carbon fibre stem has a -15° negative design in order to compensate for the slightly raised position as a result of the internal cables. This allows us to guarantee you a perfect riding experience whilst also offering optimum aerodynamics. The benefits are visually pleasing. We offer the handlebar stem in five lengths, ranging from 80 to 120 mm.

SAFE AND FAST

Das IZALCO MAX Aero-Rennrad im Detail: FOCUS R.A.T. Steckachse und Scheibenbremsen Das IZALCO MAX Aero-Rennrad im Detail: FOCUS R.A.T. Steckachse und Scheibenbremsen

We have further improved the fastest quick-release axle in the world R.A.T. Easier handling and a more aerodynamic structure meet the greater requirements of the IZALCO MAX.

We have stuck to our guns and only use disc brakes in the IZALCO MAX. Front and rear brake discs measuring 160 mm ensure safe and totally reliable braking performance. Especially for a road bike as fast as the IZALCO MAX.

AERODYNAMIC AND COMFORTABLE

Das IZALCO MAX Rennrad im Detail: FOCUS Aero-Sattelstütze Das IZALCO MAX Rennrad im Detail: FOCUS Aero-Sattelstütze

In the past, having an aerodynamic shape resulted in less comfort. With the IZALCO MAX this contradiction becomes obsolete. The aerodynamic carbon seatpost has a D profile with 15 mm offset - thus offering the perfect mix of ergonomics and comfort.

In order to maintain the optimum sitting position, we have pushed the seat tube forwards so that the effective offset is only 2 mm. This means that you can enjoy the comfort of a seatpost with 15 mm offset, without having to forgo a modern racing sitting position. Titanium screws reduce the weight.

ADAPTABLE AND EASY TO TRANSPORT

Das IZALCO MAX Rennrad im Detail: FOCUS Aero-Vorbau Das IZALCO MAX Rennrad im Detail: FOCUS Aero-Vorbau

The IZALCO MAX comes with a standard aerobar thus allowing for as many adjustment options as possible. You can adjust the height of the handlebar with ease using a two-piece special spacer.

The integration of the cables from the stem to the handlebar seamlessly continues internally. This handlebar stem unit can be easily removed in order to stow the bike safely in a bike case – for when you are en route to a race or training camp. You can attach a bike computer using an adapter.

Riding

performance

Riding
Riding Riding

Reduced frontal surface

Lower bottom bracket for greater cycling stability

Tyre clearance 28 mm

MAX Carbon Technology

UCI certified

We have slightly updated and adapted the repeatedly proven geometry of the IZALCO MAX - which has claimed many Tour de France stage victories - to the current everyday demands of road cyclists. Additional important facts: The geometry of the sizes XXL and XXS has been specially adapted to the needs of cyclists big and small.

With our MAX Carbon Technology and the cable integration, we are laying the foundations for the best mix of aerodynamics and low weight. The streamlined, aerodynamic tubes complete the harmonic design. All cast from the same mould. Everything based on a single idea. More than just the fastest.

Even more details?

Weights

IZALCO MAX 9-Series
FRAME (size M, painted)
890 g without assembly parts (assembly parts: 49 g; hanger, screw, RAT insert, DT plug, screws, plugs, bottle cage screws)
FORK (size M, painted)
358 g without assembly parts (assembly parts: 7 g, RAT insert, screw)

PARTS
STEM

80 mm: 225 g
90 mm: 229 g
100 mm: 234 g
110 mm: 241 g
120 mm: 244g



SEATPOST
215 g incl. assembly parts

IZALCO MAX 8-Series
FRAME (size M, painted)
1040 g without assembly parts (assembly parts: 49 g; hanger, screw, RAT insert, DT plug, screws, plugs, bottle cage screws)
FORK (size M, painted)
380 g without assembly parts (assembly parts: 7 g, RAT insert, screw)


Stiffness

IZALCO MAX 9-Series
FRAME (size M)
HT: 102 Nm/°
BB: 70 N/mm
Comfort: 105 N/mm
FORK (size M)
Brake stiffness: 102 N/mm
Comfort: 101 N/mm
Side stiffness: 53 N/mm

IZALCO MAX 8-Series
FRAME (size M)
HT: 100 Nm/°
BB: 65 N/mm
Comfort: 103 N/mm
FORK (size M)
Brake stiffness: 93 N/mm
Comfort: 92 N/mm
Side stiffness: 48 N/mm


Geometry

Die Geometrietabelle des FOCUS Bikes IZALCO MAX Aero-Rennrads
Die Geometrie des FOCUS Bikes IZALCO MAX Aero-Rennrads
