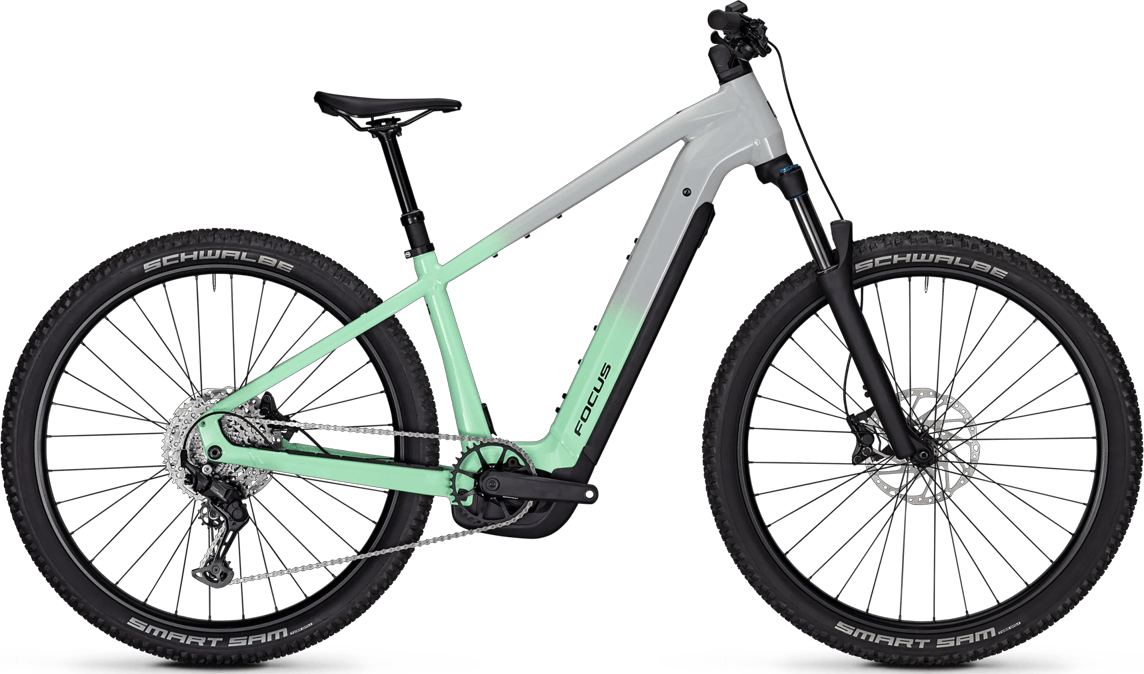

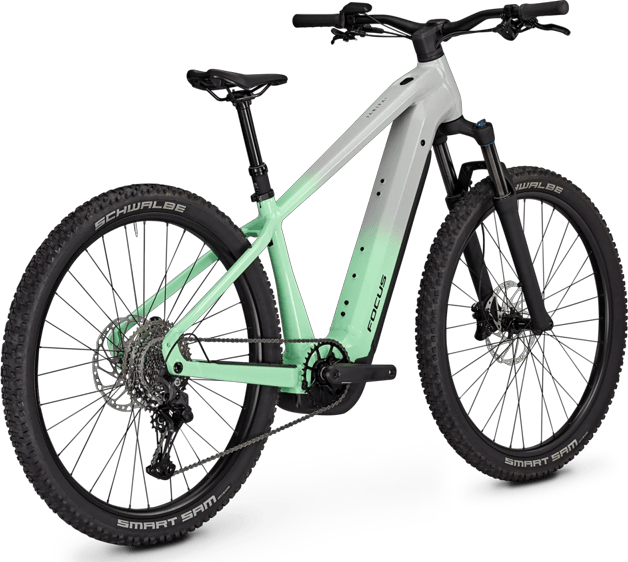

JARIFA² 6.8

Geometry Specification
N/A
Sku Number
FO5080087v2024

JARIFA² 6.8 Features

BOSCH CX e-drive & 750 (size XS and S: 625) Wh battery

29" wheels (size XS: 27,5") & SHIMANO CUES 1x11 shifting

SR SUNTOUR XCR 34 LOR fork

Escape the daily grind

  • Super powerful and dynamic e-motor

    The efficient Bosch Performance Line CX Smart System supports your ride up to 25 km/h with powerful 85 Nm. A well-balanced geometry makes the JARIFA² 6.8 ride agile and dynamic. The strongest e-motor of Bosch is perfectly integrated into the bottom bracket area.

  • Record-breaking range and easy-to-read display

    The Bosch Powertube battery with 750 Wh (size XS and S: 625 Wh) is perfectly integrated into the down tube, yet it can also be removed at any time for charging. By adding a DualBattery or a PowerPack, you can also have up to 1.475 Wh (not possible for size XS and S). Furthermore, the Intuvia 100 offers a big and easy-to-read display with great ergonomics. Additionally, a USB-C port on the top tube gives you the opportunity to charge your devices.

  • Extra-comfortable, integrated and easy to retrofit

    The JARIFA² 6.8 combines MTB and trekking DNA. The cockpit with a 30-degree stem and ergonomic parts make your ride comfortable even on rides off the beaten track. The C.I.S. (Cockpit Integration Solution) technology offers a clean cockpit with cable routing through stem and headset into the frame. Additionally, the JARIFA² 6.8 can be retrofitted easily thanks to respective mounting points. On top, the JARIFA² 6.8 is approved for most trailers and for a system weight (rider plus gear and bike) of 150 kg. Considering the needs of smaller riders, the JARIFA² models in size XS roll on 27,5" wheels.

Geometry

XS S M L XL
Size in mm 360 400 440 480 520
Handlebar width 760 760 760 760 760
Stem length 60 60 60 60 60
Crank length 170 170 170 170 170
Seatpost length 350 350 350 350 350
A Seat tube length 360 400 440 480 520
B Top tube length 561 594 615 638 662
C Head angle (°) 67 67 68 68 68
D Seat angle (°) 74 74 74 74 74
E Chainstay length 460 470 470 470 470
F Bottom bracket drop 45 65 65 65 65
G Head tube length 120 130 130 140 160
H Fork length 495 515 515 515 515
I Fork offset 51 51 51 51 51
J Wheelbase 1102 1175 1180 1209 1211
K Stack 597 642 644 653 672
L Reach 390 410 430 450 470
M Standover height 766 808 820 838 860

Specification

Frame
7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, post mount 180 mm
Fork
SR Suntour XCR 34 LOR, 110x15mm QR
Travel of suspension fork
100 mm
Motor
Bosch Performance CX Smart, 85 Nm, 250 W
Battery
Bosch 625 IntubeWh,Bosch PowerTube Li-Ion 36 V / 20,1 Ah (750 Wh)
Display & Remote
Bosch LED Remote + Intuvia 100
Shifter
Shimano Cues
Rear derailleur
Shimano Cues
Chain
Shimano CN-HG601, 11-speed
Crankset
FSA CK-320, aluminium
Transmission of drive
vorne: 36, hinten: 11-45
Bottom bracket
Integrated in Drive Unit
Handlebar
Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm
Grips
Herrmans Click
Stem
Aluminium, 70mm, 35degree
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
Saddle
Selle Royal Vivo
Seatpost
Aluminium, 31.6 mm
Brakes front / rear
Shimano MT200 / Shimano MT200
Front brake disc
180 mm
Rear brake disc
180 mm
Rim rear
RODI TRYP25, 25-622
Front hub
Shimano TC500, 15x110 mm
Rear hub
Shimano TC500, 148 x 12 mm
Tyres front / rear
Maxxis Rekon, 61-622 / Maxxis Rekon, 61-622
Weight
24.2 kg (625 Wh),24.2 kg (750 Wh)
Permissible system weight
150 kg
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
