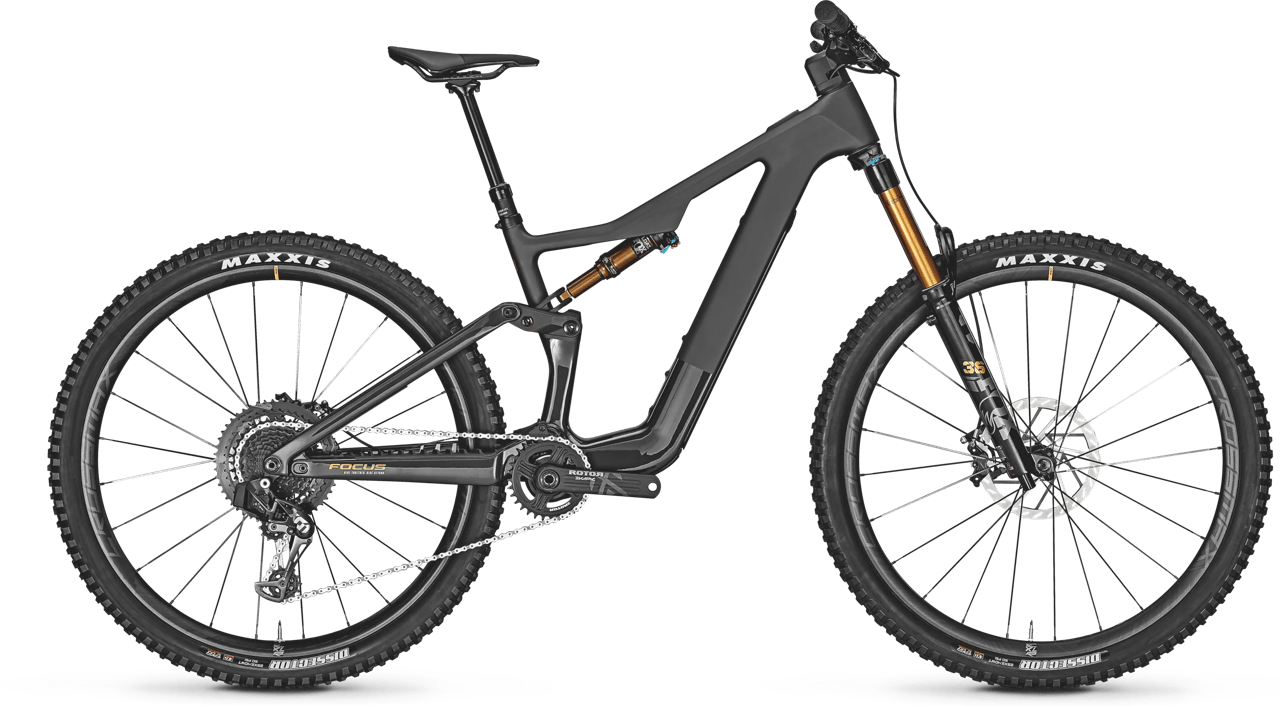

JAM² SL 9.0

Geometry Specification
N/A
Sku Number
FO5400050v2023

JAM² SL 9.0 Features

MAX carbon frame with Fazua Ride 60 e-drive & 430 Wh battery

160 mm FOX 36 Factory fork & 150 mm FOX DPS Factory shock

Electronic Sram X01 AXS 1x12 plus Mavic Crossmax X LR 29 wheels

Makes the most of every trail

  • Nimble and light pure bike characteristics

    The JAM² SL 9.0 is all about pushing the boundaries of light e-MTB design. The MAX carbon layup makes this full-carbon frame super light without compromising on stiffness. The top tube is optimised in the most radical and minimalist way. Thanks to the shock semi-integration, the JAM² SL 9.0 has a low stand-over height that gives you generous space for moving. Still, all parts to adjust your shock settings are easy to reach. As the motor and battery of our JAM² SL 9.0 are fully integrated in the down tube, this e-MTB not just rides but also looks like a pure bike. On top, the high-end specs of the JAM² SL 9.0 minimise weight even further by featuring carbon handlebar and wheels.

  • Support power of an e-bike

    The FAZUA Ride 60 drive unit provides the feeling of a natural ride but still has got your back on all climbs. The compact and light, yet powerful system has 60 Nm torque and a maximum power output of 450 W. If you need an extra push, the boost function helps you to tackle even the steepest sections. Thanks to the high efficiency of the FAZUA system and a battery with 430 Wh, your ride won't stop before reaching your very own Rider's High. If you really need even more, adding a range extender offers you further 210 Wh. The drive system already features three different riding modes. On top, you can individualize the motor support based on your riding preferences via the FAZUA App. It allows you to set Max Power, Support Relation and Ramp-up according to your own personal needs.

  • Adjustable geometry and adapted kinematics

    The JAM² SL 9.0 features two points to adjust your geometry: the head angle and the chainstay length. The steeper head angle of 65,5° results in a more agile handling of the bike, while the slack position of 64,5° gives it a more downhill-oriented setting. Switching the FLIP CHIPs and adjusting your chainstay length from 440 to 447 mm changes the whole set-up of your bike. With longer chainstays, the JAM² SL 9.0 rides more stable and makes steep climbs easier, whereas the short setting leads to a more agile geometry. For the JAM² SL 9.0, we adapted our F.O.L.D. (FOCUS Optimised Linkage Design) and reduced the amount of linkage parts resulting in a significant weight loss. The updated kinematic design reduces brake influences and gives you maximum control of your bike in every situation.

Geometry

S M L XL
Size in mm 390 420 440 460
Handlebar width 800 800 800 800
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 440 480 480
A Seat tube length 390 420 440 460
B Top tube length 578 607 637 672
C Head angle (°) 65.5 65.5 65.5 65.5
D Seat angle (°) 76.5 76.5 76.5 76.5
E Chainstay length 447 447 447 447
F Bottom bracket drop 25 25 25 30
G Head tube length 100 100 120 140
H Fork length 571 571 571 571
I Fork offset 44 44 44 44
J Wheelbase 1212 1237 1271 1304
K Stack 614 614 632 650
L Reach 430 460 485 515
M Standover height 790 790 790 792
S M L XL
Size in mm 390 420 440 460
Handlebar width 800 800 800 800
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 440 480 480
A Seat tube length 390 420 440 460
B Top tube length 578 607 637 672
C Head angle (°) 65.5 65.5 65.5 65.5
D Seat angle (°) 76.5 76.5 76.5 76.5
E Chainstay length 440 440 440 440
F Bottom bracket drop 25 25 25 30
G Head tube length 100 100 120 140
H Fork length 571 571 571 571
I Fork offset 44 44 44 44
J Wheelbase 1201 1226 1259 1292
K Stack 614 614 632 650
L Reach 430 460 485 515
M Standover height 790 790 790 792
S M L XL
Size in mm 390 420 440 460
Handlebar width 800 800 800 800
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 440 480 480
A Seat tube length 390 420 440 460
B Top tube length 578 607 637 672
C Head angle (°) 64.5 64.5 64.5 64.5
D Seat angle (°) 76.5 76.5 76.5 76.5
E Chainstay length 440 440 440 440
F Bottom bracket drop 25 25 25 30
G Head tube length 100 100 120 140
H Fork length 571 571 571 571
I Fork offset 44 44 44 44
J Wheelbase 1194 1219 1252 1285
K Stack 614 614 632 650
L Reach 430 460 485 515
M Standover height 790 790 790 792
S M L XL
Size in mm 390 420 440 460
Handlebar width 800 800 800 800
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 440 480 480
A Seat tube length 390 420 440 460
B Top tube length 578 607 637 672
C Head angle (°) 64.5 64.5 64.5 64.5
D Seat angle (°) 76.5 76.5 76.5 76.5
E Chainstay length 447 447 447 447
F Bottom bracket drop 25 25 25 30
G Head tube length 100 100 120 140
H Fork length 571 571 571 571
I Fork offset 44 44 44 44
J Wheelbase 1205 1230 1264 1297
K Stack 614 614 632 650
L Reach 430 460 485 515
M Standover height 790 790 790 792

Specification

Frame
Frame
MAX Carbon technologie, 150mm F.O.L.D. GEN3 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm
Fork
Fork
FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake
Travel of suspension fork
Travel of suspension fork
160 mm
Shock
Shock
FOX Float DPS Factory, 3-position Evol LV, 210/55 mm, hardware: 25,0 x 8.0 mm, no Bushing
Motor
Motor
FAZUA Ride60
Battery
Battery
Fazua 36V (430Wh)
Display & Remote
Display & Remote
Fazua LED Hub + Ring Control
Shifter
Shifter
SRAM AXS Rocker, 12-speed
Rear derailleur
Rear derailleur
SRAM XO1 Eagle AXS, 12-speed
Cassette
Cassette
e*thirteen Helix Plus
Chain
Chain
SRAM X01 Eagle, 12-Speed
Crankset
Crankset
Rotor eKAPIC RF Link 29
Transmission of drive
Transmission of drive
front: 32, rear: 10-52
Bottom bracket
Bottom bracket
Integrated in Drive Unit
Handlebar
Handlebar
RaceFace Next R, carbon, 800 mm, rise: 25 mm, backsweep: 8°, 35,0 mm
Grips
Grips
RaceFace Getta Grip
Stem
Stem
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
Headset
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset
Saddle
Saddle
Prologo Proxim W850
Seatpost
Seatpost
Post Moderne dropper post PM-MT171, 31.6 mm
Brake
Brake
SRAM G2 Ultimate
Front brake disc
Front brake disc
200 mm
Rear brake disc
Rear brake disc
180 mm
Wheelset
Wheelset
Mavic Crossmax X LR 29, carbon, 622-30, 15x110 mm / 12x148 mm
Wheel size
Wheel size
29"
Rear wheel size
Rear wheel size
29"
Front tyre
Front tyre
Maxxis Dissector, 2.4 Exo, 61-622
Rear tyre
Rear tyre
Maxxis Dissector, 2.4 Exo, 61-622
Weight
Weight
17.9
Permissible system weight
Permissible system weight
135
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
