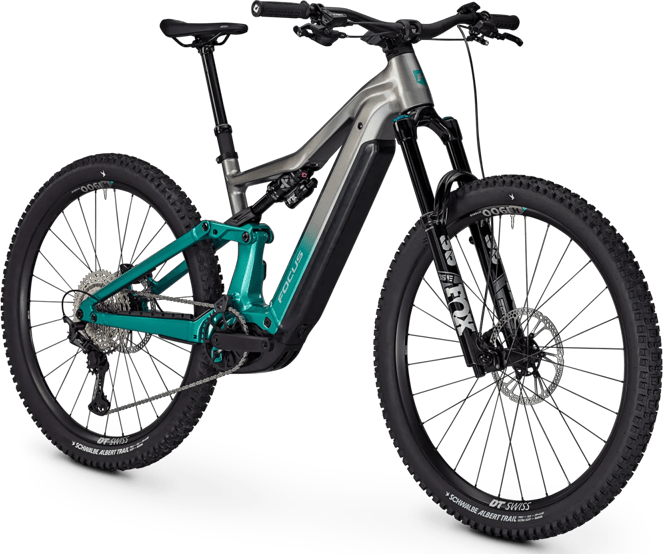

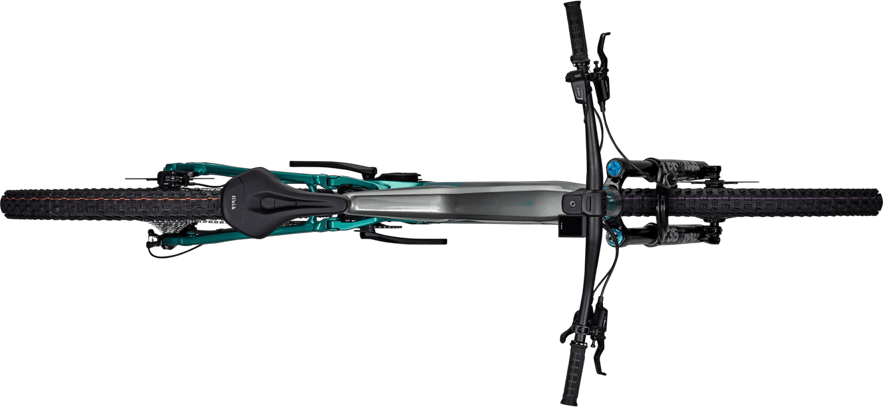

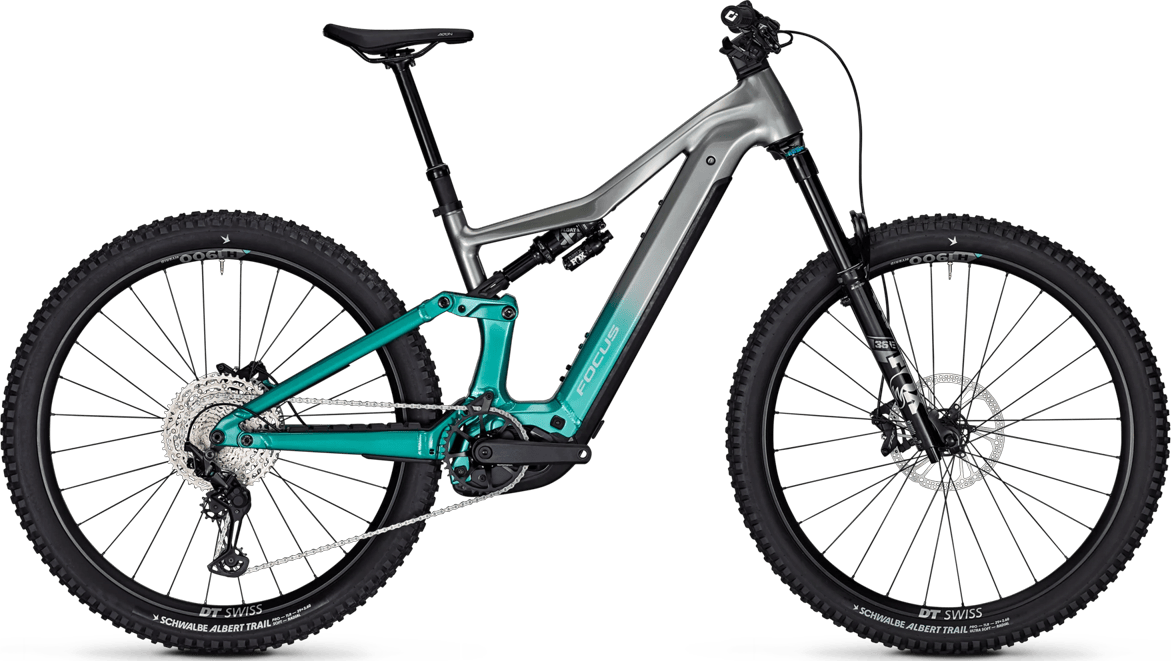

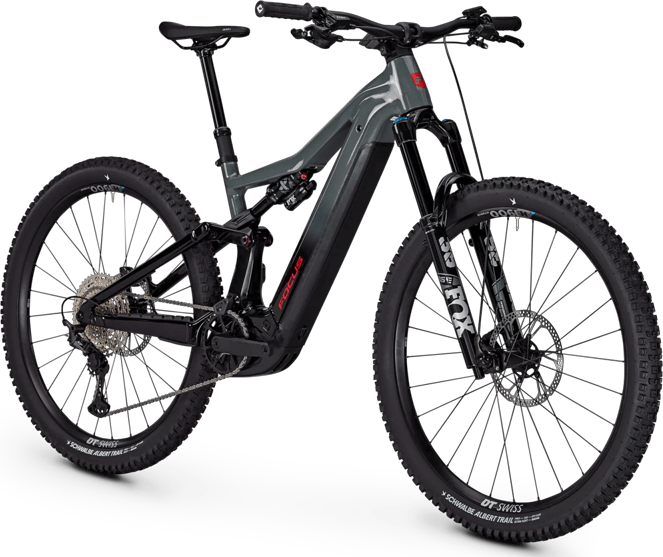

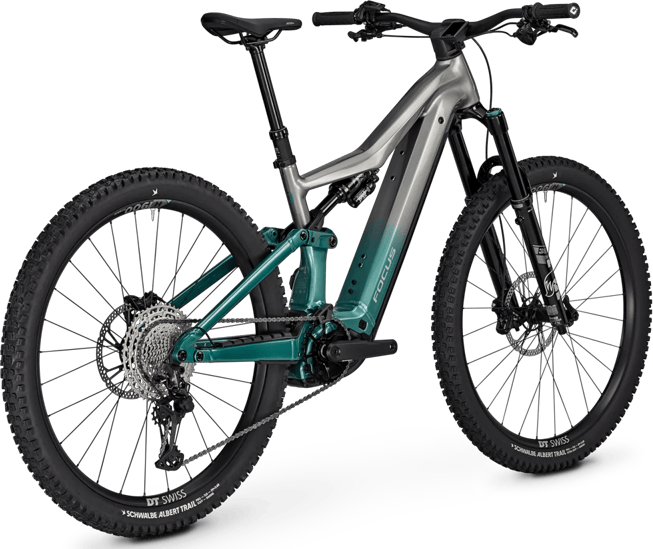

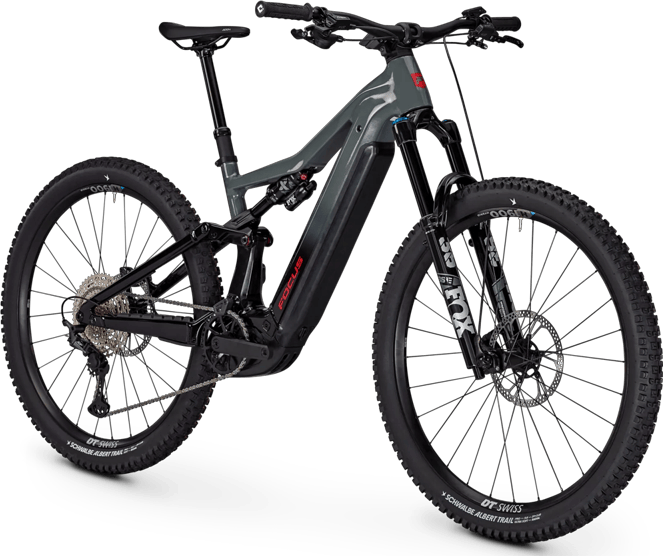

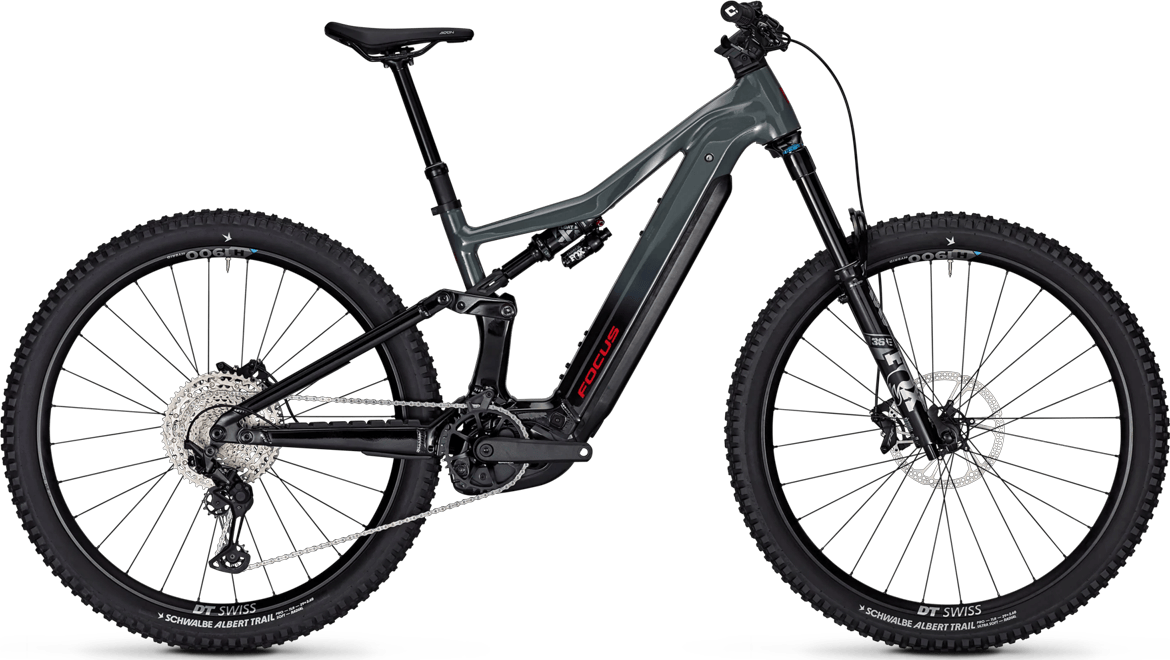

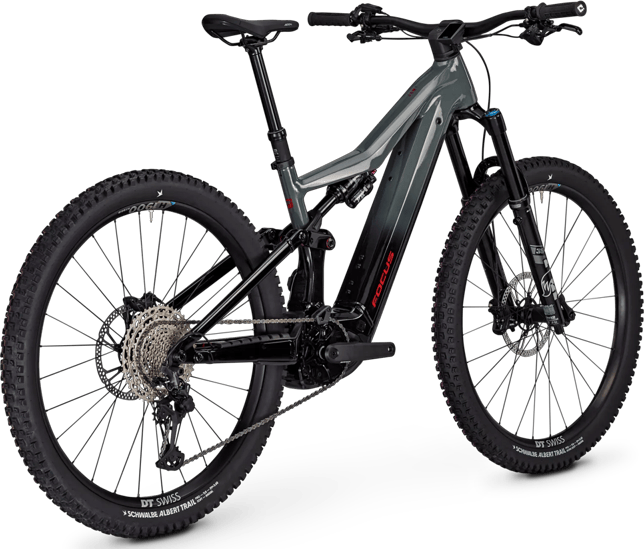

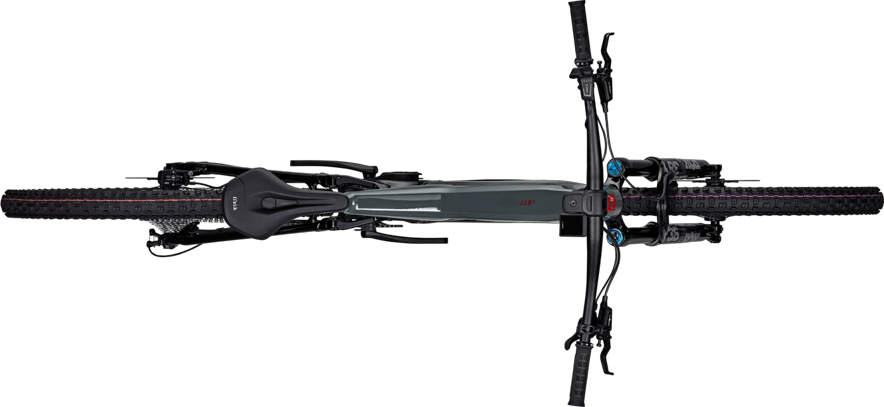

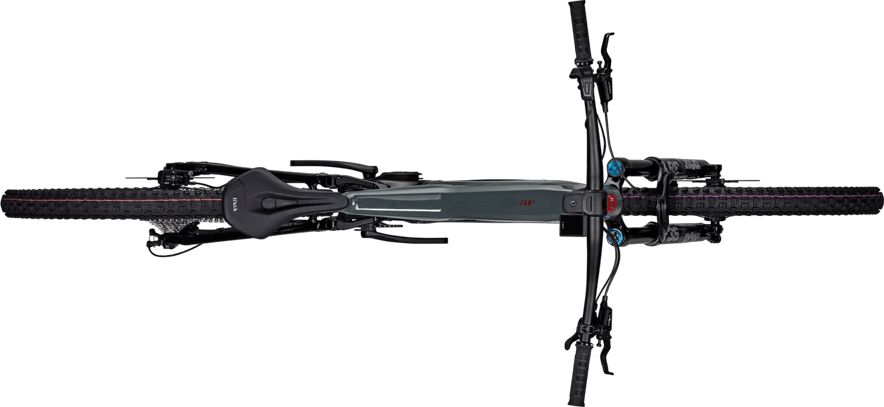

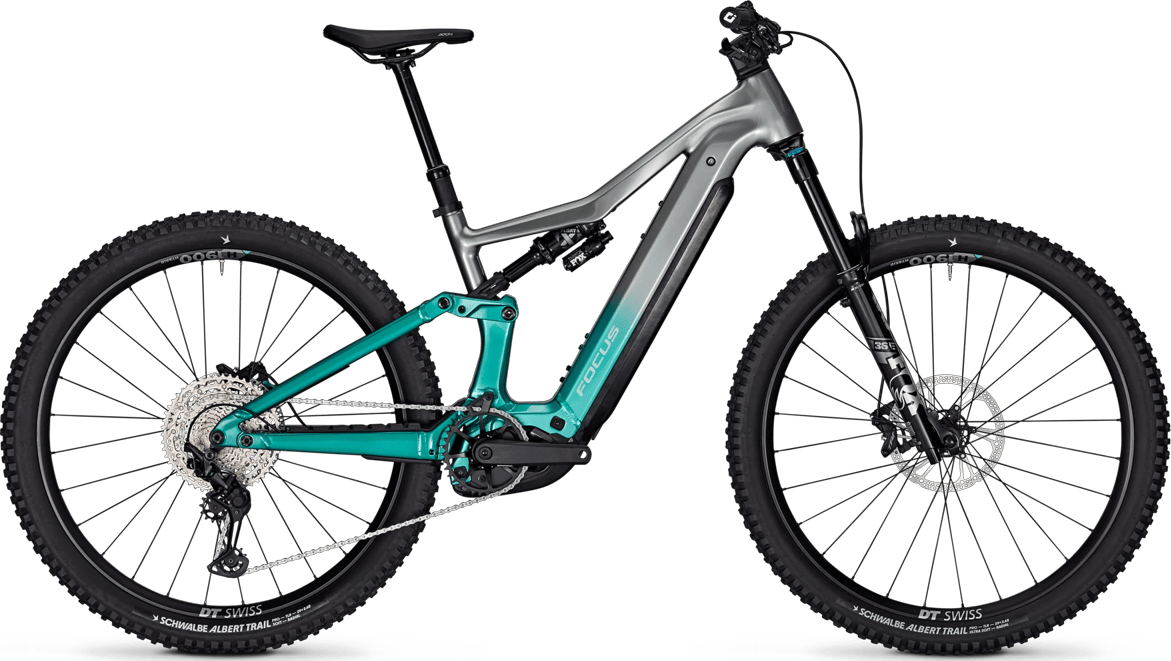

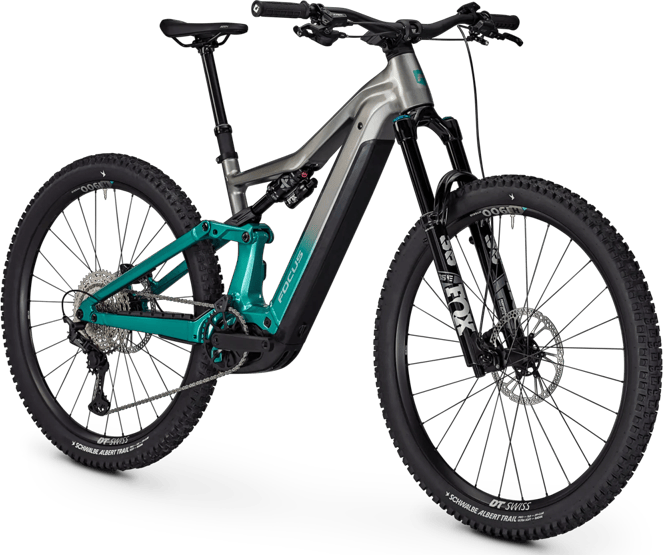

JAM² 6.9

Geometry Specification
N/A
Sku Number
FO5400035v2023

JAM² 6.9 Features

Bosch CX e-drive & 750 Wh battery

160 mm FOX 36 Factory fork & 150 mm FOX X Performance shock

Shimano XT 12-speed & DT Swiss H1900 wheels

Confidence on any terrain

  • Super powerful and dynamic Bosch Performance Line CX e-drive

    Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 6.9 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery.

  • Geometry for maximum fun on all types of trails

    Battery and drive unit are perfectly integrated into the e-MTB's frame giving the JAM² 6.9 a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the full suspension bike more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 6.9 according to your riding preferences from 65.5° to 64.5°.

  • Full control in any situation

    When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 6.9, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.

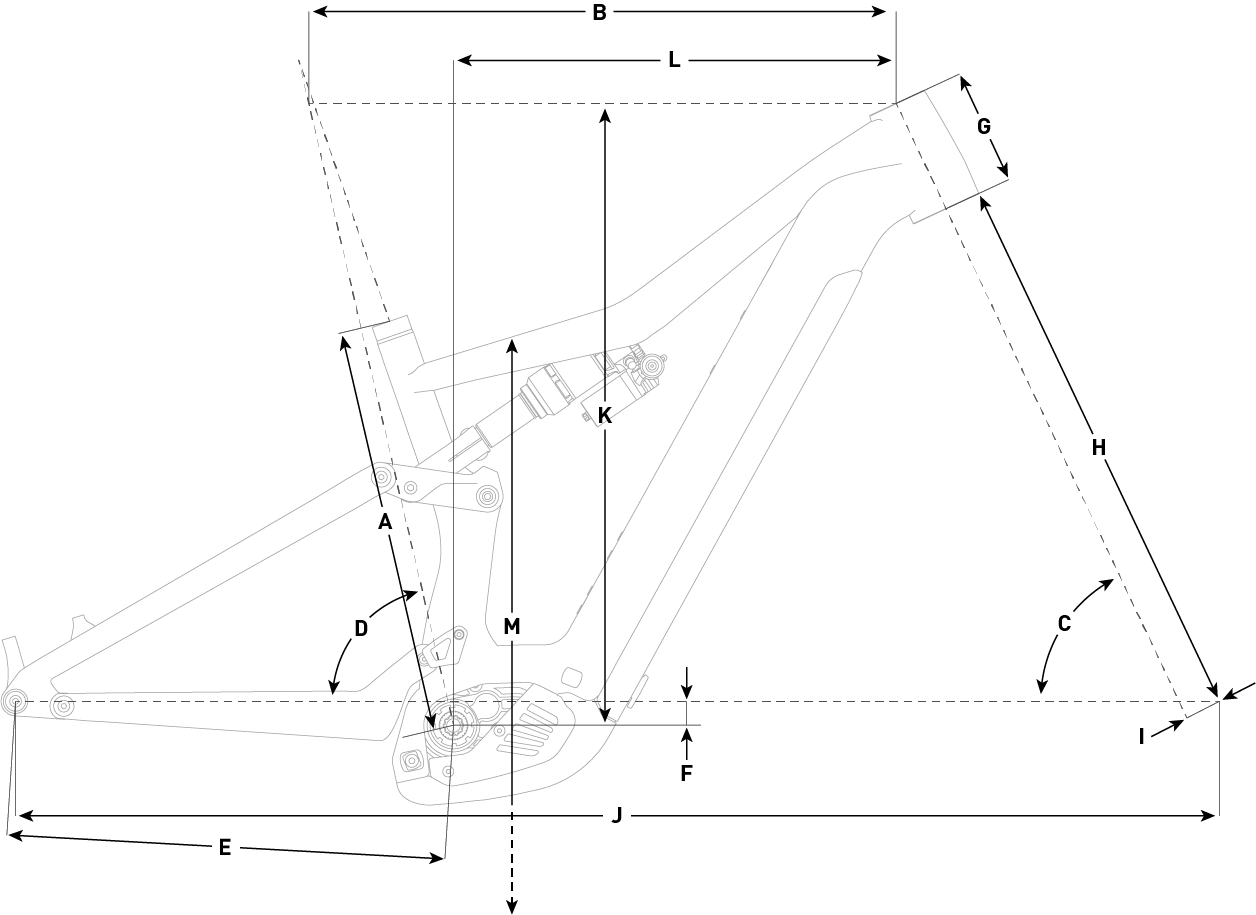

Geometry

S M L XL
Size in mm 390 420 440 460
Handlebar width 820 820 820 820
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 440 480 480
A Seat tube length 390 420 440 460
B Top tube length 578 608 637 672
C Head angle (°) 64.5 64.5 64.5 64.5
D Seat angle (°) 76.5 76.5 76.5 76.5
E Chainstay length 450 450 450 450
F Bottom bracket drop 25 25 25 25
G Head tube length 100 100 120 140
H Fork length 571 571 571 571
I Fork offset 44 44 44 44
J Wheelbase 1210 1240 1273 1312
K Stack 616 616 634 652
L Reach 430 460 485 515
M Standover height 800 800 800 800
S M L XL
Size in mm 390 420 440 460
Handlebar width 820 820 820 820
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 440 480 480
A Seat tube length 390 420 440 460
B Top tube length 578 608 637 672
C Head angle (°) 65.5 65.5 65.5 65.5
D Seat angle (°) 76.5 76.5 76.5 76.5
E Chainstay length 450 450 450 450
F Bottom bracket drop 25 25 25 25
G Head tube length 100 100 120 140
H Fork length 571 571 571 571
I Fork offset 44 44 44 44
J Wheelbase 1198 1128 1261 1300
K Stack 616 616 634 652
L Reach 430 460 485 515
M Standover height 800 800 800 800

Specification

Frame
Frame
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
Fork
Fork
FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake
Travel of suspension fork
Travel of suspension fork
160 mm
Shock
Shock
FOX Float X Performance, 210/55 mm, hardware: 25,0 x 8.0, no Bushing
Motor
Motor
Bosch Performance CX Smart, 85 Nm, 250 W
Battery
Battery
Bosch PowerTube Li-Ion 36V / 20,1Ah (750Wh)
Display & Remote
Display & Remote
Bosch LED Remote + Kiox 300
Shifter
Shifter
Shimano Deore XT M8100, 12-speed
Rear derailleur
Rear derailleur
Shimano Deore XT M8100, 12-speed
Cassette
Cassette
Shimano SLX M7100, 12-speed
Chain
Chain
Shimano SLX CN-M7100, 12-speed
Crankset
Crankset
RaceFace Aeffect R e-Optimized Bosch G4
Transmission of drive
Transmission of drive
front: 36, rear: 10-51
Bottom bracket
Bottom bracket
Integrated in Drive Unit
Handlebar
Handlebar
RaceFace Atlas 35, aluminium, 820 mm, rise: 35 mm, backsweep: 8°
Grips
Grips
RaceFace Getta Grip
Stem
Stem
FOCUS C.I.S. 50 mm, 0°, 35 mm, aluminium
Headset
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
Saddle
Saddle
Fizik Terra Aidon
Seatpost
Seatpost
Post Moderne dropper post PM-214, 34.9 mm
Brake
Brake
SRAM DB8, 4-piston, hydraulic disc brake
Front brake disc
Front brake disc
203 mm
Rear brake disc
Rear brake disc
203 mm
Wheelset
Wheelset
DT SWISS H1900, 30-622, 15x110 mm / 12x148 mm
Wheel size
Wheel size
29"
Rear wheel size
Rear wheel size
29"
Front tyre
Front tyre
Schwalbe Magic Mary, 2.6 Super Trail Soft, 65-622
Rear tyre
Rear tyre
Schwalbe Big Betty, 2.6 Super Trail Soft, 65-622
Weight
Weight
25.7
Permissible system weight
Permissible system weight
150
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
