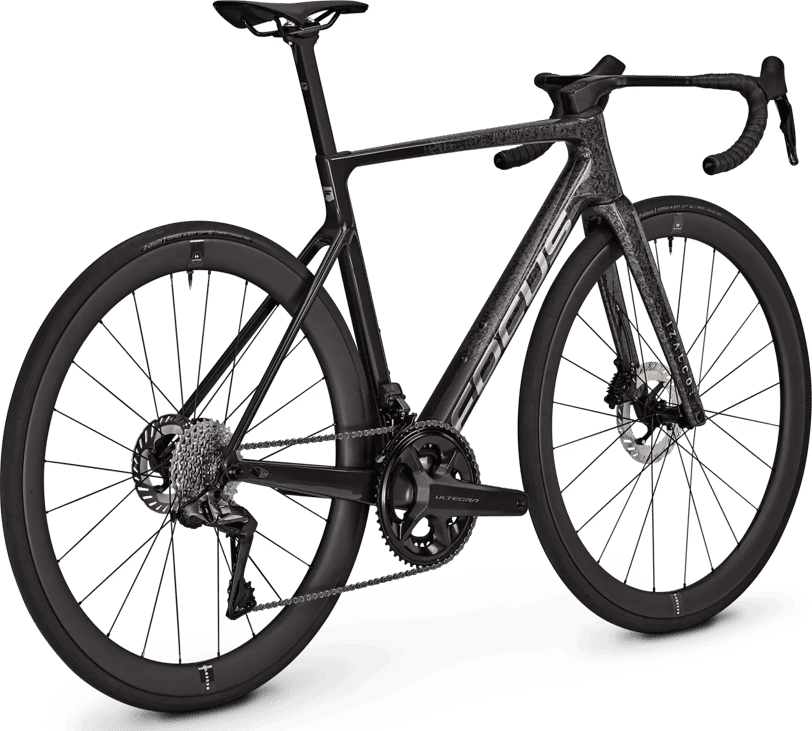

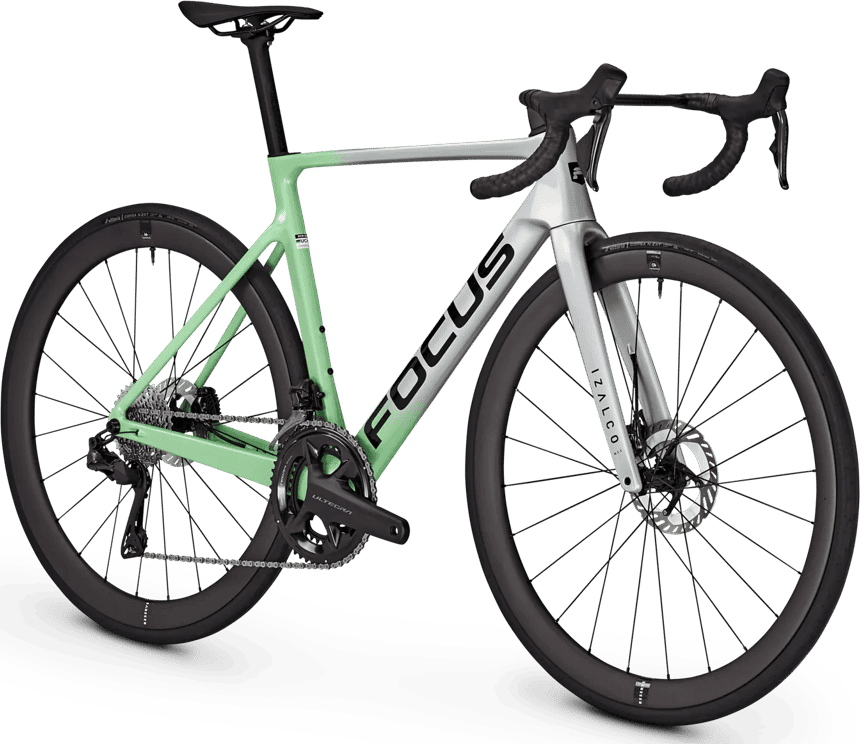

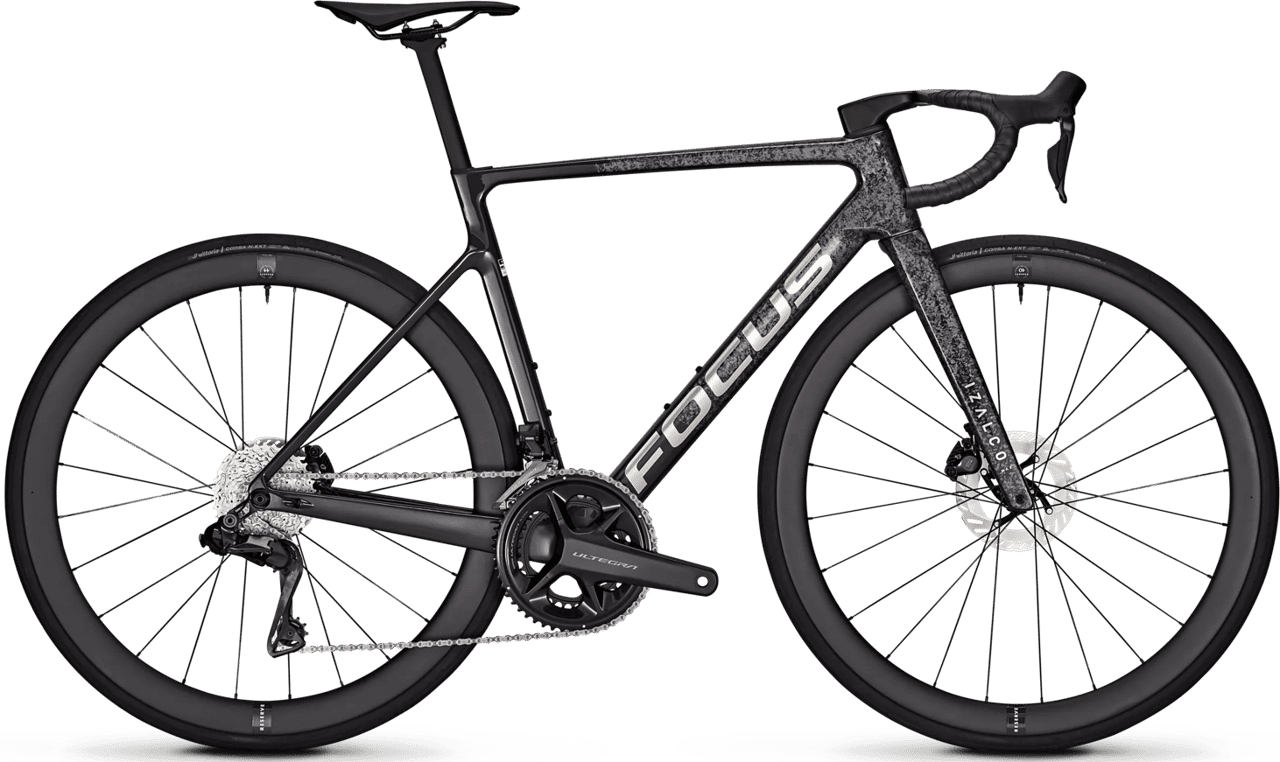

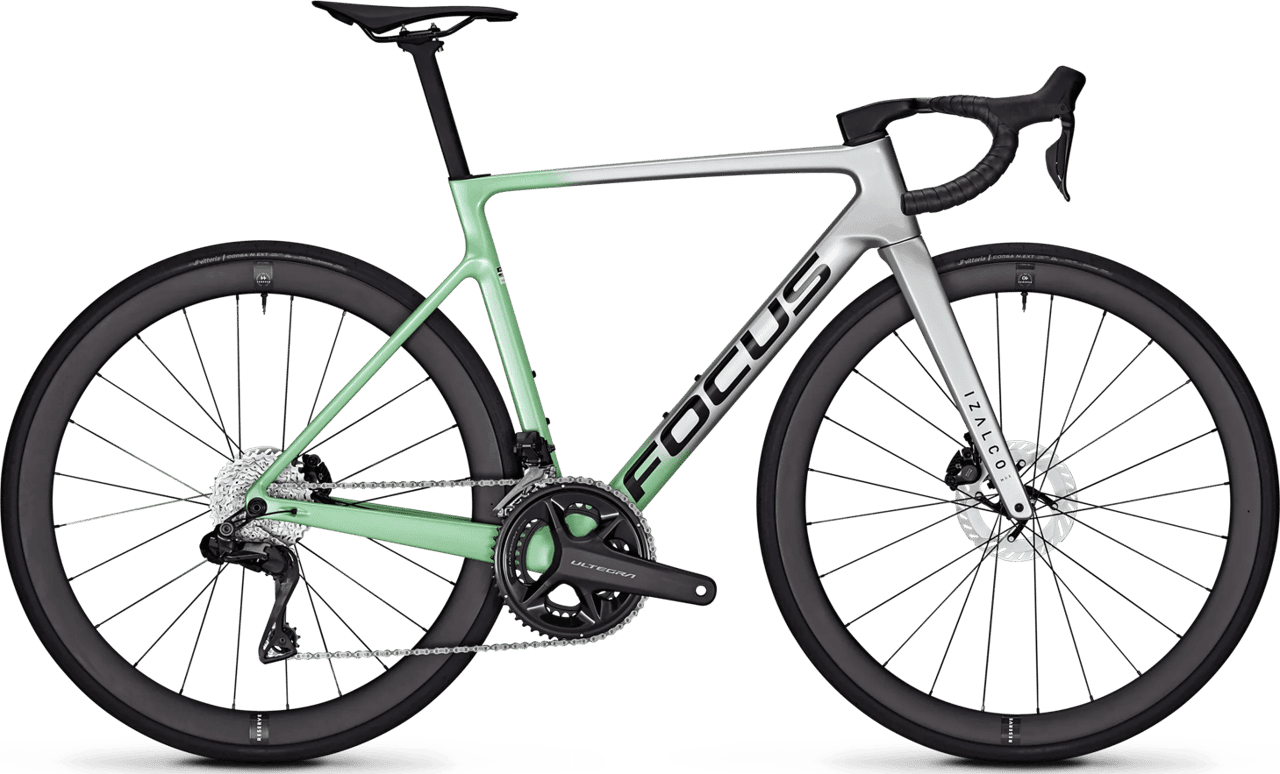

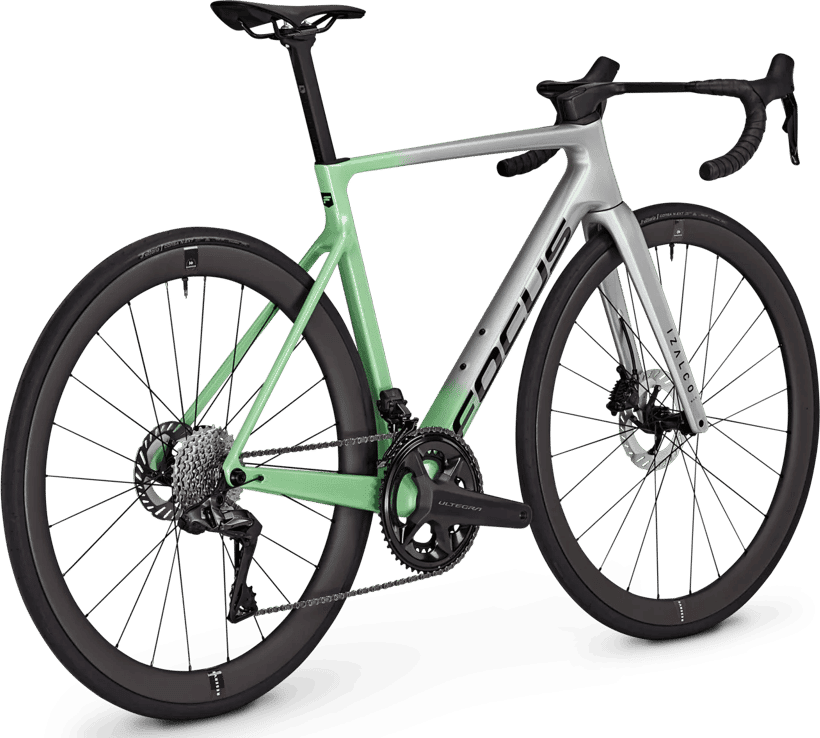

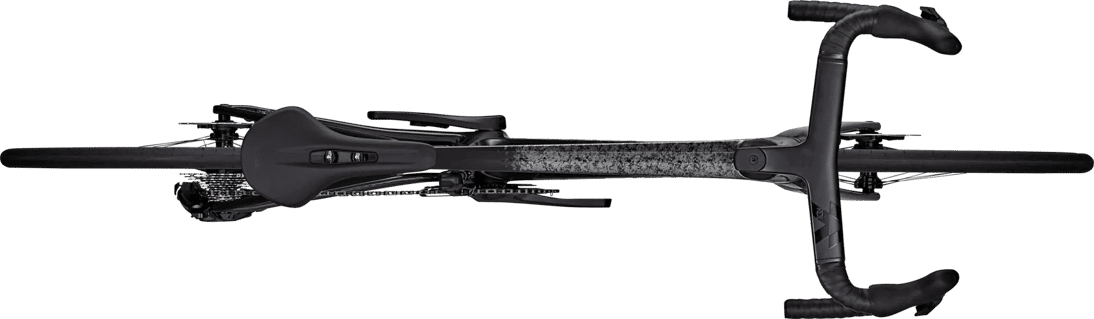

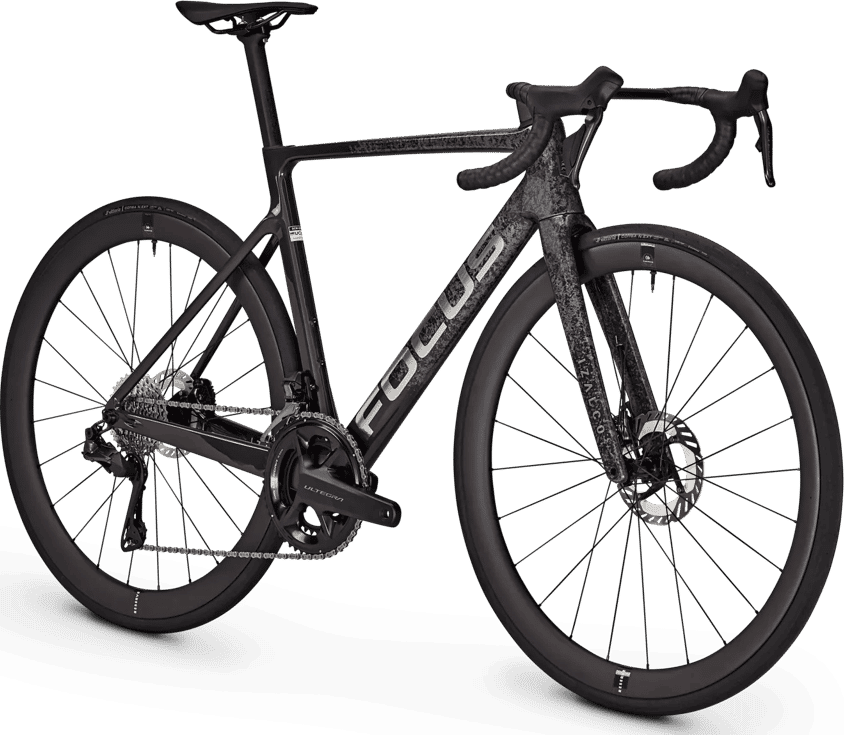

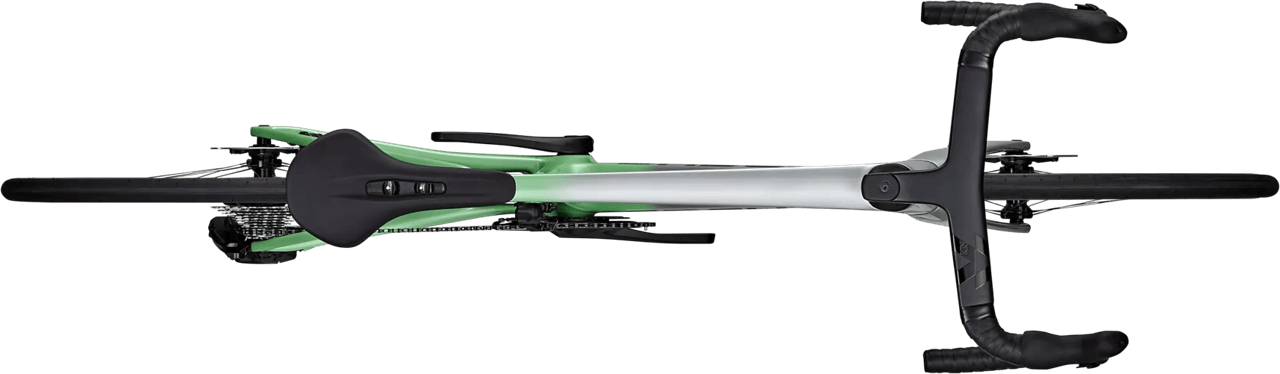

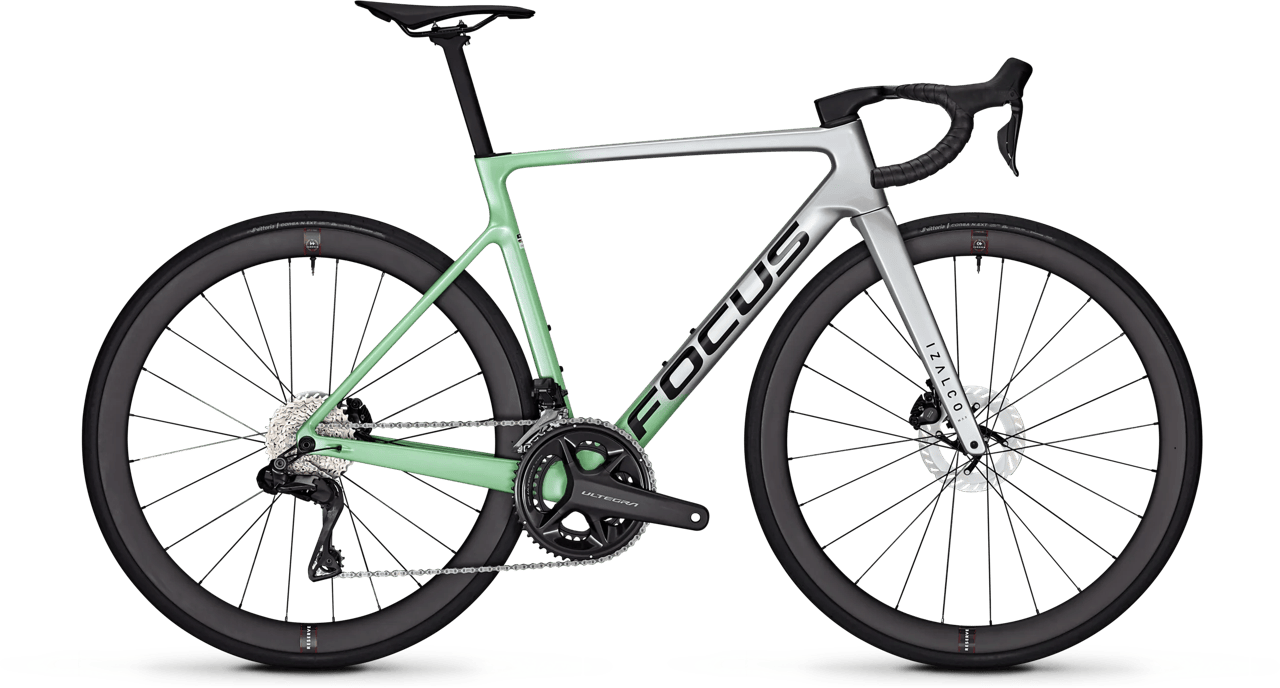

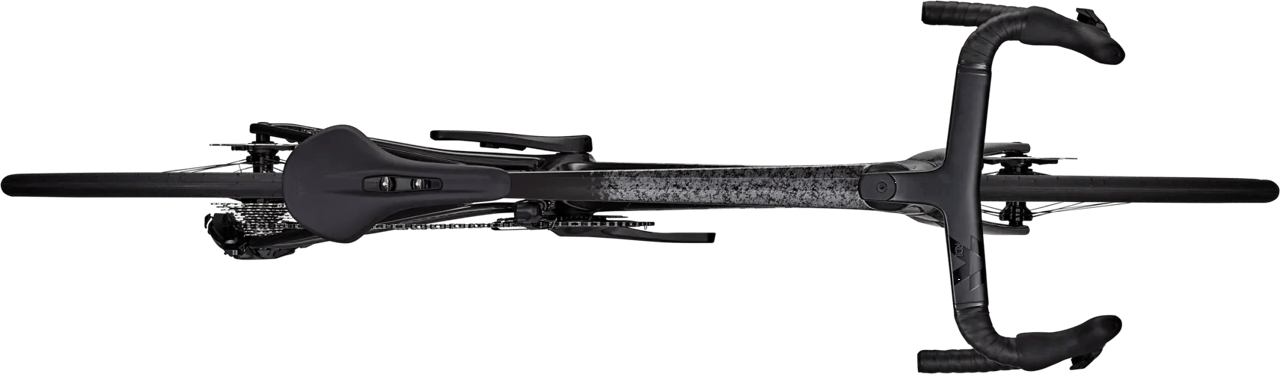

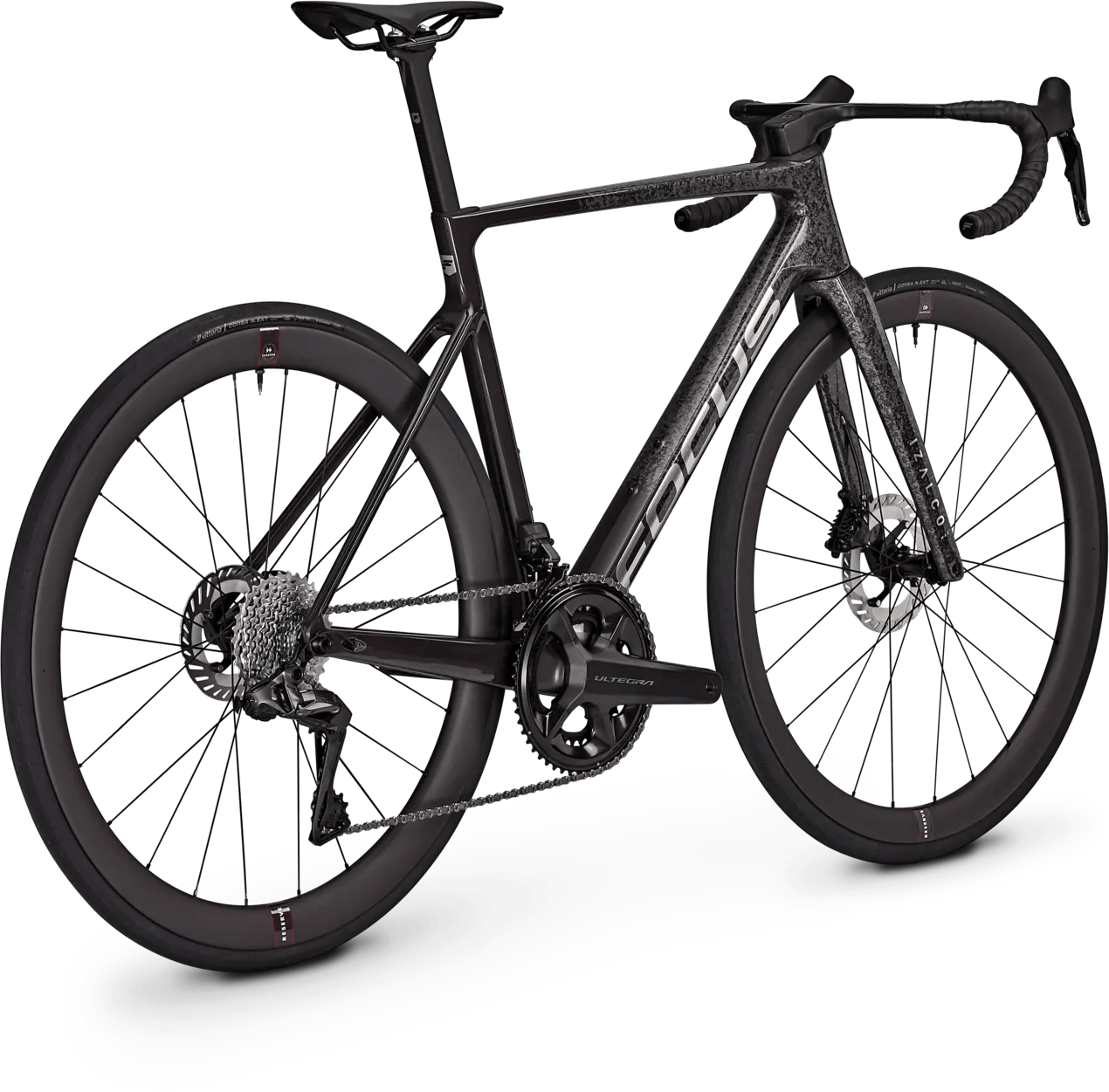

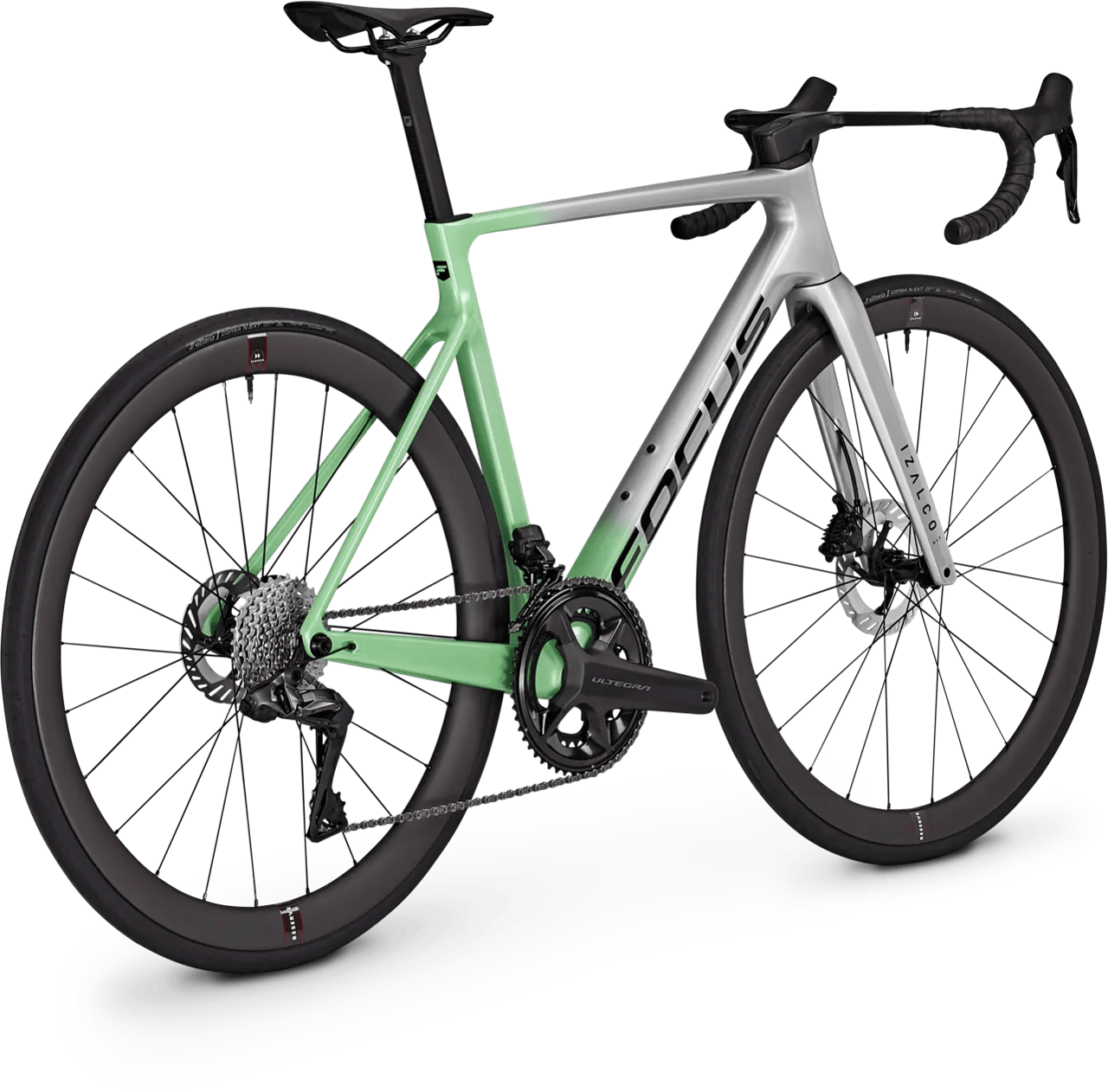

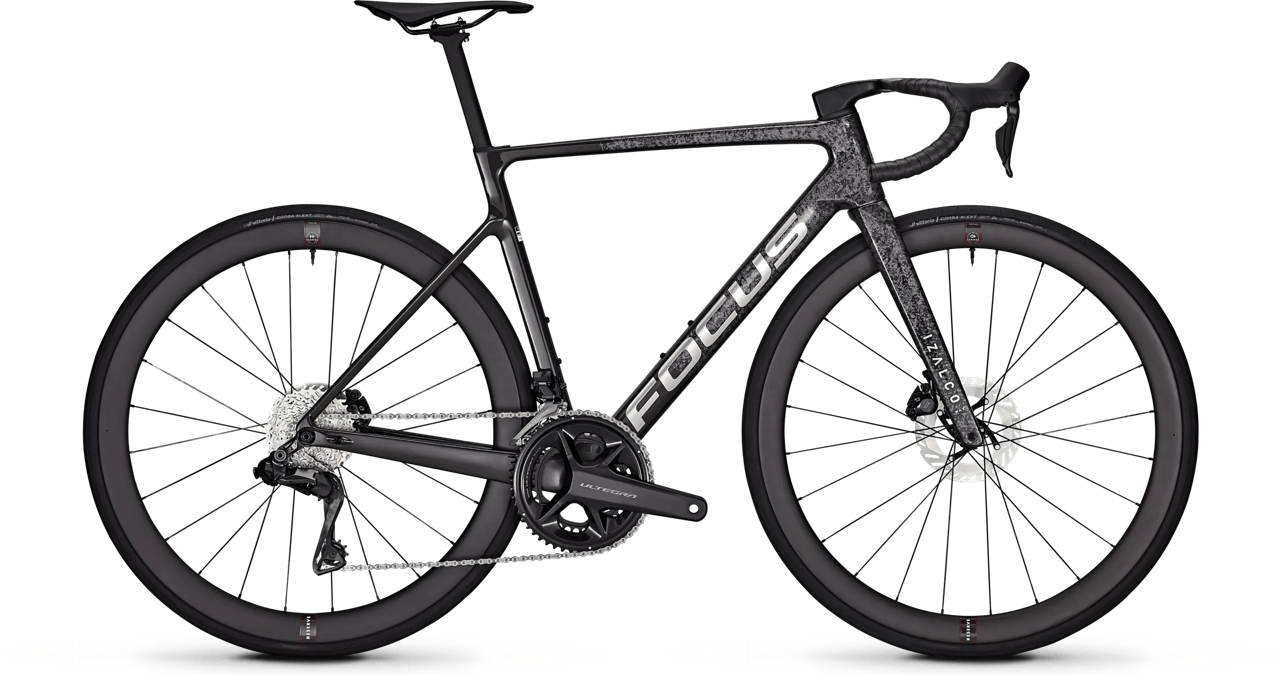

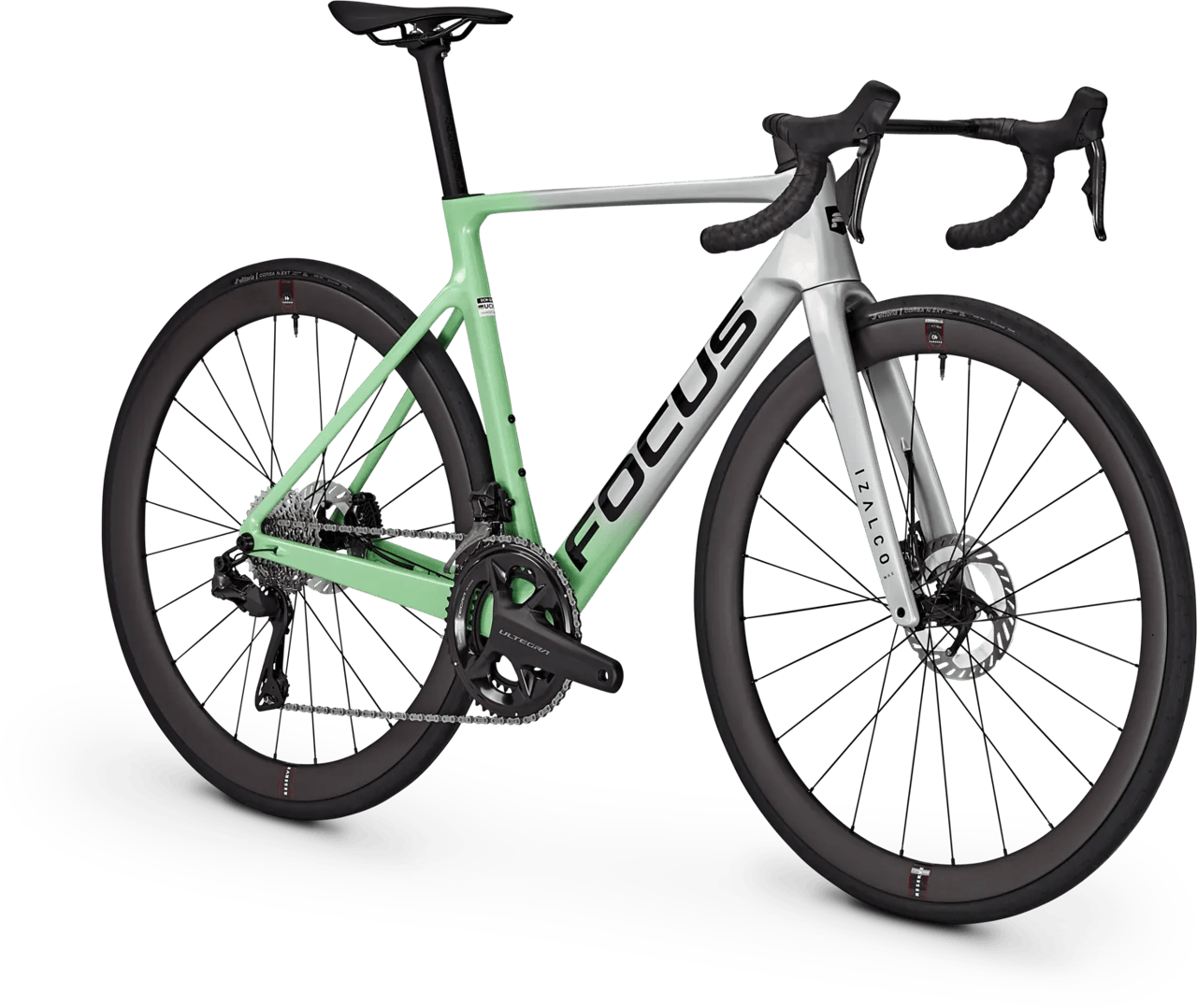

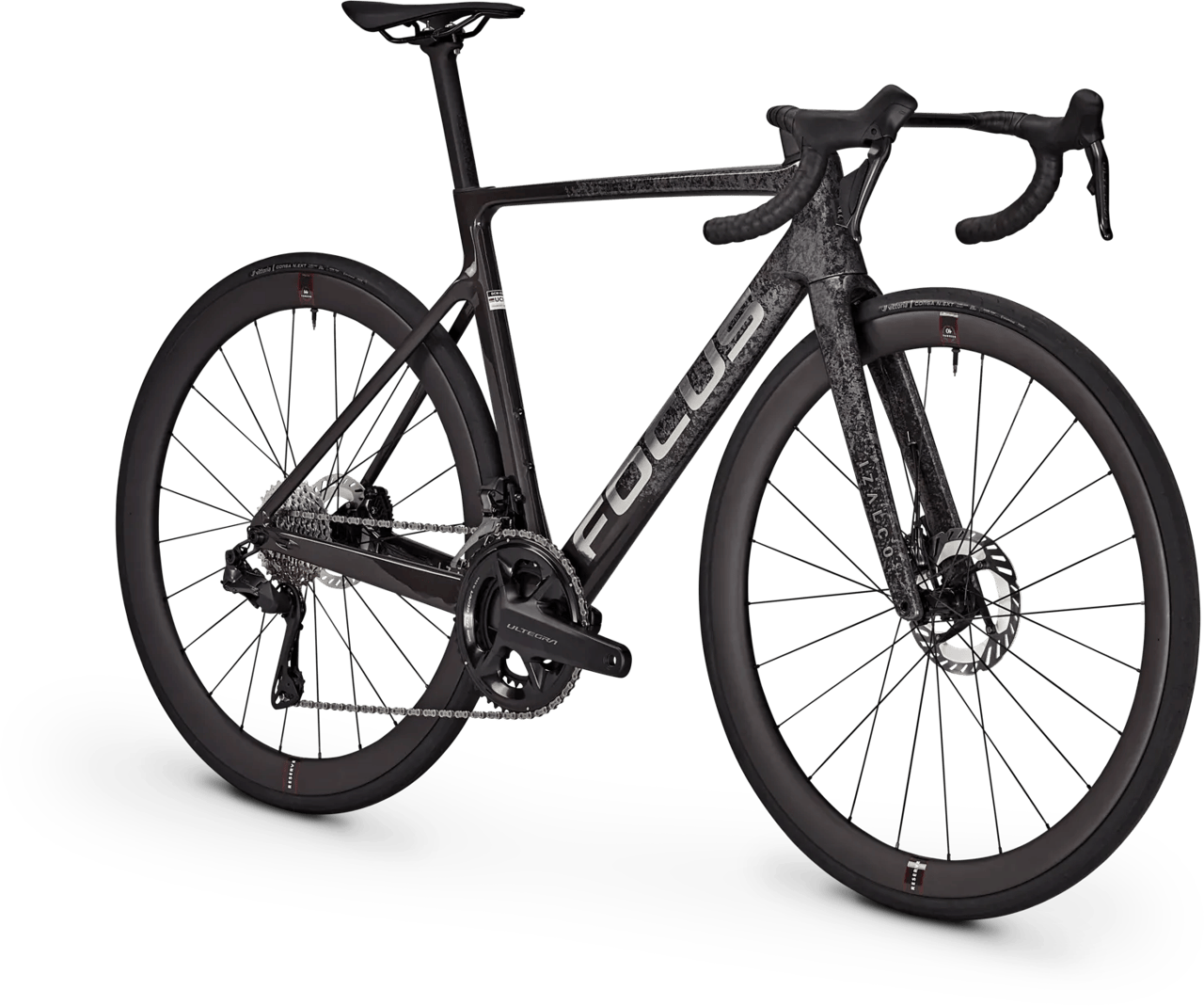

IZALCO MAX 9.7

Geometry Specification
N/A
Sku Number
FO0010029v2023

IZALCO MAX 9.7 Features

MAX aero carbon frame (865 g)

Electronic SRAM Rival eTap AXS 2x12 shifting

DT Swiss ERC1600 carbon wheels

Makes you faster

  • Aero gains

    The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork. Our C.I.S. road stem hides the cables below the stem. It also comes with an integrated bike computer mount for both Wahoo and Garmin.

  • 7 sizes for a perfect fit

    The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.

  • Effortless handling and maximum stiffness

    To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.

Geometry

XXS XS S M L XL XXL
Size in mm 470 500 520 540 560 580 610
Handlebar width 400 400 400 420 420 420 440
Stem length 80 90 100 110 110 120 120
Crank length 165 165 170 172.5 172.5 175 175
Seatpost length 350 350 350 350 350 350 350
A Seat tube length 455 475 495 515 535 555 585
B Top tube length 505 517 530 543 568 582 607
C Head angle (°) 70 71 72 72.5 72.5 73 73
D Seat angle (°) 75 74.5 74 73.5 73.5 73 73
E Chainstay length 410 410 410 410 410 410 410
F Bottom bracket drop 72 72 72 72 72 72 72
G Head tube length 90 100 115 135 155 175 195
H Fork length 371.5 371.5 371.5 371.5 371.5 371.5 371.5
I Fork offset 46 46 46 46 46 46 46
J Wheelbase 975 976 975 979 1004 1008 1033
K Stack 500 513 531 552 571 592 611
L Reach 370 375 378 380 399 401 420
M Standover height 746 762 778 795 814 835 857

Specification

Frame
MAX technology carbon, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing
Fork
MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount
Shifter
SRAM Rival eTap AXS, 12-speed
Front derailleur
SRAM Rival eTap AXS, 12-speed
Rear derailleur
SRAM Rival eTap AXS, 12-speed
Cassette
SRAM XG1250, 12-speed
Chain
SRAM Rival AXS, 12-speed
Crankset
SRAM Rival AXS, 12-speed
Transmission of drive
front: 48/35, back: 10-30
Bottom bracket
SRAM PF DUB 86
Handlebar
Easton EC70 Aero, carbon, drop: 125 mm, reach: 80 mm
Grips
FOCUS Bartape SL
Stem
FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount
Headset
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
Saddle
fi'zi:k Vento Argo R5
Seatpost
FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm
Brake
SRAM Rival eTap AXS, 12-speed
Front brake disc
160 mm
Rear brake disc
160 mm
Wheelset
DT Swiss ERC1600, carbon, 622-22, 12x100 mm / 12x142 mm, 45 mm height
Wheel size
28"
Rear wheel size
28"
Front tyre
Vittoria Corsa, Next TLR, 28-622, Folding
Rear tyre
Vittoria Corsa, Next TLR, 28-622, Folding
Weight
8.2
Permissible system weight
110
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
