Gallery

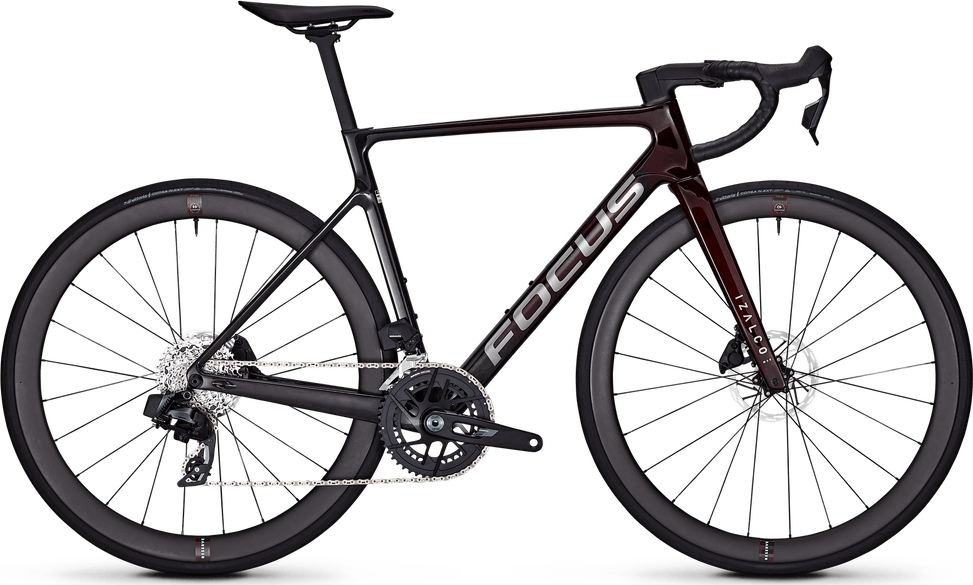

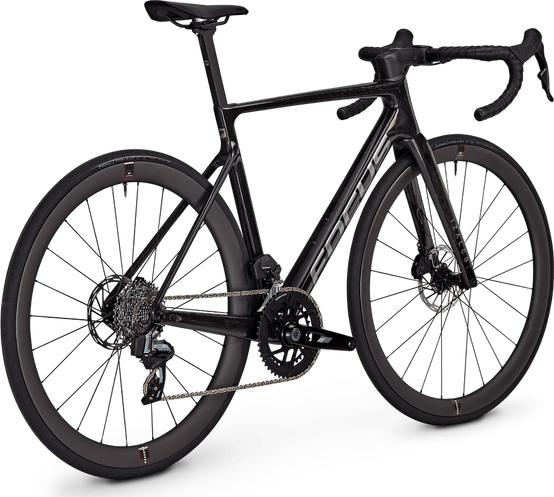

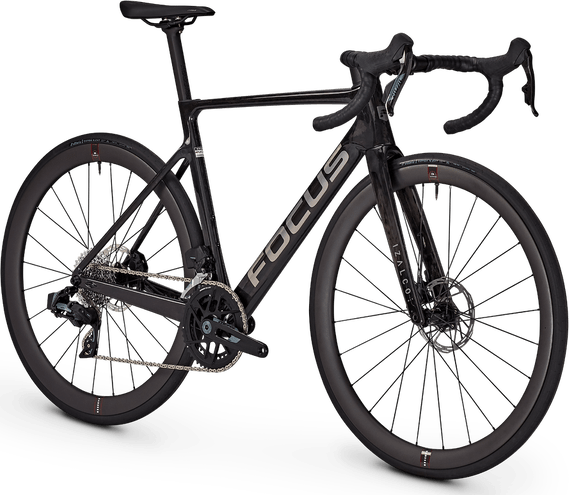

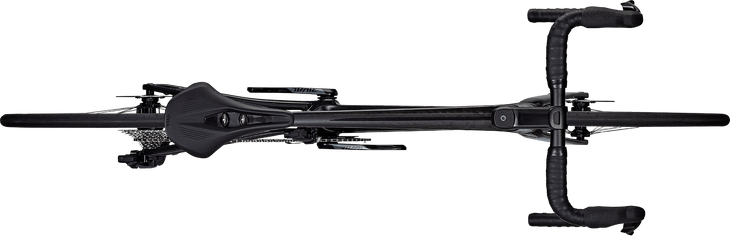

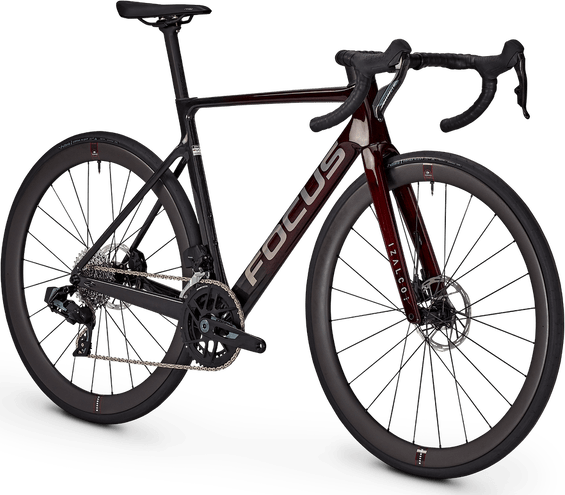

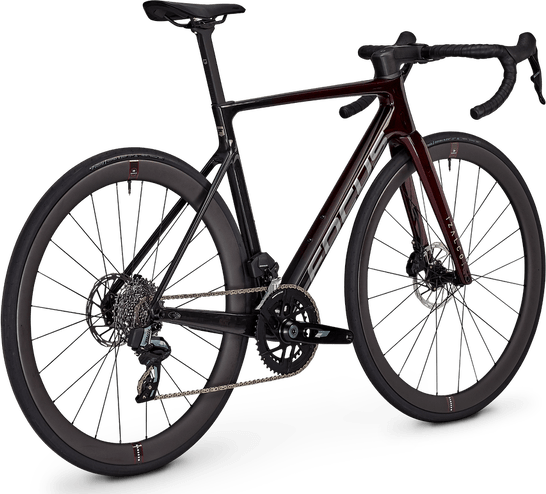

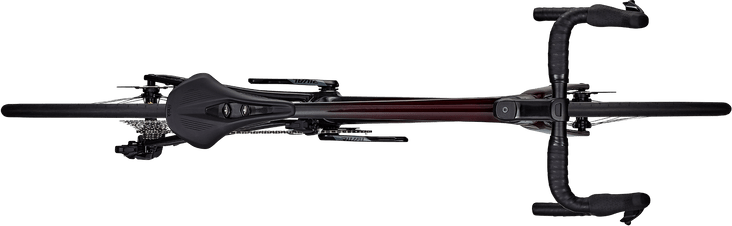

Exemplary bike presentation. Actual parts are shown in the specifications list.

IZALCO MAX 8.9

Geometry Specification

N/A

Sku Number

FA71-V1

IZALCO MAX 8.9 Features

Aero carbon frame (1,050 g)

Electronic SRAM Rival AXS 2x12 shifting

RESERVE 40|44 carbon wheels

Makes you faster

Aero gains

The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork.
7 sizes for a perfect fit

The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.
Effortless handling and maximum stiffness

To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.

Frame

Carbon technology, disc, 142x12 mm thru axle, flat mount 160/140 mm

Shifter

SRAM Rival AXS E1

Front derailleur

SRAM Rival AXS E1

Rear derailleur

SRAM Rival AXS E1, 12-speed

Cassette

SRAM XG-1250, 10-36T

Chain

SRAM Rival

Crankset

SRAM Rival E1, 48/35T

Bottom bracket

SRAM DUB86, PF41

Handlebar

FOCUS Road Bar, alloy, 74 mm, 116 mm, 4°

Stem

FOCUS C.I.S. 2.0 integrated, -8°, with Garmin / Wahoo-Mount

Headset

ACROS IS 52/ IS52 (ICR), FOCUS integrated C.I.S.

Saddle

fi'zi:k Argo R5

Seatpost

FOCUS Aero Carbon, D-shape, set-back: 0 mm: XXS-L, 15mm: XL-XXL

Brakes front | rear

SRAM Rival AXS E1 | -

Disc brake rotors

SRAM Paceline, front: 160 mm / rear: 160 mm

Wheelset

Reserve 40|44, carbon, rim height: front 40 mm, rear: 44 mm, width: front: 25.5-622, rear: 25-62

Tyres front | rear

Vittoria Corsa N.EXT wide, tubeless ready, 29-622 | Vittoria Corsa N.EXT wide, tubeless ready, 29-622

Weight

8.1 kg (-)

Permissible system weight

110 kg

* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.

		XXS	XS	S	M	L	XL	XXL
	Size in mm	470	500	520	540	560	580	610
	Handlebar width	380	380	380	400	400	420	420
	Stem length	80	90	100	110	110	120	120
	Crank length	165	165	170	170	170	172.5	175
	Seatpost length	350	350	350	350	350	350	350
A	Seat tube length	455	475	495	515	535	555	585
B	Top tube length	505	517	530	543	568	582	607
C	Head angle (°)	70	71	72	72.5	72.5	73	73
D	Seat angle (°)	75	74.5	74	73.5	73.5	73	73
E	Chainstay length	410	410	410	410	410	410	410
F	Bottom bracket drop	72	72	72	72	72	72	72
G	Head tube length	90	100	115	135	155	175	195
H	Fork length	371.5	371.5	371.5	371.5	371.5	371.5	371.5
I	Fork offset	46	46	46	46	46	46	46
J	Wheelbase	975	976	975	979	1004	1008	1033
K	Stack	500	513	531	552	571	592	611
L	Reach	370	375	378	380	399	401	420
M	Standover height	746	762	778	795	814	835	857
