CRATER LAKE 3.9

Geometry Specification
SKU
FO8040002v2019

Speedy all-rounder

  • The choice is yours

    The CRATER LAKE offers you a choice of two different frame shapes – step-through or Diamant frame.

  • Fully prepared

    The suspension fork and off-road tyres of the CRATER LAKE ensure that you are fully prepared for outings on gravel.

  • Pedal effortlessly uphill

    Three chain rings provide the optimum transmission ratio range to ensure that no hill is too steep.

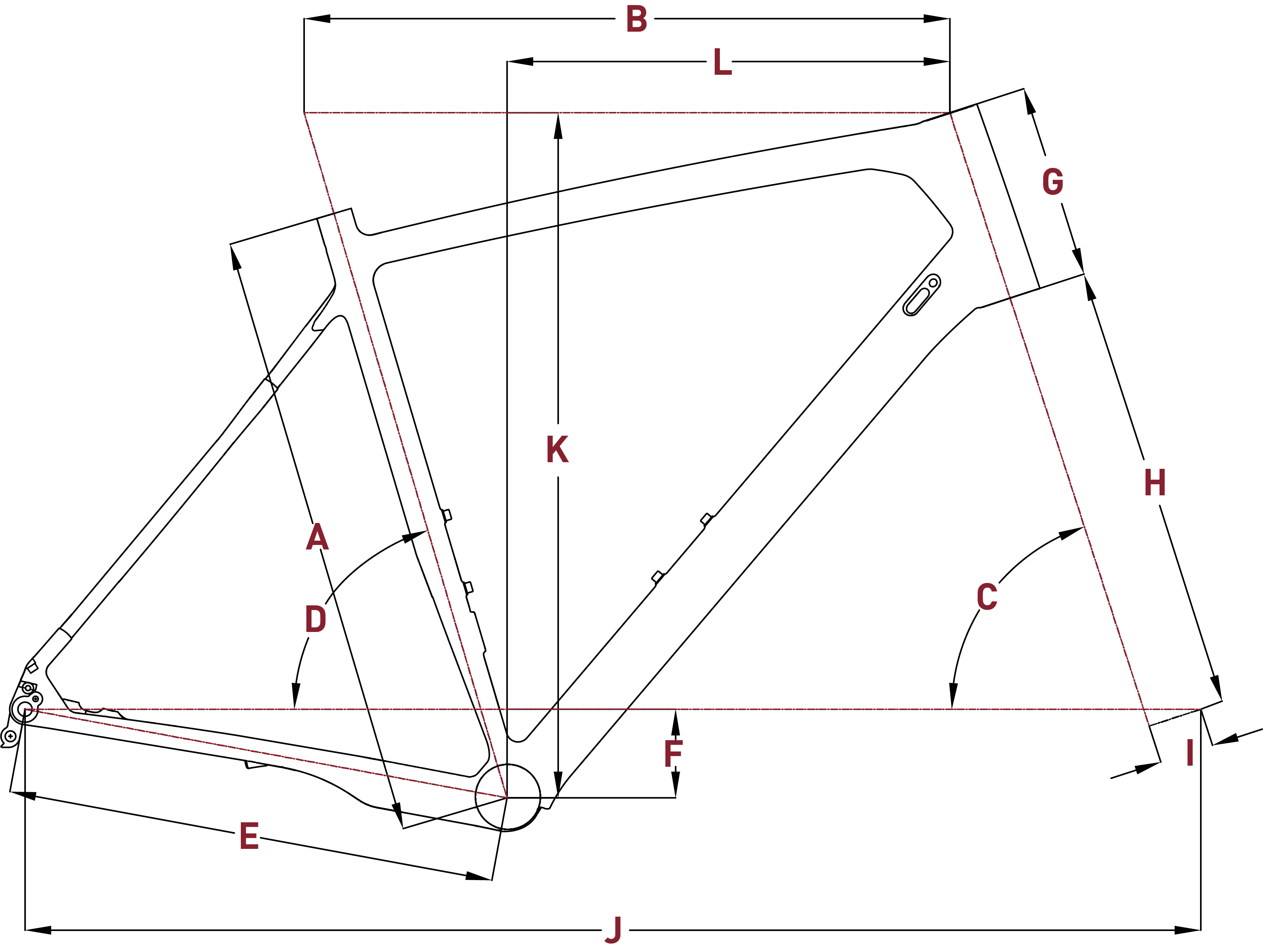

Geometry

S M L XL
A Size (MM) 450 500 550 600
B Effective Top Tube (MM) 570 580 595 610
C Head Tube Angle (°) 71 71.5 71.5 71.5
D Effective Seat Tube Angle (°) 74 73.5 73 72.5
E Chainstay length (MM) 465 465 465 465
F Bottom bracket drop (MM) 60 60 55 55
G Head Tube Length (MM) 135 135 170 220
H Fork construction height (MM) 465 465 465 465
I Pre-raked fork (MM) 45 45 45 45
J Wheelbase length (MM) 1093 1092 1104 1114
K Stack (MM) 613 616 644 691
L Reach (MM) 394 398 398 392
Handlebar width 680 680 680 680
Stem Length (MM) 90 90 90 90
Crankarm length 170 175 175 175

Specification

Frame
6061 aluminium, international disc brake standard
Frame material
Aluminium
Fork
SR Suntour NEX HLO DS, 63 mm travel, 9 mm QR
Travel Fork
63 mm
Shifter
Shimano Deore T6000
Front derailleur
Shimano Deore T6000
Rear derailleur
Shimano Deore XT M781, 10-speed
Sprocket
Shimano HG500
Chain
KMC X10.93
Crankset
Shimano FC-T521, 48/36/26T
Bottom Bracket
BSA
Transmission of drive
front: 48/36/26, rear: 11-32
Handlebar
aluminium, riserbar, 680mm
Grips
FOCUS SL
Stem
aluminium, 31.8mm
Headset
1-1/8", 44/286-ZS44/30
Saddle
FOCUS Sport Saddle
Seatpost
fixed, aluminium, Ø 27.2
Brakes
Shimano BR-MT200, hydraulic disc
Brake lever
Shimano MT200
Brake
Disc
Rims
Concept
Wheelset
Rodi Viper 21, 29" 622-21, Shimano TX-505 CL, 9 mm QR / 9 mm QR
Rear hub
Shimano TX505, QR
Front Hub
Shimano TX505, QR
Tires
Schwalbe CX Comp, 40-622
Gears
30
Size
45,55,50,60
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
