RAVEN MAX Pro

Geometry Specification
SKU
FO3000008v2018

RAVEN MAX Pro Features

Extremely lightweight MAX carbon frame with R.A.T. thru-axle system (R.A.T. thru-axles are sold under licence in the UK [UK patent GB2414971B])

Shimano XT drive and brake system

Comfortable and lightweight BBB carbon seatpost

Unbelievable acceleration

  • Sets benchmarks for lightweight construction

    Thanks to our high-end carbon technology, our RAVEN weighs just 885 grams. One of the lightest frames on the racing circuit – and the best performing.

  • Valued by professionals

    Our RAVEN regularly proves its worth at the World Cup. It is our opinion that only a bike that is able to succeed in this test of endurance is good enough for you.

  • Reduced fatigue thanks to increased comfort

    Sophisticated fibre orientation and tube dimensions for the seat tube, saddle stays, bottom bracket and steering head – as rigid as necessary, as comfortable as possible.

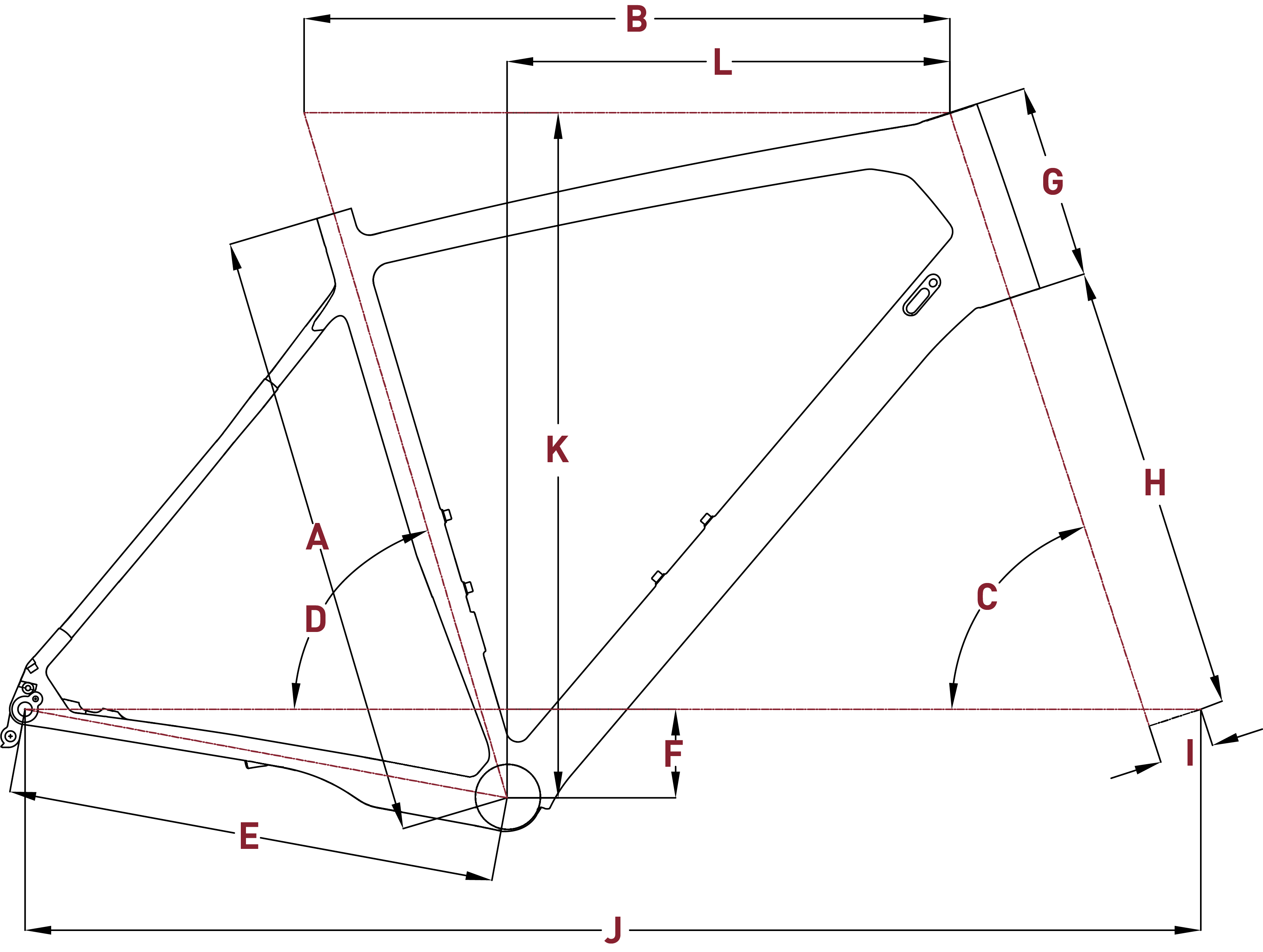

Geometry

S M L XL
Size 42 46 50 54
Seat post length S M L XL
Handlebar width 720 720 720 720
Stem Length (MM) 90 90 90 90
Crankarm length 170 175 175 175
A Size (MM) 420 460 500 540
B Effective Top Tube (MM) 592 608 629 649
C Head Tube Angle (°) 69.8 69.8 69.8 69.8
D Effective Seat Tube Angle (°) 74.5 74.5 74.5 74.5
E Chainstay (MM) 435 435 435 435
F BB Drop (MM) 68 68 68 68
G Head Tube Length (MM) 104 107 130 150
H Fork Length (MM) 501 501 501 501
I Fork Offset (MM) 44 44 44 44
J Wheelbase (MM) 1100 1116 1139 1160
K Stack (MM) 620 623 644 663
L Reach (MM) 420 435 450 465

Specification

Frame
MAX technology Carbon frame, PF30 BB, 142x12 mm thru axle, internal cable routing, Post Mount 160 mm
Frame material
carbon
Fork
FOX 32 Float SC Performance, remote, 110x15 mm QR, 100 mm travel
Travel Fork
100 mm
Shifter
Shimano Deore XT
Front derailleur
Shimano Deore XT 8000, direct mount
Rear derailleur
Shimano Deore XT 8000, 11-speed
Crankset
Shimano XT, 38/28T
Bottom Bracket
Token BSA
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Stem
BBB, aluminium, 31.8mm
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Saddle
Race Saddle
Seatpost
BBB, carbon, 27,2 mm, 394 mm
Brakes
Shimano Deore XT M8000, 180 mm / 160 mm
Brake
Disc
Wheelset
DT Swiss M1900 TLC, 622-23, 142x12 mm / 110x15 mm
Tires
Continental Race King 2.2 RS, foldable
Gears
22
Size
46,54,42,50
Seatpost type
Fixed seatpost
Shifting type
Mechanical shifting
Plateaux
2x
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
