IZALCO MAX Dura Ace

Geometry Specification
SKU
FO0010004v2018

IZALCO MAX Dura Ace Features

Extremely lightweight frame – only 735 g

Complete Shimano R9100 Dura Ace groupset

Fast Zipp full-carbon wheels and Continental tyres

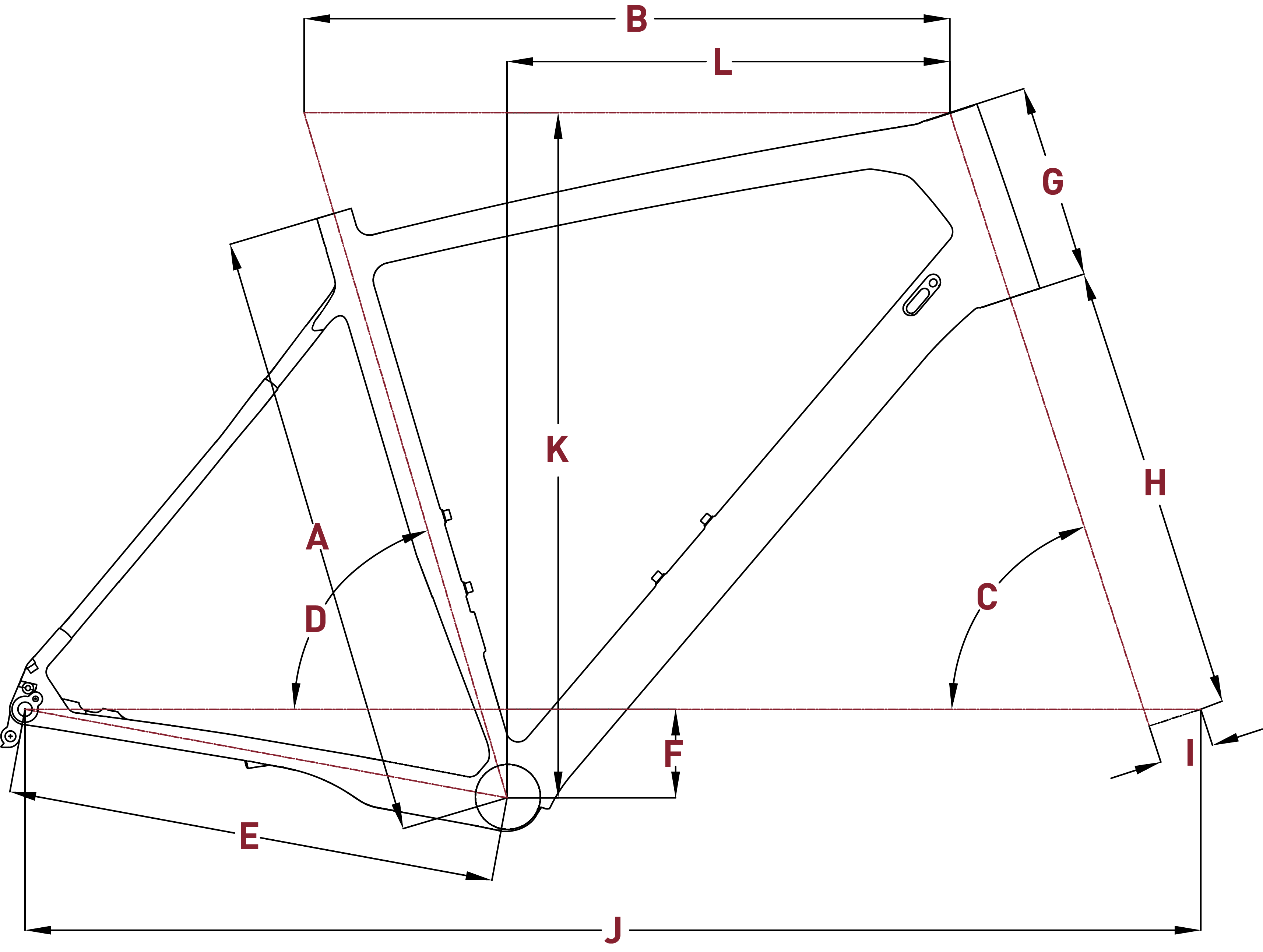

Geometry

XXS XS S M L XL XXL
Size 48 50 52 54 56 58 61
Seat post length XXS XS S M L XL XXL
Handlebar width 400 400 420 420 420 440 440
Stem Length (MM) 90 90 100 110 110 120 120
Crankarm length 170 170 172,5 172,5 172,5 175 175
A Size (MM) 480 500 520 540 560 580 610
B Effective Top Tube (MM) 521 530 536 549 565 580 604
C Head Tube Angle (°) 70.8 71.4 71.7 72.5 73.5 73.6 73.7
D Effective Seat Tube Angle (°) 73.8 73.6 73.6 73.5 73.5 73.4 73.2
E Chainstay (MM) 415 415 415 415 415 415 415
F BB Drop (MM) 72 71 71 70 70 69 68
G Head Tube Length (MM) 110 115 120 135 160 180 200
H Fork Length (MM) 370 370 370 370 370 370 370
I Fork Offset (MM) 43 43 43 43 43 43 43
J Wheelbase (MM) 980 982 987 992 998 1012 1033
K Stack (MM) 510 515 521 537 565 583 601
L Reach (MM) 373 378 383 390 398 406 422

Specification

Frame
MAX technology carbon, caliper, PF30BB, 130 mm quick release dropouts, external brake cable routing
Frame material
carbon
Fork
MAX technology carbon, caliper, 100 mm quick release
Front derailleur
Shimano Dura Ace R9100, braze on
Rear derailleur
Shimano Dura Ace R9100, 11-speed, short cage
Crankset
Shimano Dura Ace R9100, 52/36T
Bottom Bracket
Pressfit
Handlebar
Easton EC90 Aero, carbon, drop: 125mm, reach: 80mm
Stem
Easton EA90, aluminium, 31.8mm, +/- 10 degree
Headset
1-1/8", tapered, IS 47/33
Saddle
Prologo Scratch STN Rail
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Brakes
Shimano Dura Ace R9100, caliper, carbon pads
Brake lever description
Shimano Dura Ace R9100
Brake
Caliper
Wheelset
ZIPP 302, quick release, carbon, 100/130 mm, 20/24 spokes, 17 mm inner rim width
Tires
Continental GP4000S II, 700 x 25C, Folding
Gears
22
Size
54,50,61,56,52,48,58
Plateaux
2x
Shifting type
Mechanical shifting
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
