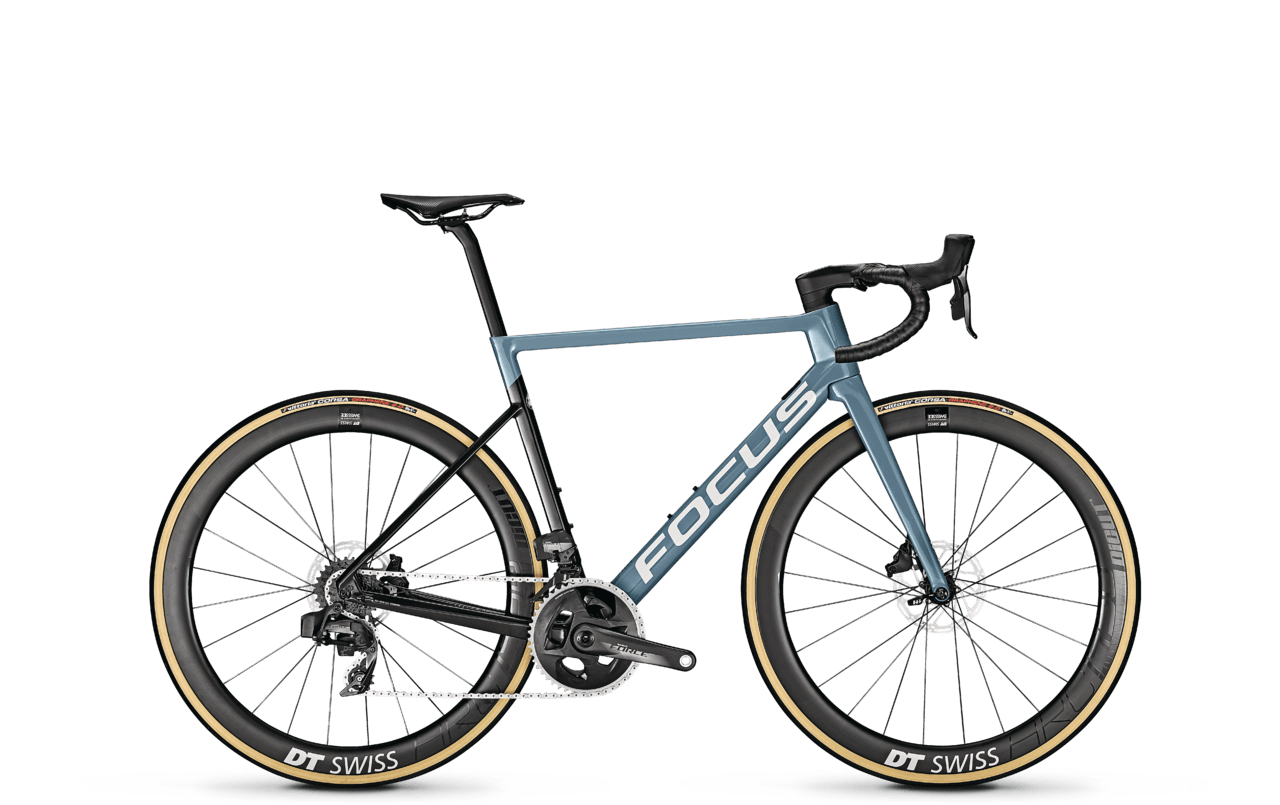

IZALCO MAX DISC 9.7 Features
Super-lightweight MAX aero carbon frame (890 g) including C.I.S. aero carbon stem and R.A.T. Quick-release axles
Wireless electronic shifting with the SRAM Force eTap AXS 12-speed drive
Super-fast DT Swiss ARC1450 DICUT carbon wheelset with rim height of 48 mm
More than just the fastest
Super-lightweight and optimised in the wind tunnel
To achieve the best possible mix of aerodynamics and low weight, we redesigned every tube and improved these in several stages within the wind tunnel. The result is a combination of Kamm tail profiles, hidden cables and well-balanced proportions. Thanks to highly rigid Ultra High Modulus carbon fibres, our IZALCO MAX 9 frame only weighs 890 g and the aero fork 360 g.
Aerodynamic and smart
All the cables run inside the specially developed C.I.S. aero stem: from aero handlebar through stem and headset into the frame. This guarantees you perfect functionality while having optimum aerodynamics and a clean cockpit. We offer the stem in five lengths, ranging from 80 to 120 mm. The Universal Computer Mount that makes sure you can mount your bike computer on the aero stem is included with every IZALCO MAX. You can adjust the height of the handlebar with ease using a two-piece special spacer.
Fast and comfortable
Our aerodynamic carbon seat post has a D profile with 15 mm offset - thus offering the perfect mix of ergonomics and comfort. To maintain the optimum sitting position, we have pushed the seat tube forwards so that the effective offset is only 2 mm. This means that you can enjoy the comfort of a seat post with 15 mm offset, without having to forgo a modern racing sitting position. Additionally, 28 mm tyre clearance makes sure, you can ride your IZALCO MAX on a broad range of rides.
|Seat tube length (MM)||360||360||360||360||360||360||360|
|Stem Length (MM)||80||90||100||100||110||110||120|
|B||Effective Top Tube (MM)||504||517||535||551||564||582||602|
|C||Head Tube Angle (°)||69.5||70.5||71.5||72||72||72.5||72.5|
|D||Effective Seat Tube Angle (°)||74||73.5||73.5||73.5||73.5||73.5||73.5|
|E||Chainstay length (MM)||410||410||410||410||410||410||410|
|F||Bottom bracket drop (MM)||78||78||78||78||78||78||78|
|G||Head Tube Length (MM)||80||80||100||115||125||150||185|
|H||Fork construction height (MM)||392||392||392||392||392||392||392|
|I||Pre-raked fork (MM)||46||46||46||46||46||46||46|
|J||Wheelbase length (MM)||975||975||985||997||1010||1024||1044|
