RAVEN 8.7 Features
Lightweight carbon frame with R.A.T. Quick-release axles and C.I.A. Comfort
Sensitive FOX Float 32 Rhythm suspension fork with 100 mm travel
Reliable Shimano XT 1x12 shifting and safe SLX brakes
Lightweight and comfortable
The light carbon frame with specially designed tube shapes (C.I.A.) provides extra comfort: Your body weakens less and you stay fast over a longer period. Sophisticated carbon fibre orientation and tube dimensions for the seat tube, saddle stays, bottom bracket and steering head make the RAVEN as rigid as necessary and as comfortable as possible.
Ready for racing
The RAVEN's geometry is made for maximum speed with maximum control, so race participation is appreciated. Nevertheless, trail fun is what makes the RAVEN special.
Stiff and fast
The RAVEN rolls on the broad Boost hub standard with axles of 110 mm in the front and 148 mm in the rear. Therefore, it offers extra stability while the handling stays agile and precise. Furthermore, wheel changes can be carried out within seconds, thanks to the R.A.T. thru-axles.

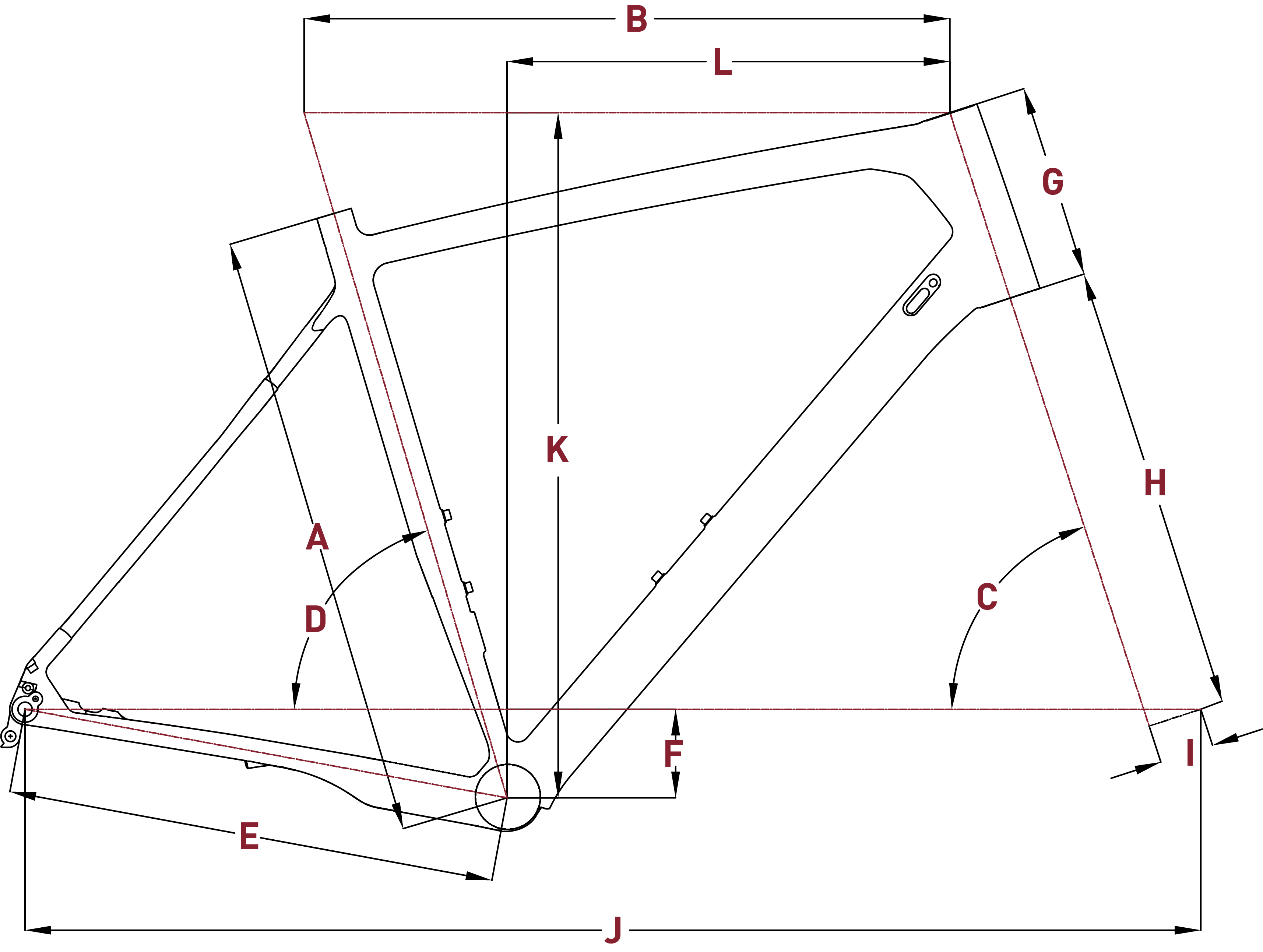

|Seat post length (MM)||350||350||350||350|
|Stem Length (MM)||90||90||90||90|
|B||Effective Top Tube (MM)||592||608||629||649|
|C||Head Tube Angle (°)||69.8||69.8||69.8||69.8|
|D||Effective Seat Tube Angle (°)||74.5||74.5||74.5||74.5|
|F||BB Drop (MM)||68||68||68||68|
|G||Head Tube Length (MM)||104||107||130||150|
|H||Fork Length (MM)||501||501||501||501|
|I||Fork Offset (MM)||44||44||44||44|
