AVENTURA² Elite Features
Aluminium trekking frame with integrated cable routing
High-performance Bosch Performance CX motor
Simple use thanks to the lightweight 400 Wh Bosch PowerPack

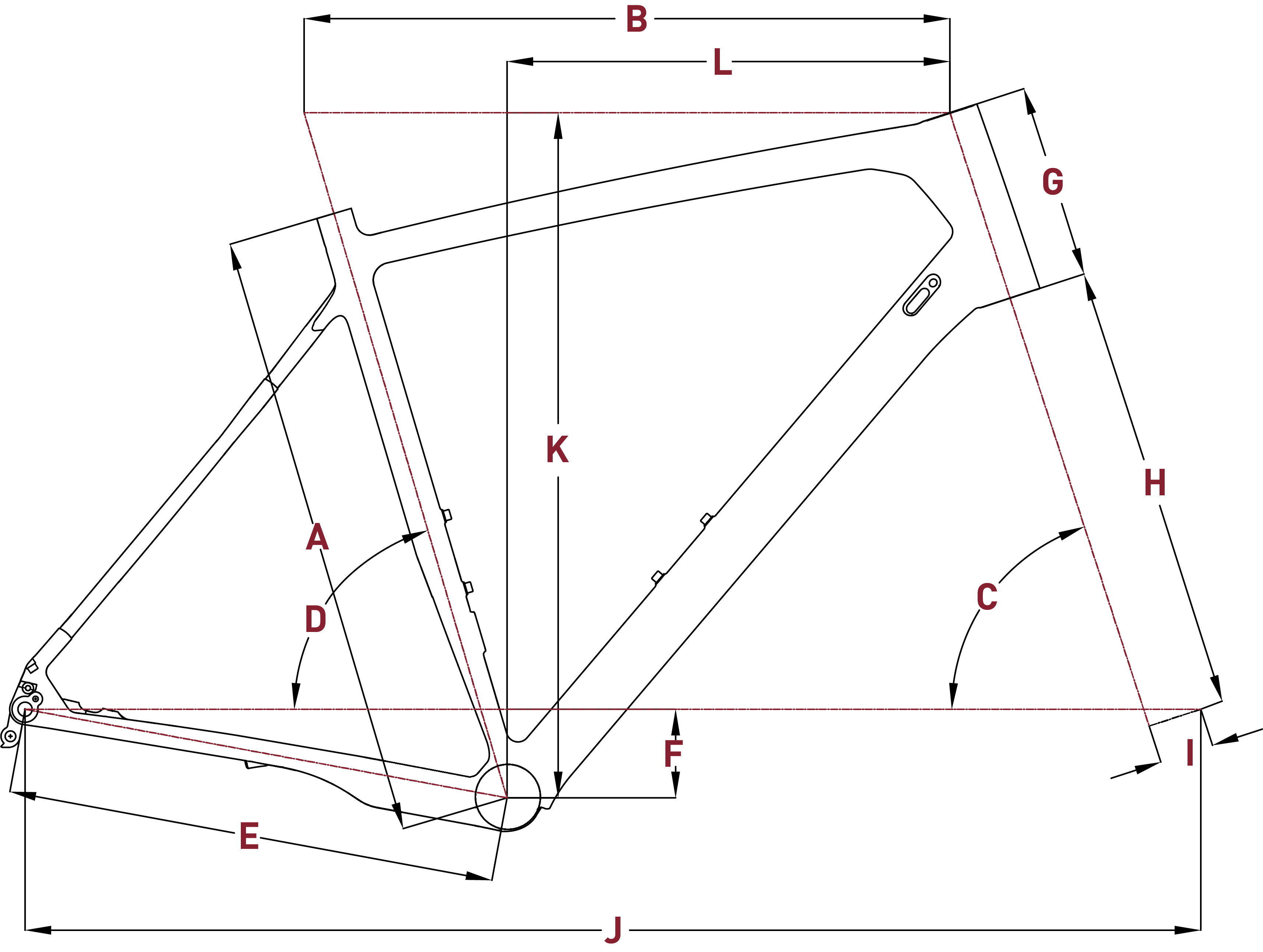

Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| Size | 45 | 50 | 55 | 60 | |
| Seat post length | S | M | L | XL | |
| Handlebar width | 700 | 700 | 700 | 700 | |
| Stem Length (MM) | 90 | 90 | 90 | 90 | |
| Crankarm length | 170 | 170 | 175 | 175 | |
| A | Size (MM) | 450 | 500 | 550 | 600 |
| B | Effective Top Tube (MM) | 570 | 580 | 595 | 610 |
| C | Head Tube Angle (°) | 71 | 71 | 71.5 | 71.5 |
| D | Effective Seat Tube Angle (°) | 73 | 73.5 | 73 | 72.5 |
| E | Chainstay (MM) | 475 | 475 | 475 | 475 |
| F | BB Drop (MM) | 60 | 60 | 55 | 55 |
| G | Head Tube Length (MM) | 150 | 135 | 170 | 220 |
| H | Fork Length (MM) | 460 | 460 | 460 | 460 |
| I | Fork Offset (MM) | 45 | 55 | 55 | 55 |
| J | Wheelbase (MM) | 1092 | 1113 | 1120 | 1129 |
| K | Stack (MM) | 625 | 609 | 638 | 685 |
| L | Reach (MM) | 379 | 399 | 400 | 394 |
Specification
Frame
6061 aluminium, internal cable routing, international disc brake standard
Frame material
aluminium
Fork
SR Suntour NEX, 9 mm QR, 63 mm travel
Travel Fork
50 mm
Motor
Bosch Performance CX, 75 Nm, 250 W, 50-300% support power
Battery Watt-hours
400 Wh
Battery Ampere hours
11,1 Ah
Display
BOSCH Purion with Control panel, walk assist
Shifter
Shimano Altus 2000
Rear derailleur
Shimano Deore 592, 9-speed
Crankset
BOSCH SAMOX
Handlebar
aluminium, riserbar, 700mm
Stem
aluminium, 31,8 mm, 90 mm
Headset
1-1/8", 44/286-ZS44/30
Saddle
Comfort Saddle
Seatpost
Sport components SP-DC1
Brakes
Shimano M315, 180 mm / 160 mm
Brake
Disc
Wheelset
Schürmann Yak19 622-19, Shimano TX50 CL, 9 mm, QR
Tires
Schwalbe Delta Cruiser 700x40c Plus
Fender
Buechel, PVC, 46 mm
Headlight
AXA Blueline 30 Lux
Taillight
Busch & Müller integrated with LineTec-Technologie
Gears
9
Plateaux
1x
Shifting type
Mechanical shifting
Size
60,50,55,45
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
