WHISTLER 3.8 Features
Lightweight aluminium frame with 29" or 27" wheels, depending on size
High-quality Rock Shox 30 Silver suspension fork with 100 mm suspension travel
Shimano Deore XT rear derailleur for high shifting performance
Makes sport come naturally
-
The choice is yours
With the WHISTLER, you can choose between 27.5" and 29" wheels. You can select the ideal wheel size to suit your height and your requirements.
-
Ready for anything
To allow you to fully tailor your bike to your needs, you have the option of mounting a pannier rack, mudguard, light and stand.
-
Consistent braking performance
When faced with risky situations, you need a partner you can rely on. That is why we have equipped our WHISTLER with disc brakes to ensure consistent braking performance and optimal braking behaviour.

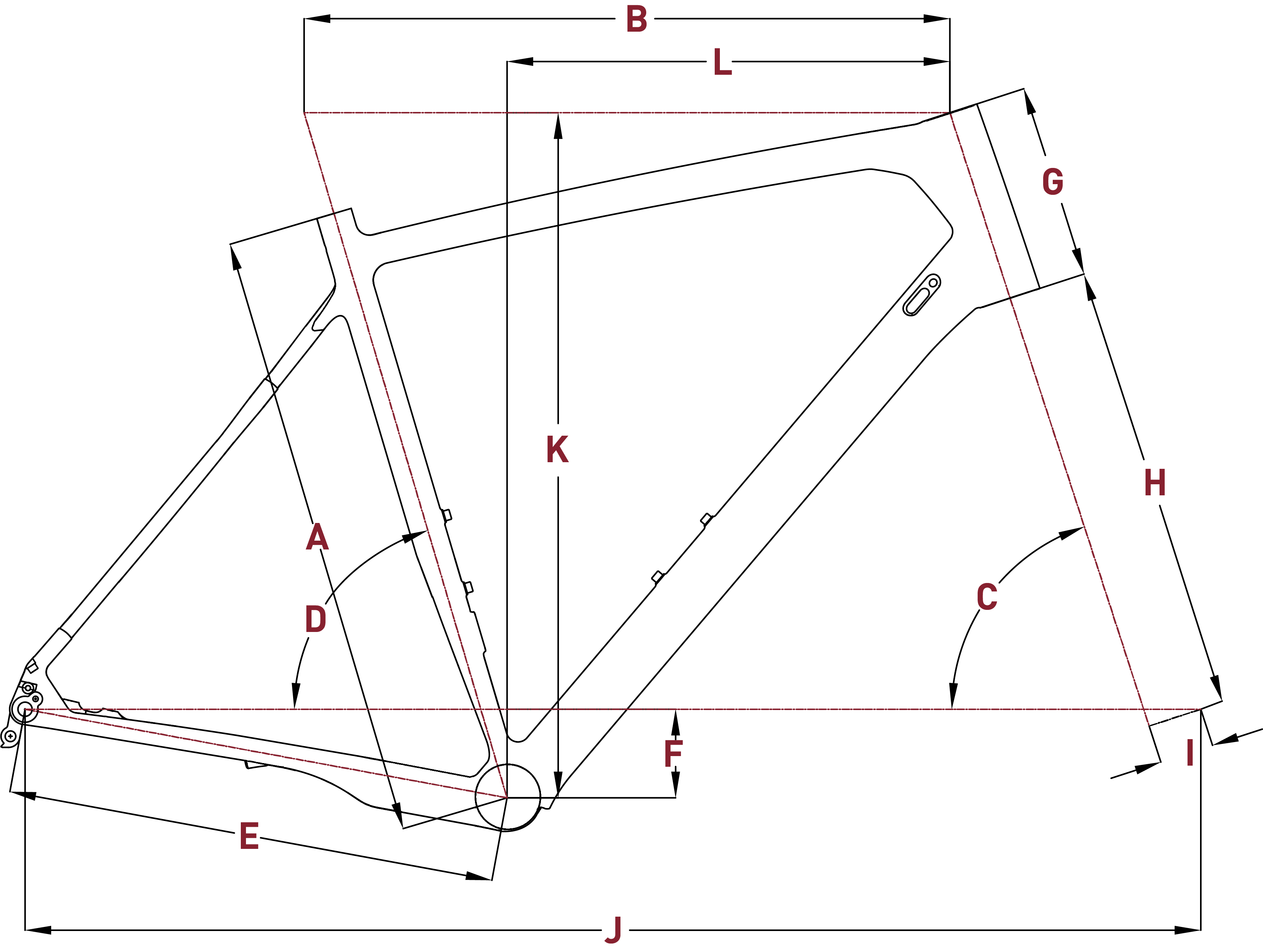

Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| Size | 36 | 40 | 44 | 48 | 52 | |
| Seat tube length | XS | S | M | L | XL | |
| Handlebar width | 700 | 700 | 700 | 700 | 700 | |
| Stem Length (MM) | 90 | 90 | 90 | 90 | 90 | |
| Crankarm length | 170 | 175 | 175 | 175 | 175 | |
| A | Size (MM) | 360 | 400 | 440 | 480 | 520 |
| B | Effective Top Tube (MM) | 554 | 566.8 | 588 | 608 | 624 |
| C | Head Tube Angle (°) | 69 | 69 | 70 | 70 | 70 |
| D | Effective Seat Tube Angle (°) | 73.5 | 73.5 | 74 | 74 | 74 |
| E | Chainstay length (MM) | 448 | 438 | 454 | 454 | 454 |
| F | Bottom bracket drop (MM) | 48 | 48 | 62 | 62 | 62 |
| G | Head Tube Length (MM) | 120 | 130 | 120 | 140 | 160 |
| H | Fork construction height (MM) | 489 | 489 | 509 | 509 | 509 |
| I | Pre-raked fork (MM) | 42 | 42 | 51 | 51 | 51 |
| J | Wheelbase length (MM) | 1079 | 1082 | 1119 | 1141 | 1158 |
| K | Stack (MM) | 604 | 613.6 | 638 | 657 | 676 |
| L | Reach (MM) | 375 | 385 | 405 | 420 | 430 |
Specification
Frame
6061 aluminium, BSA BB, international disc brake standard
Frame material
Aluminium
Fork
Rock Shox 30 Silver TK, 9 mm QR
Travel Fork
100 mm
Shifter
Shimano Deore M6000
Front derailleur
Shimano Deore
Rear derailleur
Shimano Deore XT M781, 10-speed
Sprocket
Shimano Deore
Chain
KMC X10.93
Crankset
Shimano MT500, 36/26T
Transmission of drive
front: 36/26, rear: 11-36
Bottom Bracket
BSA
Handlebar
Sport Riser, aluminium, risebar, 700mm, rise: 20mm
Grips
FOCUS SL
Stem
aluminium, 31.8mm
Headset
VP Components
Saddle
FOCUS Sport Saddle
Seatpost
aluminium, 27,2mm
Brakes
Shimano BR-MT200, hydraulic disc
Brake lever description
Shimano MT200
Brake
Disc
Wheelset
Rodi Viper 21, 27" 584-21, 29" 622-21, Shimano TX-505 CL, 9 mm QR / 9 mm QR
Rims
Rodi Viper 21
Rear hub
Shimano TX505, QR
Front Hub
Shimano TX505, QR
Tires
Schwalbe Rapid Rob 2.1
Gears
20
Size
48,44,36,40,52
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
