RAVEN 8.6

Geometry Specification
SKU
FO3000009v2019

RAVEN 8.6 Features

Lightweight carbon frame with R.A.T. floating axle system

Rock Shox Judy Gold suspension fork with 100 mm suspension travel

Sram NX Eagle 1x12 drive with wide gear ratio range

Incredible acceleration

  • Sets the benchmark in lightweight construction

    Thanks to our high-end carbon technology, our RAVEN weighs just 885 grams. One of the lightest frames in the racing world – with the best performance.

  • Commended by professionals

    Our RAVEN is regularly represented at the World Cup. Only models that successfully survive our endurance test are good enough for you.

  • Greater comfort means less fatigue

    Careful attention has been paid to the lay of the fibres and the pipe dimensions of the seat tube, seat stays, bottom bracket and headset – as rigid as necessary, as comfortable as possible.

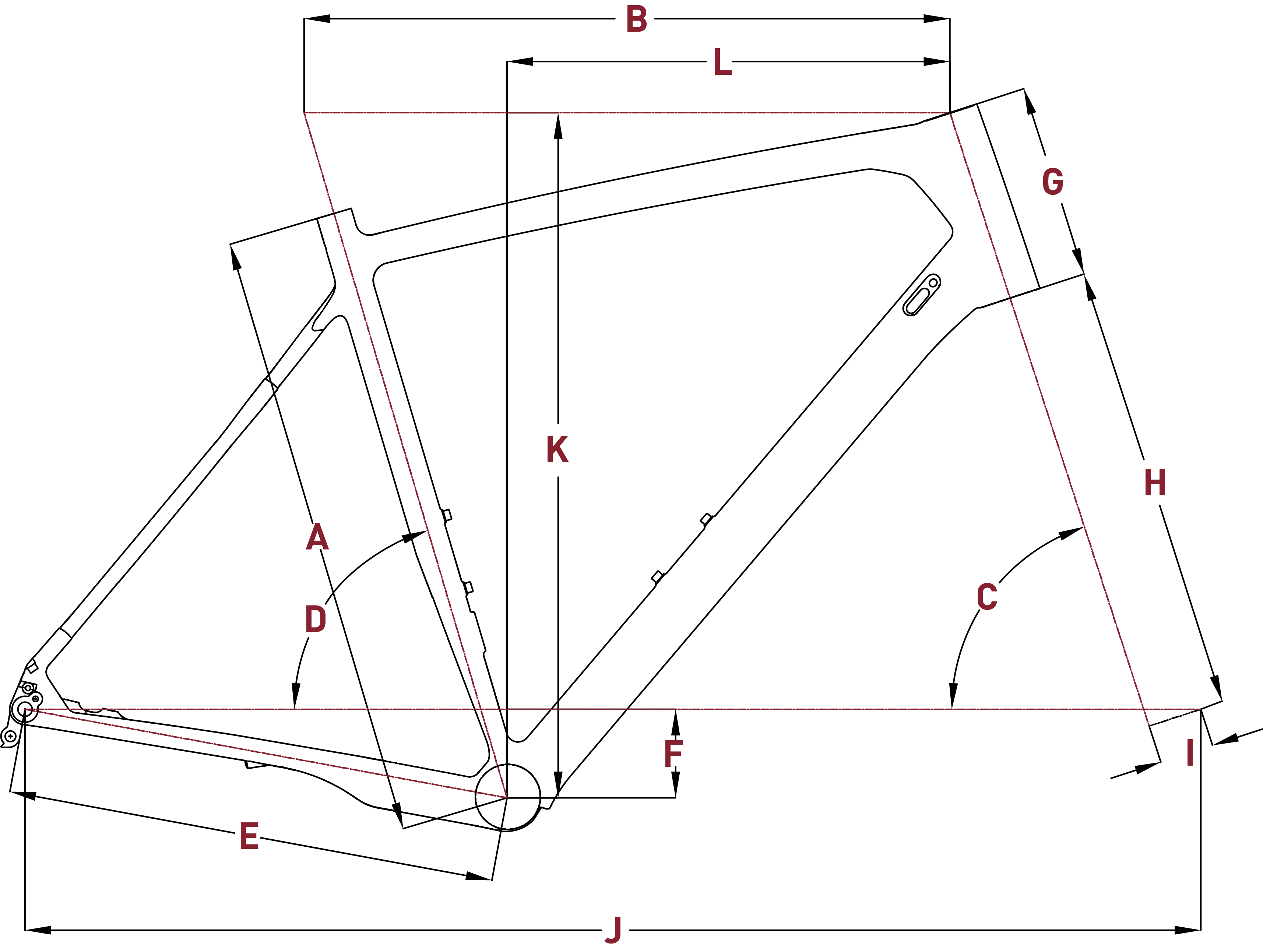

Geometry

S M L XL
Size 42 46 50 54
A Size (MM) 420 460 500 540
B Effective Top Tube (MM) 592 608 629 649
C Head Tube Angle (°) 69.8 69.8 69.8 69.8
D Effective Seat Tube Angle (°) 74.5 74.5 74.5 74.5
E Chainstay (MM) 435 435 435 435
F BB Drop (MM) 68 68 68 68
G Head Tube Length (MM) 104 107 130 150
H Fork Length (MM) 501 501 501 501
I Fork Offset (MM) 44 44 44 44
J Wheelbase (MM) 1100 1116 1139 1160
K Stack (MM) 620 623 644 663
L Reach (MM) 420 435 450 465

Specification

Frame
Carbon frame, PF30 BB, 142x12 mm through axle, internal cable routing, Post Mount 160 mm
Fork
Rock Shox Judy Gold, OneLoc remote, 15x110 mm QR
Shifter
Sram NX Eagle
Rear derailleur
Sram NX, 12-speed
Sprocket description
Sram PG-1230 Eagle, 11-50T
Chain
Sram NX Eagle
Crankset
Sram NX Eagle DUB, 32T
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Grips
Focus SL
Stem
BBB Race, aluminium, 31.8 mm
Saddle
Focus Race SL
Seatpost
BBB, aluminium, 27,2 mm
Brakes
Magura MT2 Plus, 160 mm / 160 mm
Wheelset
Rodi Viper 21, 27" 584-21, 29" 622-21, Novatec
Tires
Schwalbe Racing Ralph Performance 2.25
Brake type
Disc
Transmission of drive
front: 32, rear: 11-50
Travel
100 mm
