MARES Mechanical Frameset Features

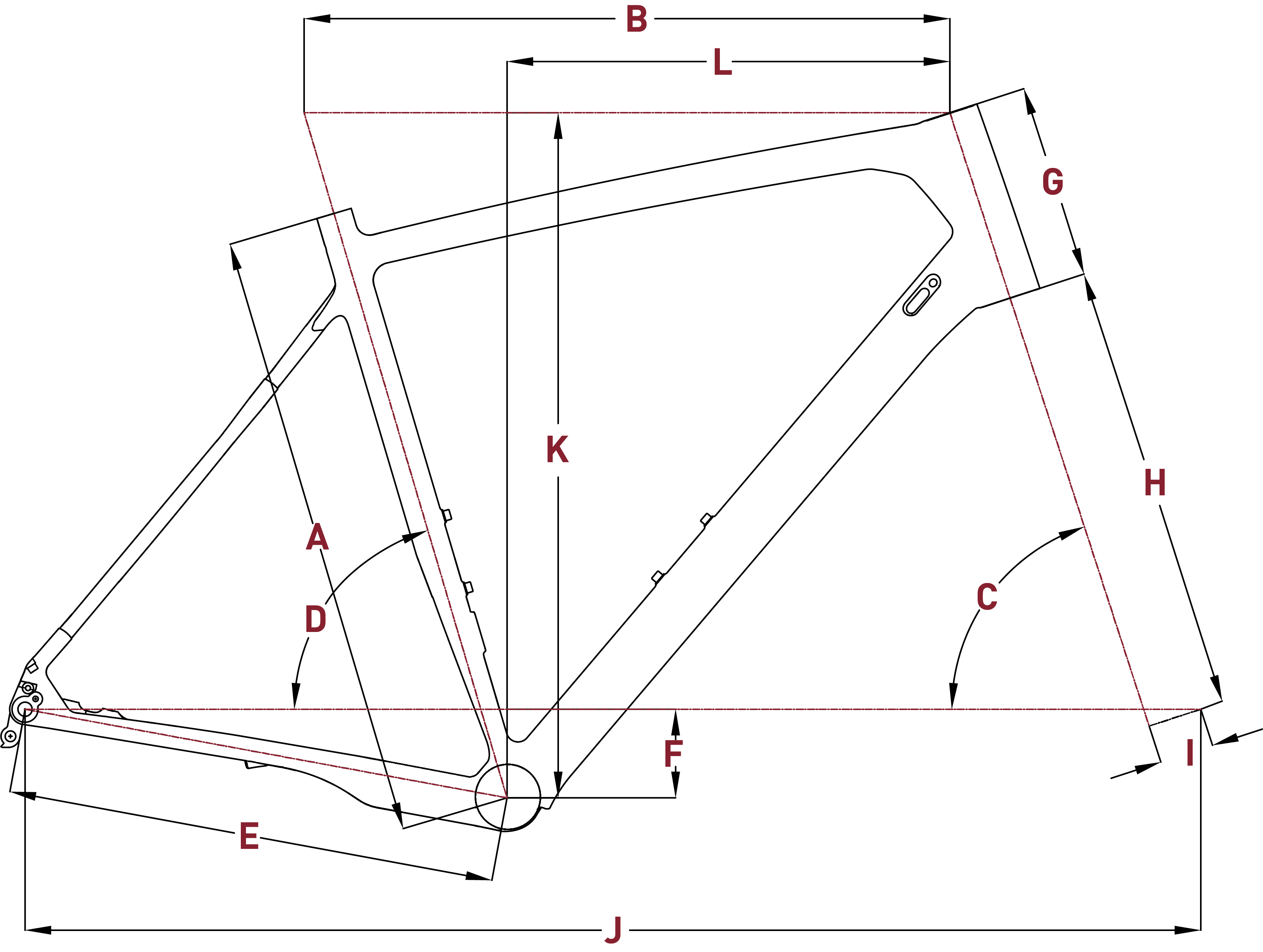

Geometry
| XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|
| Size | 48 | 51 | 54 | 56 | 58 | 60 | |
| Seat tube length | XS | S | M | L | XL | XXL | |
| Handlebar width | XS | S | M | L | XL | XXL | |
| Stem Length | XS | S | M | L | XL | XXL | |
| Crankarm length | XS | S | M | L | XL | XXL | |
| A | Size (MM) | 480 | 510 | 540 | 560 | 580 | 600 |
| B | Effective Top Tube (MM) | 523 | 534 | 544 | 555 | 565 | 577 |
| C | Head Tube Angle (°) | 70 | 70 | 70,5 | 71 | 71 | 71,5 |
| D | Effective Seat Tube Angle (°) | 73,5 | 73,5 | 73,5 | 73,5 | 74,5 | 74,5 |
| E | Chainstay length (MM) | 425 | 425 | 425 | 425 | 425 | 425 |
| F | Bottom bracket drop (MM) | 65 | 65 | 65 | 65 | 65 | 65 |
| G | Head Tube Length (MM) | 110 | 120 | 130 | 140 | 150 | 160 |
| H | Fork construction height (MM) | 399 | 399 | 399 | 399 | 399 | 399 |
| I | Pre-raked fork (MM) | 45 | 45 | 45 | 45 | 45 | 45 |
| J | Wheelbase length (MM) | 1003 | 1015 | 1020 | 1027 | 1037 | 1045 |
| K | Stack (MM) | 526 | 536 | 547 | 559 | 568 | 579 |
| L | Reach (MM) | 367 | 375 | 382 | 390 | 397 | 405 |
Specification
Frame
Carbon, disc, PF30 BB, 142x12 mm thru axle, R.A.T Evo technology, flat mount 140 mm, internal cable routing
Frame material
Carbon
Fork
Carbon, disc, 100x12 mm R.A.T thru axle, R.A.T Evo Technology, flat mount 160/160 mm, internal cable routing
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Size
48,58,51,56,54,60
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
