MARES AL 105

Geometry Specification
Find the right frame sizes
SKU
FO0080008v2018

MARES AL 105 Features

Robust and lightweight aluminium frame with full-carbon fork, R.A.T. thru-axle system (R.A.T. thru-axles are sold under licence in the UK [UK patent GB2414971B]) and 100% FOCUS CX racing geometry

Shimano 5800 105 groupset

Reliable Shimano wheels and Continental tyres

In spite of adverse conditions

  • Setting the Cyclo-cross benchmark for 25 years

    Years of feedback from countless professional racers have made the MARES what it is today: THE benchmark for Cyclo-cross.

  • Frame protection as standard

    It is often small details that make the difference between victory and defeat. Our proprietary FOCUS CX chain guide prevents the chain from coming off.

  • The world’s fastest quick-release axle

    Quicker and simpler: Thanks to our patented FOCUS R.A.T.* quick-release axle, wheel changes can be carried out in under ten seconds.

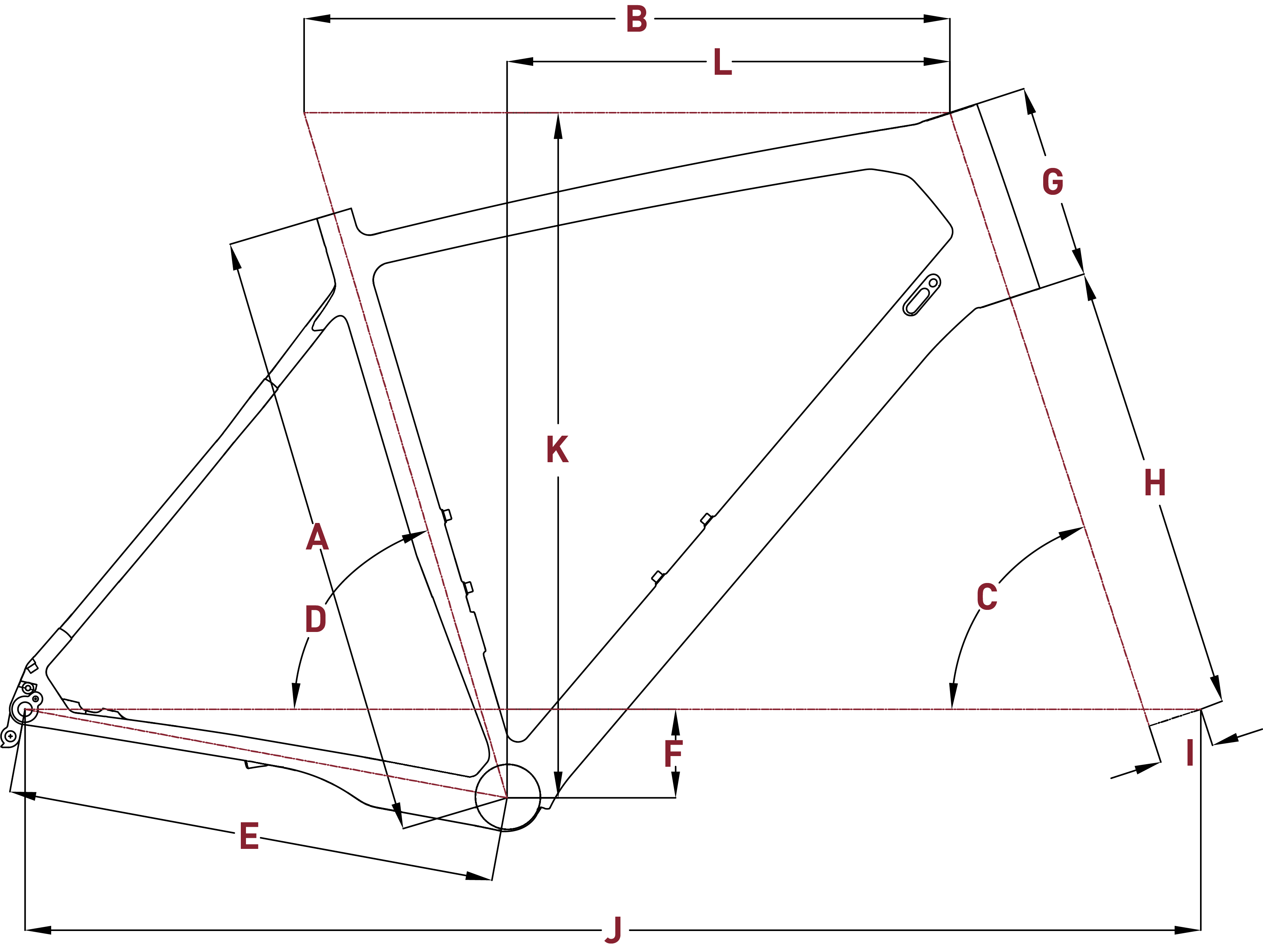

Geometry

XS S M L XL XXL
Size 48 51 54 56 58 60
Seat post length XS S M L XL XXL
Handlebar width XS S M L XL XXL
Stem Length XS S M L XL XXL
Crankarm length XS S M L XL XXL
A Size (MM) 480 510 540 560 580 600
B Effective Top Tube (MM) 518 529 538 550 558 570
C Head Tube Angle (°) 70 70 70.5 71 71 71.5
D Effective Seat Tube Angle (°) 73.5 73.5 73.5 73.5 73.5 73.5
E Chainstay (MM) 425 425 425 425 425 425
F BB Drop (MM) 65 65 65 65 65 65
G Head Tube Length (MM) 120 130 140 150 160 170
H Fork Length (MM) 400 400 400 400 400 400
I Fork Offset (MM) 45 45 45 45 45 45
J Wheelbase (MM) 999 1010 1015 1023 1031 1038
K Stack (MM) 539 549 560 571 581 592
L Reach (MM) 358 367 372 381 386 395

Specification

Frame material
aluminium
Frame
7005 aluminum, disc, BSA BB, 142x12 mm thru axle, R.A.T Evo technology, flat mount 140 mm, internal brake & gear cable routing
Fork
Carbon, disc, 100x12 mm R.A.T thru axle, R.A.T Evo Technology, flat mount 160/160 mm, internal cable routing
Front derailleur
Shimano 105 5800, w/clamp 31.8
Rear derailleur
Shimano 105 5800, 11-speed, short cage
Chain
Shimano 105 HG601
Crankset
Shimano RS500, 46/36T
Bottom Bracket
Shimano BSA
Handlebar
BBB Basic, aluminium, drop: 125 mm, reach: 70mm
Stem
BBB Basic, aluminium, 31.8mm, +/- 7 degree
Headset
1-1/8", tapered, IS 47/33
Saddle
Velo VL-1489 Steel Rail
Seatpost
BBB Basic, Aluminium, 27,2mm, 350mm, set-back 20mm
Brakes
Shimano 105 RS505, disc, 160 mm/160 mm
Brake levers
Shimano 105 RS505
Brake
Disc
Wheelset
Shimano WH-RS170, disc center-lock,aluminium, 100x12/142x12 mm, 28/28 spokes,17 mm inner rim width
Tires
Continental Race King CX, 700 x 35C
Gears
22
Size
48,60,58,56,54,51
Plateaux
2x
Shifting type
Mechanical shifting
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
