THRON 6.9

Geometry Specification

zł 12,999.00

Select your size to check online availability.

N/A

No online stock. But most likely available at one of our dealers.

Sku Number

FG21v2024

THRON 6.9 Features

Aluminium frame with tool bag

FOX Float 34 Rhythm fork & FOX Float shock

SHIMANO Deore 12-speed

Hero of your home turf

Optimized kinematics for strong progression

With the upgrade of our well-known F.O.L.D. kinematics, your THRON 6.9 is ready for even more trail fun. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in any terrain. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the THRON 6.9 gives you more space to play on the trail.
For your inner child

The THRON 6.9 is made to surf trails. It is made for your inner child, made to have fun and awaken the explorer that you are. The geometry of the THRON 6.9 makes you feel comfortable and confident in any situation. You are in control whether it's a technical or flow trail, no matter you go up or down. Pure riding fun first. You stay relaxed on long tours and go fast on trails. Smooth running 29" wheels support both riders experienced and beginner.
Integration done right

It's all about the details: Our C.I.S. 2.0 stem, the updated version of our previous C.I.S. (Cockpit Integration Solution), simplifies adjustments of your cockpit setup and completes the clean look of our THRON 6.9. All cables run directly into the frame below the stem, so you don’t have to open brake lines or shifting cables when changing the height of your cockpit. Furthermore, the THRON 6.9 comes with a tool bag between the top and down tube angle. The tool bag offers space for all your essentials like a multi-tool, tube and a small pump.

Frame

7005 hydroformed aluminium, 130 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm

Fork

Fox 34 Rythm 29, Grip 3-Position, 130 mm

Shock

Fox Float Rythm, 130 mm

Shifter

Shimano Deore

Rear derailleur

Shimano Deore, 12-speed

Cassette

Shimano CS-M6100, 10-51T

Chain

Shimano CN-M6100

Crankset

Shimano Deore, 170 mm

Chainring

Shimano Deore, 32T

Bottom bracket

Shimano BB-MT501, BSA68

Handlebar

Alloy, width: 800 mm, rise: 30 mm

Grips

VP Lock-On Grips

Stem

FOCUS C.I.S. 2.0, 40 mm

Headset

ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated

Saddle

Selle Italia X3 Boost

Seatpost

Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 200 mm, 31,6 mm

Brakes front | rear

Magura MT Trail S, 4-piston | Magura MT Trail S, 2-piston

Disc brake rotors

Magura MDR-C, 203 mm

Rim front

Raceface AR-27, alloy, 29"

Rim rearrear

Raceface AR-27, alloy, 29"

Front hub

Formula FDC-611

Rear hub

Forumla FDC-648 HG

Tyres front | rear

Maxxis Dissector, EXO, 29 x 2.4" | Maxxis Recon, EXO, 29 x 2.4"

Weight

16.2 kg (-)

Permissible system weight

110 kg

* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.

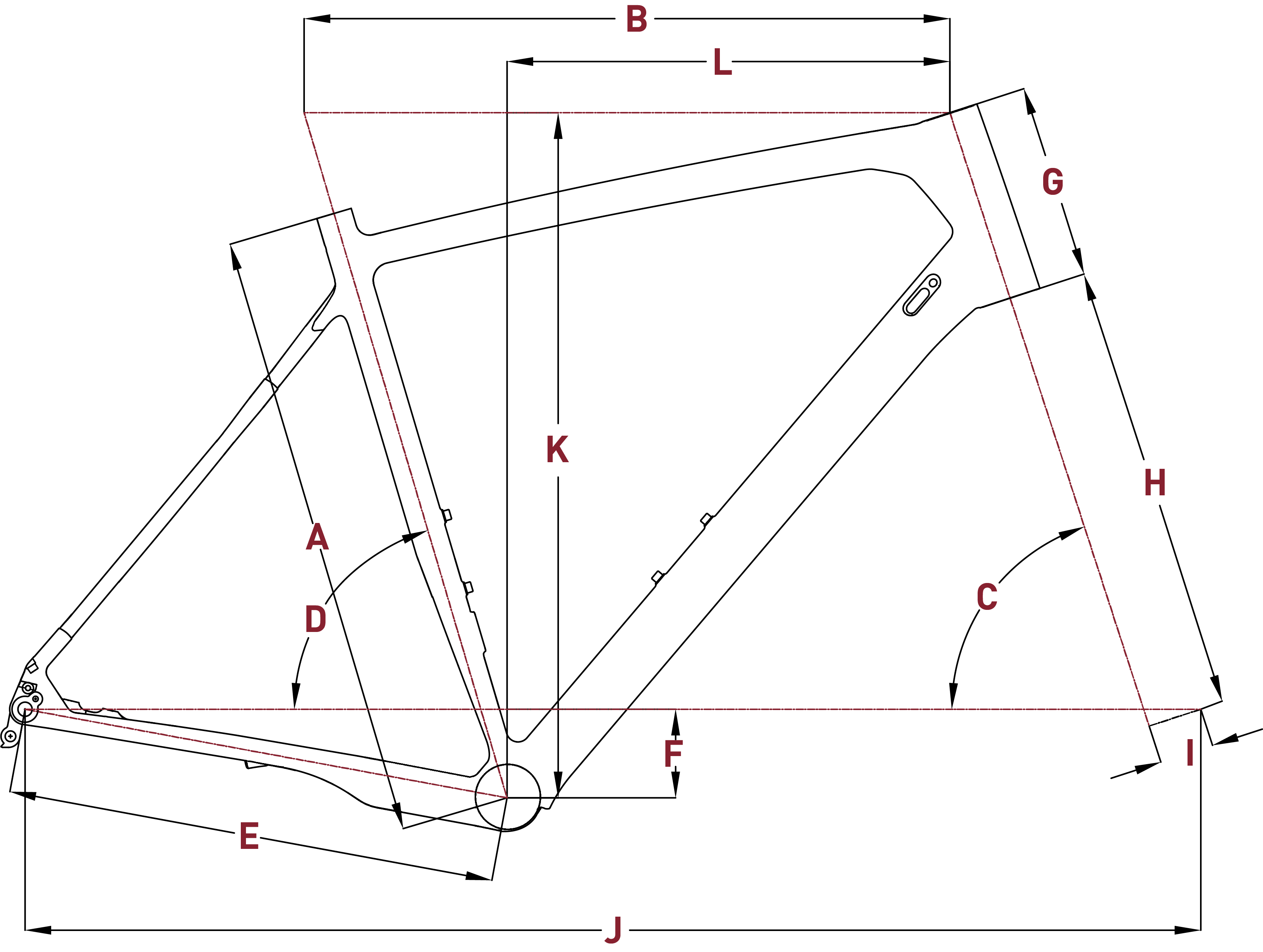

		S	M	L	XL
	Size in mm	390	420	450	470
	Handlebar width	800	800	800	800
	Stem length	50	50	50	50
	Crank length	170	170	170	170
	Seatpost length	390	440	440	490
A	Seat tube length	390	420	450	530
B	Top tube length	572	605	640	674
C	Head angle (°)	66.5	66.5	66.5	66.5
D	Seat angle (°)	75	75	75	75
E	Chainstay length	435	435	435	435
F	Bottom bracket drop	35	35	35	35
G	Head tube length	100	110	130	160
H	Fork length	541	541	541	541
I	Fork offset	46	46	46	46
J	Wheelbase	1139	1173	1211	1253
K	Stack	605	615	633	651
L	Reach	410	440	470	500
M	Standover height	755	755	755	755

Download safety instructions

Technical support for the thron

thron Faq
thron downloads

Suspension

What SAG do you recommend? What is SAG?

SAG is the amount of way the shock compresses when you just sit on your bike without moving. You adjust it with the pressure you pump in your shock with a shock pump. Our SAG recommendation is 25%. To see the actual percentage, you use the O-Ring that is placed on the fork and shock. For detailed set-up recommendations for your shock, see this chart: THRON models

What SAG do you recommend? What is SAG?

Parts

Can I add an internal dropper post?

Yes, and all our THRON come with a dropper post.

Can I add fenders, kickstand, rack?

With certain changes to the build, fenders, rack and kickstand will fit with an adapter. These are our item numbers if you want to order it directly at your dealer:
FENDER SET: 890001200
Or check out our already equipped EQP model. We made the THRON as versatile as possible.

Can I change between 1by and 2by? What is 1by and 2by?

No, that is not possible. 1by and 2by means that the bike is either equipped with two or only one chainring in the front.

Can I add a chain guide?

Yes, the THRON offers ISCG05 tabs.

Does the bike have a chain stay protector?

Yes, it has one.

Can I change to electronic shifting / mechanical shifting

Yes, both is possible.

I want to ride with less spacers. Is that possible?

Yes, just remove the splitted spacers and mount round spacer on top.

Can I add an internal dropper post?

Yes, and all our THRON come with a dropper post.

Can I add fenders, kickstand, rack?

Can I change between 1by and 2by? What is 1by and 2by?

No, that is not possible. 1by and 2by means that the bike is either equipped with two or only one chainring in the front.

Can I add a chain guide?

Yes, the THRON offers ISCG05 tabs.

Does the bike have a chain stay protector?

Yes, it has one.

Can I change to electronic shifting / mechanical shifting

Yes, both is possible.

I want to ride with less spacers. Is that possible?

Yes, just remove the splitted spacers and mount round spacer on top.

Equipment

Can I attach a bike trailer?

As there is no legitimated test process we can not give another statement than no.

Can I attach a bike trailer?

As there is no legitimated test process we can not give another statement than no.

Dimensions / Standards

I need more detailed information on dimensions (shock standard, bottom bracket, headset, etc.).

Please see the exploded drawing:
THRON MY22
THRON EQP MY22
THRON MY21

What is the maximum brake rotor dimension?

You can use a maximum rotor dimension of 200 mm.

Which groupsets do fit? With what dimensions?

All 1-by groupsets fit.

What is the largest chainring I can use on the THRON?

The largest chainring you can use has 34 teeth.

What is the maximum tire width?

Maximum tire width is 2.5" or 64 mm (29" wheels).

Which wheelsize should I take?

29" wheels

What kind of headset does this bike use?

ZS56 / ZS56 with integrated cable routing

What is the maximum seat post length?

The maximum seat post insertion depends on your frame size: S: 235 mm; M: 265 mm; L: 295 mm; XL: 315mm

What is the maximum system weight?

We offer a total weight limit of 110 kg for the THRON. This weight limit includes the whole system weight of bike, rider and all equipment.
