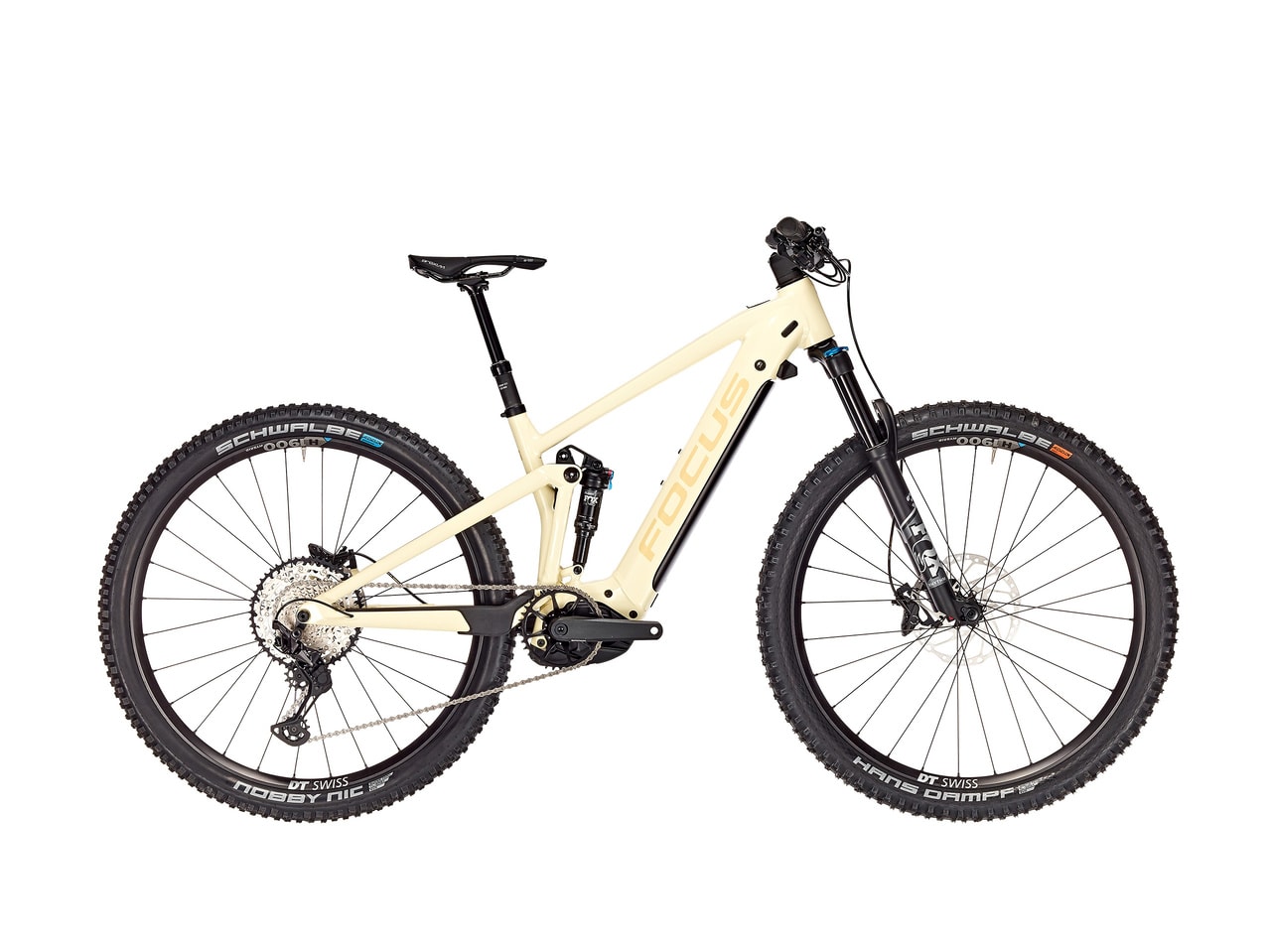

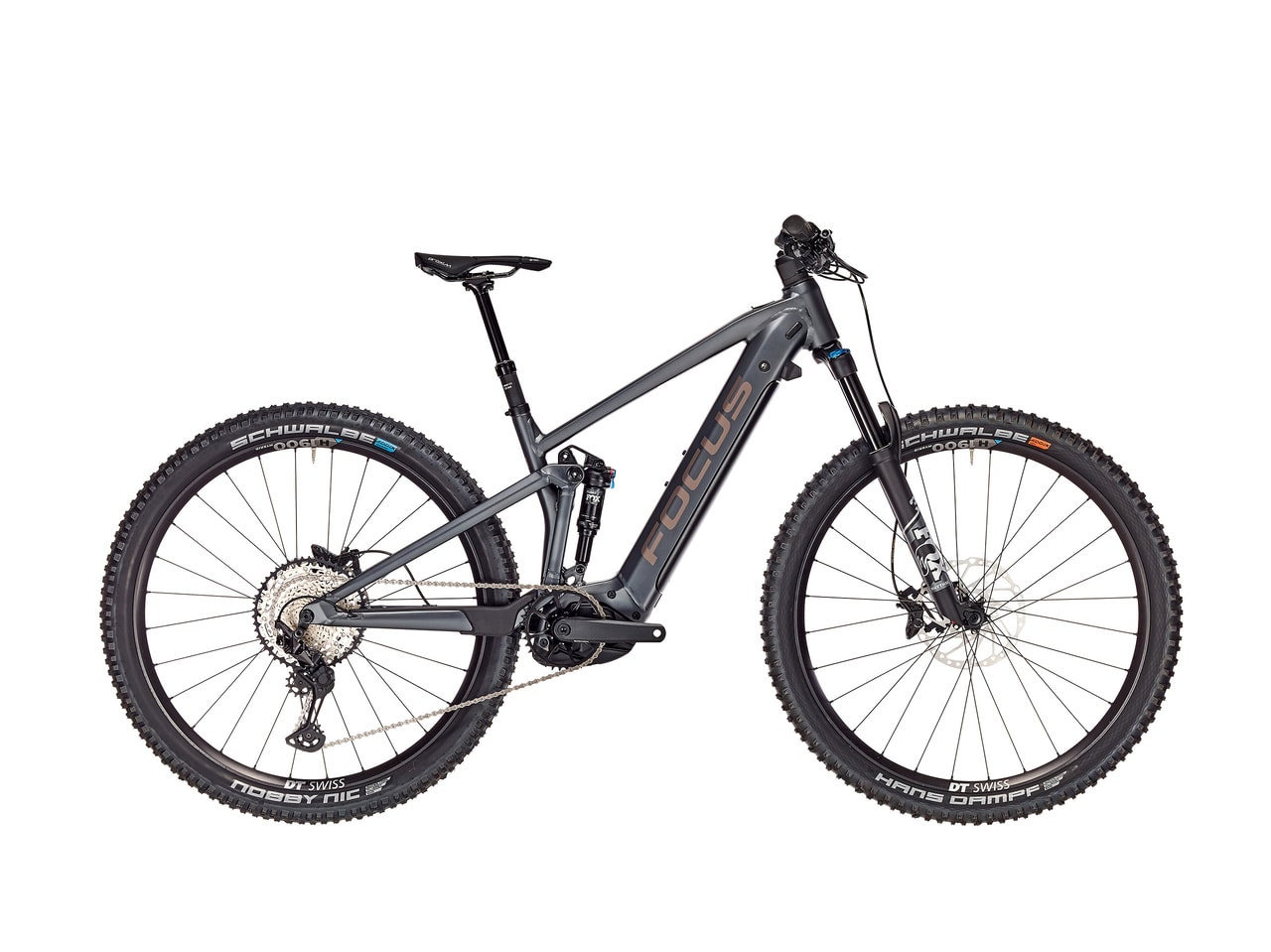

Thron² 6.9 SMALL

Geometry Specification
SKU
FO5010026v2022

More than just trails

  • Super powerful and dynamic e-motor

    The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the THRON² rides well-balanced. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.

  • Optimal suspension performance in any situation

    With the THRON², the emphasis is on comfort and fun while out on the trail. This is thanks to our proprietary F.O.L.D. The chainstay works efficiently in a kinematic manner each time you push the pedals, while the sensitive suspension absorbs all bumps.

  • Diverse usage

    From trail tours through alpine terrain to your daily commute and bikepacking: anything is possible with the THRON². With certain changes to the build, you can add various features to your THRON² – depending on where your e-MTB tour is going. Furthermore, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame.

Geometry

S
Size 40
Size (MM) 400
Handlebar width 800
Stem Length (MM) 50
Crankarm length 165
A Seat tube length (MM) 400
B Effective Top Tube (MM) 584
C Head Tube Angle (°) 66.8
D Effective Seat Tube Angle (°) 74.5
E Chainstay length (MM) 455
F Bottom bracket drop (MM) 25
G Head Tube Length (MM) 115
H Fork construction height (MM) 540
I Pre-raked fork (MM) 51
J Wheelbase length (MM) 1175.4
K Stack (MM) 609.7
L Reach (MM) 415

Specification

Frame material
Aluminium
Fork
FOX 34 Float Rhythm 29, E-Bike, Grip Remote, 110x15 mm, 46 mm rake
Travel Fork
130 mm
Shock
FOX Float DPS, 190/45 mm, hardware: 25.0 x 8.0 mm, no Bushing
Motor
Bosch Performance CX Gen4, 85 Nm, 250 W
Battery Watt-hours
625 Wh
Display
Bosch Kiox
Shifter
Shimano Deore XT SL-M8100, 12-speed
Rear derailleur
Shimano Deore XT M8100, 12-speed
Sprocket
Shimano SLX M7100, 12-speed
Chain
Shimano SLX CN-M7100, 12-speed
Crankset
Samox EC40 ISIS
Transmission of drive
front: 34, rear: 11-51
Bottom Bracket
Integrated in Drive Unit
Handlebar
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
Stem
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
Saddle
Proxim X400
Seatpost
Post Moderne dropper post PM-MT171, 31.6 mm
Brakes
Shimano MT520, hydraulic disc brake
Brake lever
Shimano MT520
Brake
Disc
Wheelset
DT SWISS H1900, 30-622, 15x110 mm / 12x148 mm
Tires
Schwalbe Hans Dampf, 2.6 SuperGround Soft, 65-622
Rear tire
Schwalbe Nobby Nic 2.6 SuperTrail SpeedGrip
Gears
12
Bike weight incl. battery in kg.
24,40 kg
Size
40
Shifting type
Mechanical shifting
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
