PLANET² 5.9

Geometry Specification
SKU
FO5080095v2022

Practical in the city

  • Powerful e-motor for everyday use

    The Bosch Performance motor (Gen. 3) offers efficient support up to 25 km/h. A battery capacity of 500 Wh will bring you everywhere you want to go while keeping the weight low. The battery is integrated nicely into the down tube, but you can take it off for charging.

  • A frame shape fitting your needs and more load

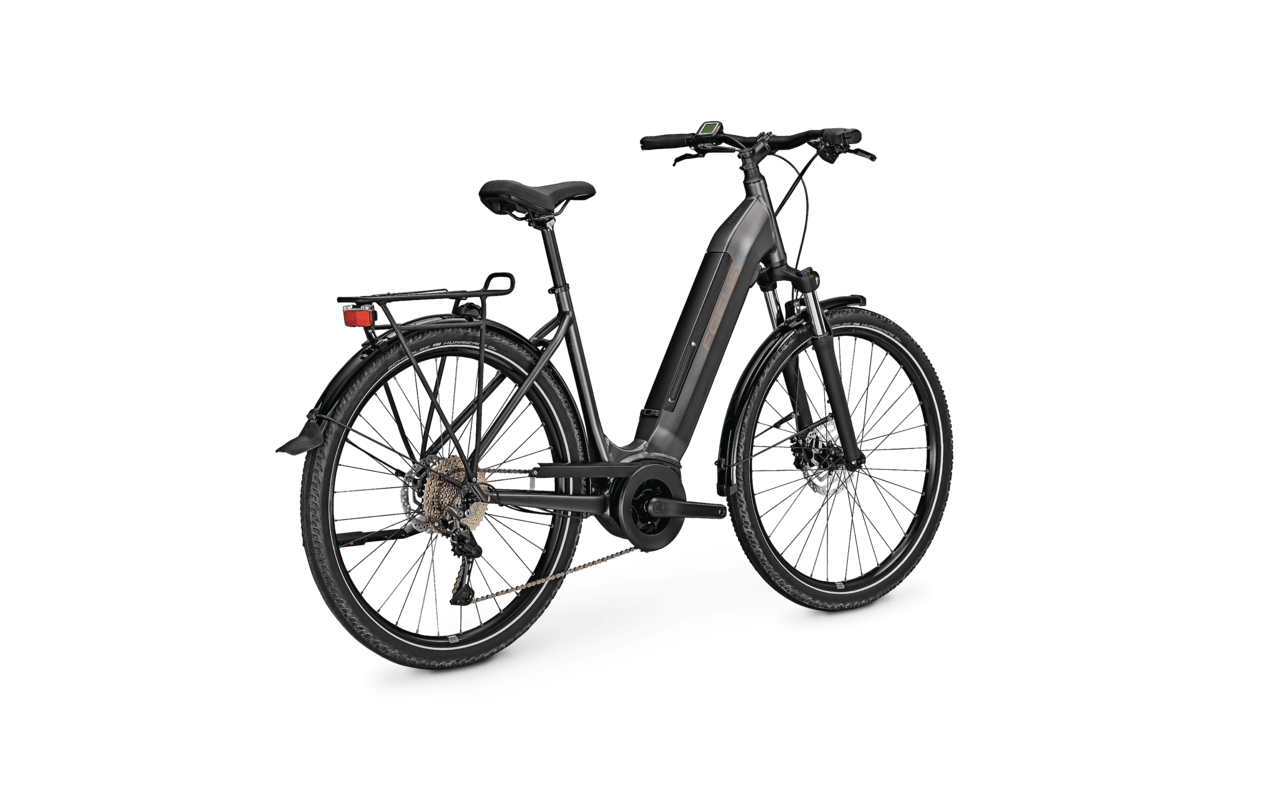

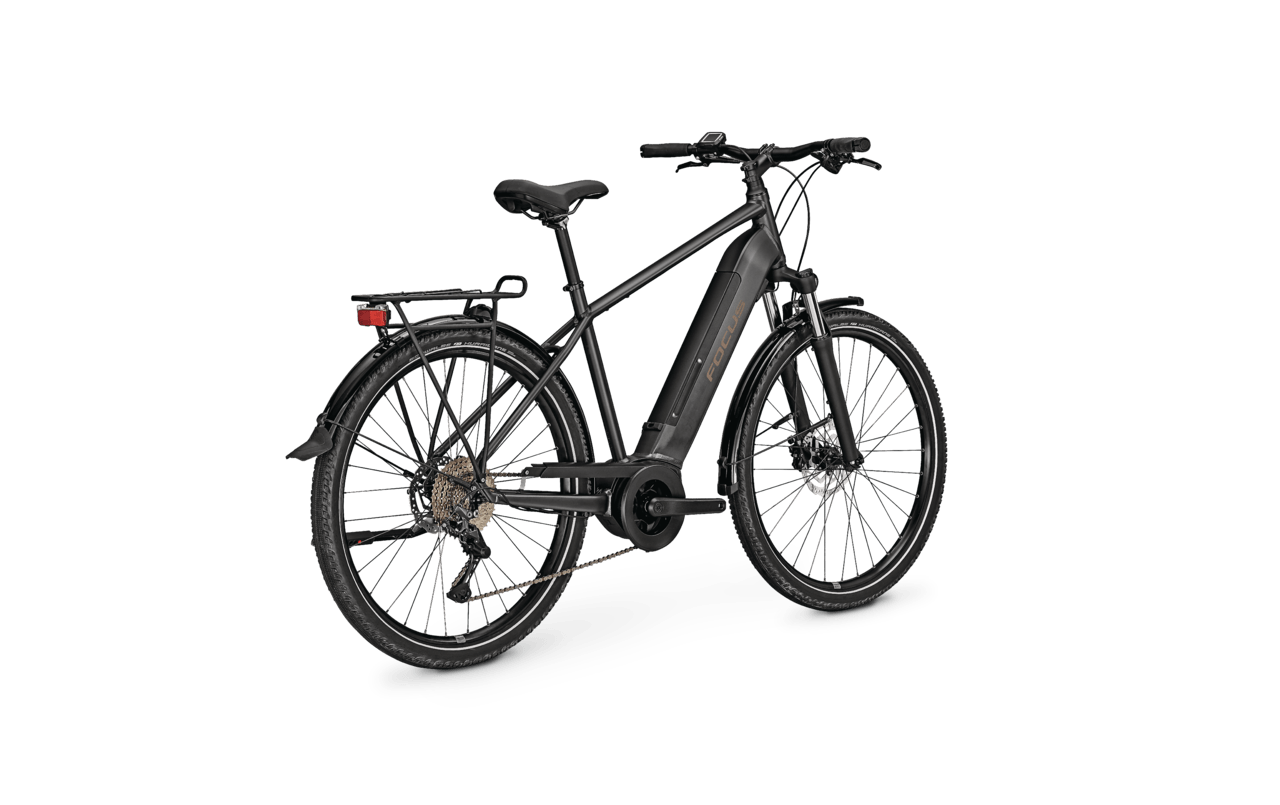

    You are free to choose a wave or a diamond frame with the PLANET² - as you prefer. Furthermore, it is approved for 130 kg of maximum total weight, so you can mount a child seat or a trailer. That makes it ready for daily life challenges.

  • Safety and comfort

    Disc brakes, lighting system and a comfortable seating position offer reliability. On top, the Planet² has 57 mm extra-wide off-road tyres that offer nice rolling behaviour, comfort, grip and safety even on unpaved roads.

Geometry

S M L XL
Size 45 50 55 60
Size (MM) 450 500 550 600
Handlebar width 690 690 690 690
Stem Length (MM) 70 70 70 70
Crankarm length 170 170 175 175
A Seat tube length (MM) 350 350 350 350
B Effective Top Tube (MM) 609 596 605 614
C Head Tube Angle (°) 72 72 72 72
D Effective Seat Tube Angle (°) 75 73 73 73
E Chainstay length (MM) 490 480 480 480
F Bottom bracket drop (MM) 65 65 65 65
G Head Tube Length (MM) 185 170 180 190
H Fork construction height (MM) 465 462 462 462
I Pre-raked fork (MM) 45 44 44 44
J Wheelbase length (MM) 1108 1110 1119 1128
K Stack (MM) 672 655 664 674
L Reach (MM) 378 396 402 408

Specification

Frame material
Aluminium
Frame
Integrale 0.1, aluminium
Fork
SR Suntour NVX30 NLO, 5x100 mm, QR
Travel Fork
80 mm
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery Watt-hours
500 Wh
Display
BOSCH Purion with Control panel, walk assist
Shifter
Shimano Deore M4100
Rear derailleur
Shimano Deore M4120, 10-speed
Sprocket
Shimano Deore M4100, 10-speed
Chain
KMC X10.93
Crankset
LANHANG - BOSCH
Bottom Bracket
Integrated in Drive Unit
Transmission of drive
front: 38, rear: 11-42
Handlebar
690 mm, riserbar, backsweep: 15°, 31,8 mm
Grips
Herrmans Click
Stem
FOCUS aluminium, 31,8 mm, 60 mm, 17°
Headset
VP Components 1-1/8", 44/286-ZS44/30
Saddle
Selle Royal Vivo
Seatpost
Aluminium, 27,2 mm
Brakes
Shimano MT200, hydraulic disc brake
Brake lever
Shimano MT200
Brake
Disc
Rims
RODI TRYP25, 25-622
Rear hub
Shimano TX505, QR
Front Hub
Shimano TX505, QR
Tires
Schwalbe Hurricane 2.25
Fender
SKS fenderset, plastic
Headlight
Herrmans H-Black MR8, LED
Taillight
Herrmans H-Trace, LED
Gears
10
Bike weight incl. battery in kg.
24,40 kg,24,10 kg
Size
45,50,55,60
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
