Geometry Specification

No stock information available

Find the right frame sizes
Set up and set at the dealer in three weeks.
Sku Number

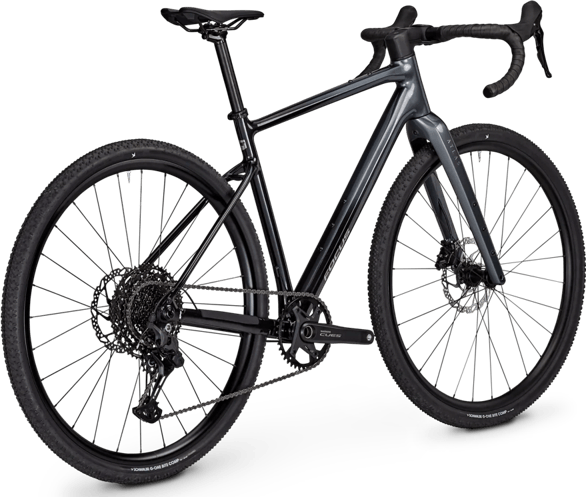

ATLAS 6.7 Features

Aluminium frame

Shimano GRX400 2x10 shifting

Novatec hubs & WTB rims

Pushes boundaries

  • Comfort and control on any terrain

    Whether bad weather, demanding surface, steep climbs or long distances – the robust and comfortable gravel bike offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with integrated cable routing from the bar directly into the head tube avoids hustle when installing a handlebar bag. To climb every mountain even with equipment, the gravel groupset comes with a pleasant transmission ratio for everyone.

  • Huge tyre clearance

    The ATLAS 6.7 comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 53 mm. Therefore, you have plenty of opportunities to specificate your ATLAS 6.7 appropriately for your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS 6.7 fully supports your ride – even to the end of the world.

  • Various options to mount equipment

    Five bottle cages can be mounted: On the seat tube, above the down tube, underneath the down tube and on each side of the fork. The position of the bottle cage above the down tube is adjustable to fit a frame bag. Additionally, it is possible to equip the ATLAS 6.7 with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork are approved for 3 kg each side and can also be used for carrying any other equipment.

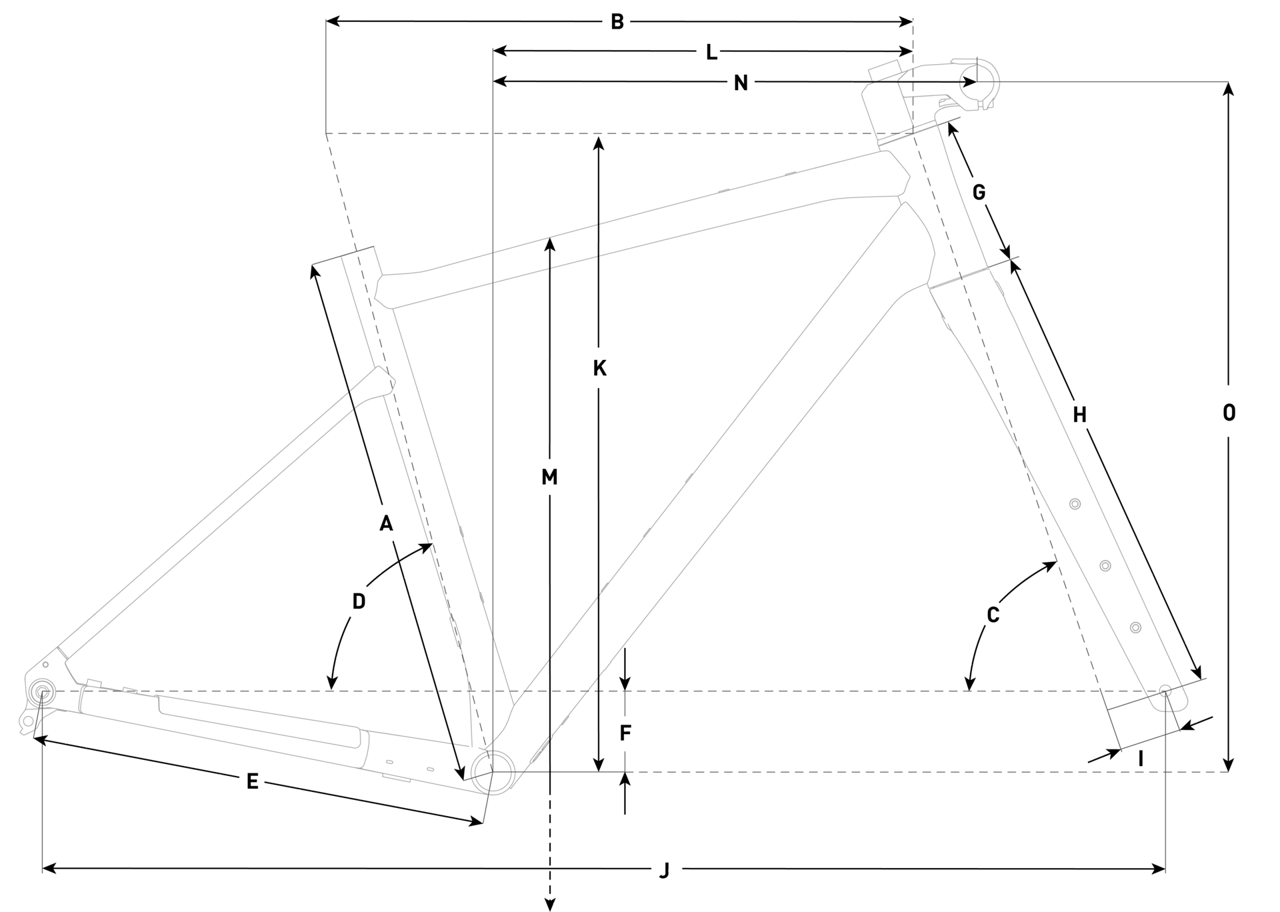

Size in mm 480 510 540 570 600
Handlebar width 420 420 440 440 440
Stem length 70 70 80 90 90
Crank length 170 170 172.5 172.5 175
Seatpost length 350 350 350 350 350
A Seat tube length 450 490 520 550 590
B Top tube length 532 552 571 592 610
C Head angle (°) 70.5 70.5 70.5 70.5 70.5
D Seat angle (°) 74 73.5 73.5 73.5 73.5
E Chainstay length 425 425 425 425 425
F Bottom bracket drop 75 75 75 75 75
G Head tube length 114 129 144 164 194
H Fork length 425 425 425 425 425
I Fork offset 50 50 50 50 50
J Wheelbase 1015 1030 1051 1072 1092
K Stack 568 582 596 615 643
L Reach 370 380 395 410 420
M Standover height 765 789 809 830 862


Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing
Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
Shimano GRX ST-RX400, 10-speed
Front derailleur
Shimano GRX FD-RX400,Shimano GRX FD-RX600
Rear derailleur
Shimano GRX RD-RX400, 10-speed
Shimano CS-HG5010, 10-speed
Shimano Tiagra CN-4601, 10-speed
Shimano GRX FC-RX600 * , 10-speed / Miranda Delta XMod2 * , 10-speed
Transmission of drive
front: 46/30, rear: 11-34
Bottom bracket
FOCUS alloy, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10°
FOCUS Bartape SL
Aluminium, 31,8 mm, 6°
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
Aluminium, 27.2 mm, 0 mm set-back
Shimano GRX BL-RX400, 10-speed
Front brake disc
160 mm
Rear brake disc
160 mm
WTB STP i19 TCS,WTB ST i23 TCS, tubeless ready
Front hub
Novatec D041, 12x110 mm
Rear hub
Novatec D982TSB, 12x148 mm
Wheel size
Rear wheel size
Front tyre
WTB Riddler, 700 x 45C
Rear tyre
WTB Riddler, 700 x 45C
Permissible system weight
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
