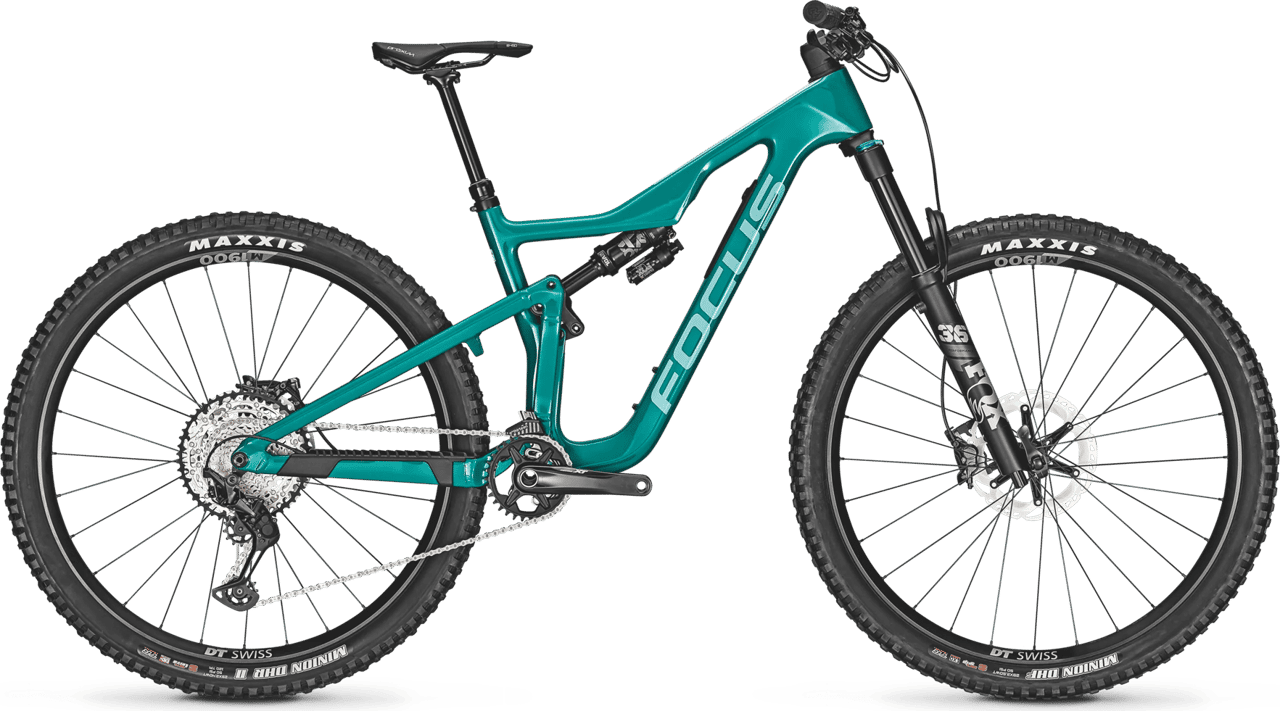

Exemplary bike presentation. Actual parts are shown in the specifications list.

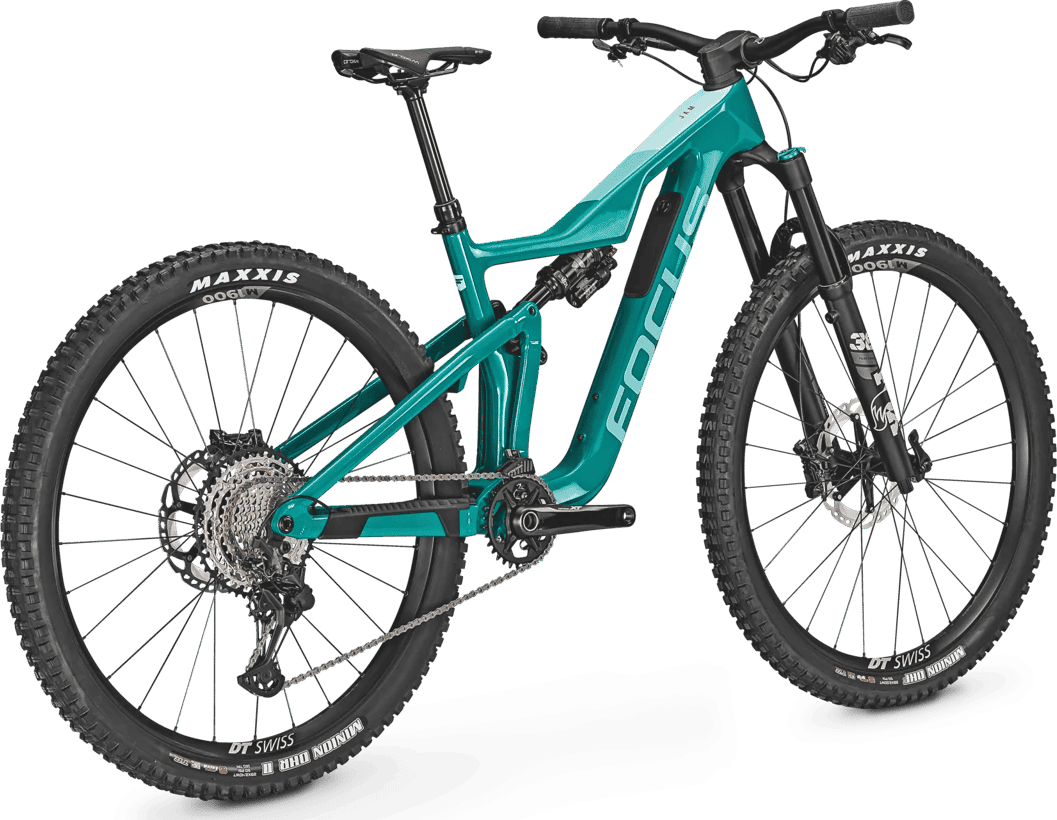

Exemplary bike presentation. Actual parts are shown in the specifications list.
360

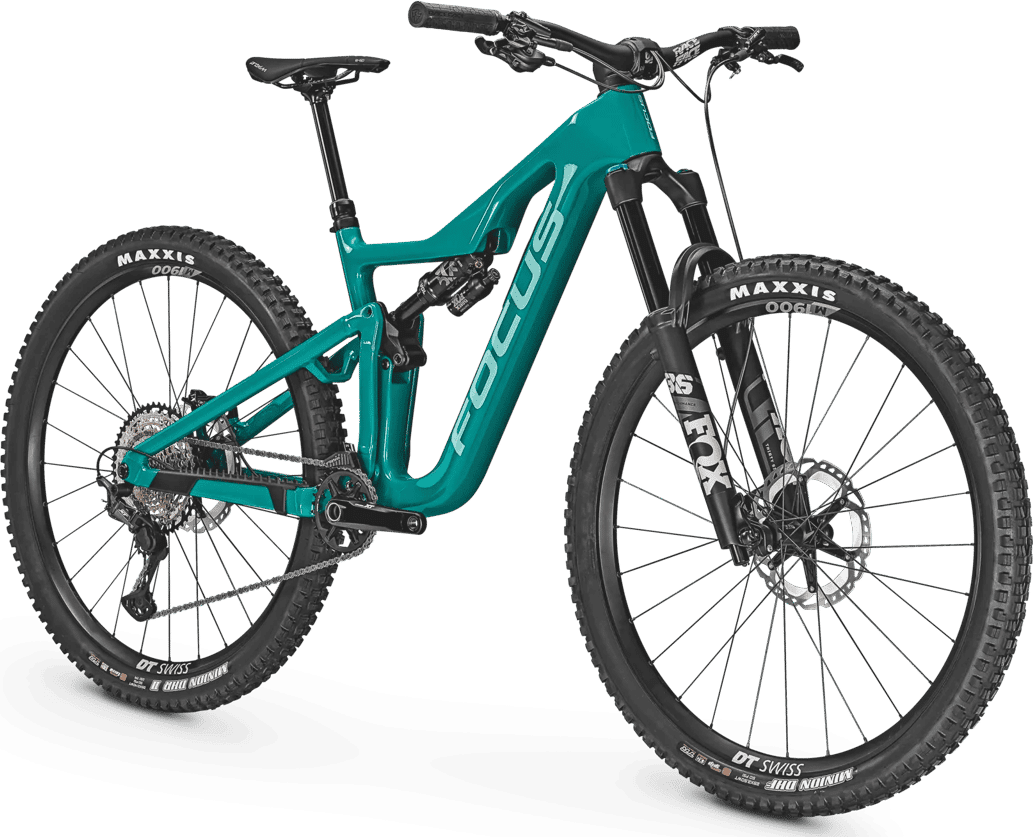

Exemplary bike presentation. Actual parts are shown in the specifications list.

JAM 8.9

Geometry Specification
€4,799.00

Select your size to check online availability.

Find the right frame sizes
N/A
No online stock. But most likely available at one of our dealers.
Sku Number
FO3120009v2022

JAM 8.9 Features

Carbon frame with tool bag integration

150 mm FOX 36 Performance fork & Float X shock

Shimano XT 1x12

Makes the mountains your playground

  • Optimized kinematics for strong progression

    With the upgrade of our well-known F.O.L.D. kinematics, your JAM is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM gives you more space to play on the trail.

  • For your inner child

    The JAM is made for your inner child: Playful and intuitive you get the most fun out of every ride. The geometry is well-balanced for your rides in tough terrain: An agile handling merges with a lot of safety resources of the chassis providing confidence in rough downhills. You are perfectly-seated in the middle of the lightweight carbon bikes to be in control of any situation and to easily pedal up all the steep hills on your ride. The FLIP CHIP at your JAM's linkage can be used to adjust your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up making it even more downhill-oriented.

  • Integrated and lightweight

    It's all about the details: In the down tube of the lightweight carbon bike, you can store your essentials thanks to our I.C.S. (Internal Compartment Solution) technology. One easy click and a cover on the down tube opens up. Within the down tube, your equipment fits in the integrated tool bag that you can easily take out if necessary. Furthermore, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame.

Frame
Carbon front triangle, 7005 Aluminum rear triangle, 150mm F.O.L.D. GEN2 kinematics, PF92 BB, 148x12 thru axle, internal cable routing, Post Mount 180 mm
Fork
FOX 36 Float Performance 29, Grip 3-Position, 110x15 mm, 44 mm rake
Travel of suspension fork
150 mm
Shock
FOX Float X Performance, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing
Shifter
Shimano Deore XT M8100, 12-speed
Rear derailleur
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Chain
Shimano SLX CN-M7100, 12-speed
Crankset
Shimano Deore XT M8120, 12-speed
Transmission of drive
front: 32, rear: 10-51
Handlebar
RaceFace Chester 35, aluminium, 780 mm, rise: 35 mm, backsweep: 8°
Grips
RaceFace Getta Grip
Stem
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
Saddle
Proxim W349
Proxim W350
Seatpost
Post Moderne dropper post PM-171, 31.6 mm
Brakes front | rear
Shimano XT M8120, 4 piston | Shimano XT M8120, 4 piston
Front brake disc
200 mm
Rear brake disc
200 mm
Wheelset
DT SWISS M1900, 622-30, 148x12 mm / 110x15 mm
Tyres front | rear
Maxxis Minion DHF, 3C EXO, 29 x 2.5" | Maxxis Minion DHR II, 3C EXO+, 29 x 2,4"
Weight
15.8 kg (-)
Permissible system weight
110 kg
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
Download safety instructions

Technical support for the jam

Suspension

What SAG do you recommend? What is SAG?
SAG is the amount of way the shock compresses when you just sit on your bike without moving. You adjust it with the pressure you pump in your shock with a shock pump. Our SAG recommendation is 30%. To see the actual percentage, you use the O-Ring that is placed on the fork and shock. For detailed set-up recommendations for your shock, see this chart: JAM 6. models

Parts

Can I add an internal dropper post?
Yes. And all our JAM come with a dropper post.
Can I add a chain guide?
Yes, the JAM offers ISCG05 tabs.
Does the bike have a chain stay protector?
Yes, it has one.
Can I change to electronic shifting / mechanical shifting
Yes, both is possible.

Technology

How does the FLIP CHIP work? What do I need to do? And what is it good for?
The FLIP CHIP at our JAM's linkage can be used to adjust the geometry to an even more aggressive riding style. For nimble handling on playful trails, leave the FLIP CHIP on 'HIGH' position and it gives you great agility. You like it rough and tough and your trails are nasty, switch onto 'LOW'. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up of the JAM making it even more downhill-oriented.
What is I.C.S.? How do I open it ? (Only 8. series)
I.C.S. stands for Internal Compartment Solution and is our way to smartly hide your essentials in the carbon frame of the JAM 8. series. An integrated tool bag that fits your essentials for the ride is tightly attached within your down tube but can be taken off if necessary. A cover on top of the down tube protects the tool bag from dirt and makes the bike look clean. The cover easily opens up by pressing a button and you are ready to get your gear.

Equipment

Can I add fenders, kickstand, rack?
No, a fender and rack is not possible, but you can install a kickstand with an adapter if you really want.
Can I attach a bike trailer?
As there is no legitimated test process, we can not give another statement than no.

Dimensions / Standards

I need more detailed information on dimensions (shock standard, bottom bracket, headset, etc.).
Please see the exploded drawing:
JAM 8. MY22
JAM 6. MY22
JAM MY21
What is the maximum brake rotor dimension?
You can use a maximum rotor dimension of 200 mm.
Which groupsets do fit? With what dimensions?
All 1-by groupsets fit.
What is the largest chainring I can use on the JAM?
The largest chainring you can use has 34 teeth.
What is the maximum tire width?
Maximum tire width is 2.5" or 64 mm (29" wheels).
Which wheel size should I take?
29" wheels
What kind of headset does this bike use?
ZS56 / ZS56 with integrated cable routing
What is the maximum seat post length?
The maximum seat post insertion depends on your frame size: S: 240 mm; M: 270 mm; L: 310 mm; XL: 360 mm
What is the maximum system weight?
We offer a total weight limit of 110 kg for the JAM. This weight limit includes the whole system weight of bike, rider and all equipment.

NUMERATION

THE FOCUS SYSTEM OF NUMERATION
All bikes are labelled with two numbers which are divided by a dot. The number in front of the dot represents the frame material and its quality. The number behind the dot stands for the level of specification. Carbon is always attributed with the highest number: 9 stands for the highest quality carbon layup, 8 is an "eco" layup or carbon/aluminium mix. Our aluminium bikes start at 7 or lower.
Example: JAM 8.9
8.9: Carbon frame and aluminium rear triangle
8.9: the highest level of components within this frame platform
X.0 is an exceptional spec that might even represent a limited edition.
