Gallery

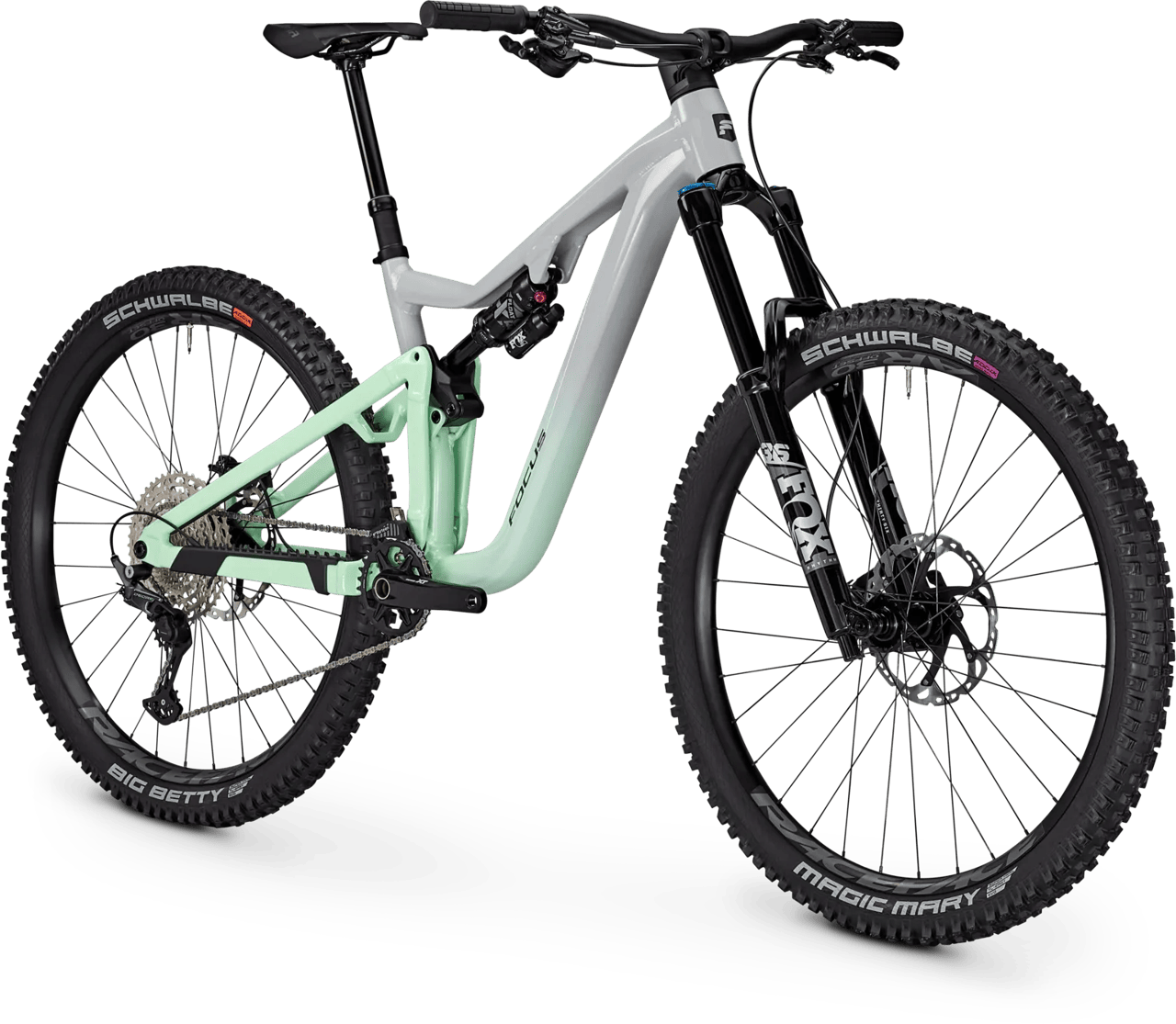

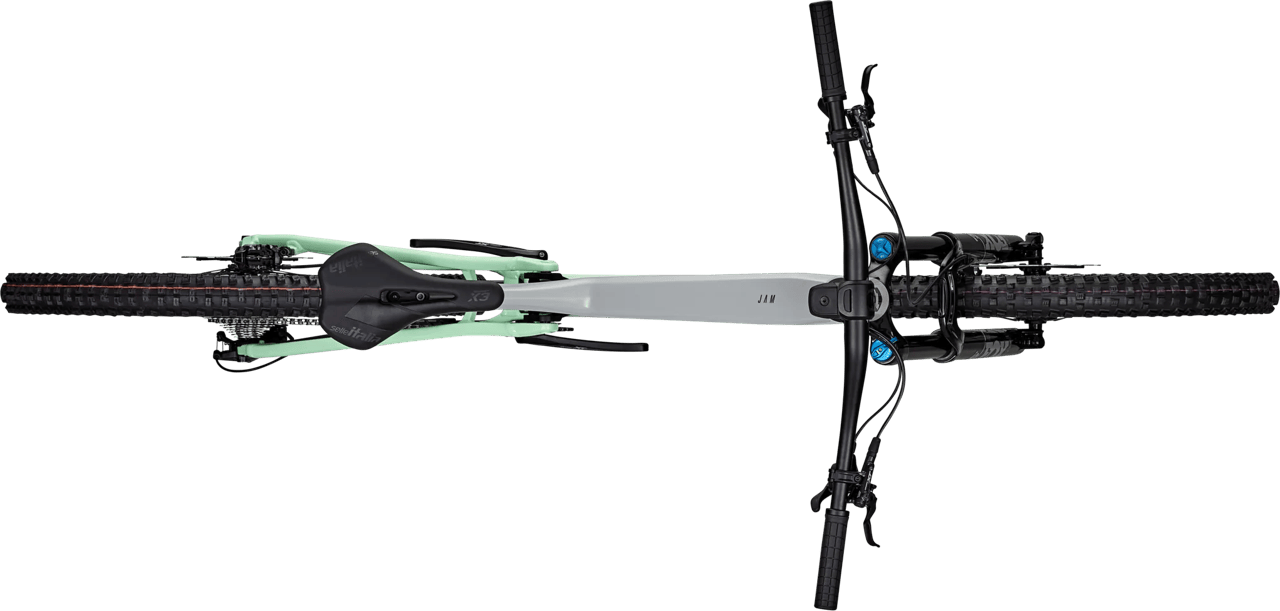

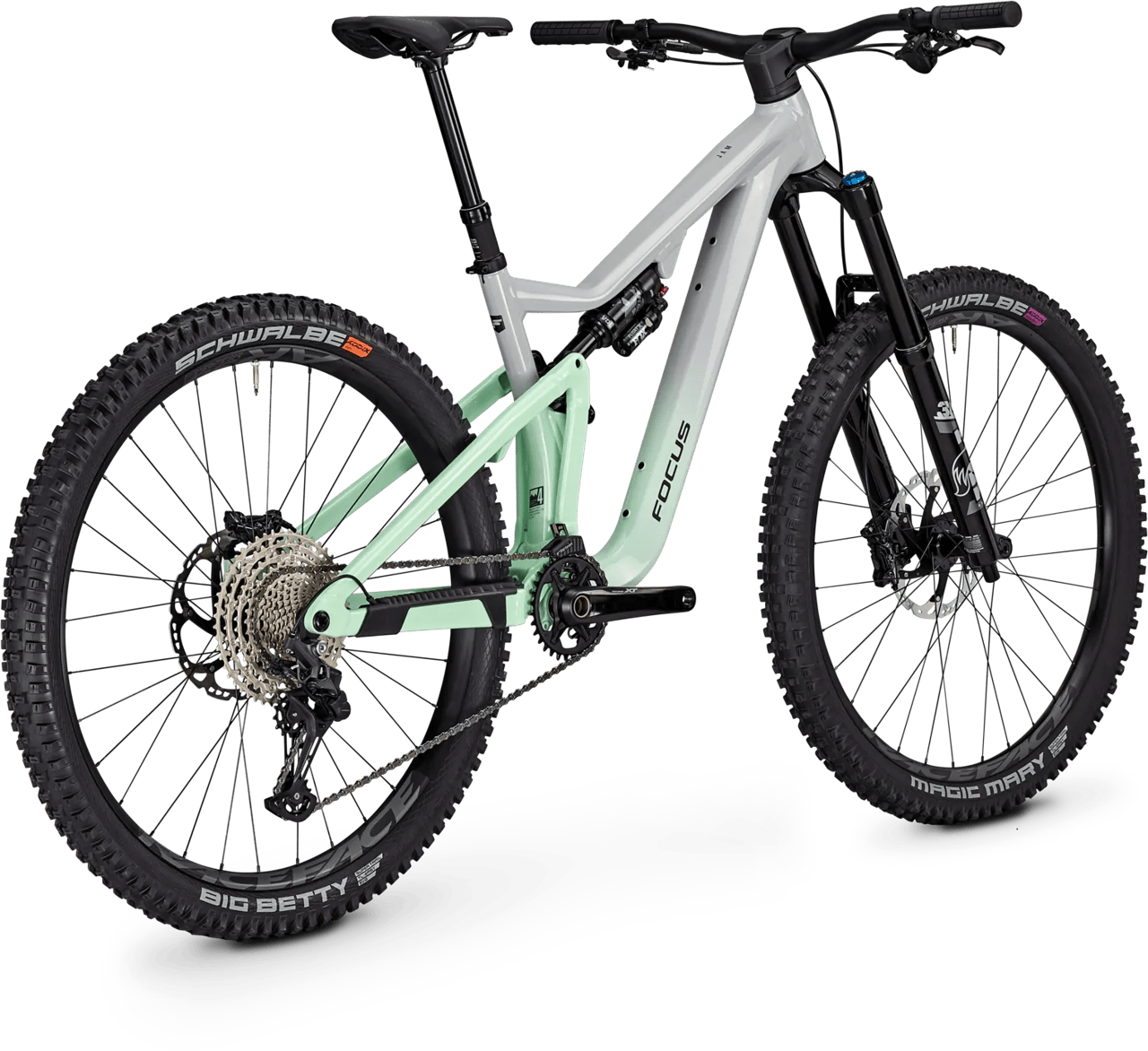

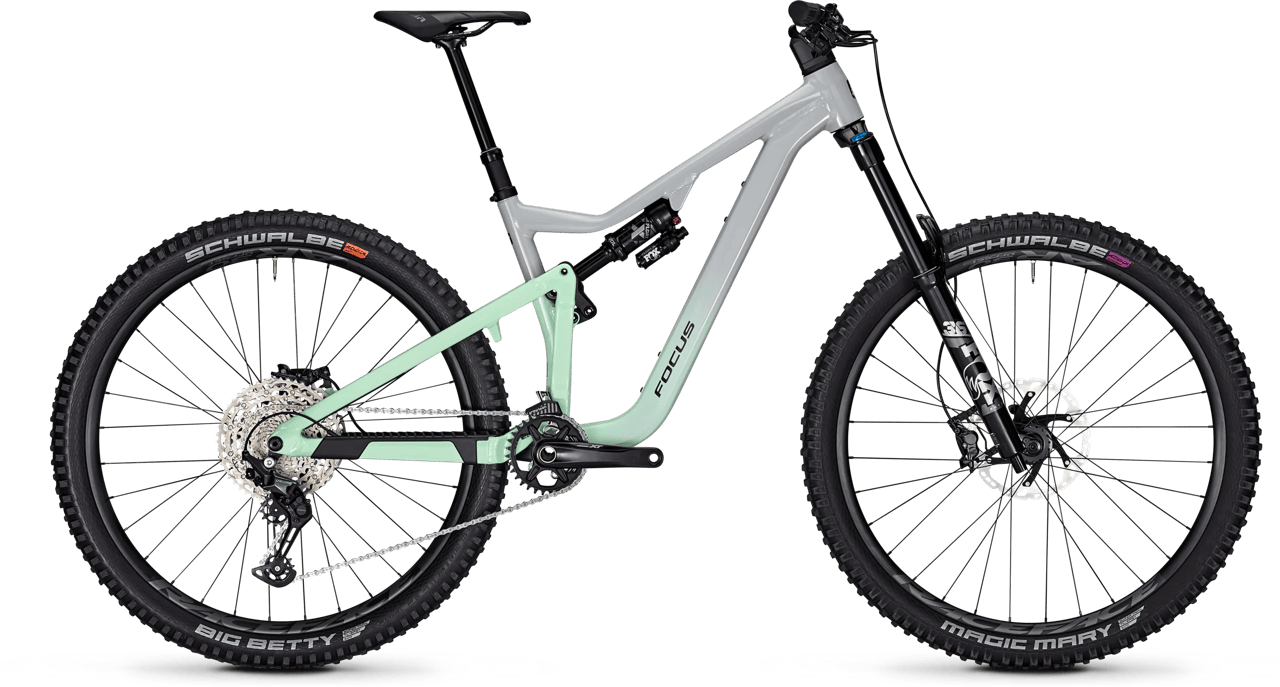

Exemplary bike presentation. Actual parts are shown in the specifications list.

JAM 6.9

Geometry Specification

€3,499.00

Select your size to check online availability.

N/A

Set up and set at the dealer in three weeks.

Sku Number

FG31v2024

JAM 6.9 Features

Aluminium frame with tool bag

160 mm FOX 36 Rhythm fork & 160 mm FLOAT X shock

SHIMANO DEORE 12-speed

Makes the mountains your playground

Kinematics for strong progression

With the upgrade of our well-known F.O.L.D. kinematics, your JAM is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM gives you more space to play on the trail.
For your inner child

The JAM is made for your inner child: Playful and intuitive you get the most fun out of every ride. The geometry is well-balanced for your rides in tough terrain: An agile handling merges with a lot of safety resources of the chassis providing confidence in rough downhills. You are perfectly-seated in the middle of the bike to be in control of any situation and to easily pedal up all the steep hills on your ride. The FLIP CHIP at your linkage can be used to adjust your geometry to an even more aggressive riding style.
Integrated and clean

Our C.I.S. 2.0 stem, the updated version of our previous C.I.S. (Cockpit Integration Solution), simplifies adjustments of your cockpit setup and completes the clean look of our JAM 6.9. All cables run directly into the frame below the stem, so you don’t have to open brake lines or shifting cables when changing the height of your cockpit. Furthermore, the JAM 6.9 comes with a tool bag between the top and down tube angle. The tool bag offers space for all your essentials like a multi-tool, tube and a small pump.

Frame

7005 hydroformed aluminium, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm

Fork

FOX 36 Rythm 29, Grip 3-Position, 160 mm

Shock

Fox Float X Performance, 150 mm

Shifter

Shimano Deore

Rear derailleur

Shimano Deore, 12-speed

Cassette

Shimano CS-M6100, 10-51T

Chain

Shimano CN-M6100

Crankset

Shimano Deore XT, 170 mm

Chainring

Shimano Deore XT, 32T

Bottom bracket

Shimano BB-MT501, BSA68

Handlebar

Alloy, width: 800 mm, rise: 30 mm

Grips

VP Lock-On Grips

Stem

FOCUS C.I.S. 2.0, 50 mm

Headset

ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated

Saddle

fi'zi:k Tiaga

Seatpost

Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 230 mm, 31,6 mm

Brakes front | rear

Shimano Deore XT BR-M8120, 4-piston | Shimano Deore XT BR-M8120, 4-piston

Disc brake rotors

Shimano SM-RT64, 203 mm

Rim front

Raceface AR-30, alloy, 29"

Rim rearrear

Raceface AR-30, alloy, 29"

Front hub

Shimano HB-TC500

Rear hub

Shimano FH-TC500

Tyres front | rear

Schwalbe Magic Marry , Super Trail, ADDIX Ultra Soft, 29 x 2.4" | Schwalbe Big Betty Evo, Super Trail, ADDIX Soft, 29 x 2.4"

Weight

15 kg (-)

Permissible system weight

110 kg

* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.

FLIP CHIP high

FLIP CHIP low

		S	M	L	XL
	Size in mm	390	420	450	470
	Handlebar width	800	800	800	800
	Stem length	50	50	50	50
	Crank length	170	170	170	170
	Seatpost length	390	440	440	490
A	Seat tube length	390	420	450	470
B	Top tube length	570	603	637	672
C	Head angle (°)	65.5	65.5	65.5	65.5
D	Seat angle (°)	76.5	76.5	76.5	76.5
E	Chainstay length	435	435	435	435
F	Bottom bracket drop	24	24	24	24
G	Head tube length	90	100	120	140
H	Fork length	561	561	561	561
I	Fork offset	44	44	44	44
J	Wheelbase	1166	1200	1238	1277
K	Stack	603	612	630	648
L	Reach	425	455	485	515
M	Standover height	766	766	766	766

		S	M	L	XL
	Size in mm	390	420	450	470
	Handlebar width	800	800	800	800
	Stem length	50	50	50	50
	Crank length	170	170	170	170
	Seatpost length	390	440	440	490
A	Seat tube length	390	420	450	470
B	Top tube length	570	603	637	672
C	Head angle (°)	65	65	65	65
D	Seat angle (°)	76	76	76	76
E	Chainstay length	435	435	435	435
F	Bottom bracket drop	30	30	30	30
G	Head tube length	90	100	120	140
H	Fork length	561	561	561	561
I	Fork offset	44	44	44	44
J	Wheelbase	1166	1200	1238	1277
K	Stack	603	612	630	648
L	Reach	420	450	480	510
M	Standover height	766	766	766	766

Download safety instructions

Technical support for the jam

jam Faq
jam downloads

Suspension

What SAG do you recommend? What is SAG?

SAG is the amount of way the shock compresses when you just sit on your bike without moving. You adjust it with the pressure you pump in your shock with a shock pump. Our SAG recommendation is 30%. To see the actual percentage, you use the O-Ring that is placed on the fork and shock. For detailed set-up recommendations for your shock, see this chart: JAM 6. models

Parts

Can I add an internal dropper post?

Yes. And all our JAM come with a dropper post.

Can I add a chain guide?

Yes, the JAM offers ISCG05 tabs.

Does the bike have a chain stay protector?

Yes, it has one.

Can I change to electronic shifting / mechanical shifting

Yes, both is possible.

Technology

How does the FLIP CHIP work? What do I need to do? And what is it good for?

The FLIP CHIP at our JAM's linkage can be used to adjust the geometry to an even more aggressive riding style. For nimble handling on playful trails, leave the FLIP CHIP on 'HIGH' position and it gives you great agility. You like it rough and tough and your trails are nasty, switch onto 'LOW'. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up of the JAM making it even more downhill-oriented.

What is I.C.S.? How do I open it ? (Only 8. series)

I.C.S. stands for Internal Compartment Solution and is our way to smartly hide your essentials in the carbon frame of the JAM 8. series. An integrated tool bag that fits your essentials for the ride is tightly attached within your down tube but can be taken off if necessary. A cover on top of the down tube protects the tool bag from dirt and makes the bike look clean. The cover easily opens up by pressing a button and you are ready to get your gear.

Equipment

Can I add fenders, kickstand, rack?

No, a fender and rack is not possible, but you can install a kickstand with an adapter if you really want.

Can I attach a bike trailer?

As there is no legitimated test process, we can not give another statement than no.

Dimensions / Standards

I need more detailed information on dimensions (shock standard, bottom bracket, headset, etc.).

Please see the exploded drawing:
JAM 8. MY22
JAM 6. MY22
JAM MY21

What is the maximum brake rotor dimension?

You can use a maximum rotor dimension of 200 mm.

Which groupsets do fit? With what dimensions?

All 1-by groupsets fit.

What is the largest chainring I can use on the JAM?

The largest chainring you can use has 34 teeth.

What is the maximum tire width?

Maximum tire width is 2.5" or 64 mm (29" wheels).

Which wheel size should I take?

29" wheels

What kind of headset does this bike use?

ZS56 / ZS56 with integrated cable routing

What is the maximum seat post length?

The maximum seat post insertion depends on your frame size: S: 240 mm; M: 270 mm; L: 310 mm; XL: 360 mm

What is the maximum system weight?

We offer a total weight limit of 110 kg for the JAM. This weight limit includes the whole system weight of bike, rider and all equipment.

NUMERATION

THE FOCUS SYSTEM OF NUMERATION

All bikes are labelled with two numbers which are divided by a dot. The number in front of the dot represents the frame material and its quality. The number behind the dot stands for the level of specification. Carbon is always attributed with the highest number: 9 stands for the highest quality carbon layup, 8 is an "eco" layup or carbon/aluminium mix. Our aluminium bikes start at 7 or lower.
Example: JAM 8.9
8.9: Carbon frame and aluminium rear triangle
8.9: the highest level of components within this frame platform
X.0 is an exceptional spec that might even represent a limited edition.
