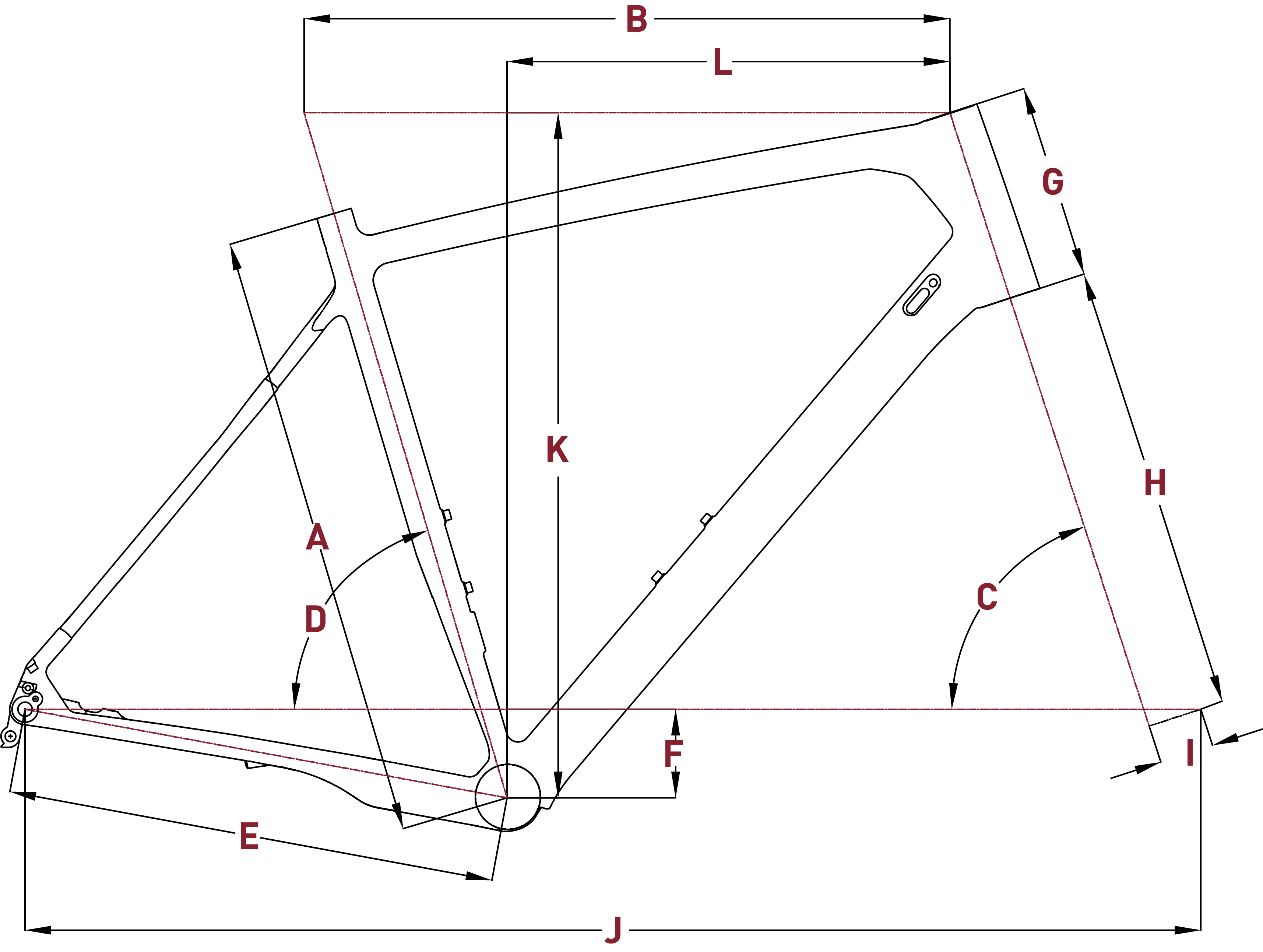

Geometrie
| XXS | XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|---|
| Framemaat | 48 | 50 | 52 | 54 | 56 | 58 | 61 | |
| Size (MM) | 480 | 500 | 520 | 540 | 560 | 580 | 610 | |
| Handlebar width | ||||||||
| Stem Length | ||||||||
| Crankarm length | ||||||||
| A | Seat tube length (MM) | 480 | 500 | 520 | 540 | 560 | 580 | 610 |
| B | Effective Top Tube (MM) | 521 | 530 | 536 | 549 | 565 | 580 | 604 |
| C | Head Tube Angle (°) | 70.8 | 71.4 | 71.7 | 72.5 | 73.5 | 73.6 | 73.7 |
| D | Effective Seat Tube Angle (°) | 73.8 | 73.6 | 73.6 | 73.5 | 73.5 | 73.4 | 73.2 |
| E | Chainstay length (MM) | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| F | Bottom bracket drop (MM) | 72 | 71 | 71 | 70 | 70 | 69 | 68 |
| G | Head Tube Length (MM) | 110 | 115 | 120 | 135 | 160 | 180 | 200 |
| H | Fork construction height (MM) | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| I | Pre-raked fork (MM) | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| J | Wheelbase length (MM) | 980 | 982 | 987 | 992 | 998 | 1012 | 1033 |
| K | Stack (MM) | 510 | 515 | 521 | 537 | 565 | 583 | 601 |
| L | Reach (MM) | 373 | 378 | 383 | 390 | 398 | 406 | 422 |
Specificaties
Frame materiaal
Carbon
Frame
MAX technology carbon, disc, PF30 BB, 142x12 mm through axle, RAT Evo technology, Di2 ready, flat mount 140 mm, internal brake cable routing
Voorvork
MAX technology carbon, disc, 100x12 mm R.A.T. through axle, R.A.T. Evo Technology, flat mount 160 mm, internal brake cable routing
Balhoofdset
1-1/8", tapered, IS 47/33
Zadelpen
BBB CPX Plus, Carbon, Di2 Ready, 27,2mm, 350mm, set-back: 20mm
Type versnellingen
Electric shifting
Framemaat
48,56,52,54,58,50,61
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
