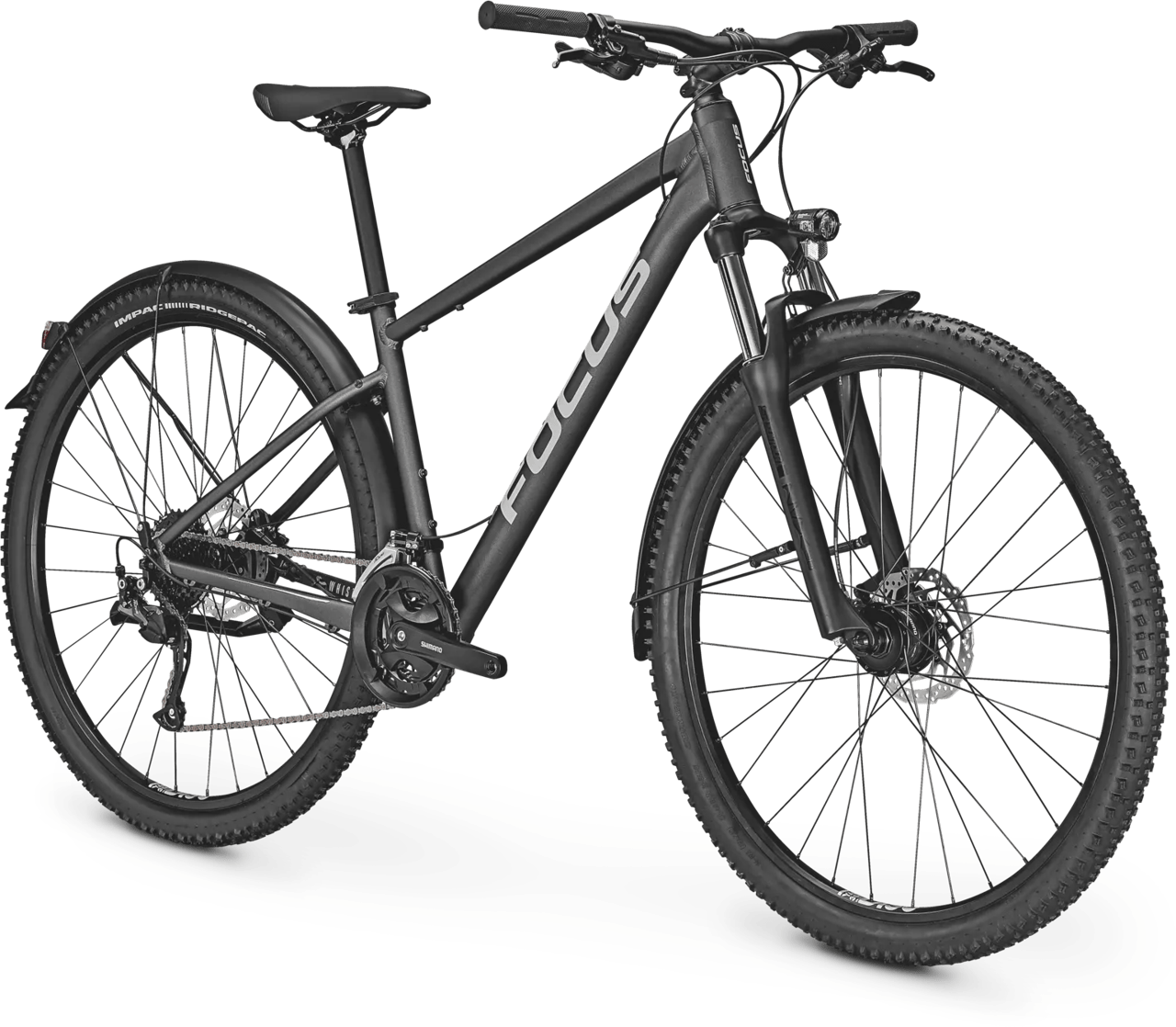

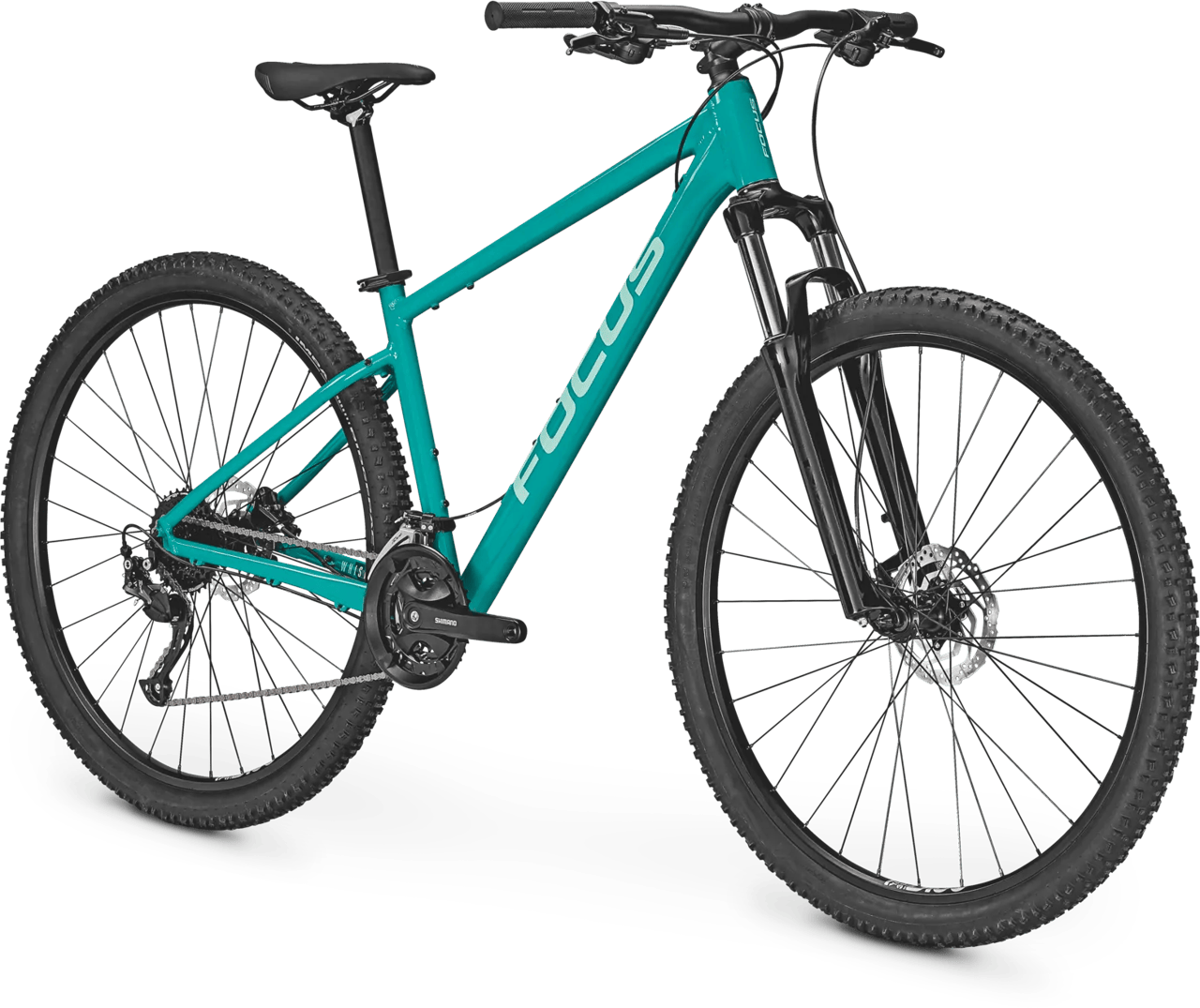

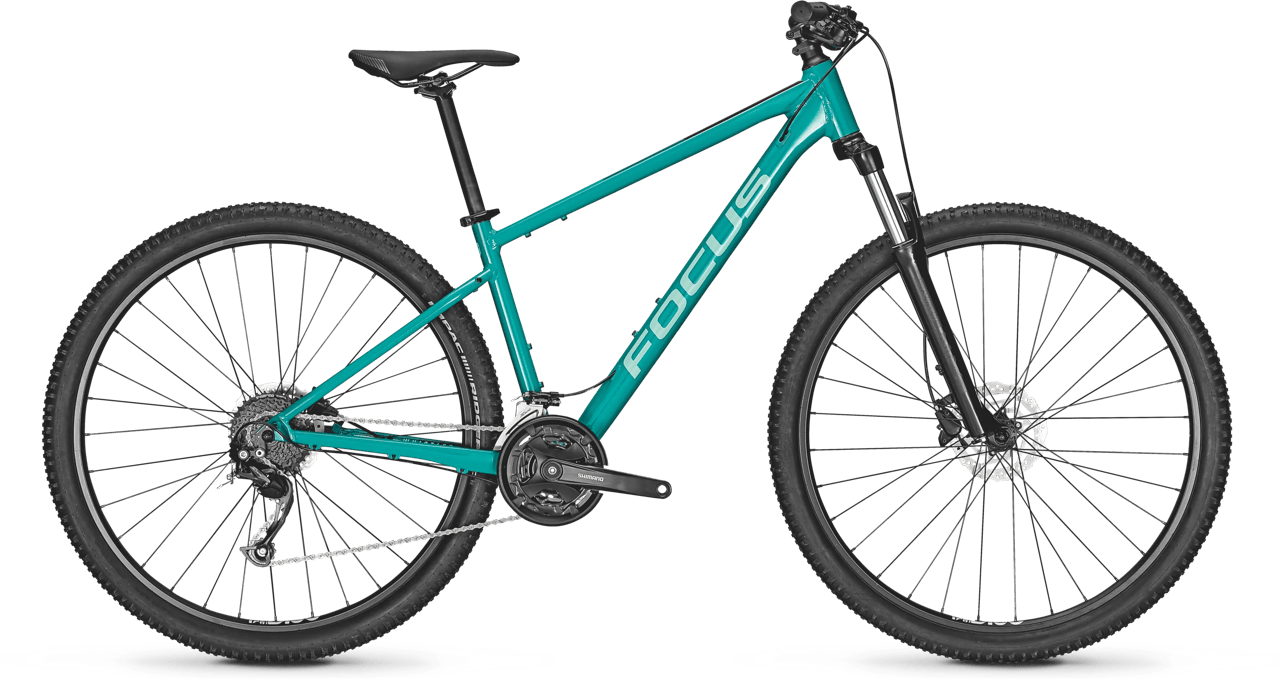

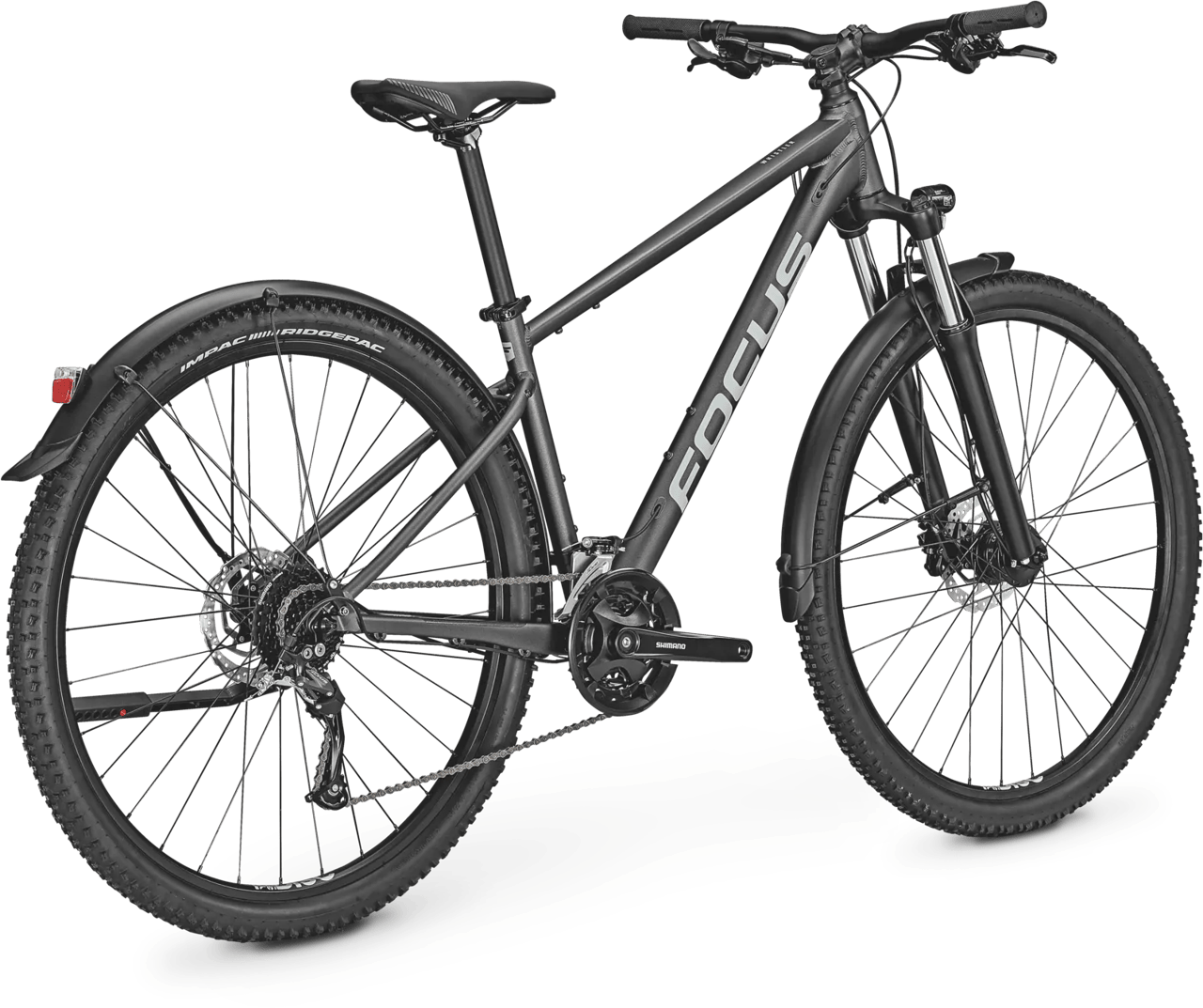

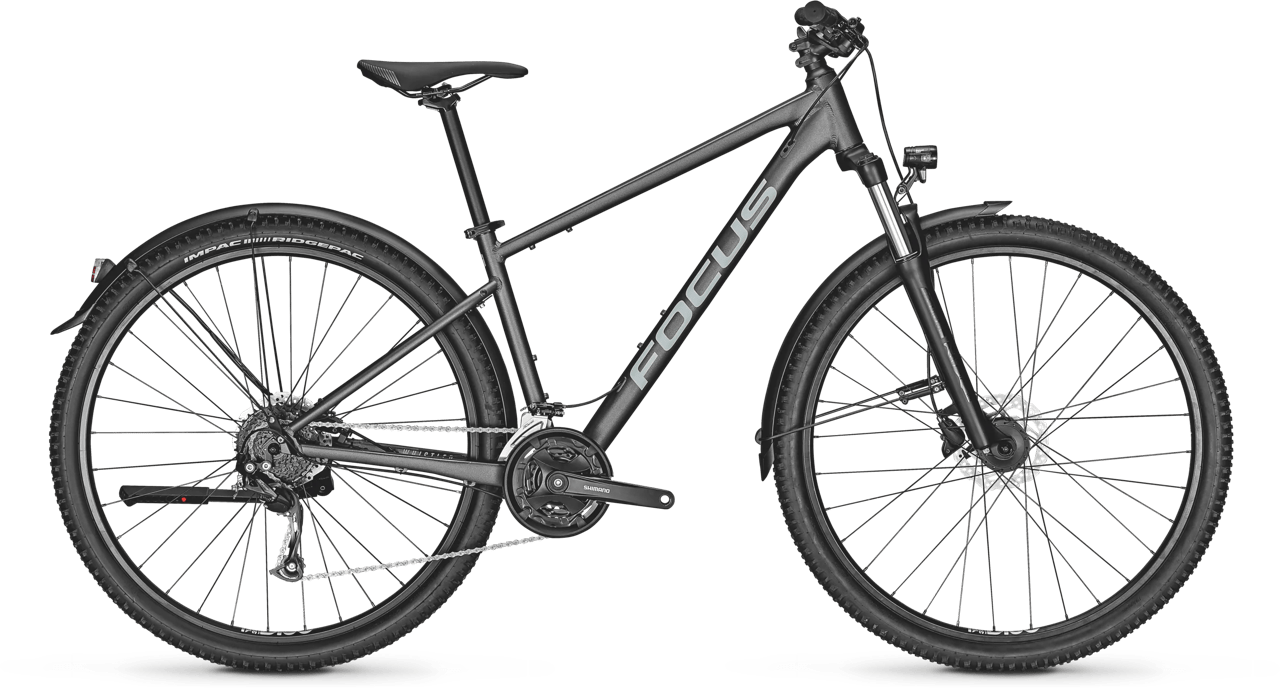

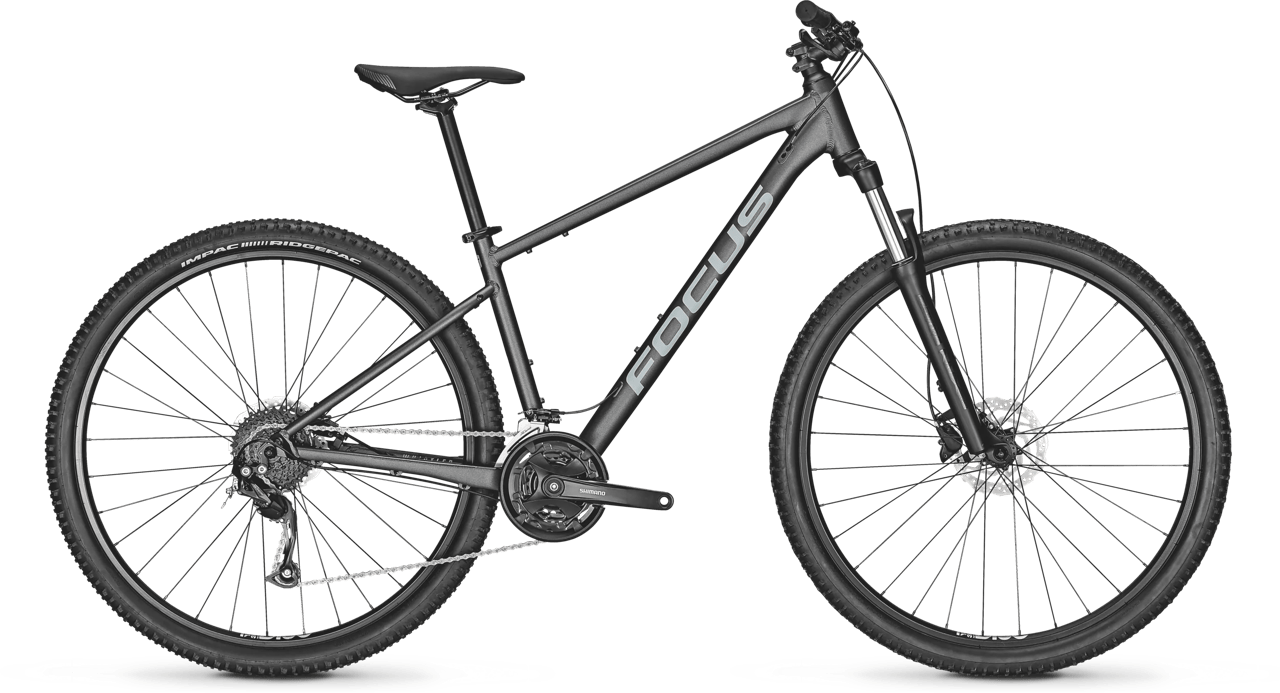

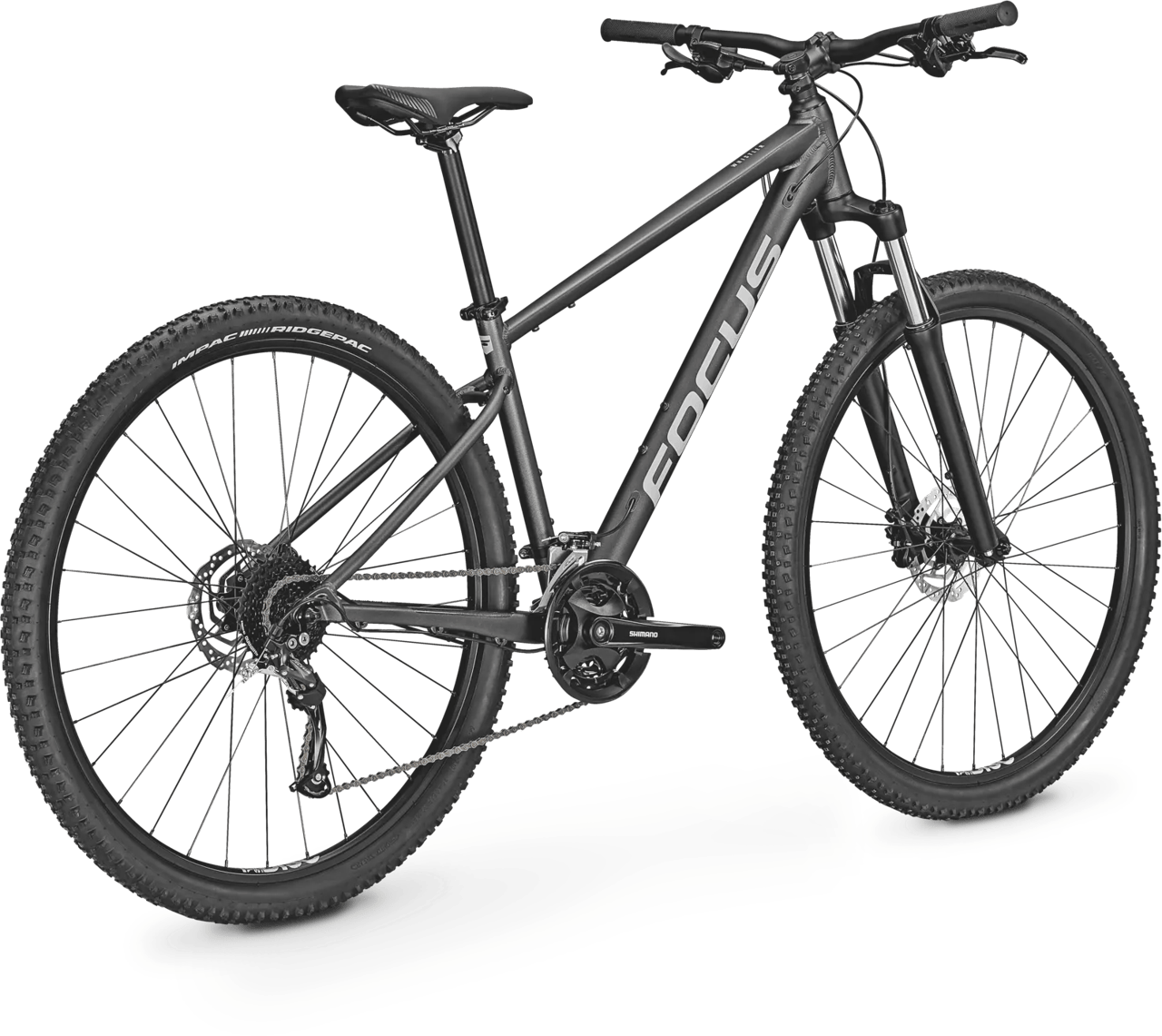

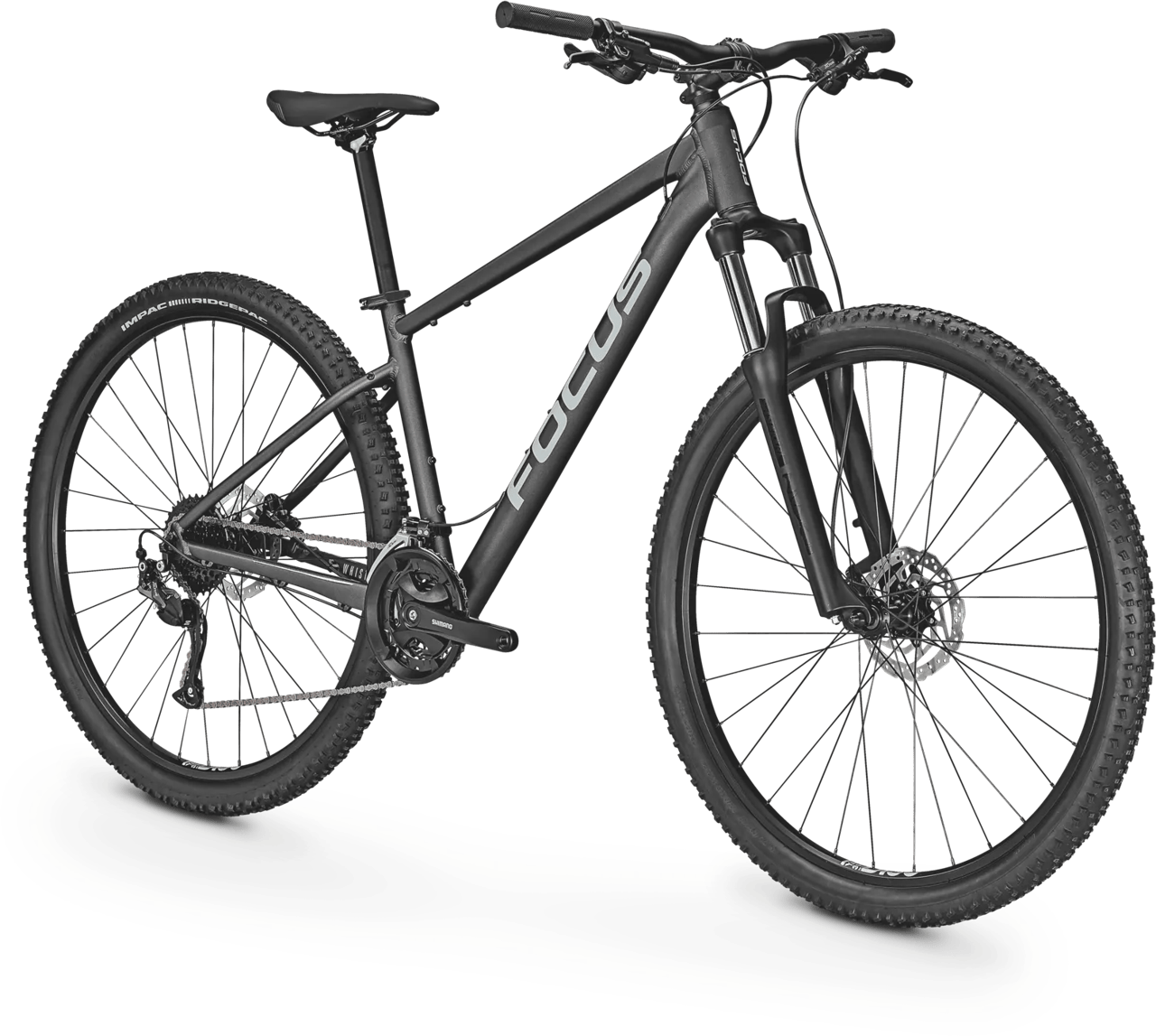

Exemplary bike presentation. Actual parts are shown in the specifications list.
WHISTLER 3.6
€749.00
N/A
Set up and set at the dealer in three weeks.
Sku Number
FO3040015v2022
WHISTLER 3.6 Features
SR Suntour XCT-ATB fork
Shimano Altus 3x9 shifting
Option to mount pannier rack & fenders
Makes sport come naturally
-
A wheel size fitting your height
With the WHISTLER, you get the ideal wheel size to suit your height and needs: The WHISTLER in sizes XL to M comes with 29" wheels. Size S and XS have 27,5" wheels.
-
Reliable braking power and integrated design
When faced with risky situations, you need a partner you can rely on. That is why we have equipped our WHISTLER with disc brakes to ensure consistent braking performance and optimal braking behaviour in all weather conditions. We route all cables through the down tube of the frame for better protection of the cables, durability and a clean look.
-
Ready for your riding requirements
To allow you to fully tailor your bike to your needs, you have mounting options for a pannier rack, fenders, light and kickstand.
Geometry
XS | S | M | L | XL | ||
---|---|---|---|---|---|---|
Size in mm | 340 | 360 | 420 | 460 | 500 | |
Handlebar width | 720 | 720 | 720 | 720 | 720 | |
Stem length | 60 | 60 | 60 | 60 | 60 | |
Crank length | 170 | 170 | 170 | 170 | 170 | |
Seatpost length | 420 | 500 | 420 | 460 | 500 | |
A | Seat tube length | 340 | 360 | 420 | 460 | 500 |
B | Top tube length | 549 | 574 | 606 | 636 | 666 |
C | Head angle (°) | 68 | 68 | 68 | 68 | 68 |
D | Seat angle (°) | 74 | 74 | 74 | 74 | 74 |
E | Chainstay length | 440 | 400 | 450 | 450 | 450 |
F | Bottom bracket drop | 48 | 48 | 60 | 60 | 60 |
G | Head tube length | 120 | 120 | 120 | 140 | 160 |
H | Fork length | 497 | 497 | 515 | 515 | 515 |
I | Fork offset | 42 | 42 | 51 | 51 | 51 |
J | Wheelbase | 1079 | 1104 | 1155 | 1187 | 1220 |
K | Stack | 605 | 605 | 630 | 649 | 667 |
L | Reach | 375 | 400 | 425 | 450 | 475 |
Specification
Frame
6061 aluminium, 3D forging, disc, internal cable routing, post mount 160 mm
Fork
SR Suntour NVX30, QR, 5x100 mm
Travel of suspension fork
80mm (XS-S) / 100mm (M-XL)
Shifter
Shimano SL-M2010, 9-speed
Rear derailleur
Shimano Altus M2000, 9-speed
Cassette
Shimano HG200, 9-speed
Chain
KMC X9
Crankset
Shimano MT101
Transmission of drive
front: 40/30/22 rear: 11-34
Bottom bracket
BSA
Handlebar
Riser, Aluminium, 720mm
Grips
Velo VLG108
Stem
Aluminium, 31,8 mm, 6°
Headset
VP Components 1-1/8", ZS44/28,6-ZS44/30 Ahead
Saddle
VELO VL3378
Seatpost
Alloy, 27,2 mm
Brakes front | rear
Alhonga HT474 | Alhonga HT474
Front brake disc
180 mm
Rear brake disc
160 mm
Rim rear
Schürmann YAK 21
Front hub
KT TC7F, QR, 5x100 mm
Rear hub
KT-TC7R, QR, 5x135 mm
Spokes
Zink, black
Tyres front | rear
Kenda Booster, 56-622 / 584 | Kenda Booster, 56-622 / 584
Weight
14.9 kg ()
Permissible system weight
110 kg
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
