IZALCO MAX DISC 9 FS Features
Aerodynamically shaped, lightweight carbon frame with carbon handlebar stem and integrated cable routing, disc brakes and R.A.T. floating axles
including aerodynamically optimised FOCUS carbon handlebar stem with integrated cable routing
including aerodynamically optimised FOCUS carbon seatpost
More than just the fastest
Optimised in the wind tunnel
We have specially developed a handlebar stem with a fully integrated headset in order to minimise wind resistance. The specially developed seatpost also perfectly complements the aerodynamic design of the IZALCO MAX.
To sum it up – faster
Manufactured entirely from carbon fibre, the IZALCO MAX is ultra-light and agile. The extremely stiff bottom bracket transforms your pedal power and propels you forward. Light on the mountain, nippy in the sprint, streamlined in the wind.
Setting the benchmark for the future
The pioneering IZALCO MAX sets new standards: Our technology flagship perfectly combines disc brakes with an aerodynamic frame.

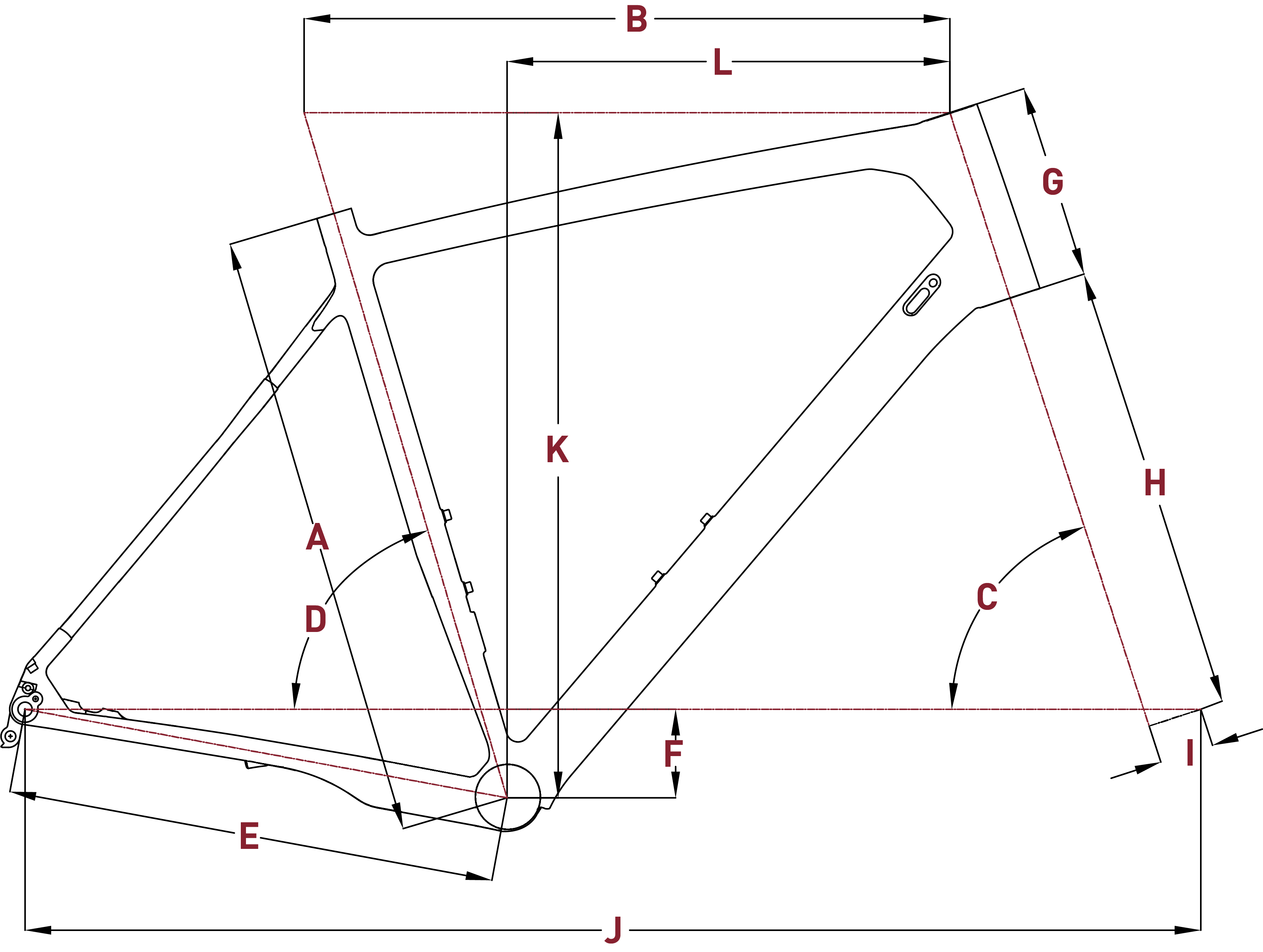

|Frame size cm||47||50||52||54||56||58||61|
|B||Effective Top Tube (MM)||504||517||535||551||564||582||602|
|C||Head Tube Angle (°)||69.5||70.5||71.5||72||72||72.5||72.5|
|D||Effective Seat Tube Angle (°)||74||73.5||73.5||73.5||73.5||73.5||73.5|
|F||BB Drop (MM)||78||78||78||78||78||78||78|
|G||Head Tube Length (MM)||80||80||100||115||125||150||185|
|H||Fork Length (MM)||392||392||392||392||392||392||392|
|I||Fork Offset (MM)||46||46||46||46||46||46||46|
