Unbelievable acceleration
-
Sets benchmarks for lightweight construction
Thanks to our high-end carbon technology, our RAVEN weighs just 885 grams. One of the lightest frames on the racing circuit – and the best performing.
-
Valued by professionals
Our RAVEN regularly proves its worth at the World Cup. It is our opinion that only a bike that is able to succeed in this test of endurance is good enough for you.
-
Reduced fatigue thanks to increased comfort
Sophisticated fibre orientation and tube dimensions for the seat tube, saddle stays, bottom bracket and steering head – as rigid as necessary, as comfortable as possible.

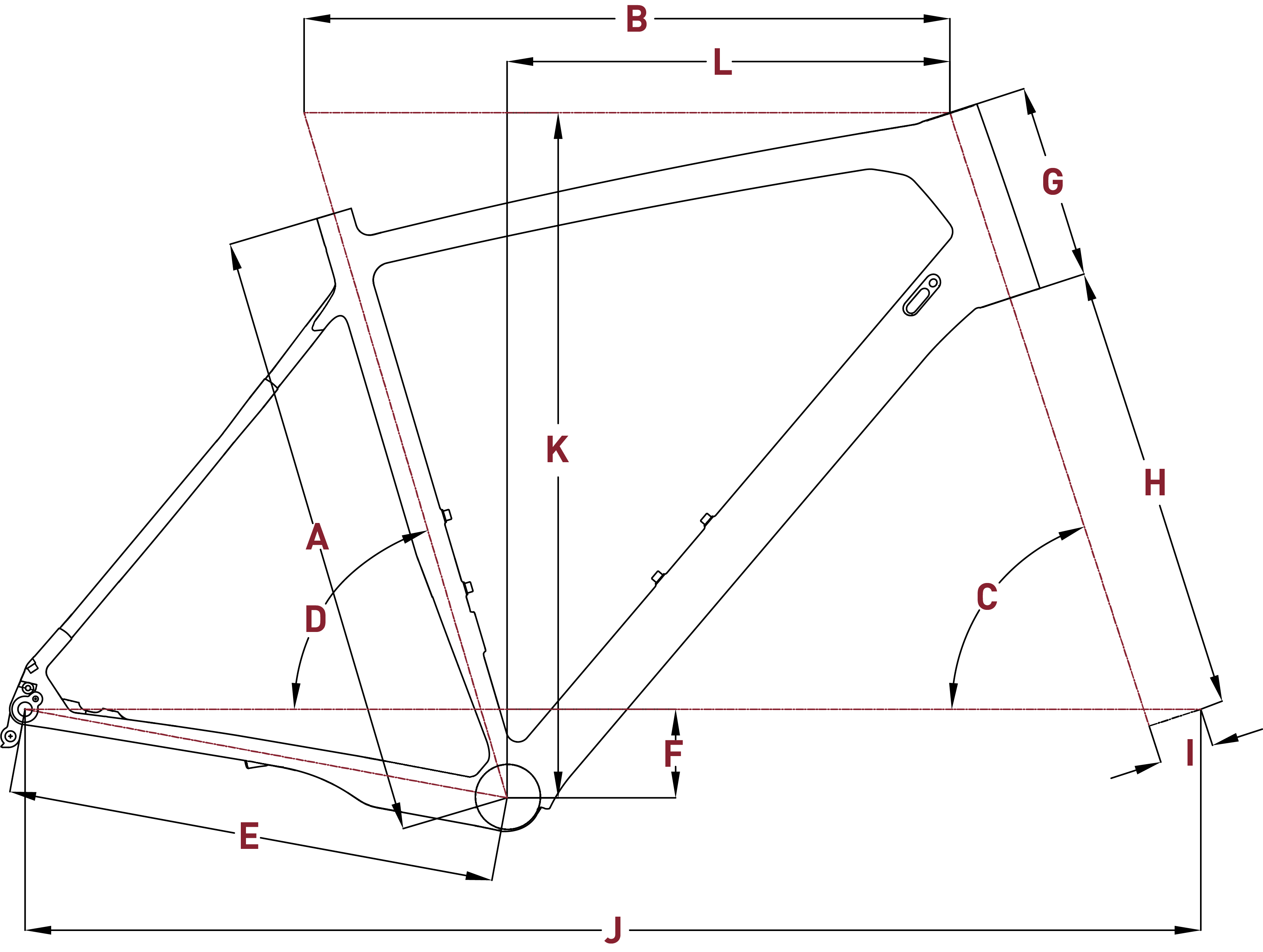

Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| Size | 42 | 46 | 50 | 54 | |
| Size (MM) | 420 | 460 | 500 | 540 | |
| Handlebar width | 720 | 720 | 720 | 720 | |
| Stem Length (MM) | 90 | 90 | 90 | 90 | |
| Crankarm length | 170 | 170 | 170 | 170 | |
| A | Seat tube length | ||||
| B | Effective Top Tube (MM) | 592 | 608 | 629 | 649 |
| C | Head Tube Angle (°) | 69.8 | 69.8 | 69.8 | 69.8 |
| D | Effective Seat Tube Angle (°) | 74.5 | 74.5 | 74.5 | 74.5 |
| E | Chainstay length (MM) | 435 | 440 | 435 | 435 |
| F | Bottom bracket drop (MM) | 68 | 68 | 68 | 68 |
| G | Head Tube Length (MM) | 104 | 107 | 130 | 150 |
| H | Fork construction height (MM) | 501 | 501 | 501 | 501 |
| I | Pre-raked fork (MM) | 44 | 44 | 44 | 44 |
| J | Wheelbase length (MM) | 1100 | 1116 | 1139 | 1160 |
| K | Stack (MM) | 620 | 623 | 644 | 663 |
| L | Reach (MM) | 420 | 435 | 450 | 465 |
Specification
Frame
MAX technology Carbon frame, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Frame material
Carbon
Fork
FOX 32 Float SC Factory, 2-position remote w/ open mode, 15 x 110 mm QR, 100 mm travel
Travel Fork
100 mm
Shifter
Shimano XTR 9100, 12-speed
Rear derailleur
Shimano XTR 9100, 12-speed
Sprocket
Shimano XTR M9100, 12-speed
Chain
Shimano XTR CN-M9100
Crankset
RaceFace Next SL G5, carbon
Bottom Bracket
RaceFace PF30 73mm
Transmission of drive
front: 32, rear:10-51
Handlebar
BBB, carbon, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Grips
Velo VLG-975
Stem
BBB Race, aluminium, 31.8 mm
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Saddle
Prologo Scratch X8, 7x9mm carbon rail
Seatpost
BBB FlyPost, carbon, 27,2 mm
Brakes
Shimano XTR M9100
Brake lever
Shimano XTR M9100
Brake
Disc
Wheelset
DT Swiss XRC1200, carbon, 622-25
Tires
Schwalbe Racing Ralph Evo Addix Speed 2.25
Rear tire
Schwalbe Racing Ray Evo Addix Speedgrip 2.25
Gears
12
Bike weight incl. battery in kg.
8,8 kg
Size
42,54,46,50
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
