JARIFA² Plus Pro

Geometry Specification
SKU
FO5080002v2018

JARIFA² Plus Pro Features

Ready for your adventure: High-performance Bosch Performance CX motor

Elegant integration of the 500 Wh Bosch Powertube battery in the slimline down tube

Limitless mountain bike fun: hefty 27.5+ tyres, including Supernova front light and Vario seatpost

Inspires you to get away

  • It's the ride characteristics that count

    The path to your ultimate goal should be full of laughter and fun. Which is why our JARIFA² is designed with mountain bike geometry and excellent off-road capability.

  • Prepared for anything

    The integrated lighting system from Supernova on your handlebar not only looks cool, it will get you safely through the dark.

  • The choice is yours

    You can choose from a range of different wheel sizes to best suit your individual requirements. Furthermore, the battery is removable on all models to enable easy charging in the comfort of your home.

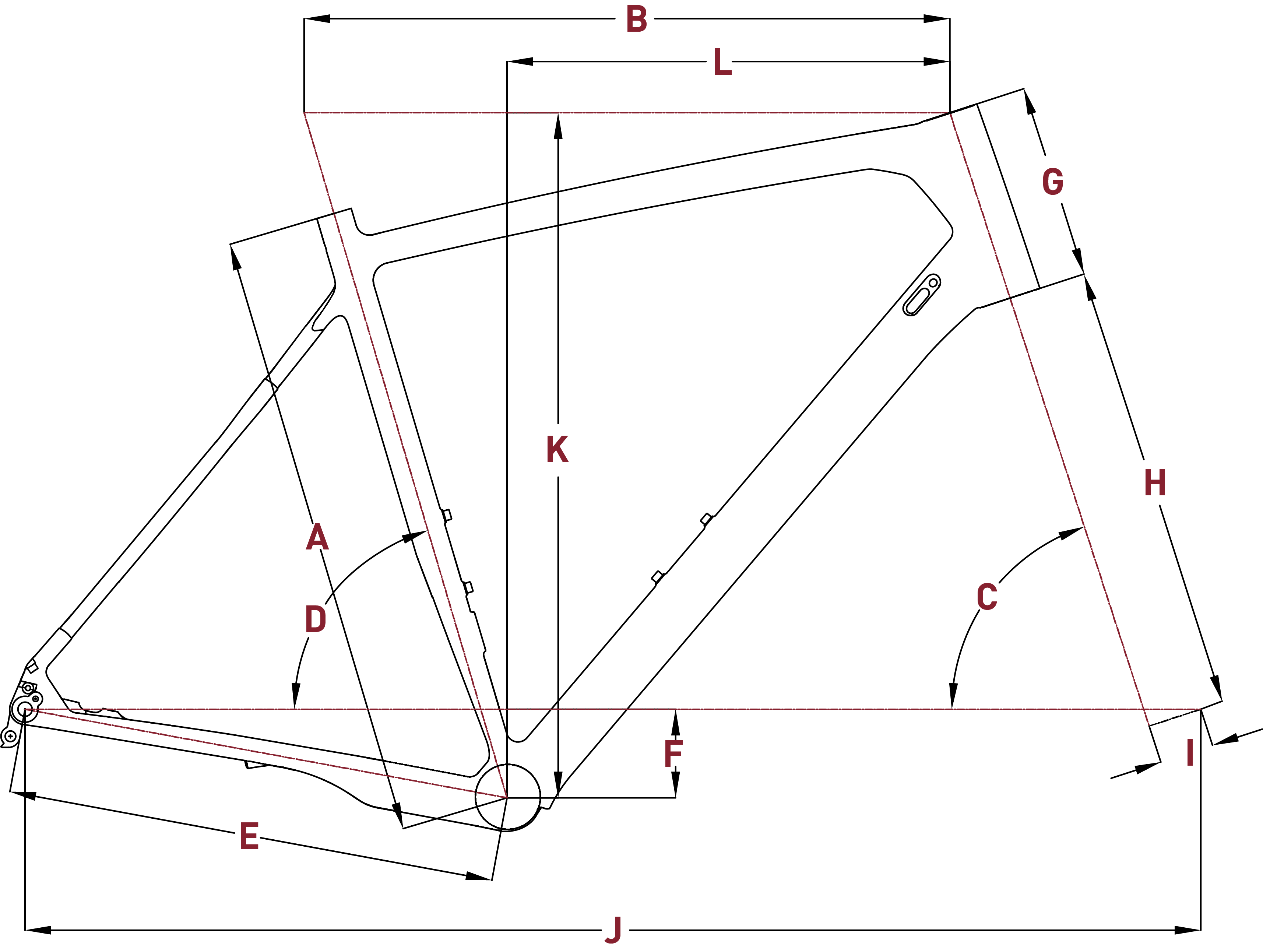

Geometry

S M L XL
A Size (MM) 400 440 480 520
B Effective Top Tube (MM) 578 588 608 623
C Head Tube Angle (°) 70 70 70 70
D Effective Seat Tube Angle (°) 74 74 74 74
E Chainstay (MM) 490 490 490 490
F BB Drop (MM) 60 60 60 60
G Head Tube Length (MM) 120 120 140 160
H Fork Length (MM) 509 509 509 509
I Fork Offset (MM) 51 51 51 51
J Wheelbase (MM) 1145 1155 1177 1194
K Stack (MM) 636 636 655 674
L Reach (MM) 395 405 420 430

Specification

Battery
BOSCH Powertube, 500 Wh, removeable
Display
BOSCH INTUVIA
Motor
Bosch Performance CX, 75 Nm, 250 W, 50-300% support power
Frame
6061 aluminium, 148x12 mm through axle, internal cable routing, post mount 180 mm
Fork
SR Suntour Raidon RL, 110x15 mm QR, 100 mm travel
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Saddle
Focus Sport Saddle
Seatpost
JD low dropper YSP 15, 31.6 mm, internal
Stem
BBB, aluminium, 65mm
Tire
Maxxis IKON+ 2.8
BrakeSystem
Shimano Deore M6000, 200 mm / 180 mm
Brake type
Disc
Chain ring
1x
Crankset
FSA, 18T
Rear derailleur
Shimano Deore XT 8000, 11-speed
Seatpost type
Dropper seatpost
Shifters
Shimano SLX 7000
Shifting type
Mechanical shifting
Sprocket
Shimano SLX 11S, 11-46T
Wheelset
DT Swiss H1900, 584-35, 148x12 mm / 110x15 mm
