IZALCO MAX Disc Di2 Frameset Features
Extremely lightweight disc frame – only 745 g
R.A.T. thru-axle system (R.A.T. thru-axles are sold under licence in the UK [UK patent GB2414971B])
Lightweight BBB CPX carbon seatpost

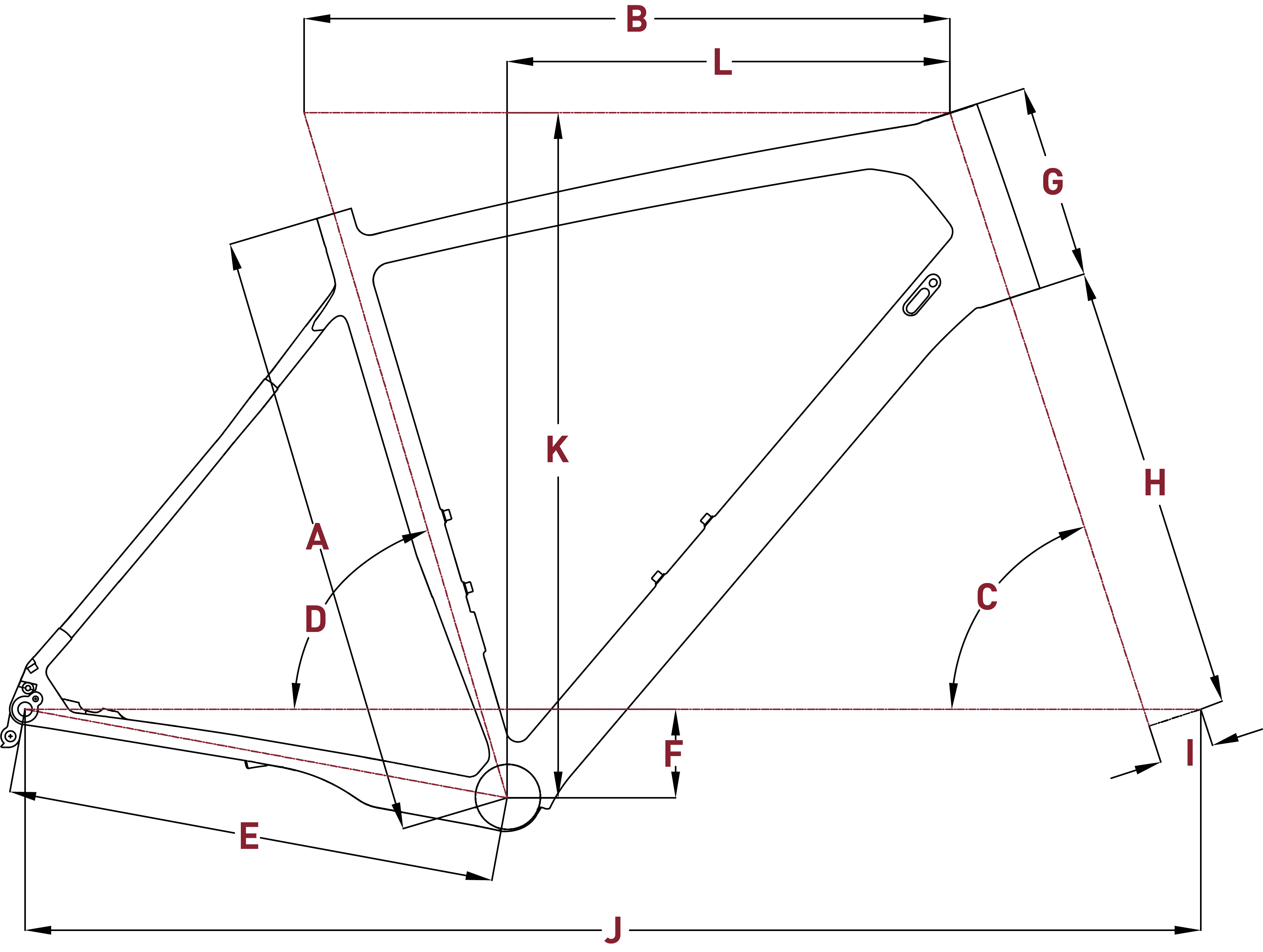

Geometry
| XXS | XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|---|
| Size | 48 | 50 | 52 | 54 | 56 | 58 | 61 | |
| Seat tube length | XXS | XS | S | M | L | XL | XXL | |
| Handlebar width | XXS | XS | S | M | L | XL | XXL | |
| Stem Length | XXS | XS | S | M | L | XL | XXL | |
| Crankarm length | XXS | XS | S | M | L | XL | XXL | |
| A | Size (MM) | 480 | 500 | 520 | 540 | 560 | 580 | 610 |
| B | Effective Top Tube (MM) | 521 | 530 | 536 | 549 | 565 | 580 | 604 |
| C | Head Tube Angle (°) | 70.8 | 71.4 | 71.7 | 72.5 | 73.5 | 73.6 | 73.7 |
| D | Effective Seat Tube Angle (°) | 73.8 | 73.6 | 73.6 | 73.5 | 73.5 | 73.4 | 73.2 |
| E | Chainstay length (MM) | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| F | Bottom bracket drop (MM) | 72 | 71 | 71 | 70 | 70 | 69 | 68 |
| G | Head Tube Length (MM) | 110 | 115 | 120 | 135 | 160 | 180 | 200 |
| H | Fork construction height (MM) | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| I | Pre-raked fork (MM) | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| J | Wheelbase length (MM) | 980 | 982 | 987 | 992 | 998 | 1012 | 1033 |
| K | Stack (MM) | 510 | 515 | 521 | 537 | 565 | 583 | 601 |
| L | Reach (MM) | 373 | 378 | 383 | 390 | 398 | 406 | 422 |
Specification
Frame
MAX technology carbon, disc, PF30 BB, 142x12 mm thru axle, R.A.T Evo technology, Di2 ready, flat mount 140 mm, internal brake cable routing
Frame material
Carbon
Fork
MAX technology carbon, disc, 100x12 mm R.A.T. thru axle, R.A.T. Evo Technology, flat mount 160 mm, internal brake cable routing
Headset
1-1/8", tapered, IS 47/33
Seatpost
BBB CPX Plus, Carbon, Di2 Ready, 27,2mm, 350mm, set-back: 20mm
Size
56,54,52,58,48,61,50
Shifting type
Electric shifting
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
