Exemplary bike presentation. Actual parts are shown in the specifications list.
Smashes records
-
Handling characteristics matter
The RAVEN² is unbelievably light and perfectly balanced. A true racing bike – and the fun continues even without battery support, since there is no motor-induced pedal resistance.
-
Bring your race legs every day
Thanks to an extra 252 Wh in the tank, the Fazua Evation drive will give you a real world cup feeling that will bring joy to every ride. Your effort will also be reflected in your speed and your flow.
-
Reduced fatigue thanks to increased comfort
Sophisticated fibre orientation and tube dimensions for the seat tube, saddle stays, bottom bracket and steering head – as rigid as necessary, as comfortable as possible.

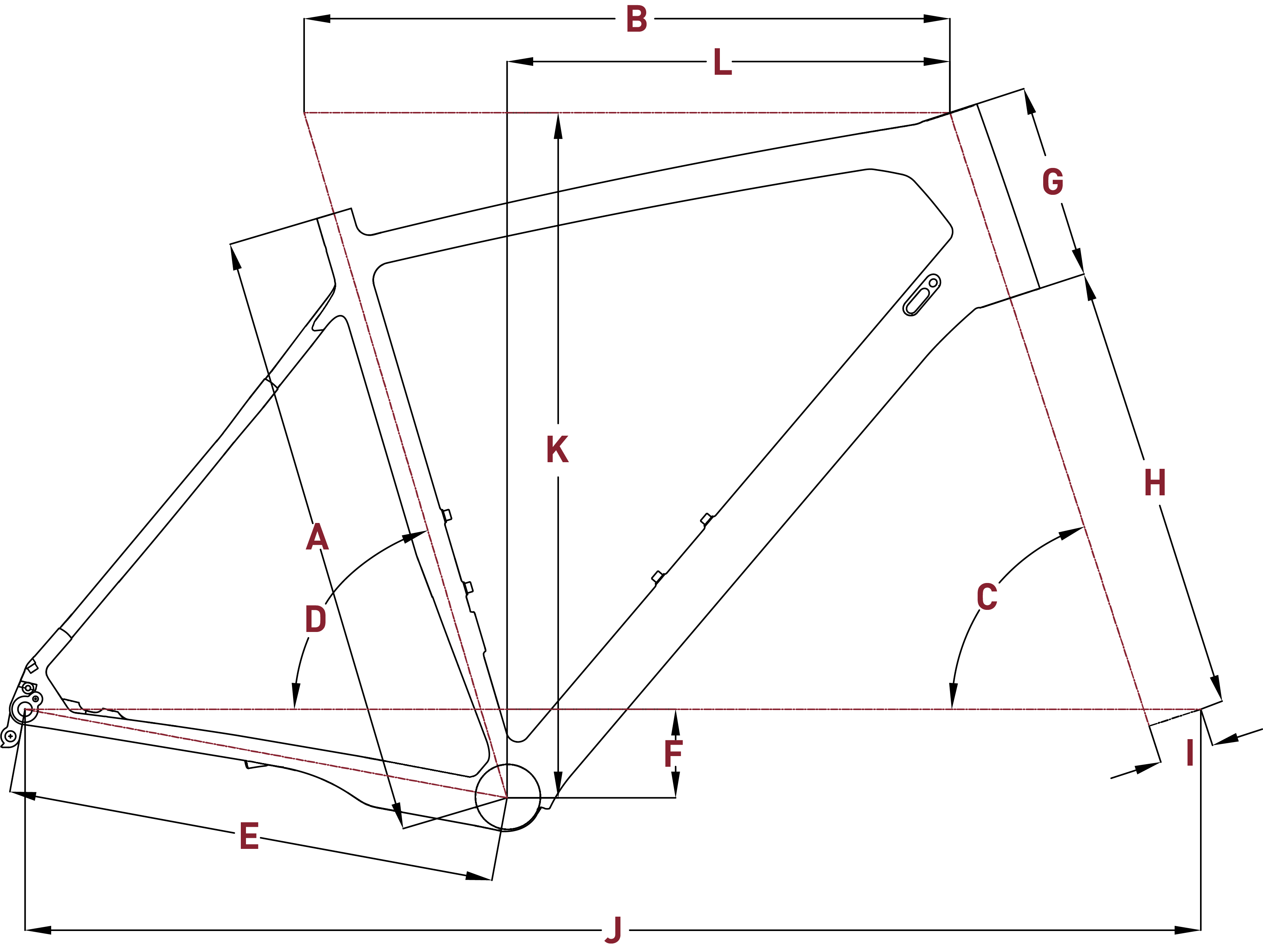

Geometry
| S | M | L | ||
|---|---|---|---|---|
| Size | 42 | 46 | 50 | |
| Size (MM) | 420 | 460 | 500 | |
| Handlebar width | 720 | 720 | 720 | |
| Stem Length (MM) | 90 | 90 | 90 | |
| Crankarm length | 170 | 175 | 175 | |
| A | Seat tube length (MM) | 420 | 460 | 500 |
| B | Effective Top Tube (MM) | 592 | 608 | 628 |
| C | Head Tube Angle (°) | 69.8 | 69.8 | 69.8 |
| D | Effective Seat Tube Angle (°) | 74.5 | 74.5 | 74.5 |
| E | Chainstay length (MM) | 454 | 454 | 454 |
| F | Bottom bracket drop (MM) | 68 | 68 | 68 |
| G | Head Tube Length (MM) | 104 | 107 | 130 |
| H | Fork construction height (MM) | 499 | 499 | 499 |
| I | Pre-raked fork (MM) | 44 | 44 | 44 |
| J | Wheelbase length (MM) | 1119 | 1135 | 1158 |
| K | Stack (MM) | 620 | 623 | 644 |
| L | Reach (MM) | 420 | 435 | 450 |
Specification
Frame
Carbon frame, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Frame material
Carbon
Fork
FOX 32 Float SC Performance, remote, 110x15 mm QR, 100 mm travel
Travel Fork
100 mm
Motor
FAZUA evation, 60 Nm, 250 W
Battery Ampere hours
7 Ah
Display
FAZUA evation 1.0 remote
Shifter
Shimano XT 8000
Rear derailleur
Shimano Deore XT 8000, 11-speed
Crankset
FSA Hollow
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Stem
BBB, aluminium, 90mm
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Saddle
Prologo SCRATCH X8-blk
Seatpost
BBB, carbon, 27,2 mm, 394 mm
Brakes
Shimano XT M8000 180 mm / 160 mm
Brake
Disc
Wheelset
DT Swiss M1650, 622x25, Shimano Deore, 148x12 mm / 110x15 mm
Tires
Continental RACE KING 2.2 SL Folding
Gears
11
Size
50,42,46
Shifting type
Mechanical shifting
Seatpost type
Fixed seatpost
Chainrings
1x
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
