JARIFA² EX Active Features
Harmoniously agile Bosch Active Plus motor
Simple use thanks to the lightweight 400 Wh Bosch PowerPack
Integrated cable routing and reliable Shimano gearshift and hydraulic brakes with large 180 mm brake disc
Encourages you to escape from your everyday life
-
Handling characteristics matter
The journey to your destination should fill you with joy. That is why our JARIFA² has been designed with mountain bike geometry, making it ideal for all types of terrain.
-
For extra-long tours
The Bosch Performance CX (Gen. 4) e-drive with integrated battery provides you with powerful, dynamic support.
-
The choice is yours
You are free to choose between the various wheel sizes – it is entirely up to you. In addition, the battery is removable on all models and can therefore be easily charged at home.

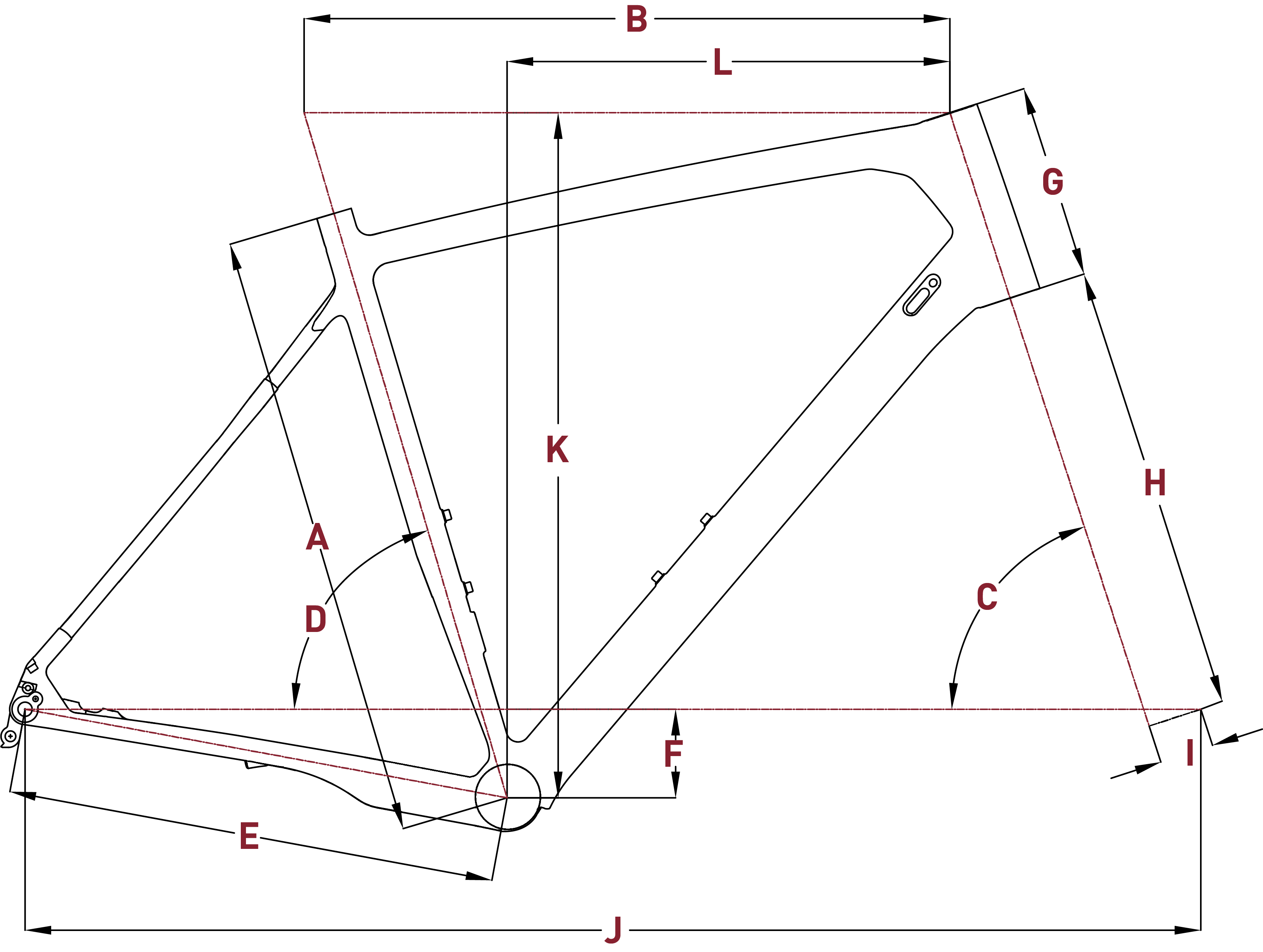

Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| Size | 40 | 44 | 46 | 50 | 54 | |
| Seat post length | XS | S | M | L | XL | |
| Handlebar width | 700 | 700 | 700 | 700 | 700 | |
| Stem Length (MM) | 90 | 90 | 90 | 90 | 90 | |
| Crankarm length | 170 | 170 | 175 | 175 | 175 | |
| A | Size (MM) | 400 | 440 | 460 | 500 | 540 |
| B | Effective Top Tube (MM) | 563 | 583 | 583 | 604 | 619 |
| C | Head Tube Angle (°) | 69 | 69 | 70 | 70 | 70 |
| D | Effective Seat Tube Angle (°) | 73.5 | 73.5 | 74 | 74 | 74 |
| E | Chainstay (MM) | 470 | 470 | 485 | 485 | 485 |
| F | BB Drop (MM) | 48 | 48 | 62 | 62 | 62 |
| G | Head Tube Length (MM) | 120 | 140 | 110 | 130 | 150 |
| H | Fork Length (MM) | 487 | 487 | 501 | 501 | 501 |
| I | Fork Offset (MM) | 44 | 44 | 44 | 44 | 44 |
| J | Wheelbase (MM) | 1111 | 1132 | 1137 | 1158 | 1175 |
| K | Stack (MM) | 602 | 620 | 404 | 643 | 662 |
| L | Reach (MM) | 384 | 399 | 624 | 419 | 429 |
Specification
Frame
6061 aluminium, international disc brake standard
Frame material
Aluminium
Fork
SR Suntour XCM RL, 9 mm QR, coil spring, remote, 100 mm travel
Travel Fork
100 mm
Motor
Bosch Active Plus, 50 Nm, 250 W, 50-250% support power
Battery Watt-hours
400 Wh
Battery Ampere hours
11,1 Ah
Display
BOSCH Purion with Control panel, walk assist
Shifter
Shimano Altus 2000
Rear derailleur
Shimano Altus M2000, 9-speed
Crankset
FSA, 38T
Handlebar
aluminium, riserbar, 700mm
Stem
aluminium, 31,8 mm, 90 mm
Headset
1-1/8", 44/286-ZS44/30
Saddle
FOCUS Sport Saddle
Seatpost
aluminium, 27,2mm
Brakes
Shimano M315, 180 mm / 160 mm
Brake
Disc
Wheelset
Rodi Tryp 25, 27,5" 584-25, 29" 662-25, Shimano Deore, 9 mm QR / 9 mm QR
Tires
Continental X King 2.4
Gears
9
Plateaux
1x
Seatpost type
Fixed seatpost
Shifting type
Mechanical shifting
Size
44,40,54,50,46,42
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
