WHISTLER² Plus

Geometry Specification
SKU
FO5080020v2018

Supports your lifestyle

  • Less is more

    Simplify, don’t overcomplicate things. This is your mantra. And this is why we have made operating the WHISTLER² as simple as possible. Simply switch it on and away you go.

  • Experience even more with the same amount of effort

    Your everyday life is packed to the brim, so every minute counts when it comes to your hobbies. With the WHISTLER², you can get from A to B more quickly and with less stress. It offers 252 Wh to support your lifestyle.

  • Consistent braking performance

    When faced with risky situations, you need a partner you can rely on. That is why we have equipped our WHISTLER² with disc brakes to ensure consistent braking performance and optimal braking behaviour.

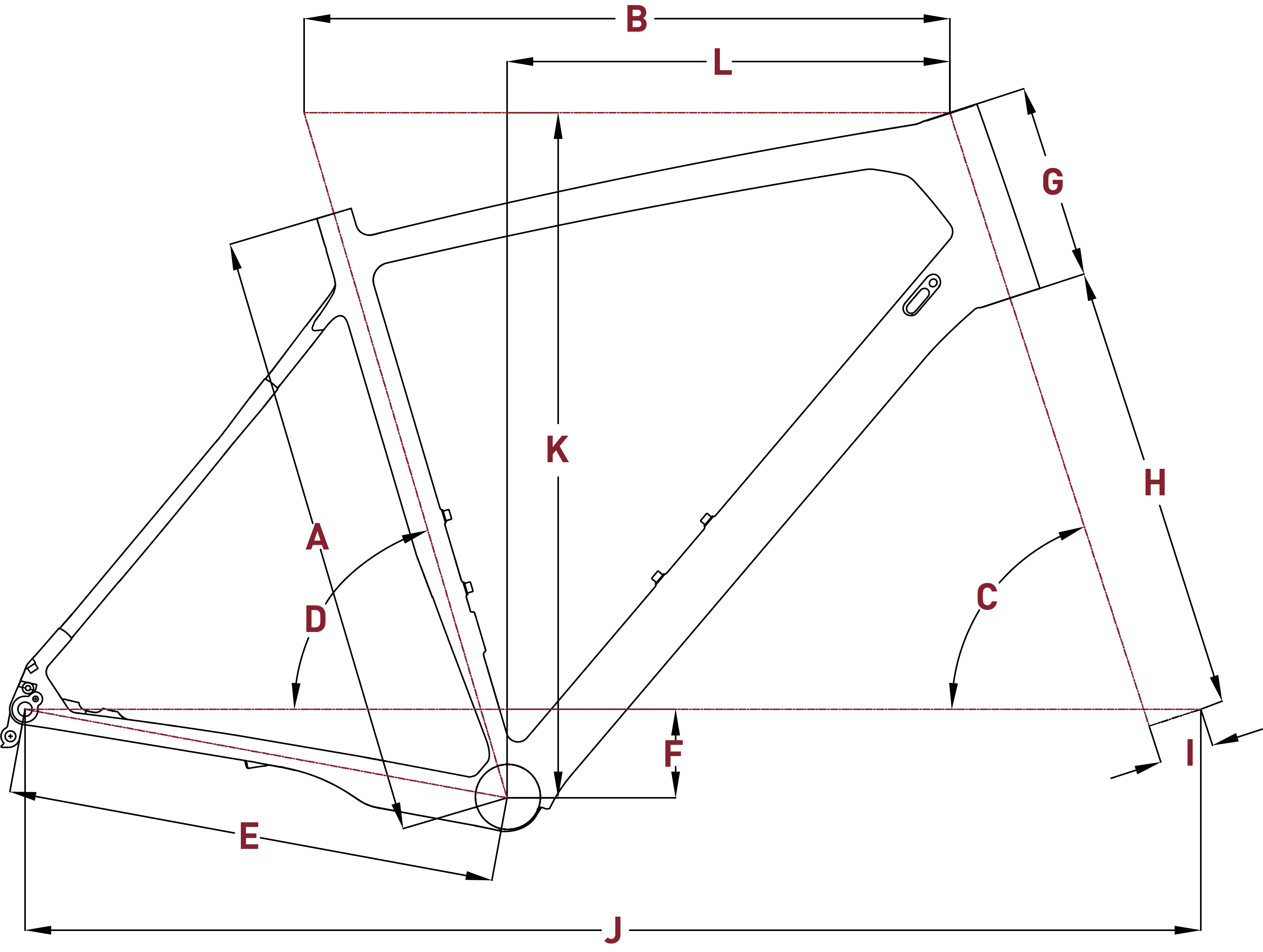

Geometry

S M L XL
A Size (MM) 420 460 500 540
B Effective Top Tube (MM) 575 587 608 623
C Head Tube Angle (°) 70 70 70 70
D Effective Seat Tube Angle (°) 74 74 74 74
E Chainstay length (MM) 448mm 448 448 448
F Bottom bracket drop (MM) 62 62 62 62
G Head Tube Length (MM) 100 110 130 150
H Fork construction height (MM) 516 516 516 516
I Pre-raked fork (MM) 46 46 46 46
J Wheelbase length (MM) 1094 11026 1129 1145
K Stack (MM) 628 637 656 675
L Reach (MM) 395 404 420 430
Handlebar width 700 700 700 700
Stem Length (MM) 90 90 90 90
Crankarm length 170 175 175 175

Specification

Frame
6061 aluminium, BSA BB, international disc brake standard
Frame material
Aluminium
Fork
SR Suntour XCM RL, 9 mm QR, coil spring, remote, 100 mm travel
Travel Fork
100 mm
Motor
Groove Next, 36 V / 250W / 32 Nm
Battery Watt-hours
252 Wh
Battery Ampere hours
7 Ah
Shifter
Shimano Altus 2000
Rear derailleur
Shimano Altus M2000, 9-speed
Crankset
Samox Bafang E-D Match, 34T
Handlebar
aluminium, riserbar, 700mm
Stem
aluminium, 31,8 mm, 80 mm
Headset
1-1/8", tapered, 44/286-ZS56/40
Saddle
FOCUS Sport Saddle
Seatpost
aluminium, 27,2mm
Brakes
Shimano M315, 180 mm / 160 mm
Brake
Disc
Wheelset
Rodi Tryp 35, 584-35, Shimano Deore, 9 mm QR / 9 mm QR
Tires
Schwalbe Smart Sam 2.6
Gears
9
Size
54,46,50,42
Shifting type
Mechanical shifting
Seatpost type
Fixed seatpost
Plateaux
1x
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
