PARALANE² 9.6 GC Features
Comfortable (C.I.A.) and incredibly lightweight F.I.T. Carbon frame (1450 g) with Road Boost and integrated Fazua Evation drive
Designed for gravel adventures: Shimano GRX 11-speed groupset with a special ratio
Full control and high comfort: Flared handlebar and gravel-specific Vittoria Terreno Zero tyres
Provides support at just the right moment
Combines the advantages of a racing bike with those of an e-bike
Light and agile, but with an extra push from the Fazua Evation drive with its 252 Wh battery capacity when you need a little extra support: the removable motor/battery unit is uncoupled from the drive and only noticeable when it is making your ride easier.
Greater tyre clearance for more freedom
The maximum tyre clearance of up to 35 mm makes it possible for you to ride on all paths, regardless of whether they are asphalt roads or gravel tracks.
Optimal shifting function
Thanks to our revolutionary Road Boost Standard with its broad 148 and 110 mm R.A.T.* Our axles guarantee an optimal chain line for racing e-bikes and therefore an optimal shifting function and less wear.

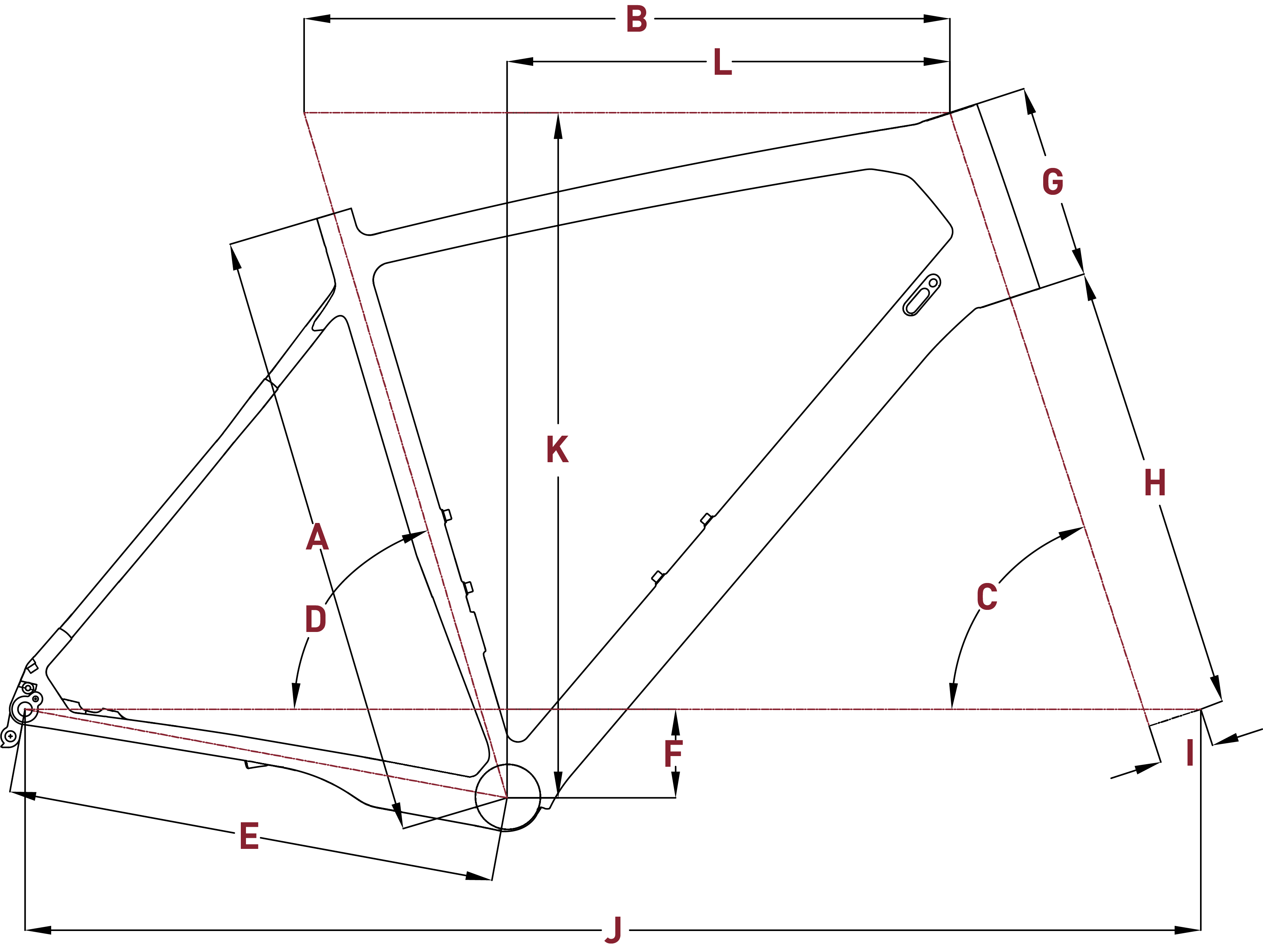

|Seat post length||S||M||L||XL|
|Stem Length (MM)||90||100||110||120|
|B||Effective Top Tube (MM)||525||545||568||590|
|C||Head Tube Angle (°)||71.5||72||72.5||72.5|
|D||Effective Seat Tube Angle (°)||74.5||73.5||73.5||73.5|
|F||BB Drop (MM)||75||75||75||75|
|G||Head Tube Length (MM)||150||165||190||215|
|H||Fork Length (MM)||380||380||380||380|
|I||Fork Offset (MM)||46||46||46||46|
