JARIFA² 6.7 NINE Features
Powerful and agile: Bosch Performance CX e-drive with a removable 625 Wh battery integrated into the down tube, can be expanded with an additional battery up to a capacity of 1125 Wh
Offroad-ready mountain bike geometry with smooth-running 29" wheels
Comfortable cockpit and option to mount pannier rack, mudguard and stand
Encourages you to escape from your everyday life
-
Super powerful and dynamic e-motor
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. A well-balanced geometry makes the JARIFA² ride agile and dynamic. The strongest e-motor of Bosch is perfectly integrated into the bottom bracket area.
-
For extra-long tours
The Bosch Powertube battery with 625 Wh is perfectly integrated into the down tube, yet it can also be removed at any time for charging. The range can be extended with a second battery (Bosch Powerpack) to 1125 Wh.
-
Extra-comfortable and easy to retrofit
The JARIFA² combines MTB and trekking DNA. The cockpit with a 35-degree stem and ergonomic parts make your ride comfortable even on rides off the beaten track. Additionally, the JARIFA² can be retrofitted easily thanks to respective mounting points.

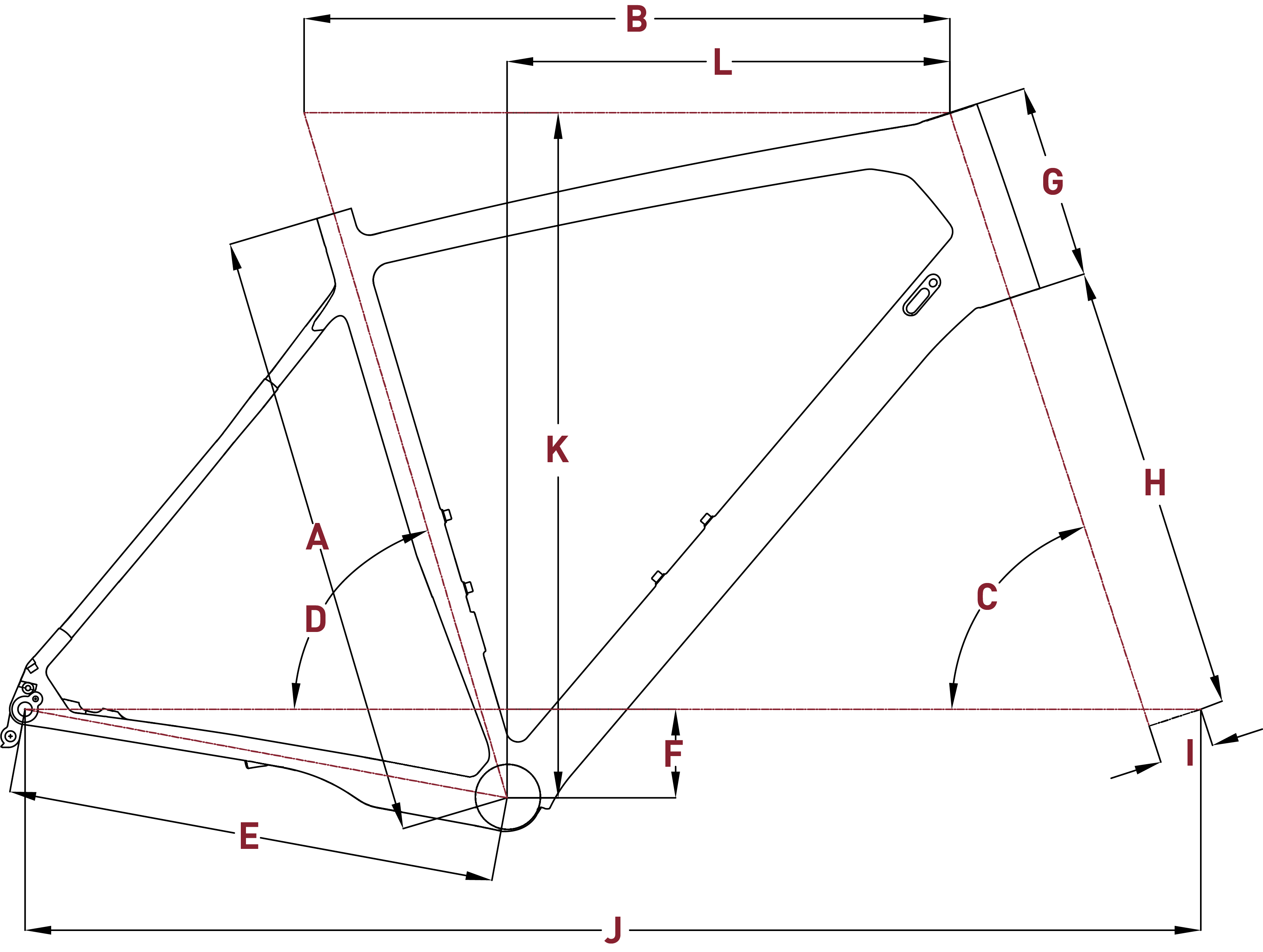

Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| Size | 40 | 44 | 48 | 52 | |
| Seat tube length (MM) | 350 | 350 | 350 | 350 | |
| Handlebar width | 720 | 720 | 720 | 720 | |
| Stem Length (MM) | 70 | 70 | 70 | 70 | |
| Crankarm length | 170 | 170 | 170 | 170 | |
| A | Size (MM) | 400 | 440 | 480 | 520 |
| B | Effective Top Tube (MM) | 597 | 615 | 634 | 655 |
| C | Head Tube Angle (°) | 68 | 68 | 69 | 69 |
| D | Effective Seat Tube Angle (°) | 73.5 | 73.5 | 73.5 | 73.5 |
| E | Chainstay length (MM) | 470 | 470 | 470 | 470 |
| F | Bottom bracket drop (MM) | 62 | 62 | 62 | 62 |
| G | Head Tube Length (MM) | 120 | 130 | 140 | 160 |
| H | Fork construction height (MM) | 515 | 515 | 515 | 515 |
| I | Pre-raked fork (MM) | 51 | 51 | 51 | 51 |
| J | Wheelbase length (MM) | 1162 | 1181 | 1189 | 1211 |
| K | Stack (MM) | 632 | 641 | 656 | 675 |
| L | Reach (MM) | 410 | 425 | 440 | 455 |
Specification
Frame
7005 aluminium, 148x12 mm thru axle, internal cable routing, post mount 180 mm
Frame material
Aluminium
Fork
SR Suntour XCM 34 preload, 15x110 mm
Travel Fork
100 mm
Motor
Bosch Performance CX Gen4, 85 Nm, 250 W
Battery Watt-hours
625 Wh
Battery Ampere hours
16,7 Ah
Display
Bosch Purion
Shifter
Shimano Altus M2010
Rear derailleur
Shimano Altus M2000, 9-speed
Sprocket
Shimano HG400
Chain
Shimano HG53
Crankset
FSA CK-320, aluminium
Transmission of drive
front: 34, rear: 12-36
Bottom Bracket
Integraded in Drive Unit
Handlebar
Riser, Aluminium, 720mm
Grips
FOCUS Ergo Comfort
Stem
Aluminium, 70mm, 35degree
Headset
VP Components, ZS56/28,6-ZS56/40
Saddle
Touring
Seatpost
Aluminium, 31,6 mm
Brakes
Shimano MT200, hydraulic disc brake
Brake lever description
Shimano MT200
Brake
Disc
Rims
Rodi TRYP25, eyelets
Rear hub
Shimano Alivio MT400, 12x148 mm
Front Hub
Shimano Alivio MT400, 15x110mm
Tires
Schwalbe Smart Sam 57-622
Gears
9
Bike weight incl. battery in kg.
22,60 kg
Size
40,48,52,44
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
