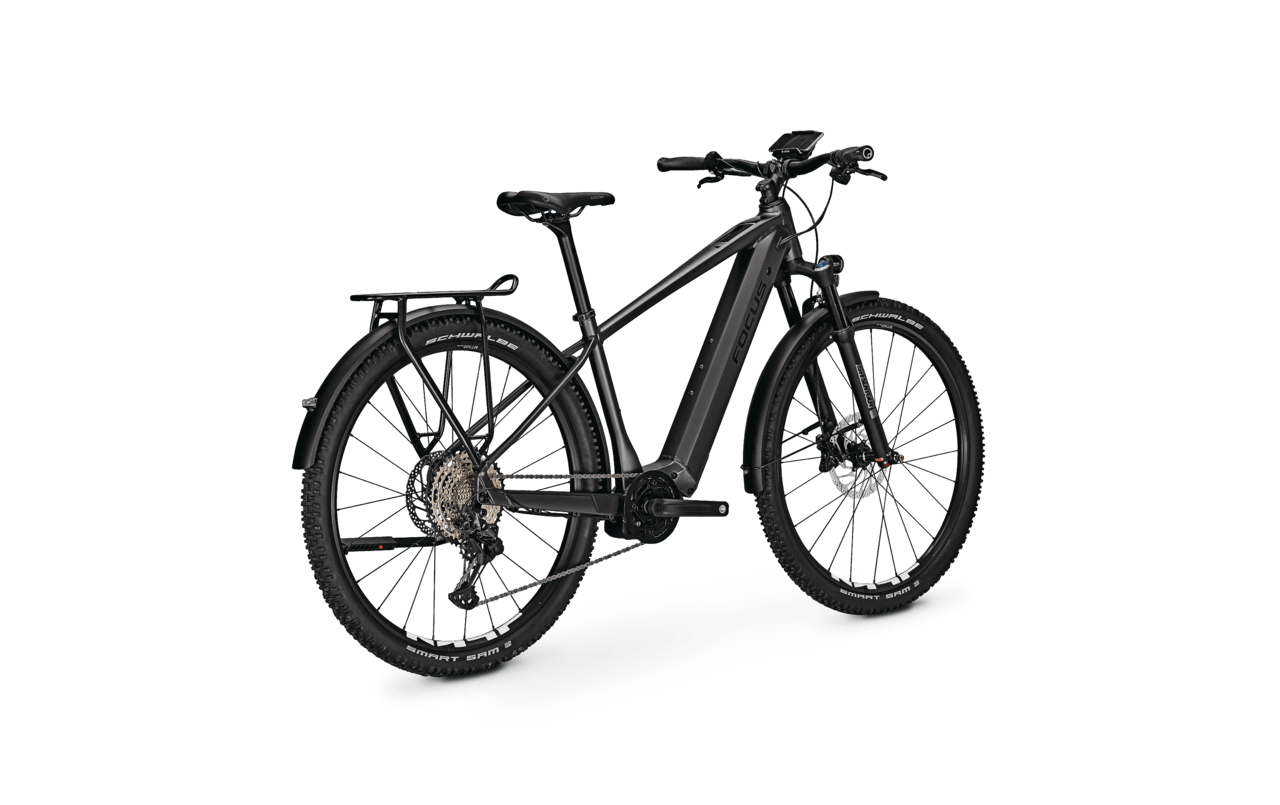

AVENTURA² 6.9

Geometry Specification
Find the right frame sizes
SKU
FO5080083v2020

AVENTURA² 6.9 Features

Powerful and agile: Bosch Performance CX e-drive with a removable 625 Wh battery integrated into the down tube, can be expanded with an additional battery up to a capacity of 1125 Wh

Robust metal mudguards, pannier rack, stand and bright Busch und Müller IQ-XS 70 Lux lighting system

Bosch smartphone hub and dependable Shimano 4-piston brakes

Awakens your inner explorer

  • Super powerful and dynamic e-motor

    The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. A well-balanced geometry makes the AVENTURA² ride agile and dynamic. The strongest e-motor of Bosch is perfectly integrated into the bottom bracket area.

  • For extra-long tours

    The Bosch Powertube battery is perfectly integrated into the down tube, yet it can also be removed at any time for charging. The range can be extended with a second battery (Bosch Powerpack) to 1125 Wh.

  • Ready for anything

    Regardless of whether your journey lasts several days or you simply need to transport a lot of belongings: with its pannier rack, mudguards and light, the AVENTURA² is equally well-prepared for bikepacking trips and transporting heavy loads across the city.

Geometry

S M L XL
Size 40 44 48 52
A Size (MM) 400 440 480 520
B Effective Top Tube (MM) 597 615 634 655
C Head Tube Angle (°) 68 68 69 69
D Effective Seat Tube Angle (°) 73.5 73.5 73.5 73.5
E Chainstay (MM) 470 470 470 470
F BB Drop (MM) 62 62 62 62
G Head Tube Length (MM) 120 130 140 160
H Fork Length (MM) 515 515 515 515
I Fork Offset (MM) 51 51 51 51
J Wheelbase (MM) 1162 1181 1189 1211
K Stack (MM) 632 641 656 675
L Reach (MM) 410 425 440 455

Specification

Frame
7005 aluminium, 148x12 mm thru axle, internal cable routing, post mount 180 mm
Fork
SR Suntour Raidon LOR, 15x110 mm
Motor
Bosch Performance CX Gen4, 85 Nm, 250 W
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano Deore XT M8100, 12-speed
Sprocket
Shimano SLX M7100, 12-speed
Chain
Shimano SLX CN-M7100
Battery Watt-hours
625 Wh
Crankset
FSA CK-320, aluminium
Handlebar
Aluminium, riserbar, backsweep: 15 degree, 690mm
Grips
Ergon GP10
Stem
Aluminium, 70mm, 35degree
Saddle
Ergon ST10
Seatpost
Aluminium, 31,6 mm
Brakes
Shimano MT420, 4-piston, hydraulic disc brake
Wheelset
Shimano MT501, 15x110 mm / 12x148 mm
Tires
Schwalbe Smart Sam 57-622
Fender
Büchel, aluminium, 60mm, powder-coated
Headlight
Busch & Müller Lumotec IQ-XS, LED
Taillight
Herrmans H-Trace Micro
Headset
VP Components, ZS56/28,6-ZS56/40
Bike weight incl. battery in kg.
23,10 kg
Bottom Bracket
Integraded in Drive Unit
Gears
12
Travel Fork
100 mm
Transmission of drive
front: 34, rear: 10-51
Brake
Disc
Brake levers
Shimano MT420
Battery Ampere hours
16,7 Ah
Display
Bosch Smartphone Hub (COBI Connected Biking)
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
