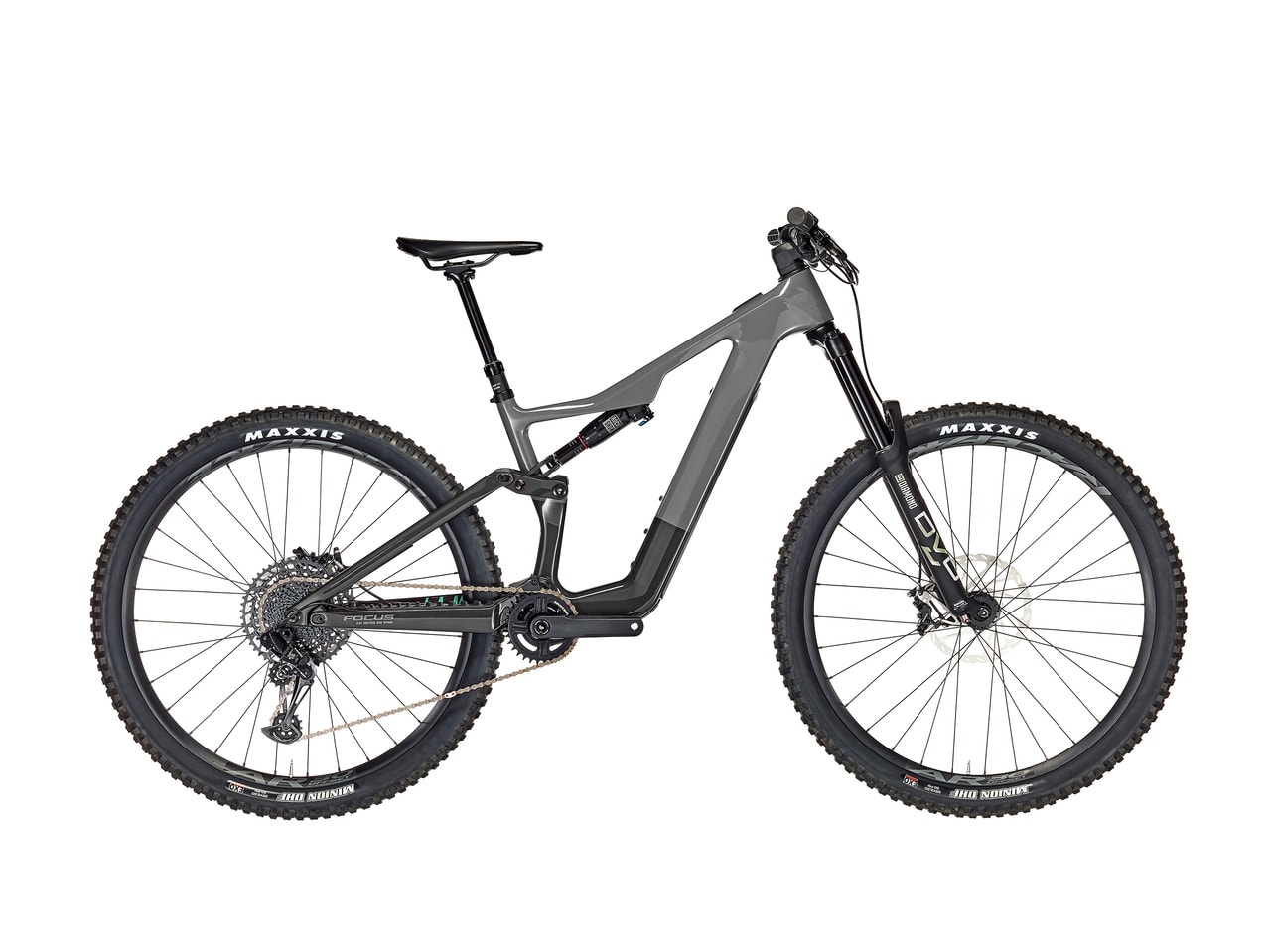

JAM² SL 8.7

Geometry Specification
SKU
FO5400053v2023

Merges the best of two worlds

  • Nimble and light pure bike characteristics

    The JAM² SL 8.7 is the perfect entry bike into the world of light e-MTB and ready for every trail. The full-carbon frame optimises the weight without compromising on stiffness and usability. The top tube is designed in the most radical and minimalist way. Thanks to the shock semi-integration, the JAM² SL 8.7 has a low stand-over height that gives you generous space for moving. Still, all parts to adjust your shock settings are easy to reach. As the motor and battery of our JAM² SL 8.7 are fully integrated in the down tube, this e-MTB not just rides but also looks like a pure bike.

  • Support power of an e-bike

    The FAZUA Ride 60 drive unit provides the feeling of a natural ride but still has got your back on all climbs. The compact and light, yet powerful system has 60 Nm torque and a maximum power output of 450 W. If you need an extra push, the boost function helps you to tackle even the steepest sections. Thanks to the high efficiency of the FAZUA system and a battery with 430 Wh, your ride won't stop before reaching your very own Rider's High. If you really need even more, adding a range extender offers you further 210 Wh. The drive system already features three different riding modes. On top, you can individualize the motor support based on your riding preferences via the FAZUA App. It allows you to set Max Power, Support Relation and Ramp-up according to your own personal needs.

  • Adjustable geometry and adapted kinematics

    The JAM² SL 8.7 features two points to adjust your geometry: the head angle and the chainstay length. The steeper head angle of 65,5° results in a more agile handling of the bike, while the slack position of 64,5° gives it a more downhill-oriented setting. Switching the FLIP CHIPs and adjusting your chainstay length from 440 to 447 mm changes the whole set-up of your bike. With longer chainstays, the JAM² SL 8.7 rides more stable and makes steep climbs easier, whereas the short setting leads to a more agile geometry. For the JAM² SL 8.7, we adapted our F.O.L.D. (FOCUS Optimised Linkage Design) and reduced the amount of linkage parts resulting in a significant weight loss. The updated kinematic design reduces brake influences and gives you maximum control of your bike in every situation.

Geometry

S M L XL
Size 39 42 44 46
Size (MM) 390 420 440 460
Handlebar width 800 800 800 800
Stem Length (MM) 50 50 50 50
Crankarm length 165 165 165 165
Seat post length (MM) 440 440 480 480
A Seat tube length (MM) 390 420 440 460
B Effective Top Tube (MM) 578 607 637 672
C Head Tube Angle (°) 65.5 65.5 65.5 65.5
D Effective Seat Tube Angle (°) 76.5 76.5 76.5 76.5
E Chainstay length (MM) 440 440 440 440
F Bottom bracket drop (MM) 25 25 25 30
G Head Tube Length (MM) 100 100 120 140
H Fork construction height (MM) 571 571 571 571
I Pre-raked fork (MM) 44 44 44 44
J Wheelbase length (MM) 1194 1224 1257 1295
K Stack (MM) 614 614 632 650
L Reach (MM) 430 460 485 515
S M L XL
Size 39 42 44 46
Size (MM) 390 420 440 460
Handlebar width 800 800 800 800
Stem Length (MM) 50 50 50 50
Crankarm length 165 165 165 165
Seat post length (MM) 440 440 480 480
A Seat tube length (MM) 390 420 440 460
B Effective Top Tube (MM) 578 607 637 672
C Head Tube Angle (°) 65.5 65.5 65.5 65.5
D Effective Seat Tube Angle (°) 76.5 76.5 76.5 76.5
E Chainstay length (MM) 447 447 447 447
F Bottom bracket drop (MM) 25 25 25 30
G Head Tube Length (MM) 100 100 120 140
H Fork construction height (MM) 571 571 571 571
I Pre-raked fork (MM) 44 44 44 44
J Wheelbase length (MM) 1194 1224 1257 1295
K Stack (MM) 614 614 632 650
L Reach (MM) 430 460 485 515
S M L XL
Size 39 42 44 46
Size (MM) 390 420 440 460
Handlebar width 800 800 800 800
Stem Length (MM) 50 50 50 50
Crankarm length 165 165 165 165
Seat post length (MM) 440 440 480 480
A Seat tube length (MM) 390 420 440 460
B Effective Top Tube (MM) 578 607 637 672
C Head Tube Angle (°) 64.5 64.5 64.5 64.5
D Effective Seat Tube Angle (°) 76.5 76.5 76.5 76.5
E Chainstay length (MM) 447 447 447 447
F Bottom bracket drop (MM) 25 25 25 30
G Head Tube Length (MM) 100 100 120 140
H Fork construction height (MM) 571 571 571 571
I Pre-raked fork (MM) 44 44 44 44
J Wheelbase length (MM) 1194 1224 1257 1295
K Stack (MM) 614 614 632 650
L Reach (MM) 430 460 485 515
S M L XL
Size 39 42 44 46
Size (MM) 390 420 440 460
Handlebar width 800 800 800 800
Stem Length (MM) 50 50 50 50
Crankarm length 165 165 165 165
Seat post length (MM) 440 440 480 480
A Seat tube length (MM) 390 420 440 460
B Effective Top Tube (MM) 578 607 637 672
C Head Tube Angle (°) 64.5 64.5 64.5 64.5
D Effective Seat Tube Angle (°) 76.5 76.5 76.5 76.5
E Chainstay length (MM) 440 440 440 440
F Bottom bracket drop (MM) 25 25 25 30
G Head Tube Length (MM) 100 100 120 140
H Fork construction height (MM) 571 571 571 571
I Pre-raked fork (MM) 44 44 44 44
J Wheelbase length (MM) 1194 1224 1257 1295
K Stack (MM) 614 614 632 650
L Reach (MM) 430 460 485 515

Specification

Frame
Carbon technology frame, 150mm F.O.L.D. GEN3 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm
Fork
DVO Diamond E3, 110x15 mm, 44 mm rake
Travel Fork
160 mm
Shock
Rock Shox Deluxe Select+, 210/55 mm, hardware: 25,0 x 8.0 mm, no Bushing
Motor
Fazua Ride 60, 60 Nm, 430 W max.
Battery Watt-hours
430 Wh
Battery Ampere hours
10 Ah
Display
Fazua LED Hub + Ring Control
Shifter
SRAM SX Eagle, 12-speed
Rear derailleur
SRAM NX Eagle, 12-speed
Sprocket
SRAM NX Eagle, 12-speed
Chain
SRAM SX Eagle, 12-speed
Crankset
Samox EC40 ISIS
Transmission of drive
front: 32, rear: 11-50
Bottom Bracket
Integrated in Drive Unit
Handlebar
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
Stem
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset
Saddle
fi'zi:k Taiga
Seatpost
Post Moderne dropper post PM-MT171, 31.6 mm
Brakes
SRAM GUIDE T
Brake lever
SRAM GUIDE T
Brake
Disc
Rims
RaceFace AR30 Offset
Rear hub
Novatec D462, 12x148 mm
Front Hub
Novatec D041, 15x110 mm thru axle,Novatec D041, 15x110 mm
Tires
Maxxis Minion DHF, EXO, 63-622
Gears
12
Bike weight incl. battery in kg.
20,2
Size
44,39,42,46
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
