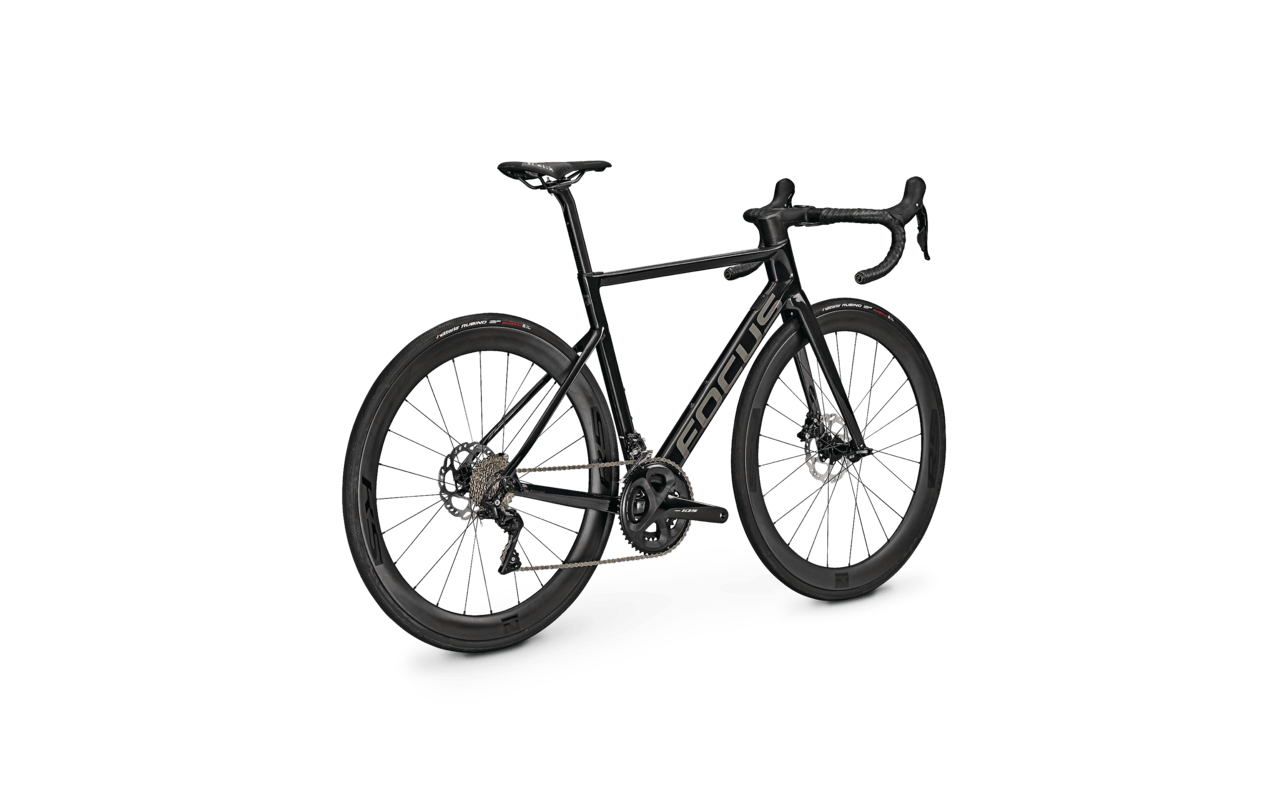

IZALCO MAX 8.8

Geometry Specification
SKU
FO0010022v2022

More than just the fastest

  • Lightweight and optimised in the wind tunnel

    To achieve the best possible mix of aerodynamics and low weight, we redesigned every tube and improved these in several stages within the wind tunnel. The result is a combination of Kamm tail profiles, hidden cables and well-balanced proportions. Thanks to highly rigid High Modulus carbon fibres, our IZALCO MAX 8 frame only weighs 1040 g and the aero fork 360 g.

  • Aerodynamic and elegant

    All the cables run inside the new advanced C.I.S. aero stem: from handlebar through stem and headset into the frame. This guarantees perfect functionality while having optimum aerodynamics and a clean cockpit. We offer the stem in five lengths, ranging from 80 to 120 mm. You can adjust the height of the handlebar with ease using a two-piece special spacer.

  • Fast, comfortable and safe

    Our aerodynamic carbon seat post has a D profile with 15 mm offset - thus offering the perfect mix of ergonomics and comfort. To maintain the optimum sitting position, we have pushed the seat tube forwards so that the effective offset is only 2 mm. This means that you can enjoy the comfort of a seat post with 15 mm offset, without having to forgo a modern racing sitting position. Additionally, wider 28 mm tyres enhance comfort and puncture protection, especially on poor surfaces. R.A.T. thru-axles offer stability while still providing fast wheel changes. Disc brakes (flat mount) measuring 160 mm ensure safe and reliable braking performance in all weather conditions.

Geometry

XXS XS S M L XL XXL
Size (MM) 47 50 52 54 56 58 61
Size 430 470 490 510 530 550 590
Handlebar width (MM) 400 400 400 420 420 420 440
Stem Length 80 90 100 100 110 120 120
Crankarm length (MM) 165 165 170 172,5 172,5 172,5 175
Seat post length 360 360 360 360 360 360 360
A Seat tube length 430 470 490 510 530 550 590
B Effective Top Tube 504 517 535 551 564 582 602
C Head Tube Angle (MM) 69.5 70.5 71.5 72 72 72.5 72.5
D Effective Seat Tube Angle (MM) 74 73.5 73.5 73.5 73.5 73.5 73.5
E Chainstay length 410 410 410 410 410 410 410
F Bottom bracket drop 78 78 78 78 78 78 78
G Head Tube Length 80 80 100 115 125 150 185
H Fork construction height 392 392 392 392 392 392 392
I Pre-raked fork 46 46 46 46 46 46 46
J Wheelbase length 975 975 985 997 1010 1024 1044
K Stack 502 506 528 544 554 579 613
L Reach 360 368 378 390 400 410 420

Specification

Frame material
Carbon
Frame
Carbon technology frame, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing
Fork
MAX technology carbon, integrated, disc, 100x12 mm R.A.T thru axle, R.A.T Evo technology, flat mount 160/140 mm, internal brake cable routing
Shifter
Shimano 105 R7000, 11-speed
Front derailleur
Shimano 105 R7000
Rear derailleur
Shimano 105 R7000
Sprocket
Shimano 105 R7000, 11-speed
Chain
Shimano CN-HG601, 11-speed
Crankset
Shimano 105 R7000
Transmission of drive
front: 50/34, rear: 11-30
Bottom Bracket
Shimano Pressfit Road BB86
Handlebar
BBB Basic, aluminium, drop: 125 mm, reach: 70mm
Grips
FOCUS Bartape SL
Stem
FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium
Headset
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
Saddle
fi'zi:k Antares R7
Seatpost
FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm
Brake caliper
Shimano 105 R7025
Brake lever
Shimano 105 R7025
Brake
Disc
Wheelset
Novatec R5, carbon, 20-622, front: 12x100 mm, rear: 12x142 mm, height: 50 mm
Tires
Vittoria Rubino TLR, 700 x 28C, Folding
Gears
22
Bike weight incl. battery in kg.
8,30 kg
Seatpost type
Fixed seatpost
Size
47,50,52,54,56,58,61
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
