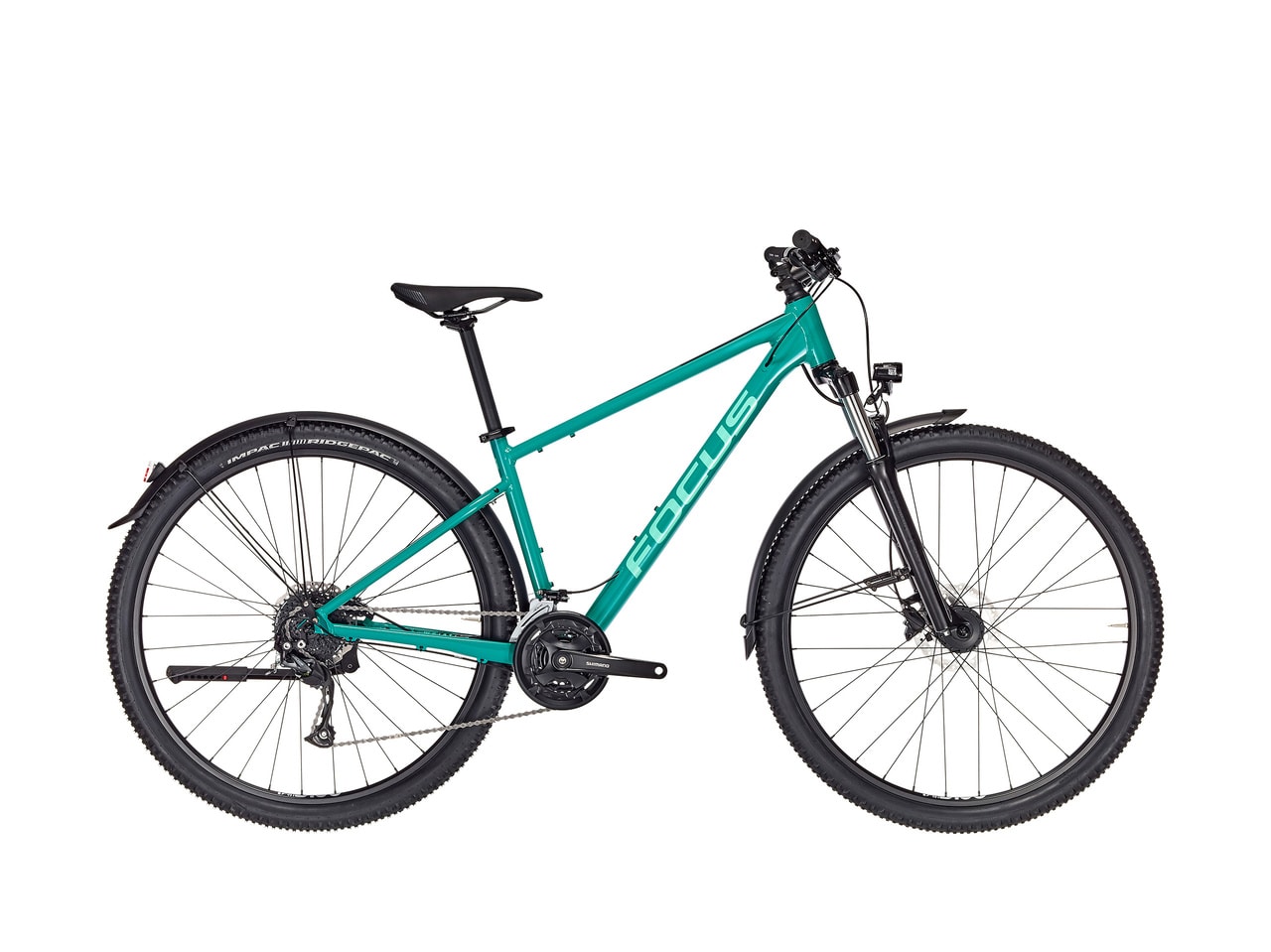

Exemplary bike presentation. Actual parts are shown in the specifications list.
Exemplary bike presentation. Actual parts are shown in the specifications list.
Makes sport come naturally
-
A wheel size fitting your height
With the WHISTLER, you get the ideal wheel size to suit your height and needs: The WHISTLER in sizes XL to M comes with 29" wheels. Size S and XS have 27,5" wheels.
-
Reliable braking power and integrated design
When faced with risky situations, you need a partner you can rely on. That is why we have equipped our WHISTLER with disc brakes to ensure consistent braking performance and optimal braking behaviour in all weather conditions. We route all cables through the down tube of the frame for better protection of the cables, durability and a clean look.
-
Fully equipped
The WHISTLER 3.6 EQP is equipped with everything you need for your daily rides in any weather and light conditions. It features mudguards and stand as well as a light system with a hub dynamo.
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| Size | 34 | 38 | 42 | 46 | 50 | |
| Size (MM) | 340 | 360 | 420 | 460 | 500 | |
| Handlebar width | 720 | 720 | 720 | 720 | 720 | |
| Stem Length (MM) | 60 | 60 | 60 | 60 | 60 | |
| Crankarm length | 170 | 170 | 170 | 170 | 170 | |
| Seat post length (MM) | 350 | 350 | 350 | 350 | 350 | |
| A | Seat tube length (MM) | 340 | 360 | 420 | 460 | 500 |
| B | Effective Top Tube (MM) | 549 | 574 | 606 | 636 | 666 |
| C | Head Tube Angle (°) | 68 | 68 | 68 | 68 | 68 |
| D | Effective Seat Tube Angle (°) | 74 | 74 | 74 | 74 | 74 |
| E | Chainstay length (MM) | 440 | 400 | 450 | 450 | 450 |
| F | Bottom bracket drop (MM) | 48 | 48 | 60 | 60 | 60 |
| G | Head Tube Length (MM) | 120 | 120 | 120 | 140 | 160 |
| H | Fork construction height (MM) | 497 | 497 | 515 | 515 | 515 |
| I | Pre-raked fork (MM) | 42 | 42 | 51 | 51 | 51 |
| J | Wheelbase length (MM) | 1079 | 1104 | 1155 | 1187 | 1220 |
| K | Stack (MM) | 605 | 605 | 630 | 649 | 667 |
| L | Reach (MM) | 375 | 400 | 425 | 450 | 475 |
Specification
Frame
6061 aluminium, 3D forging, disc, internal cable routing, post mount 160 mm
Frame material
Aluminium
Fork
SR Suntour NVX30, QR, 5x100 mm
Travel Fork
100 mm
Shifter
Shimano SL-M2010, 9-speed
Rear derailleur
Shimano Altus M2000, 9-speed
Sprocket
Shimano HG200, 9-speed
Chain
KMC X9
Crankset
Shimano MT101
Bottom Bracket
BSA
Transmission of drive
front: 40/30/22 rear: 11-34
Handlebar
Riser, Aluminium, 720mm
Stem
Aluminium, 31,8 mm, 6°
Headset
VP Components 1-1/8", ZS44/28,6-ZS44/30 Ahead
Saddle
VELO VL3378
Seatpost
Alloy, 27,2 mm
Brakes
Shimano MT200, hydraulic disc brake
Brake lever
Shimano MT200
Brake
Disc
Rims
Schürmann YAK 21
Rear hub
KT-TC7R, QR, 5x135 mm
Front Hub
Shimano DH-3D37 Nabendynamo, QR, 5x135 mm
Tires
WTB Ranger, 57-622
Fender
Büchel, plastic, 58 mm, with edge protector
Headlight
AXA Blueline 30 Lux
Taillight
Herrmans H-Trace, LED with stand light
Gears
27
Bike weight incl. battery in kg.
16,20 kg,16,2 kg
Size
42,46,50,34,38
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
