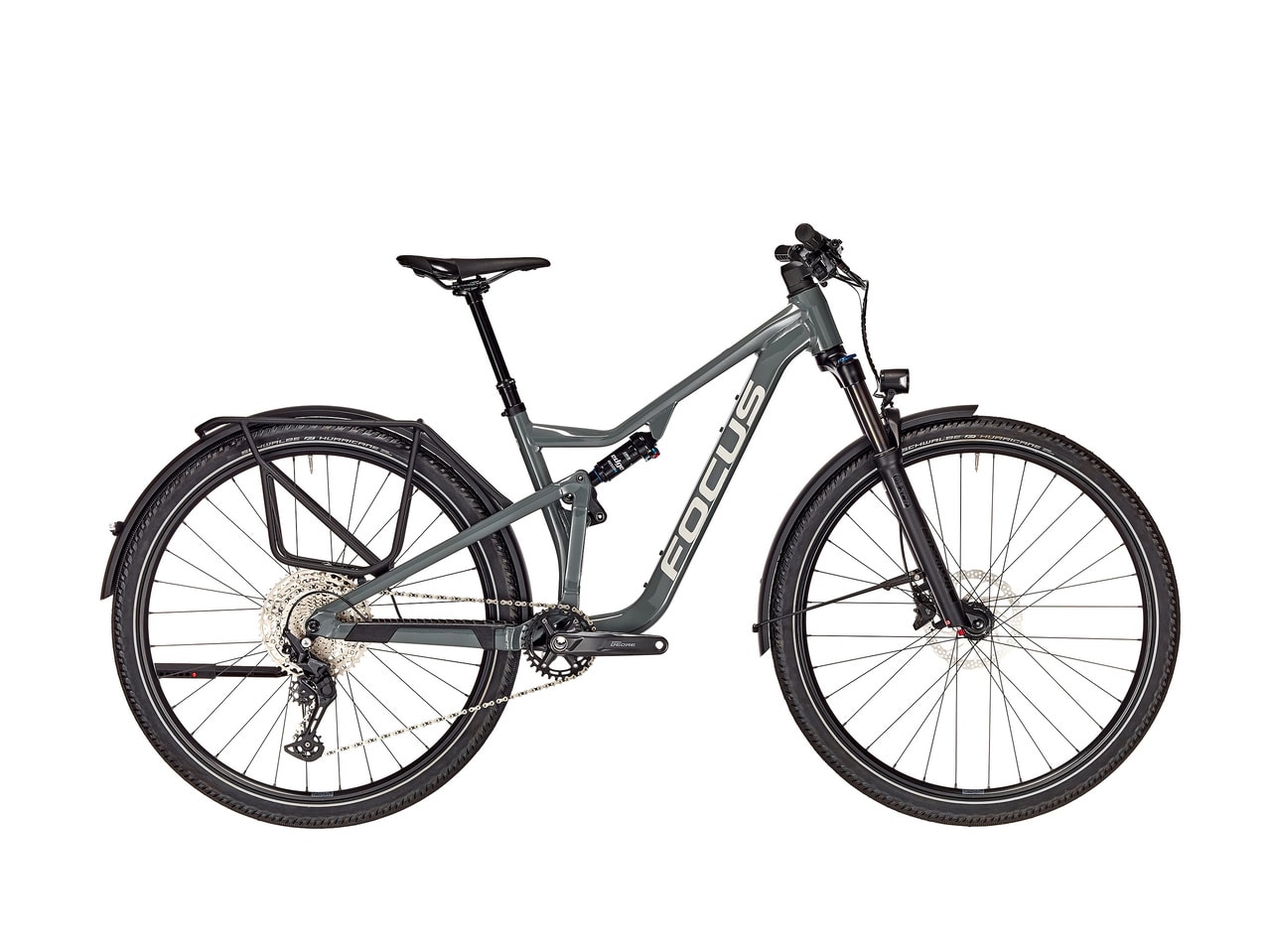

THRON 6.8 EQP

Geometry Specification
SKU
FO3170007v2021

Hero of your home turf

  • Optimized kinematics for strong progression

    With the upgrade of our well-known F.O.L.D. kinematics, your THRON 6.8 EQP is ready for even more fun on your tours. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability making you feel safe on any terrain. Especially equipped mountain bikes with their additional weight benefit from more progression. This allows you to handle any surface while the chassis still provides comfort for long laps.

  • Fully equipped

    The THRON EQP is made to explore. Our fully-equipped EQP models come with perfectly matching fenders, rack, stand and lighting system. From bikepacking to trail tours through alpine terrain and your daily commute: anything is possible with the THRON.

  • Integrated and clean

    It's all about the details: The specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. Furthermore, the THRON comes with a tool bag between the top and down tube angle. The tool bag offers space for all your essentials like a multi-tool, tube and a small pump.

Geometry

S M L XL
A Size (MM) 390 420 450 480
B Effective Top Tube (MM) 572 605 640 477
C Head Tube Angle (°) 66.5 66.5 66.5 66.5
D Effective Seat Tube Angle (°) 75 75 75 75
E Chainstay length (MM) 435 435 435 435
F Bottom bracket drop (MM) 35 35 35 35
G Head Tube Length (MM) 100 110 130 160
H Fork construction height (MM) 541 541 541 541
I Pre-raked fork (MM) 46 46 46 46
J Wheelbase length (MM) 1139 1173 1211 1253
K Stack (MM) 605 615 633 660
L Reach (MM) 410 440 470 500
Handlebar width 760 760 760 760
Stem Length (MM) 50 50 50 50
Crankarm length 170 170 170 170

Specification

Frame
7005 Aluminum, 130 mm F.O.L.D. kinematic, BSA BB, ISCG 05, 148x12 thru axle, internal cable routing, Post Mount 180 mm
Fork
SR Suntour XCR 34 Air LOR
Travel Fork
120 mm
Shock
SR Suntour Edge LOR, 190/45 mm, hardware: 25,0 x 8mm, custom tune
Shifter
Shimano Deore M5100, 11-S
Rear derailleur
Shimano Deore M6100, 12-speed
Sprocket
Shimano Deore CS-M5100, 11-speed
Chain
KMC X11
Crankset
Shimano Deore FC-MT5100
Transmission of drive
front: 32, rear: 11-51
Bottom Bracket
BSA
Handlebar
Aluminium 35 mm, riserbar 11mm, 760mm
Stem
FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium
Headset
ACROS ZS56/ZS56, FOCUS C.I.S. Integrated
Saddle
FOCUS Trail SL
Seatpost
Post Modern dropper post PM-171, 31.6 mm
Brakes
Shimano MT410, hydraulic disc brake
Brake lever
Shimano BL-M4100
Brake
Disc
Rims
Rodi Black Rock, with eyelets
Rear hub
Novatec D162 Disc, 12x148 mm
Tires
Schwalbe Hurricane 2.25
Headlight
Herrmans H-Black MR8, LED
Taillight
Herrmans H-Trace Mini
Gears
11
Size
39,42,45,48
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
