WHISTLER Lite

Geometry Specification
£729
SKU
FO3040015v2018

WHISTLER Lite Features

Lightweight aluminium frame in 29" and 27" wheel size

Shimano Deore XT 20 gearshift

Rock Shox 30 suspension fork with Pop-Loc lockout

Sport comes naturally

  • The choice is yours

    With the WHISTLER, you can choose between 27.5" and 29" wheelsets. Opt for the wheelset size that best suits your height and your requirements.

  • Prepared for anything

    Mounting options for pannier rack, mudguard, light and stand allow you to tailor the bike to your own individual requirements.

  • Consistent brake performance

    You need a reliable partner to handle hairy situations. That's why we've equipped our WHISTLER model with disc brakes – for a consistent braking performance and optimum braking behaviour.

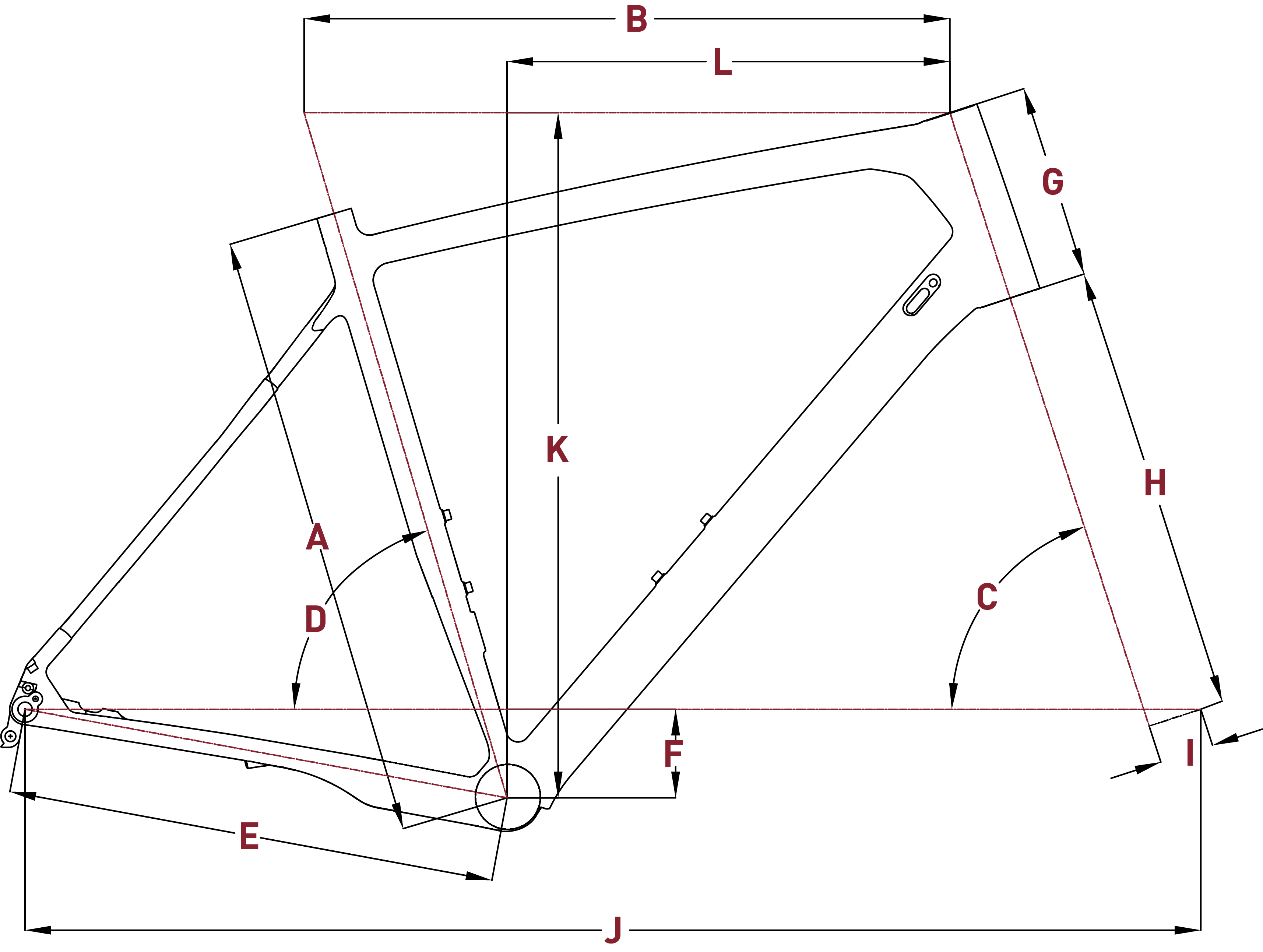

Geometry

XS S M L XL
A Size (MM) 360 400 440 480 520
B Effective Top Tube (MM) 554 575 588 608 624
C Head Tube Angle (°) 69 70 70 70 70
D Effective Seat Tube Angle (°) 73.5 74 74 74 74
E Chainstay (MM) 448 464 454 454 454
F BB Drop (MM) 48 62 62 62 62
G Head Tube Length (MM) 120 110 120 140 160
H Fork Length (MM) 489 509 509 509 509
I Fork Offset (MM) 42 51 51 51 51
J Wheelbase (MM) 1079 1192 1119 1141 1158
K Stack (MM) 604 629 638 657 676
L Reach (MM) 375 395 405 420 430

Specification

Frame
6061 aluminium, BSA BB, international disc brake standard
Fork
RockShox 30, PopLoc remote, 100x9 mm QR, 100 mm travel
Handlebar
aluminium, riserbar, 700mm
Saddle
Focus Sport Saddle
Seatpost
Sport Components SP-DC1, 27.2x350 mm
Stem
aluminium, 31.8mm
Tires
Continental Race King 2.2
BrakeSystem
Shimano BR-M315, 180 mm / 160 mm
Brake type
Disc
Chain ring
2x
Crankset
Shimano MT500, 36/26T
Rear derailleur
Shimano Deore XT 785, 10-speed
Seatpost type
Fixed seatpost
Shifters
Shimano Deore 6000
Shifting type
Mechanical shifting
Sprocket
Sram PG-1020, 11-36T
Travel
100 mm
Wheelset
Rodi Viper 21, 27" 584-21, 29" 622-21, Shimano TX-505 CL, 9 mm QR / 9 mm QR
