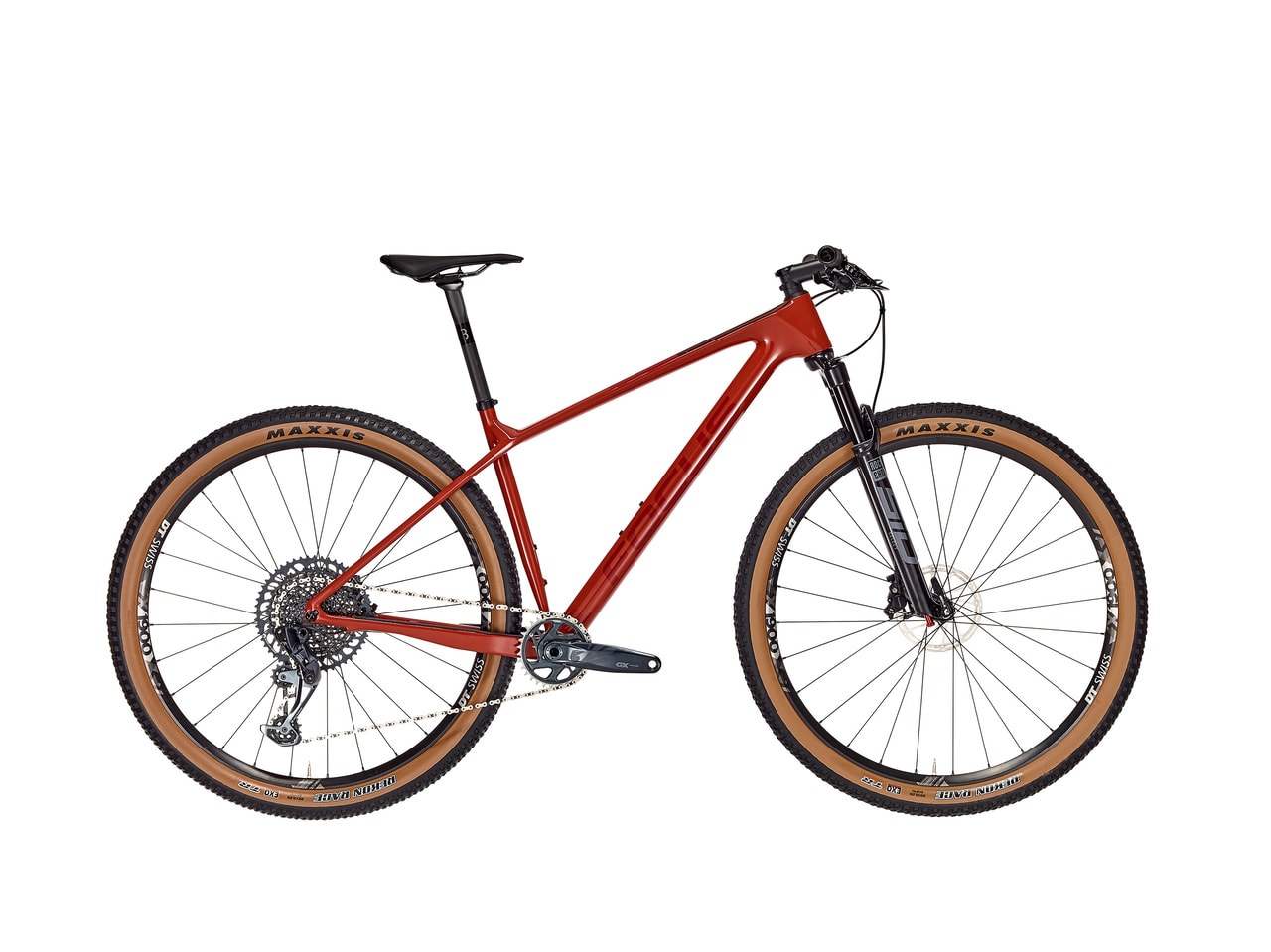

Raven 8.8

Geometry Specification
£3,299
SKU
FO0150004v2022

Unbelievable acceleration

  • Lightweight and comfortable

    The light carbon frame with specially designed tube shapes (C.I.A.) provides extra comfort: Your body weakens less and you stay fast over a longer period. Sophisticated carbon fibre orientation and tube dimensions for the seat tube, saddle stays, bottom bracket and steering head make the RAVEN as rigid as necessary and as comfortable as possible.

  • Ready for racing

    The RAVEN's geometry is made for maximum speed with maximum control, so race participation is appreciated. Nevertheless, trail fun is what makes the RAVEN special.

  • Stiff and fast

    The RAVEN rolls on the broad Boost hub standard with axles of 110 mm in the front and 148 mm in the rear. Therefore, it offers extra stability while the handling stays agile and precise. Furthermore, wheel changes can be carried out within seconds, thanks to the R.A.T. thru-axles.

Geometry

S M L XL
Size 42 46 50 54
Size (MM) 420 460 500 540
Handlebar width 760 760 760 760
Stem Length (MM) 90 90 90 90
Crankarm length 170 175 175 175
Seat post length (MM) 350 350 350 350
A Seat tube length (MM) 420 460 500 540
B Effective Top Tube (MM) 592 608 629 649
C Head Tube Angle (°) 69.8 69.8 69.8 69.8
D Effective Seat Tube Angle (°) 74.5 74.5 74.5 74.5
E Chainstay length (MM) 435 435 435 435
F Bottom bracket drop (MM) 68 68 68 68
G Head Tube Length (MM) 104 107 130 150
H Fork construction height (MM) 501 501 501 501
I Pre-raked fork (MM) 44 44 44 44
J Wheelbase length (MM) 1100 1116 1139 1160
K Stack (MM) 620 623 644 663
L Reach (MM) 420 435 450 465

Specification

Frame
RAVEN, carbon, PF30 BB, 142mm dropouts, internal cable routing, PM 160 rear brake
Fork
Rock Shox SID SL Select 29 Boost, Charger RL, DebonAir, 110x15 mm, 44 mm rake, 100 mm travel
Travel Fork
100 mm
Shifter
SRAM GX Eagle, 12-speed
Rear derailleur
SRAM GX Eagle, 12-speed
Sprocket
SRAM XG-1275, 12-speed
Chain
SRAM GX Eagle, 12-speed
Crankset
SRAM GX EAGLE
Transmission of drive
front: 32, rear: 10-52
Bottom Bracket
Pressfit
Handlebar
Aluminium, 760 mm, flatbar, backsweep: 9°, 31,8 mm
Stem
Aluminium, 31,8 mm
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Saddle
Prologo Akero
Seatpost
BBB FlyPost SP-135, 27.2mm, set-back: 0mm, carbon
Brakes
SRAM Level TLM
Brake lever
SRAM Level TLM
Brake
Disc
Wheelset
DT Swiss X1900, 25-622, 15x110 mm / 12x148 mm, 25 mm height
Tires
Maxxis Rekon Race, 2.25, 2C
Gears
12
Bike weight incl. battery in kg.
10,20 kg
Size
42,46,54,50
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
