360

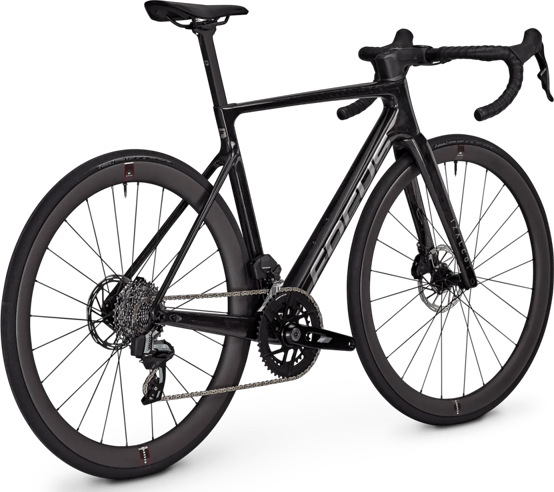

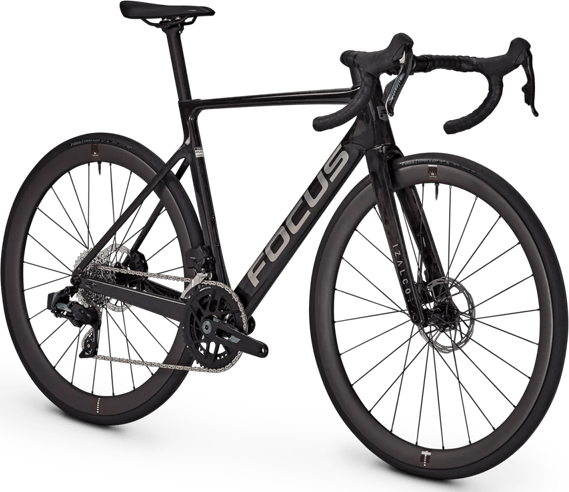

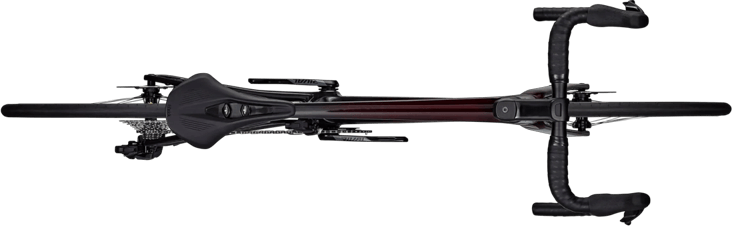

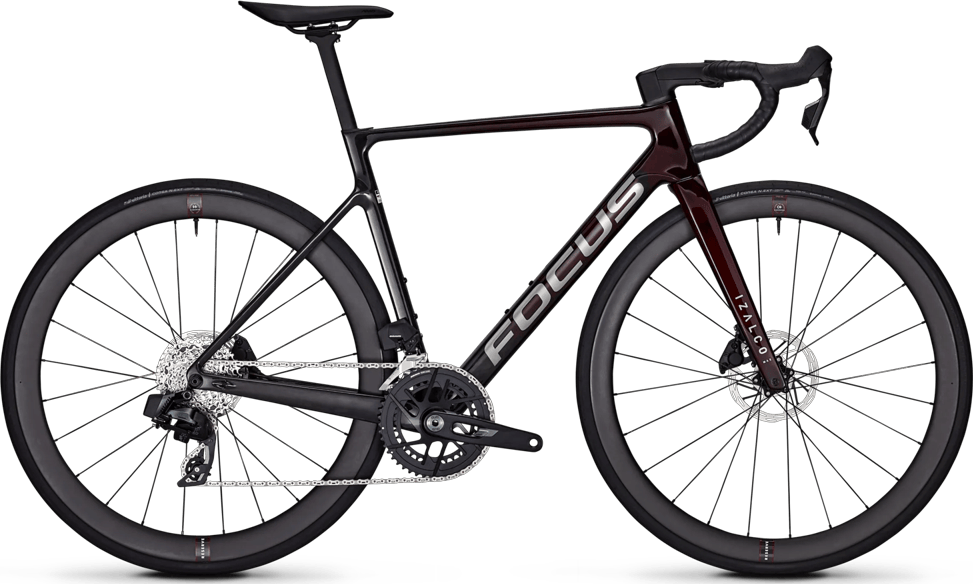

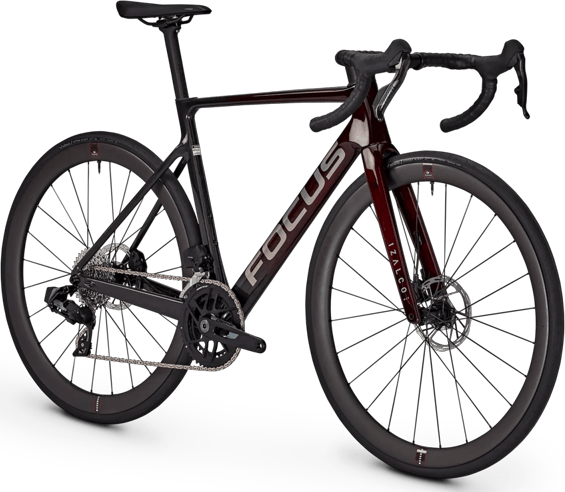

IZALCO MAX 8.9

Geometry Specification
€4,499.00

Select your size to check online availability.

Find the right frame sizes
N/A
Set up and set at the dealer in three weeks.
Sku Number
FO0010030v2023

IZALCO MAX 8.9 Features

Aero carbon frame (1,050 g)

Electronic Shimano 105 Di2 2x12 shifting

Novatec R4 carbon wheels

Makes you faster

  • Aero gains

    The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 1050 g for frame size M with an additional 400 g for the fork. Our C.I.S. road stem hides the cables below the stem. It also comes with an integrated bike computer mount for both Wahoo and Garmin.

  • 7 sizes for a perfect fit

    The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.

  • Effortless handling and maximum stiffness

    To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.

Geometry

XXS XS S M L XL XXL
Size in mm 470 500 520 540 560 580 610
Handlebar width 400 400 400 420 420 420 440
Stem length 80 90 100 110 110 120 120
Crank length 165 165 170 172.5 172.5 175 175
Seatpost length 350 350 350 350 350 350 350
A Seat tube length 455 475 495 515 535 555 585
B Top tube length 505 517 530 543 568 582 607
C Head angle (°) 70 71 72 72.5 72.5 73 73
D Seat angle (°) 75 74.5 74 73.5 73.5 73 73
E Chainstay length 410 410 410 410 410 410 410
F Bottom bracket drop 72 72 72 72 72 72 72
G Head tube length 90 100 115 135 155 175 195
H Fork length 371.5 371.5 371.5 371.5 371.5 371.5 371.5
I Fork offset 46 46 46 46 46 46 46
J Wheelbase 975 976 975 979 1004 1008 1033
K Stack 500 513 531 552 571 592 611
L Reach 370 375 378 380 399 401 420
M Standover height 746 762 778 795 814 835 857

Specification

Frame
Carbon technology frame, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing
Fork
MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount
Shifter
SHIMANO 105 R7150 Di2, 12-speed
Front derailleur
Shimano R7150, Di2
Rear derailleur
Shimano R7150 Di2, 12-speed
Cassette
Shimano 105 R7100, 12-speed
Chain
Shimano Deore CN-M6100, 12-speed
Crankset
Shimano 105 R7100
Transmission of drive
front: 50/34, rear: 11-34
Chainring
Shimano Ultegra CS-R8100, 12-speed
Bottom bracket
Shimano Pressfit Road BB86
Handlebar
BBB Basic, aluminium, drop: 125 mm, reach: 70 mm
Grips
FOCUS Bartape SL
Stem
FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount
Headset
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
Saddle
fi'zi:k Vento Argo
Seatpost
FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm
Brakes front | rear
Shimano 105 R7170, Di2 | Shimano 105 R7170, Di2
Front brake disc
160 mm
Rear brake disc
160 mm
Wheelset
Novatec R4, carbon, 21-622, front: 12x100 mm, rear: 12x142 mm, height: 45 mm
Tyres front | rear
Vittoria Rubino TLR, 700 x 28C, Folding | Vittoria Rubino TLR, 700 x 28C, Folding
Weight
8.2 kg ()
Permissible system weight
110 kg
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
