Exemplary bike presentation. Actual parts are shown in the specifications list.
Smashes records
-
Handling characteristics matter
The RAVEN² is unbelievably light and perfectly balanced. A true racing bike – and the fun continues even without battery support, since there is no motor-induced pedal resistance.
-
Bring your race legs every day
Thanks to an extra 252 Wh in the tank, the Fazua Evation drive will give you a real world cup feeling that will bring joy to every ride. Your effort will also be reflected in your speed and your flow.
-
Reduced fatigue thanks to increased comfort
Sophisticated fibre orientation and tube dimensions for the seat tube, saddle stays, bottom bracket and steering head – as rigid as necessary, as comfortable as possible.

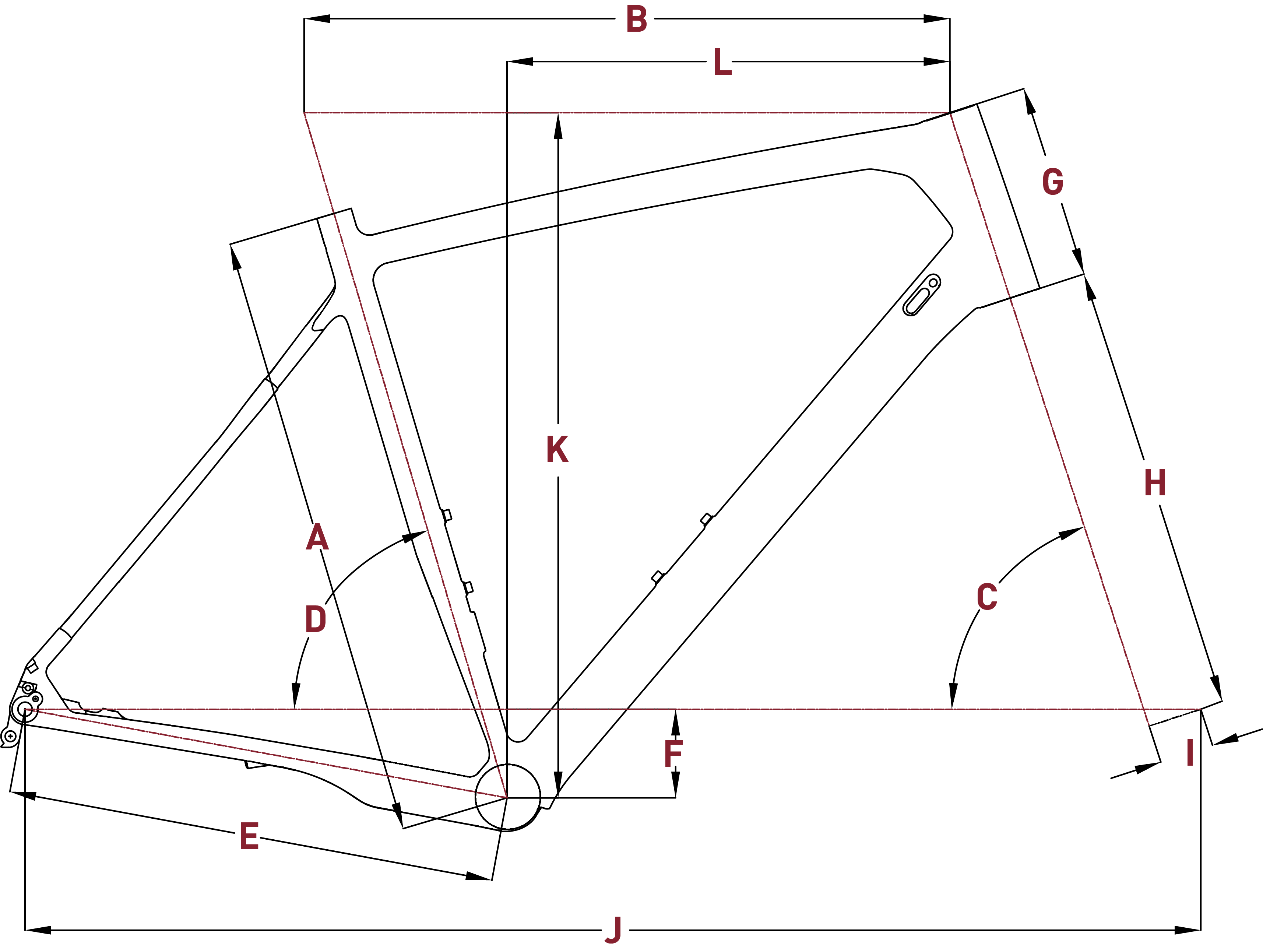

Geometry
| S | M | L | ||
|---|---|---|---|---|
| Size | 42 | 46 | 50 | |
| Size (MM) | 420 | 460 | 500 | |
| Handlebar width | 720 | 720 | 720 | |
| Stem Length (MM) | 90 | 90 | 90 | |
| Crankarm length | 170 | 175 | 175 | |
| A | Seat tube length (MM) | 420 | 460 | 500 |
| B | Effective Top Tube (MM) | 592 | 608 | 628 |
| C | Head Tube Angle (°) | 69.8 | 69.8 | 69.8 |
| D | Effective Seat Tube Angle (°) | 74.5 | 74.5 | 74.5 |
| E | Chainstay length (MM) | 454 | 454 | 454 |
| F | Bottom bracket drop (MM) | 68 | 68 | 68 |
| G | Head Tube Length (MM) | 104 | 107 | 130 |
| H | Fork construction height (MM) | 499 | 499 | 499 |
| I | Pre-raked fork (MM) | 44 | 44 | 44 |
| J | Wheelbase length (MM) | 1119 | 1135 | 1158 |
| K | Stack (MM) | 620 | 623 | 644 |
| L | Reach (MM) | 420 | 435 | 450 |
Specification
Frame material
Carbon
Frame
F.I.T. Technology Carbon frame, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Fork
FOX 32 Rhythm, 2-position remote, 110x15 mm QR, 100 mm travel
Travel Fork
100 mm
Motor
FAZUA evation, 60 Nm, 250 W
Battery Watt-hours
250 Wh
Battery Ampere hours
7 Ah
Display
FAZUA evation 1.0 remote
Shifter
Shimano SLX 7000
Rear derailleur
Shimano Deore XT 8000, 11-speed
Sprocket
Shimano SLX CSM7000 11-S 11-46T
Chain
Shimano CN-HG601, 11-speed
Crankset
FSA Alu
Transmission of drive
front: 34, rear: 11-46
Bottom Bracket
Integrated in Drive Unit
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Grips
Race Face Grippler
Stem
BBB Race, aluminium, 31.8 mm
Headset
ACROS AIX-322, tapered, IS 42/286-IS52/40
Saddle
Prologo Scratch X8
Seatpost
BBB FlyPost, carbon, 27,2 mm
Brakes
Shimano SLX BR-M7000, 180 mm / 160 mm
Brake
Disc
Rims
RODI READY27 GEÖST
Wheelset
Rodi Ready 27, 622-27, Novatec, 148x12 mm / 110x15 mm
Rear hub
Novatec D162 Disc, 12x148 mm
Front Hub
Novatec D041, 15x110 mm
Tires
Schwalbe Nobby Nic Evo Addix Speedgrip, 2.25
Rear tire
Schwalbe Racing Ray Performance 2.25
Gears
11
Size
46,42,50
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
