PLANET² 5.7

Geometry Specification
€2,799
SKU
FO5080059v2020

PLANET² 5.7 Features

Dynamic: The new Bosch Performance drive

Elegant and protected: Removable 500 Wh battery integrated into the down tube

Robust Shimano drive components and mudguards

Practical in the city

  • Ready for anything

    Pannier rack, mudguards, lighting system, chain guard, stand – the PLANET² offers a long and comprehensive list of features.

  • Clean and dry

    Thanks to its matching mudguards, you and your clothes will remain clean and dry.

  • Perfectly integrated battery

    Our perfectly integrated battery is concealed in the down tube, yet it can be removed at any time.

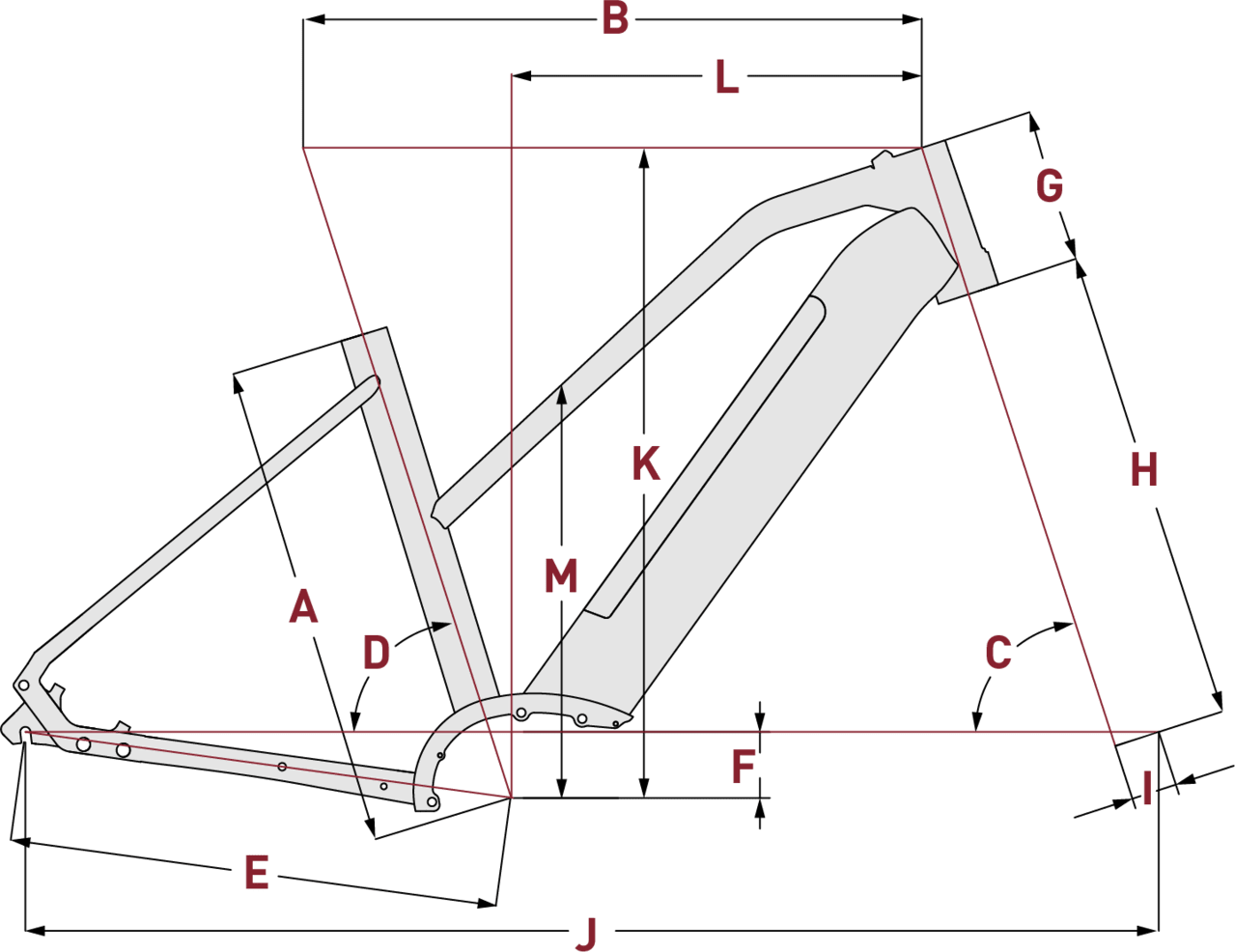

Geometry

S M L XL
Size 43 48 53 58
A Size (MM) 430 480 530 580
B Effective Top Tube (MM) 588 597 606 615
C Head Tube Angle (°) 72 72 72 72
D Effective Seat Tube Angle (°) 73 73 73 73
E Chainstay (MM) 485 485 485 485
F BB Drop (MM) 65 65 65 65
G Head Tube Length (MM) 160 170 180 190
H Fork Length (MM) 470 470 470 470
I Fork Offset (MM) 45 45 45 45
J Wheelbase (MM) 1107 1117 1126 1135
K Stack (MM) 648 658 667 677
L Reach (MM) 390 396 402 408

Specification

Frame
6061 aluminium, internal cable routing
Fork
SR Suntour NEX, adjustable
Motor
Bosch Performance Gen3, 65 Nm, 250 W
Shifter
Shimano Altus M2010
Rear derailleur
Shimano Altus M2000
Chain
Shimano CN-HG53
Crankset
FSA CK-200, aluminium
Handlebar
Aluminium, riserbar, backsweep: 15 degree, 690mm
Grips
Focus Ergo Comfort
Stem
Focus aluminium, 31,8 mm, 60 mm, 17 degree
Saddle
Touring
Seatpost
Aluminium, 27,2 mm
Brakes
Shimano MT200, hydraulic disc brake
Tires
Schwalbe Energizer Active Plus, 47-622
Fender
plastic, with edge protector
Headlight
AXA Blueline30, LED
Taillight
AXA Blueline, LED with stand light
Bike weight incl. battery in kg.
24,3 kg
Travel
63 mm
Display
Bosch Purion
Brake type
Disc
Battery Watt-hours
500 Wh
Battery Ampere hours
13,4 Ah
Brake levers
Shimano MT200
