PLANET² 5.7

Geometry Specification
€2,899
SKU
FO5080059v2020

Practical in the city

  • Powerful e-motor for everyday use

    The Bosch Performance e-drive (Gen. 3) offers efficient and strong support up to 25 km/h. Thanks to 500 Wh battery capacity, you can reach all destinations around. In eMTB mode, the motor support adjusts automatically to your riding power. The battery is perfectly integrated into the down tube, yet it can also be removed at any time for charging.

  • A frame shape fitting your needs

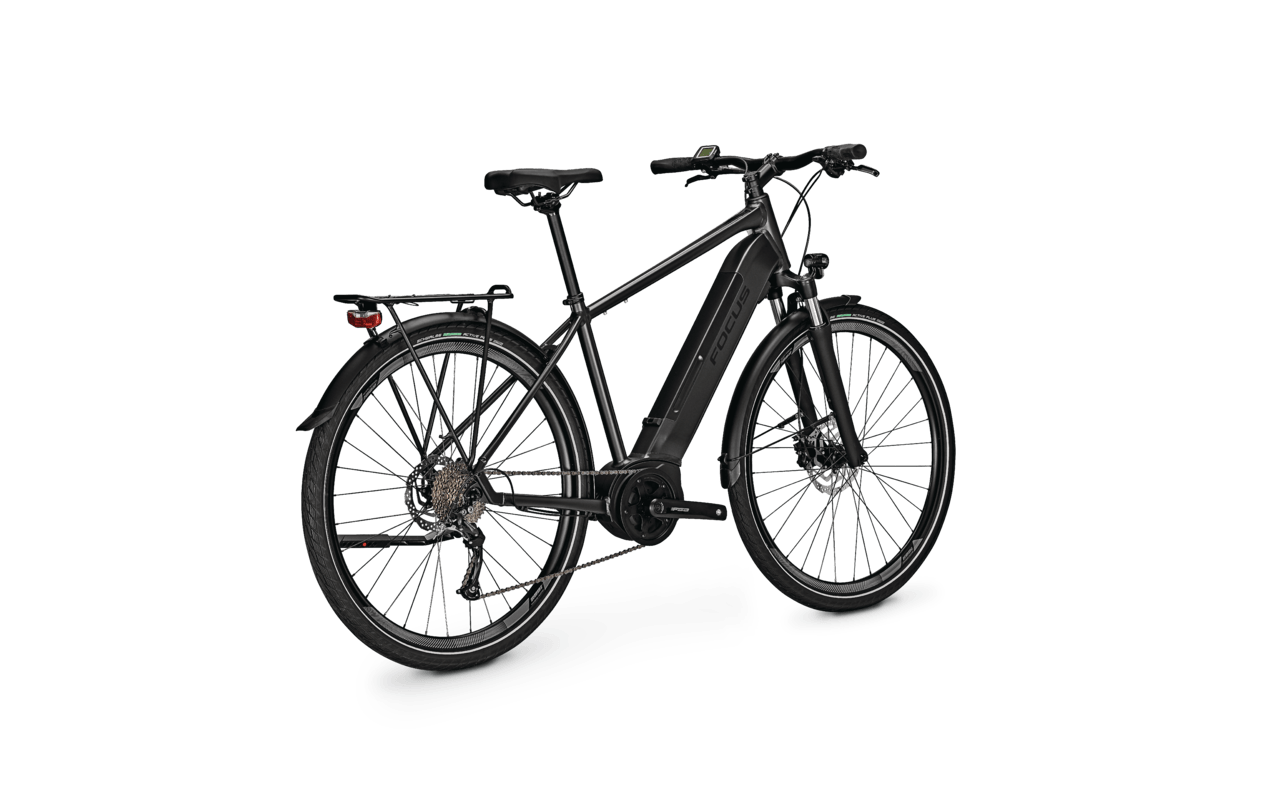

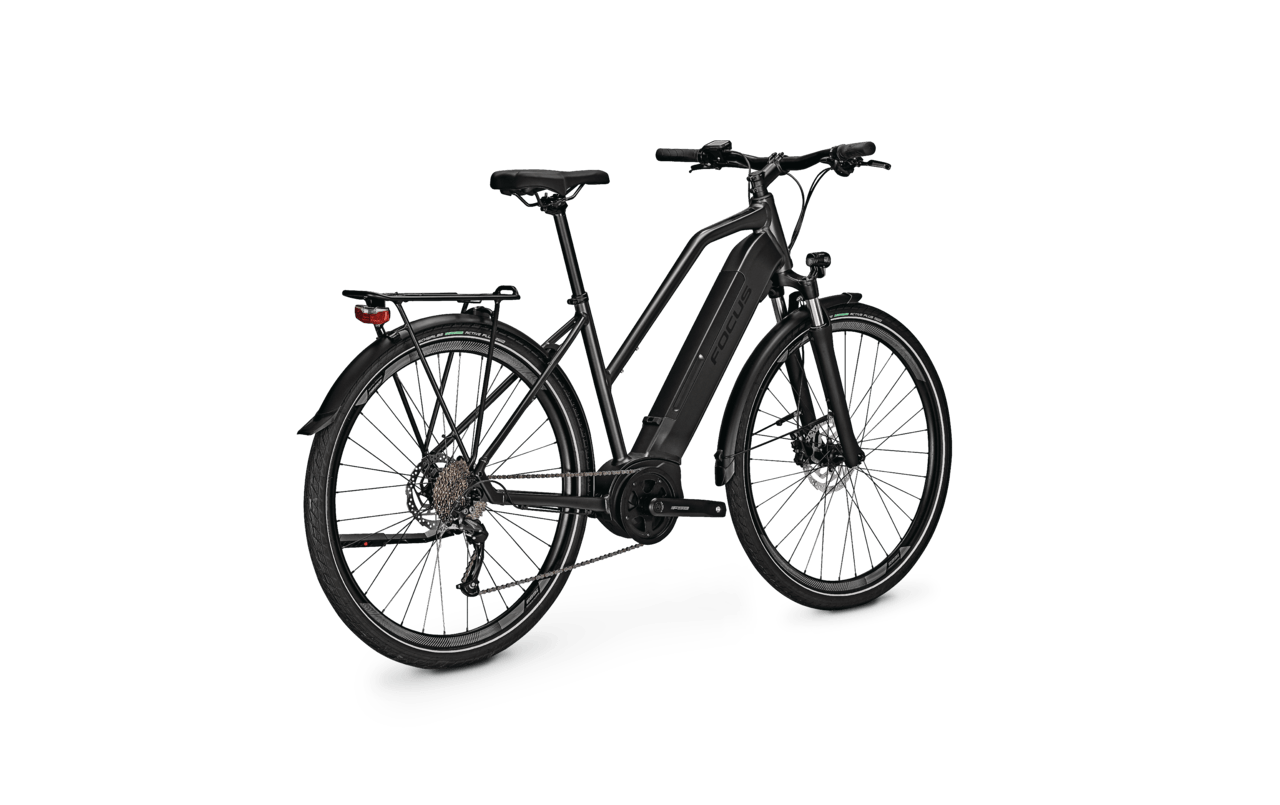

    With the PLANET² 5.7, you can choose between a step-through or diamond frame - depending on your preferences.

  • Fully equipped

    Rack, fenders, light system and a stand – the PLANET² 5.7 is fully equipped with all necessary features. The flat-less Schwalbe Energizer Active tyres make your ride carefree.

Geometry

S M L XL
Size 43 48 53 58
Size (MM) 430 480 530 580
Handlebar width 690 690 690 690
Stem Length (MM) 60 60 60 60
Crankarm length 170 170 170 170
A Seat tube length (MM) 350 350 350 350
B Effective Top Tube (MM) 588 597 606 615
C Head Tube Angle (°) 72 72 72 72
D Effective Seat Tube Angle (°) 73 73 73 73
E Chainstay length (MM) 485 485 485 485
F Bottom bracket drop (MM) 65 65 65 65
G Head Tube Length (MM) 160 170 180 190
H Fork construction height (MM) 468 468 468 468
I Pre-raked fork (MM) 45 45 45 45
J Wheelbase length (MM) 1107 1117 1126 1135
K Stack (MM) 648 658 667 677
L Reach (MM) 390 396 402 408

Specification

Frame material
Aluminium
Frame
6061 aluminium, internal cable routing
Fork
SR Suntour NEX, adjustable
Travel Fork
63 mm
Motor
Bosch Performance Gen3, 65 Nm, 250 W
Battery Watt-hours
500 Wh
Battery Ampere hours
13,4 Ah
Display
Bosch Purion
Shifter
Shimano Altus M2010, 9-speed
Rear derailleur
Shimano Altus M2000, 9-speed
Sprocket
Shimano HG400
Chain
Shimano HG53
Crankset
FSA CK-200, aluminium
Bottom Bracket
-
Transmission of drive
front: 38, rear: 12-36
Handlebar
690 mm, riserbar, backsweep: 15°, 31,8 mm
Grips
FOCUS Ergo Comfort
Stem
FOCUS aluminium, 31,8 mm, 60 mm, 17°
Headset
VP Components, ZS 44/286 - ZS56/40
Saddle
Touring
Seatpost
Aluminium, 27,2 mm
Brakes
Shimano MT200, hydraulic disc brake
Brake lever
Shimano MT200
Brake
Disc
Rims
Rodi Airline Corsa
Rear hub
Shimano TX505, QR
Front Hub
Shimano TX505, QR
Tires
Schwalbe Energizer Active Plus, 47-622
Fender
Buechel plastic, 58 mm
Headlight
AXA Blueline30, LED
Taillight
AXA Blueline, LED with stand light
Gears
9
Bike weight incl. battery in kg.
24,30 kg
Size
43,53,58,48
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
