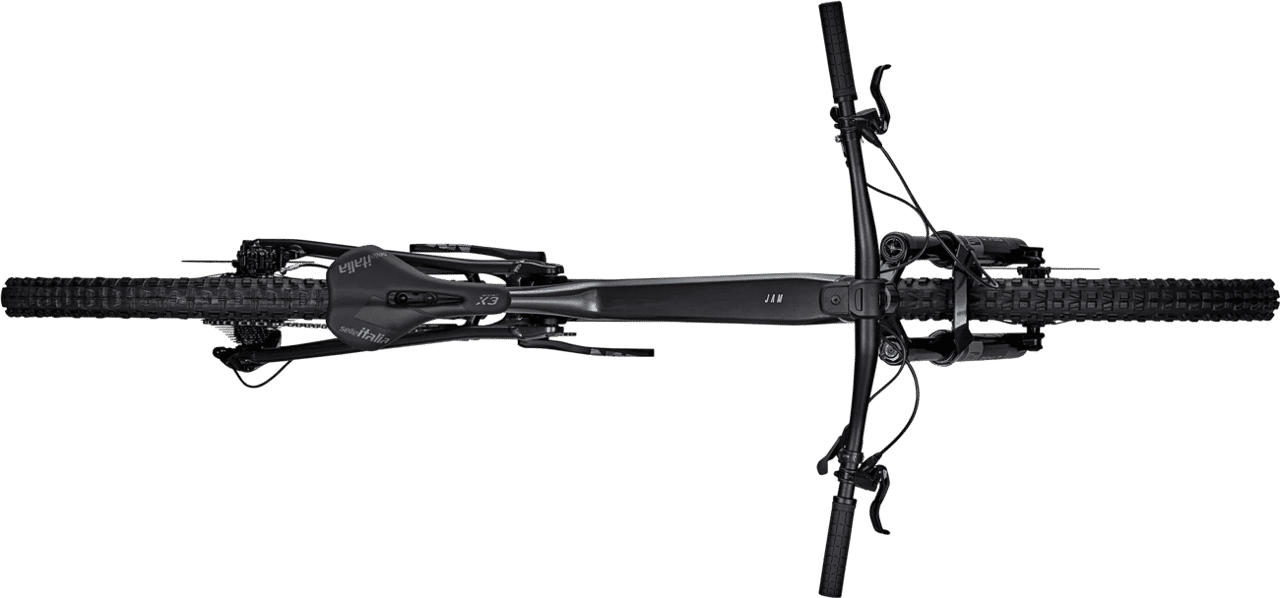

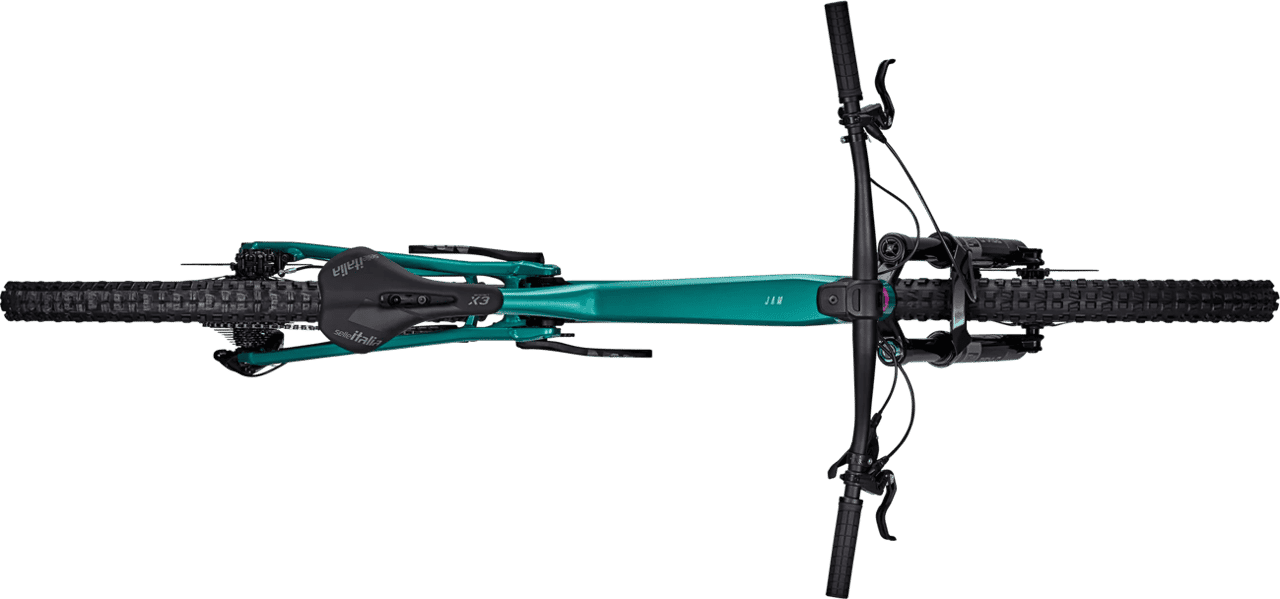

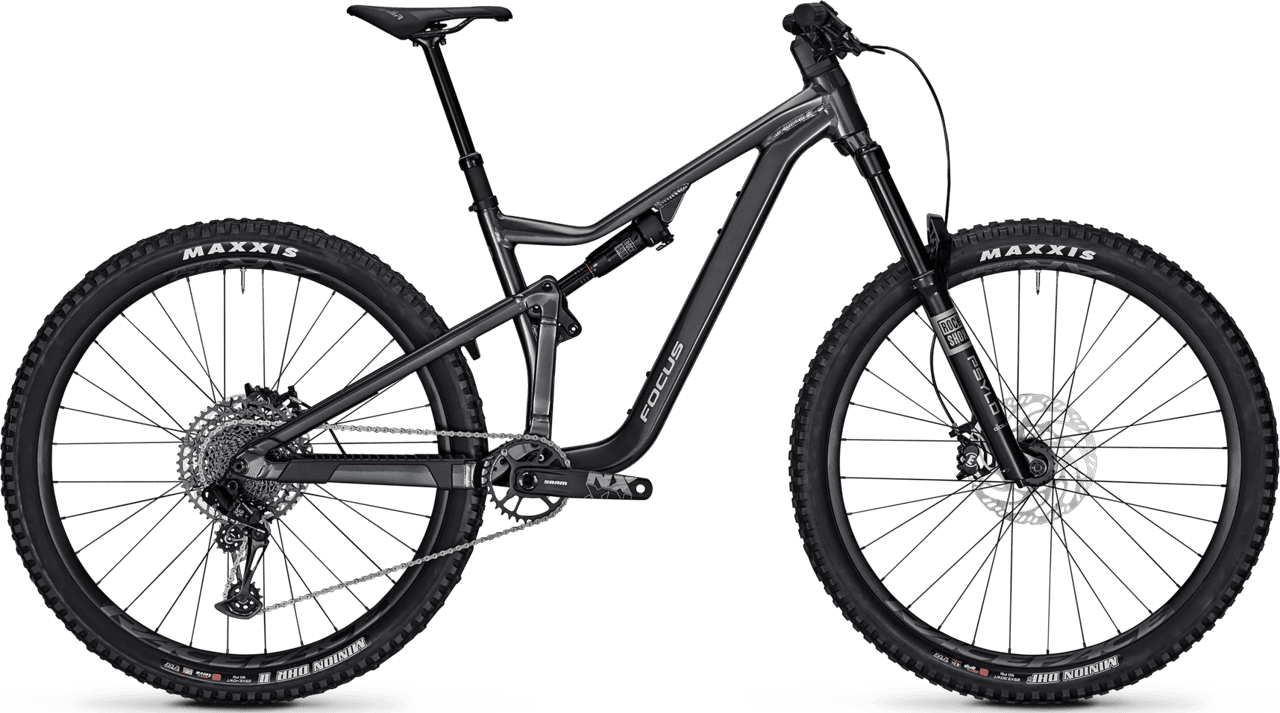

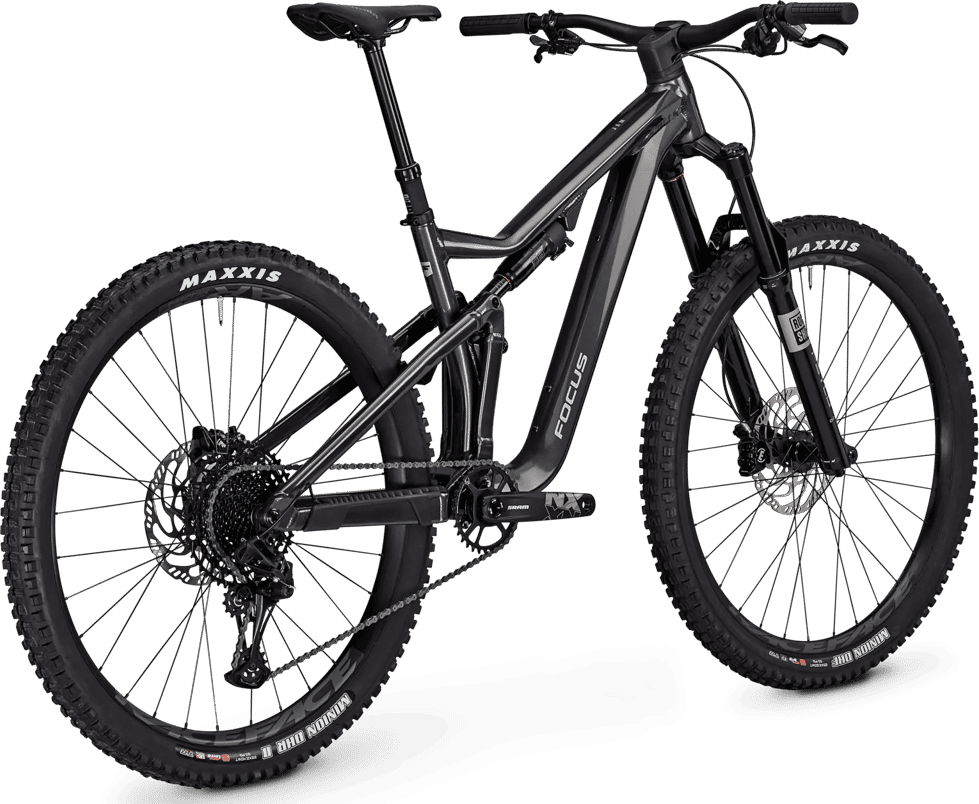

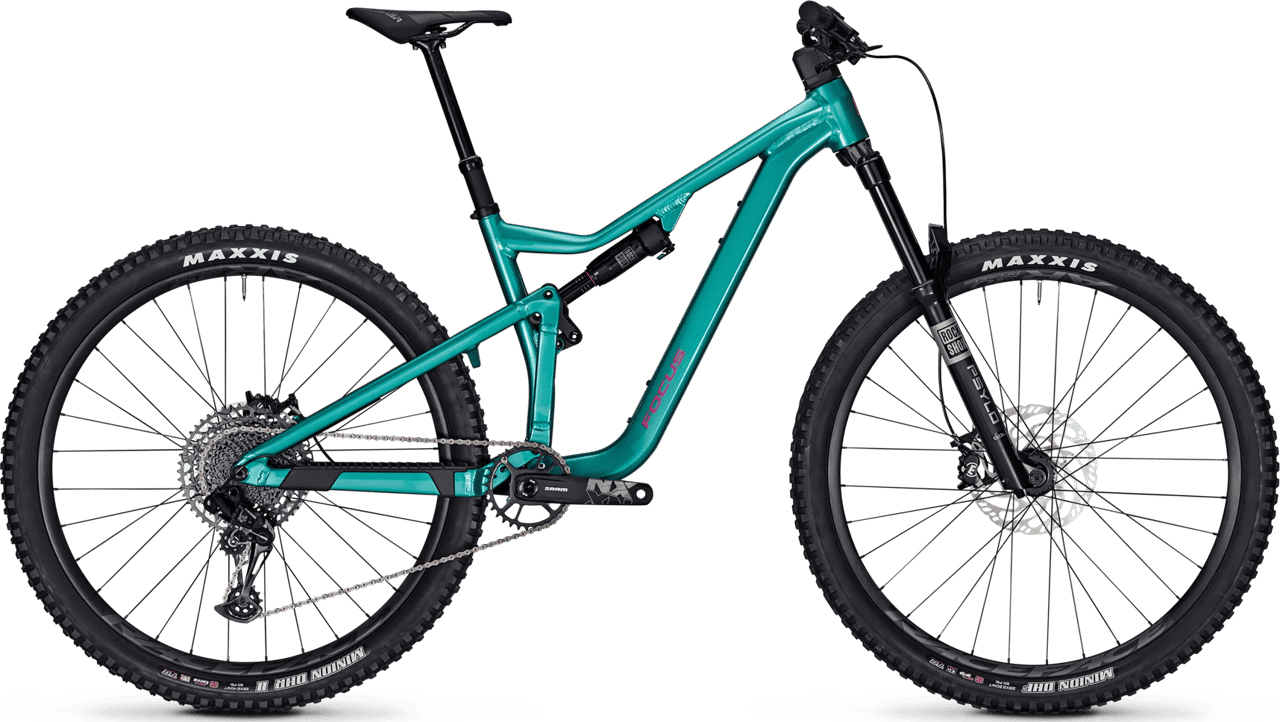

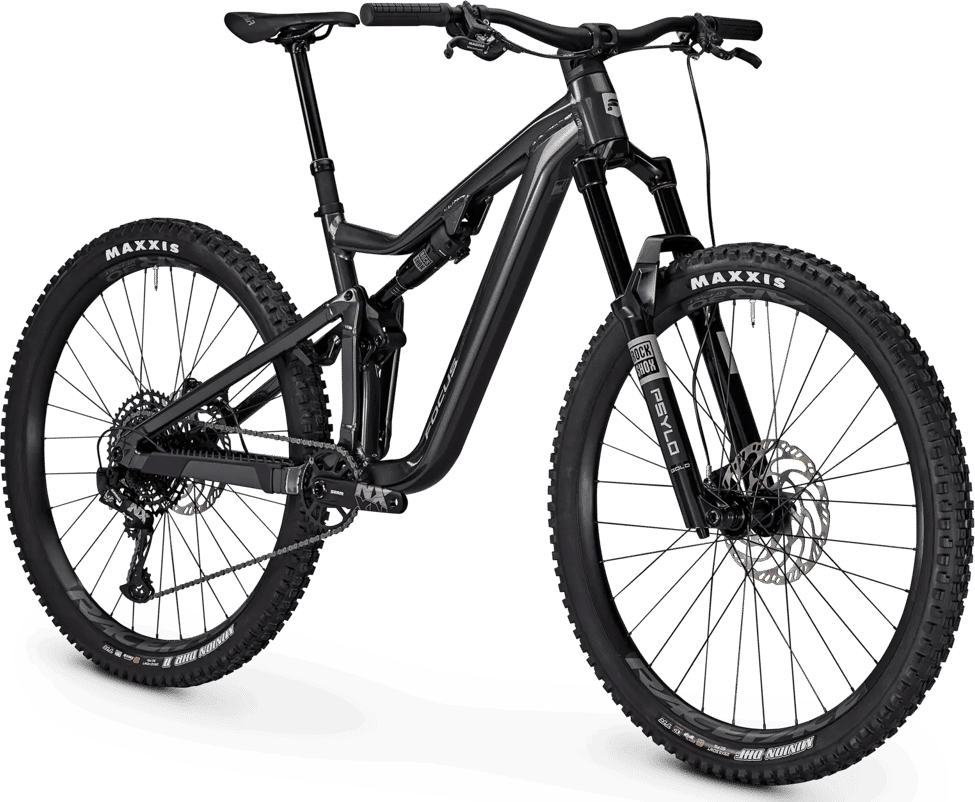

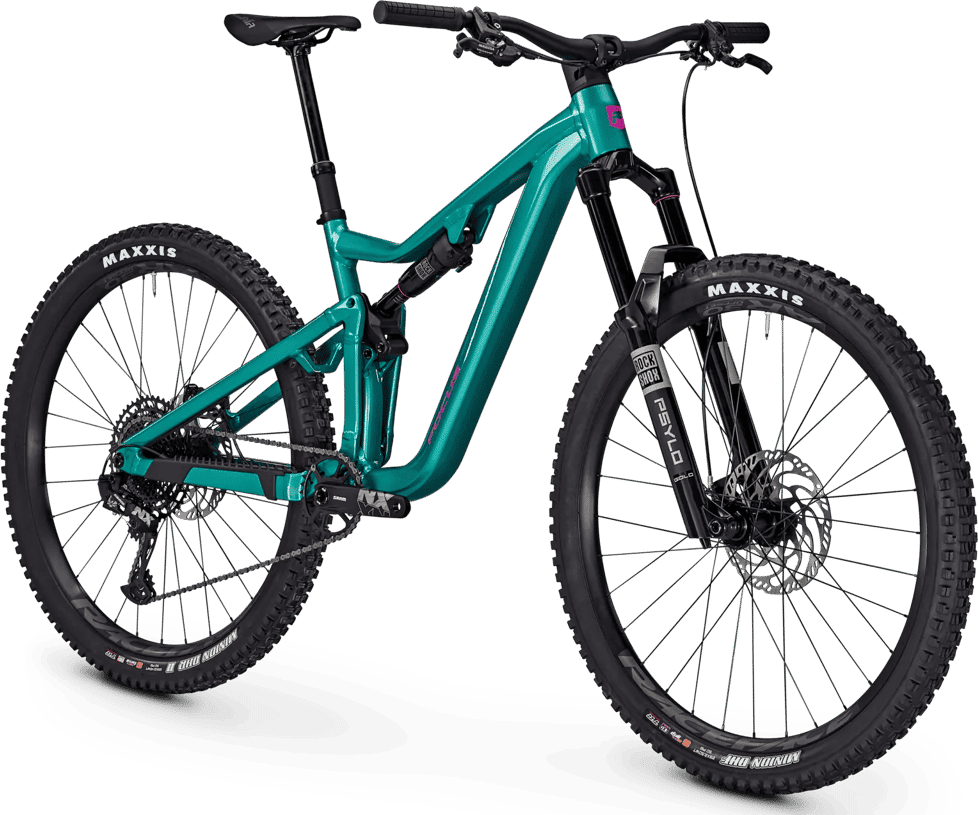

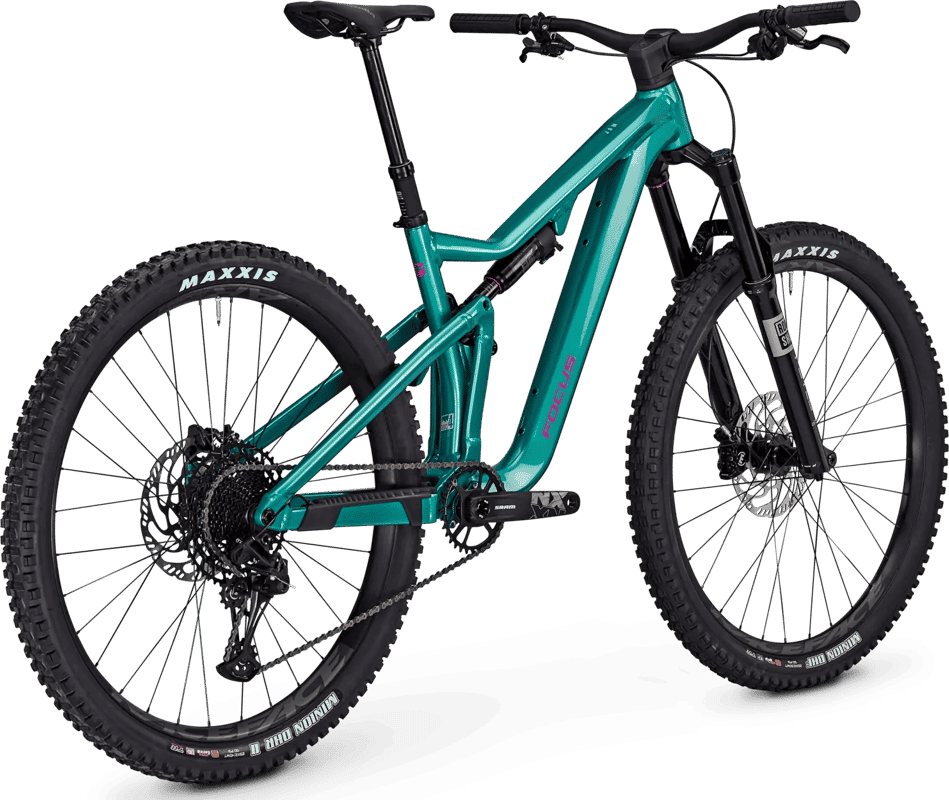

JAM 6.8
JAM 6.8 Features
Aluminium frame with tool bag
150 mm RockShox Revelation RC fork & Deluxe Select shock
SRAM NX Eagle 12-speed
Makes the mountains your playground
-
Kinematics for strong progression
With the upgrade of our well-known F.O.L.D. kinematics, your JAM is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM gives you more space to play on the trail.
-
For your inner child
The JAM is made for your inner child: Playful and intuitive you get the most fun out of every ride. The geometry is well-balanced for your rides in tough terrain: An agile handling merges with a lot of safety resources of the chassis providing confidence in rough downhills. You are perfectly-seated in the middle of the bike to be in control of any situation and to easily pedal up all the steep hills on your ride. The FLIP CHIP at your linkage can be used to adjust your geometry to an even more aggressive riding style.
-
Integrated and clean
It's all about details: The specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. Furthermore, the JAM 6.8 comes with a tool bag between the top and down tube angle. The tool bag offers space for all your essentials like a multi-tool, tube and a small pump.
Geometry
S | M | L | XL | ||
---|---|---|---|---|---|
Size in mm | 390 | 420 | 450 | 470 | |
Handlebar width | 780 | 780 | 780 | 780 | |
Stem length | 50 | 50 | 50 | 50 | |
Crank length | 170 | 170 | 170 | 170 | |
Seatpost length | 390 | 440 | 440 | 490 | |
A | Seat tube length | 390 | 420 | 450 | 470 |
B | Top tube length | 570 | 603 | 637 | 672 |
C | Head angle (°) | 65.5 | 65.5 | 65.5 | 65.5 |
D | Seat angle (°) | 76.5 | 76.5 | 76.5 | 76.5 |
E | Chainstay length | 435 | 435 | 435 | 435 |
F | Bottom bracket drop | 24 | 24 | 24 | 24 |
G | Head tube length | 90 | 100 | 120 | 140 |
H | Fork length | 561 | 561 | 561 | 561 |
I | Fork offset | 44 | 44 | 44 | 44 |
J | Wheelbase | 1166 | 1200 | 1238 | 1277 |
K | Stack | 603 | 612 | 630 | 648 |
L | Reach | 425 | 455 | 485 | 515 |
M | Standover height | 766 | 766 | 766 | 766 |
S | M | L | XL | ||
---|---|---|---|---|---|
Size in mm | 390 | 420 | 450 | 470 | |
Handlebar width | 780 | 780 | 780 | 780 | |
Stem length | 50 | 50 | 50 | 50 | |
Crank length | 170 | 170 | 170 | 170 | |
Seatpost length | 390 | 440 | 440 | 490 | |
A | Seat tube length | 390 | 420 | 450 | 470 |
B | Top tube length | 570 | 603 | 637 | 672 |
C | Head angle (°) | 65 | 65 | 65 | 65 |
D | Seat angle (°) | 76 | 76 | 76 | 76 |
E | Chainstay length | 435 | 435 | 435 | 435 |
F | Bottom bracket drop | 30 | 30 | 30 | 30 |
G | Head tube length | 90 | 100 | 120 | 140 |
H | Fork length | 561 | 561 | 561 | 561 |
I | Fork offset | 44 | 44 | 44 | 44 |
J | Wheelbase | 1166 | 1200 | 1238 | 1277 |
K | Stack | 603 | 612 | 630 | 648 |
L | Reach | 420 | 450 | 480 | 510 |
M | Standover height | 766 | 766 | 766 | 766 |
