IZALCO RACE Sora

Geometry Specification
SKU
FO0030015v2018

IZALCO RACE Sora Features

Frame-integrated cable routing and full-carbon fork

Complete Shimano R3000 SORA groupset

Reliable Alex wheels and Continental tyres

Shines on the road

  • No loss of power

    Our IZALCO RACE is there when you need it. Thanks to its high rigidity, no power is lost, your calf power is converted directly into forward motion.

  • The world’s fastest quick-release axle

    Quicker and simpler: Thanks to our patented FOCUS R.A.T. quick-release axle, wheel changes can be carried out in under ten seconds.

  • No cables to spoil the visual appearance

    Ideal protection and visually appealing: thanks to its integrated cable routing, it is not possible for dirt to restrict the functioning of the IZALCO RACE.

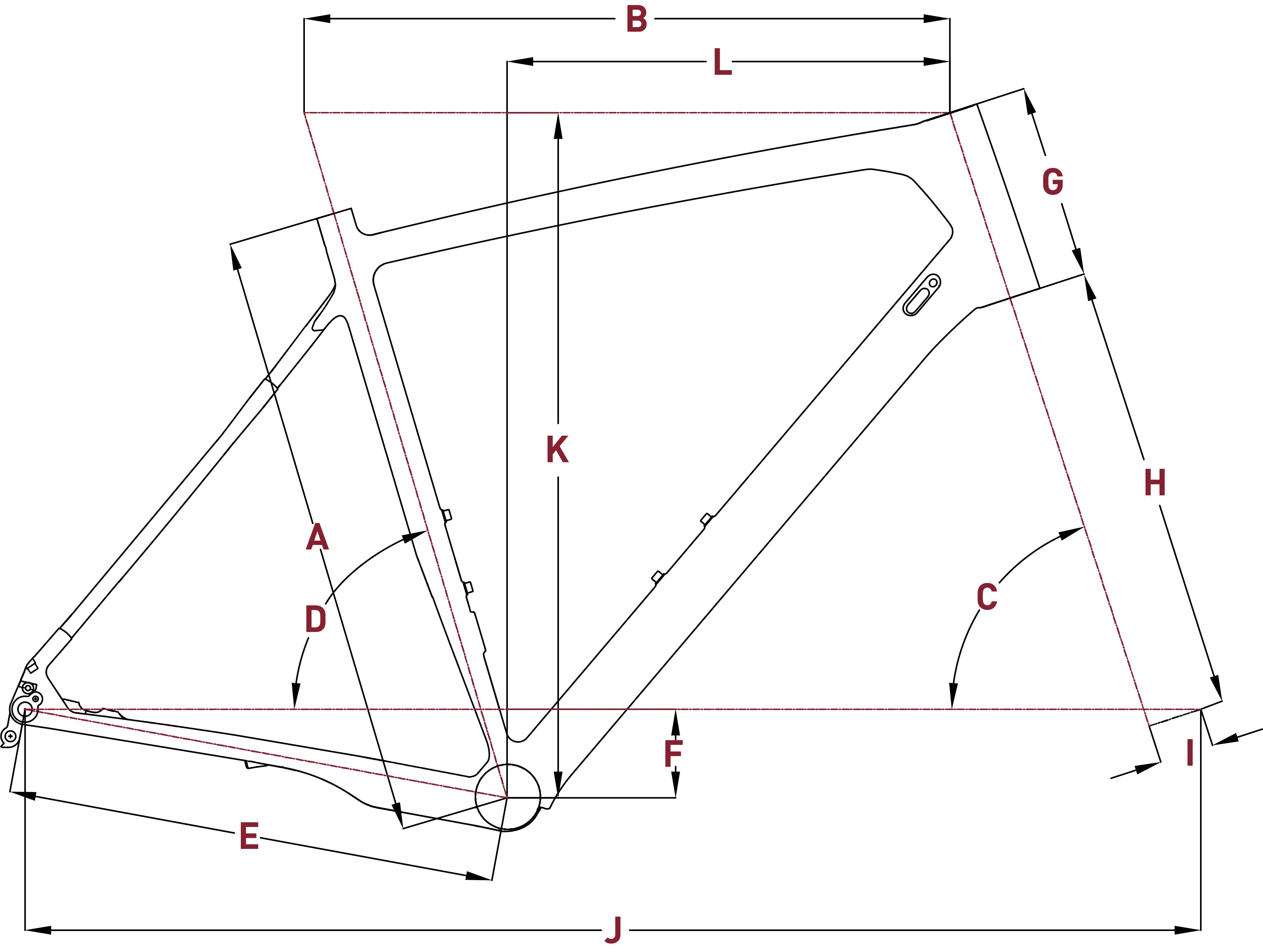

Geometry

XS S M L XL
Frame size cm 48 51 54 57 60
A Size (MM) 480 510 540 570 600
B Effective Top Tube (MM) 503 537 552 568.5 589
C Head Tube Angle (°) 71 72 72.5 73.5 73.5
D Effective Seat Tube Angle (°) 75.5 73.5 73.5 73.5 73.5
E Chainstay (MM) 408 408 408 408 408
F BB Drop (MM) 70 70 70 70 70
G Head Tube Length (MM) 115 130 145 165 185
H Fork Length (MM) 370 370 370 370 370
I Fork Offset (MM) 43 43 43 43 43
J Wheelbase (MM) 970 977 987 995 1015
K Stack (MM) 513 531 547 569 588
L Reach (MM) 370 380 390 400 415

Specification

Frame
Carbon SL, caliper, Pressfit 86 BB, 130 mm quick release dropouts, internal brake cable routing
Fork
Carbon, caliper, 100 mm quick release
Front derailleur
Shimano Sora R3000, w/clamp 31.8
Rear derailleur
Shimano Sora R3000, 9-speed, long cage
Sprocket description
Shimano Sora HG200, 11-34T
Chain description
Shimano HG53
Crankset description
Shimano Sora R3000, 50/34T
Handlebar
BBB Basic, Aluminium, drop: 125 mm, reach: 70mm
Stem
BBB Basic, aluminium, 31.8mm, +/- 7 degree
Saddle description
Prologo Kappa 3 STN Rail
Seatpost
BBB Basic, Aluminium, 27,2mm, 350mm, set-back 20mm
BrakeSystem
Shimano Sora R3000, caliper
Wheelset
Alex Rims ALX-210, quick release, aluminium, 100/130 mm, 20/24 spokes, 17 mm inner rim width
Tire Description
Continental Ultra Sport II, 700 x 25C
Brake levers
Shimano Sora R3000
Chain ring
2x
Shifting type
Mechanical shifting
Brake type
Caliper
